Compact DTH Blasthole Drilling Rig with 15kN Propulsion for Tough Terrains

US$ 15200.00 ~ 20000.00
Min.Order: 1
Product origin: Jining, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 2 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model : HW916
  • Power : 59KW
  • Drilling Diameter : 90-127mm
  • Maximum Torque : 1950Nm
  • Propulsion Force : 15kN
  • Lifting Force : 25kN
  • Rotation Speed : 0-105rpm
  • Walking Speed : 2.5km/h
  • Engine Type : Diesel (Yunchai)
  • Drilling Method : DTH (Down-The-Hole)
  • Dimensions : 5700×2130×2200mm
  • Weight : Standard configuration
  • Certification : CE, ISO 9001
  • Dust Control : Two-stage dry dust removal
  • Control System : Centralized hydraulic control
  • Stability System : Crawler-mounted base
  • Anti-jamming : Yes
  • Motor Configuration : Dual hydraulic rotary motors
  • Application : Mining, construction, water conservancy

The HW916 DTH drilling rig is engineered for demanding rock drilling applications in mining, construction, and water conservancy projects. This versatile equipment combines power and precision to handle various geological conditions with ease.

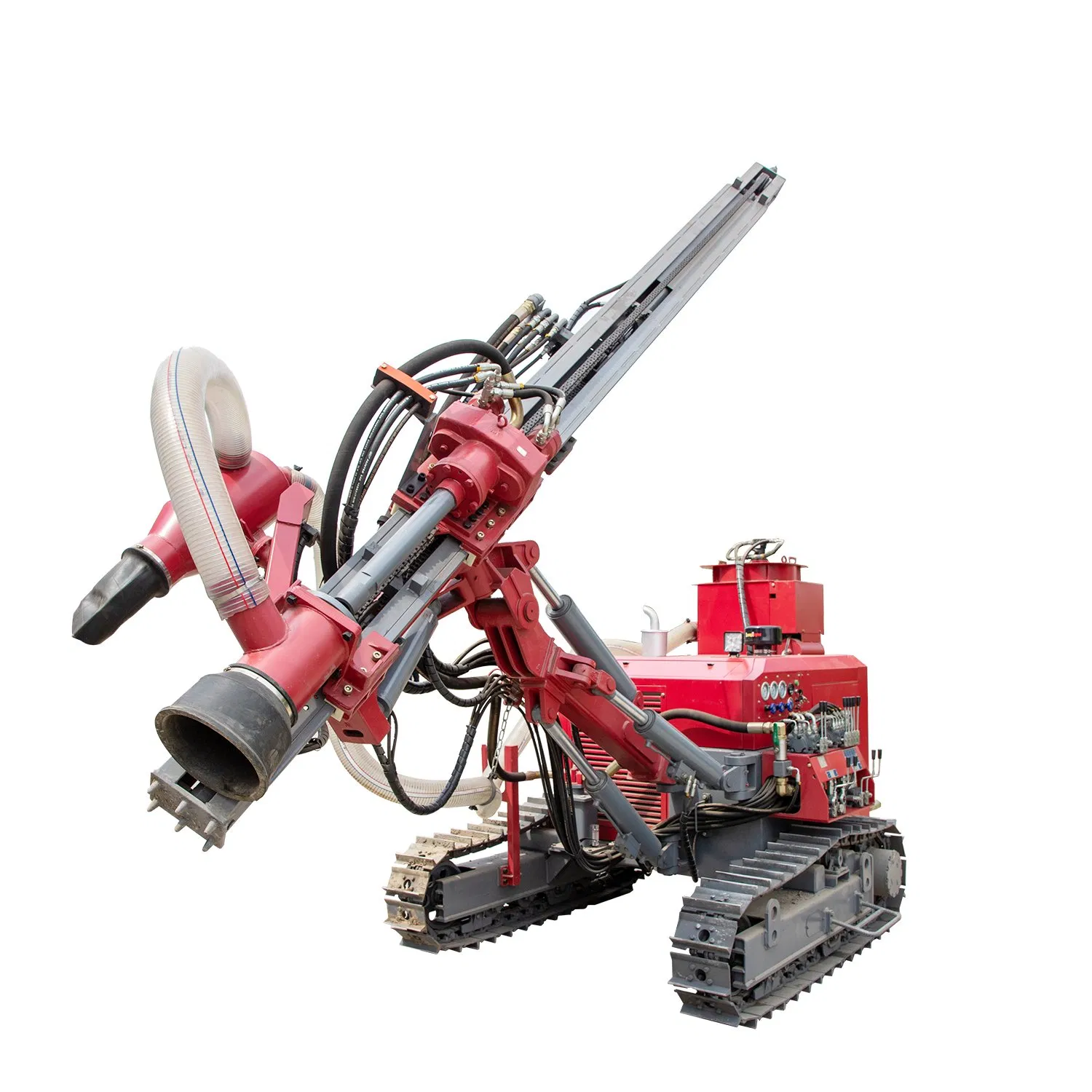

HW916 DTH Drilling Rig Front View

Key features include anti-jamming protection that prevents motor burnout and reducer damage during operation. The centralized control panel offers clear component layout for quick operation and improved work efficiency.

Drilling Rig Control Panel

With its compact structure and crawler base, the HW916 maintains stability while adapting to diverse working conditions. The two-stage dry dust removal system minimizes environmental impact during operation.

DTH Drill Rig in Operation

This drilling rig is particularly suitable for projects requiring medium-diameter blastholes in challenging terrains where traditional truck-mounted rigs may struggle. Its dual hydraulic rotary motors ensure fast drilling speeds without compromising on precision.

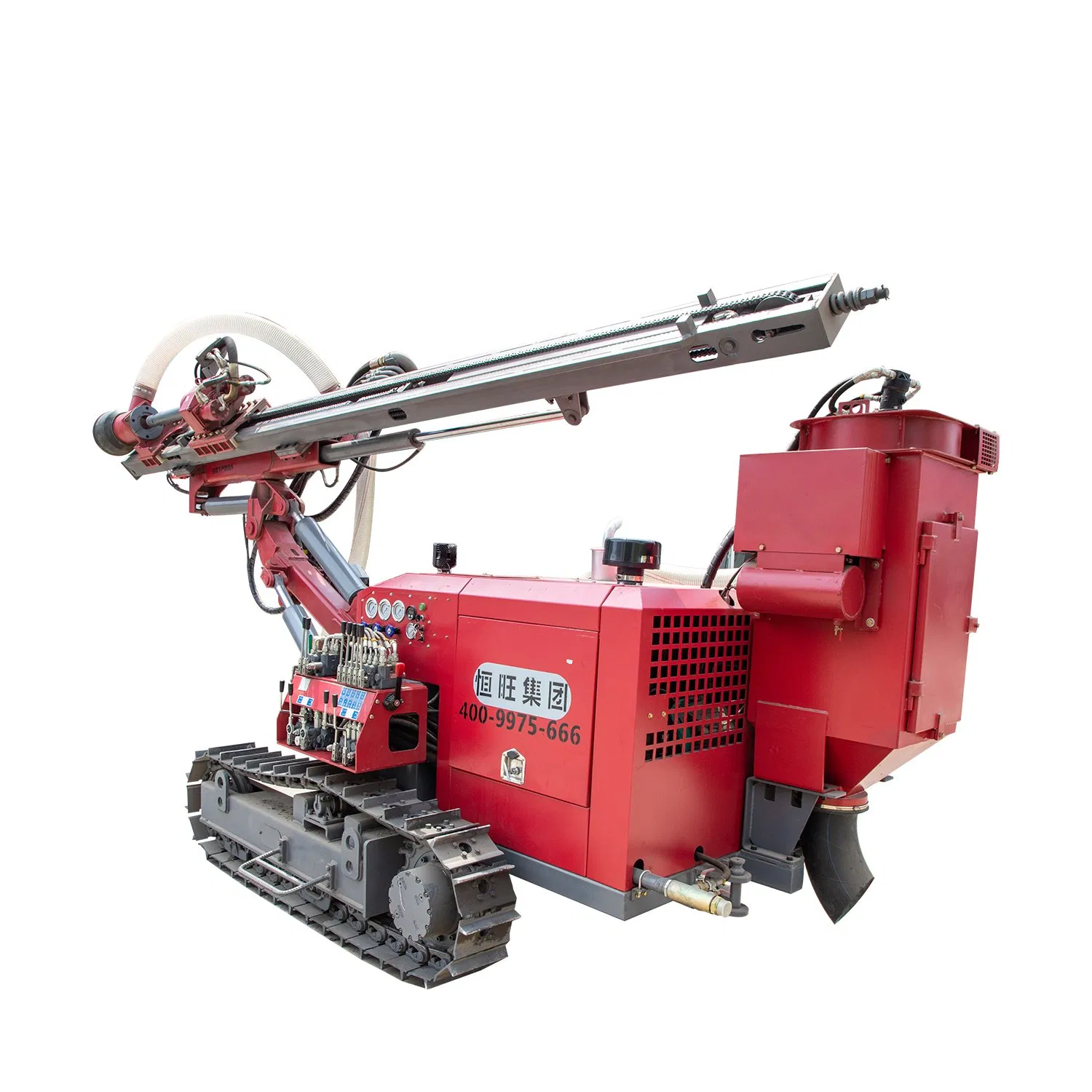

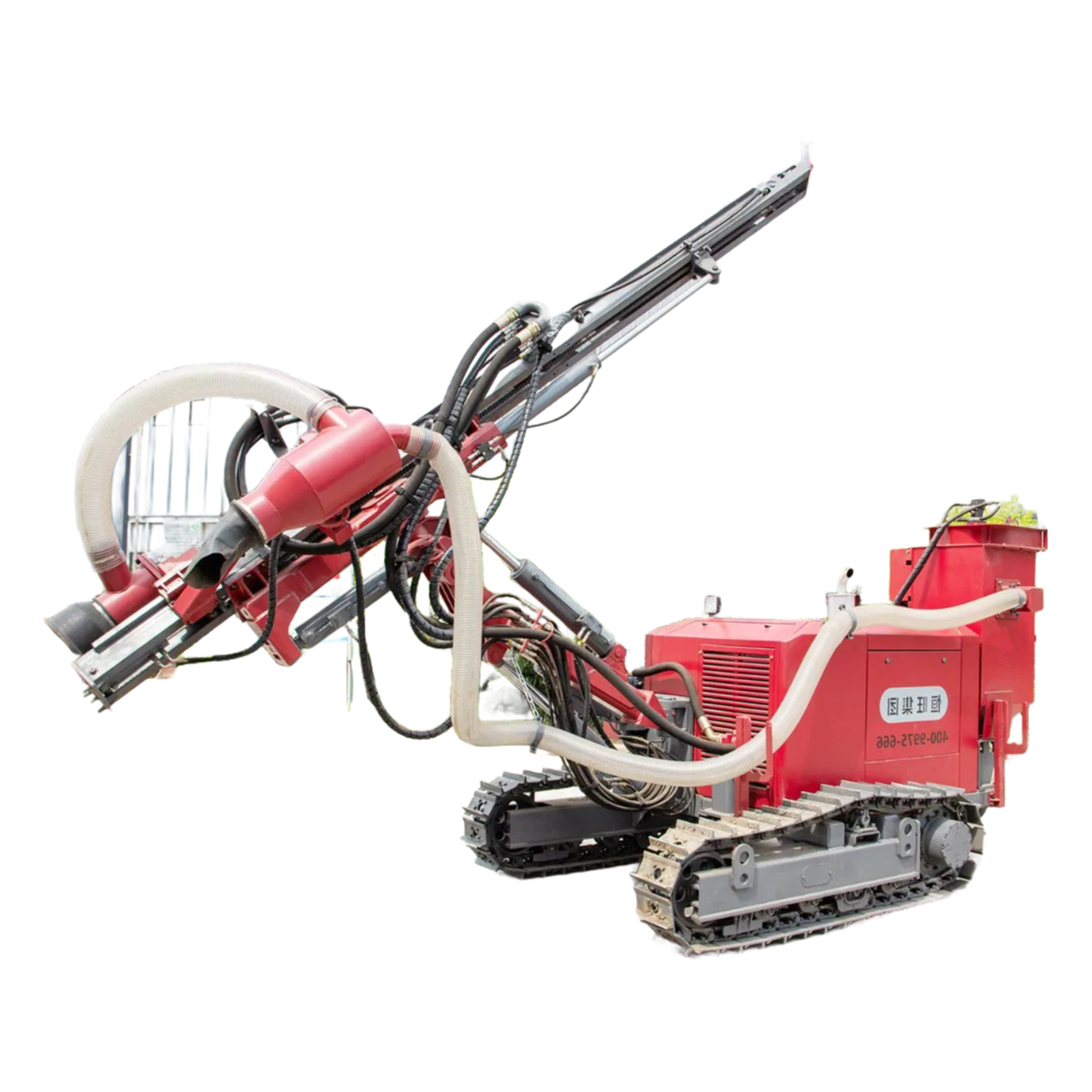

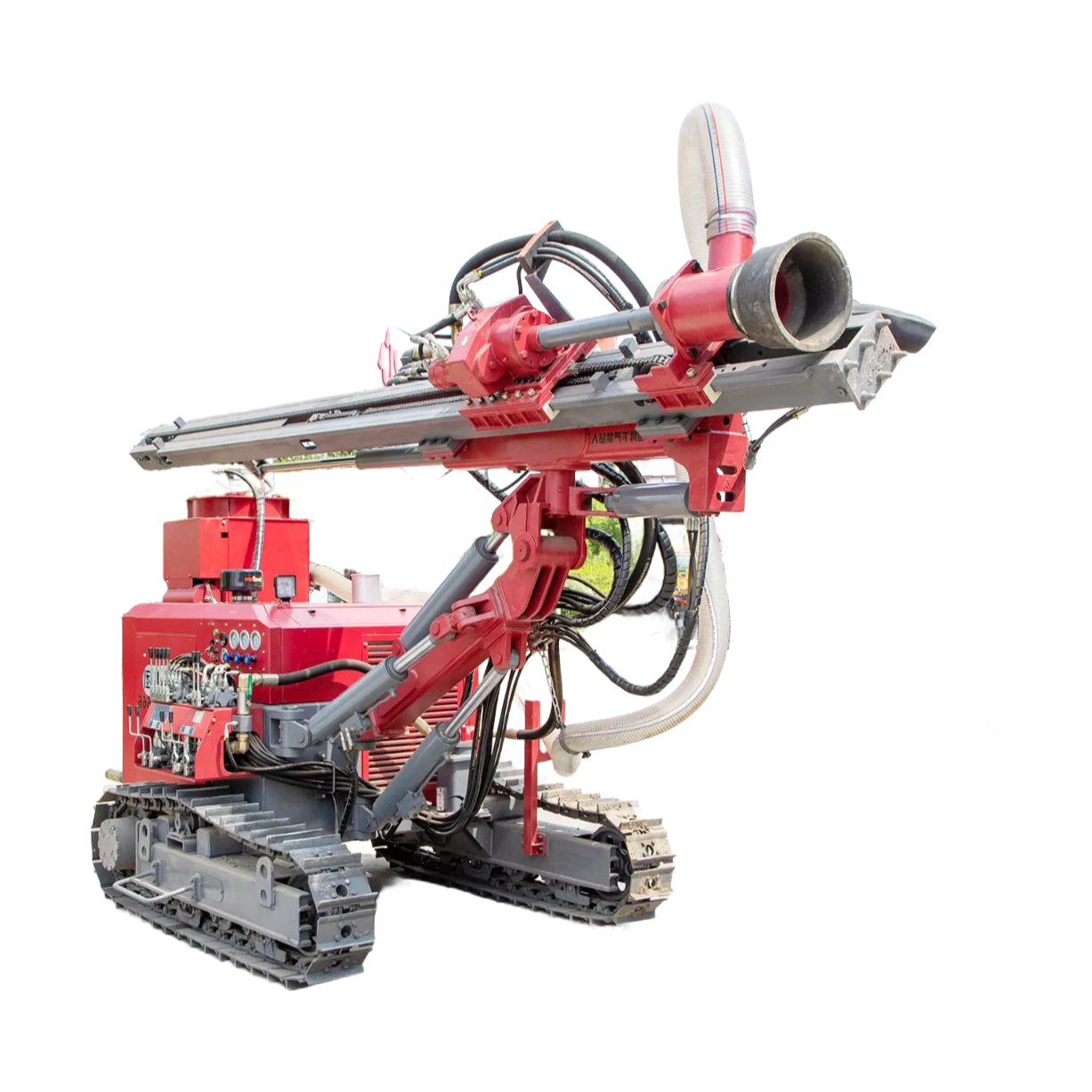

Drill Rig Side View

The HW916 represents an optimal balance between power and maneuverability, making it ideal for contractors who need reliable performance in various geological conditions while maintaining operational efficiency.

Drill Rig Working on Site
