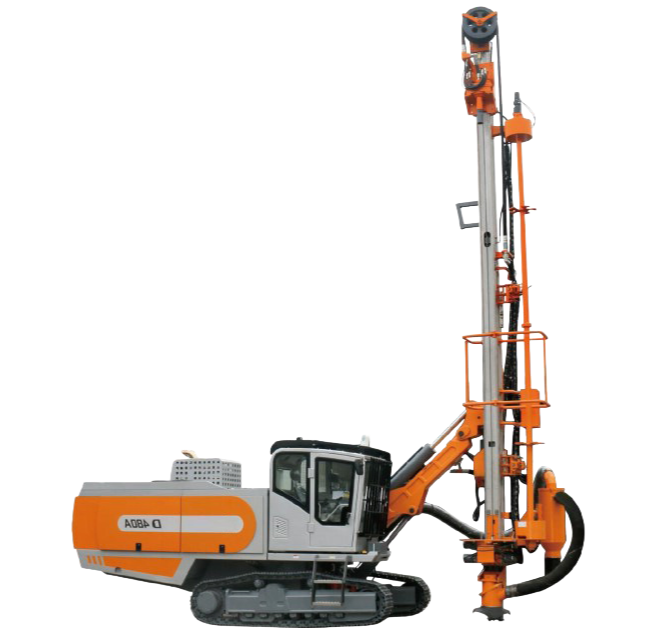

The D480A Surface Integrated Drill Rig represents advanced drilling technology for surface mining applications. This integrated system combines powerful drilling capabilities with efficient operation through its innovative design.
Featuring a robust hydraulic system driven by a single power pack, the D480A offers significant advantages over traditional separated drill rigs. The integrated design reduces energy consumption by 35% and lowers maintenance costs by 50%, providing substantial operational savings.
The drill rig's high-torque rotary motor delivers 5,600 N.m of maximum torque with rotation speeds adjustable from 0-80 RPM. This powerful performance ensures smooth operation even when dealing with challenging geological conditions or potential drill tool jamming.
Environmental considerations are addressed through the two-stage dry dust collecting system, which improves air quality at the worksite while maintaining high production efficiency. The rig eliminates the need for separate air compressors, simplifying operations and reducing equipment requirements.
The D480A's heavy-duty design includes a track frame with oscillation cylinders, providing excellent mobility with a maximum tramming speed of 3 km/h and traction force of 156.2 kN. The 420mm ground clearance and ±10° oscillation angle enable operation on rough terrain with slopes up to 25°.
With drill pipe handling capacity for 4+1 pipes and options for various pipe diameters (102mm, 114mm, or 127mm) and lengths (5m, 6m, or 7m), the D480A offers flexibility for different drilling requirements. The automatic handling system supports drilling depths up to 35 meters.
Certified with CE, ISO 9001, TUV, and SGS standards, the D480A Surface Integrated Drill Rig meets international quality and safety requirements. The rig comes with comprehensive warranty coverage of up to 18 months or 3,000 operating hours.
