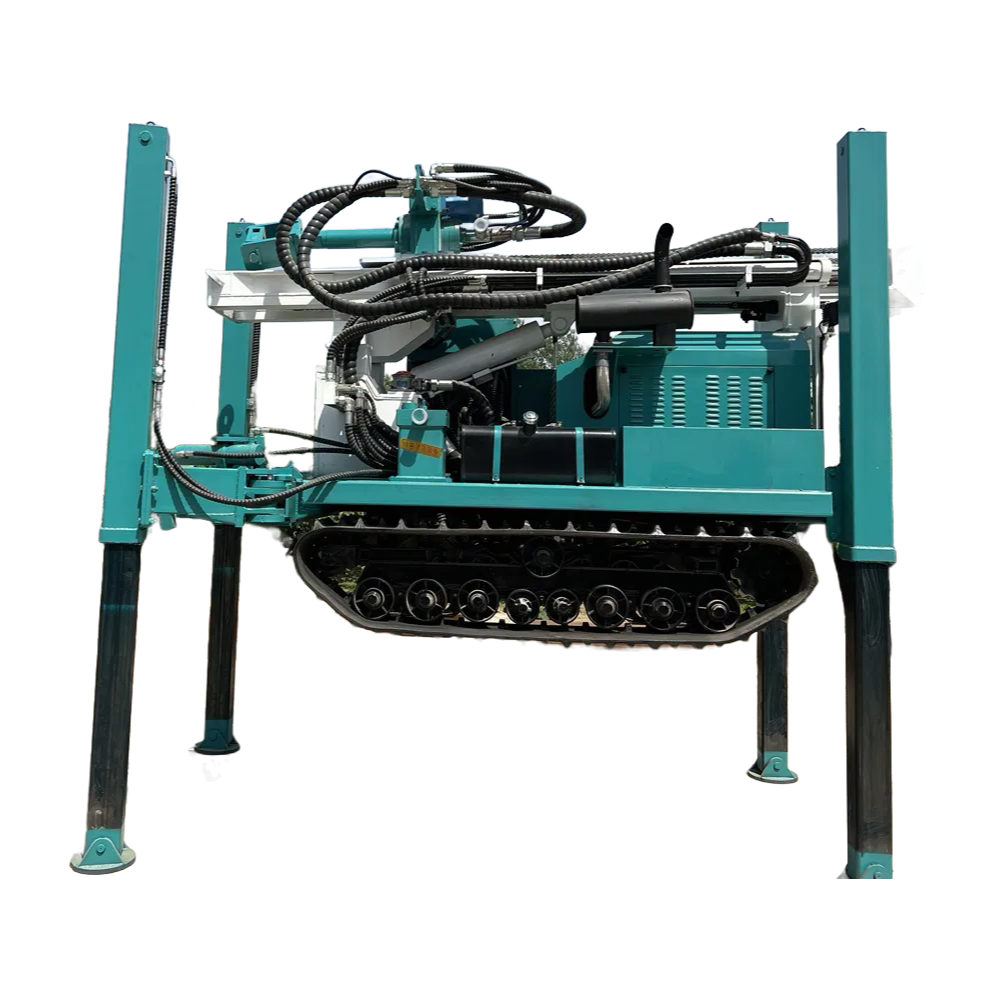

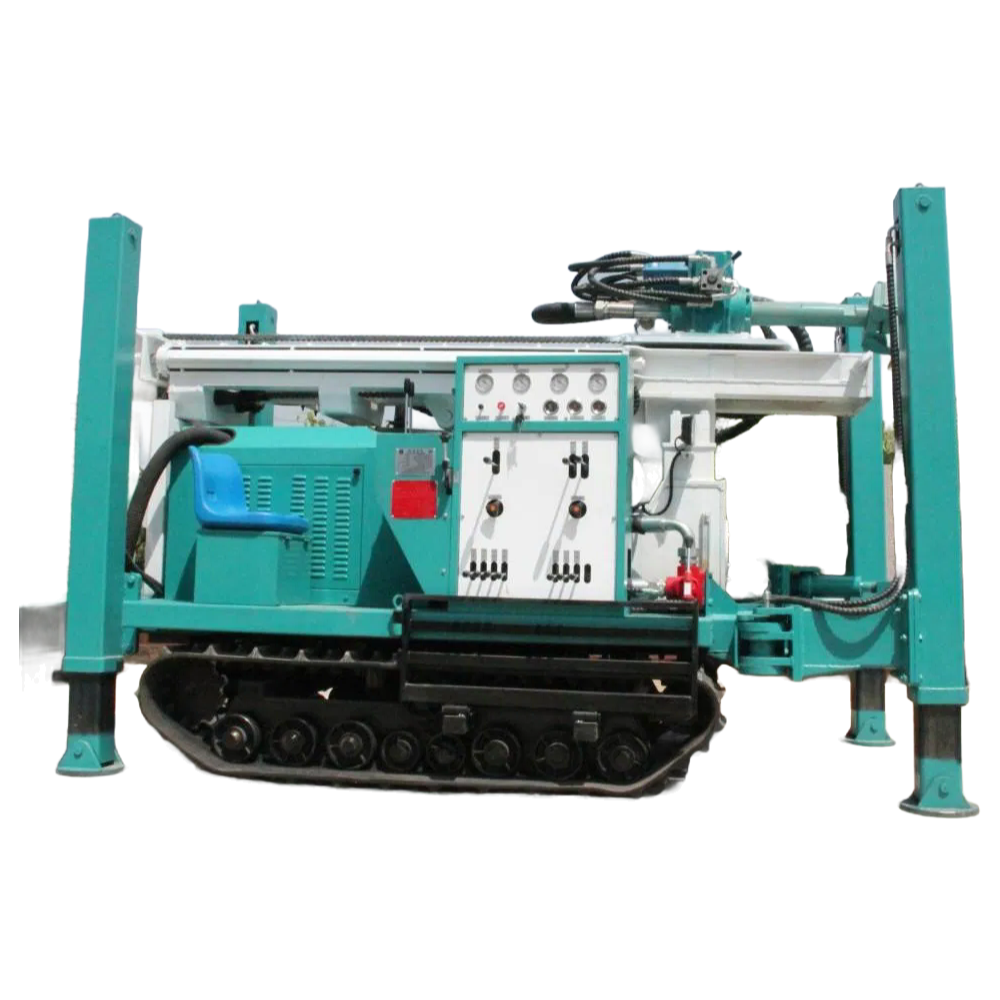

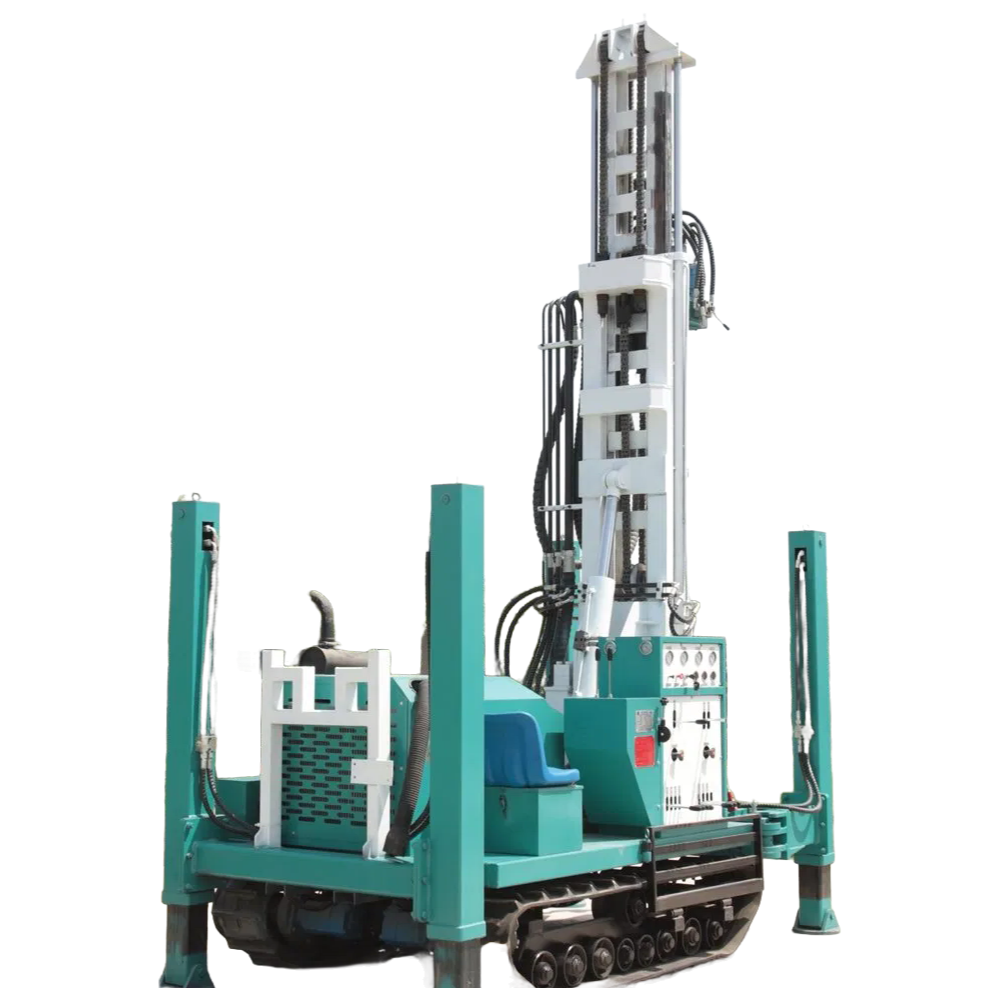

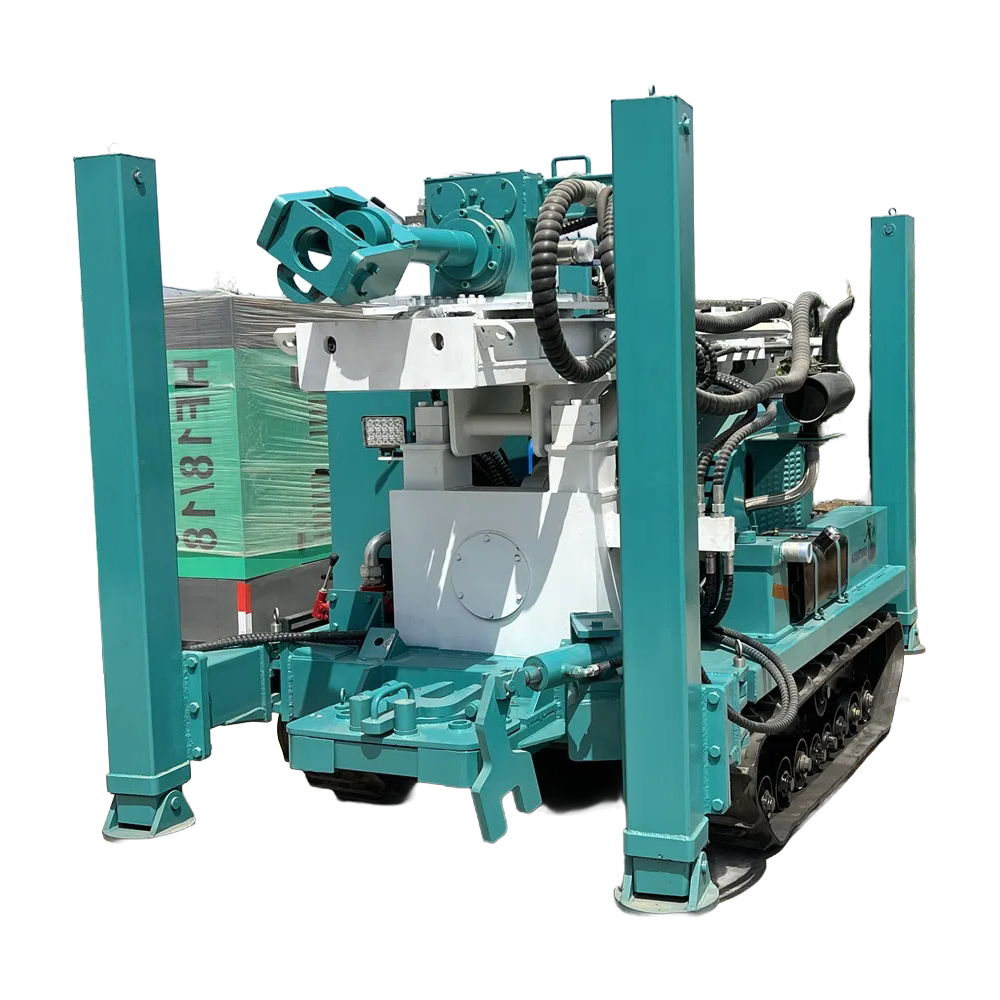

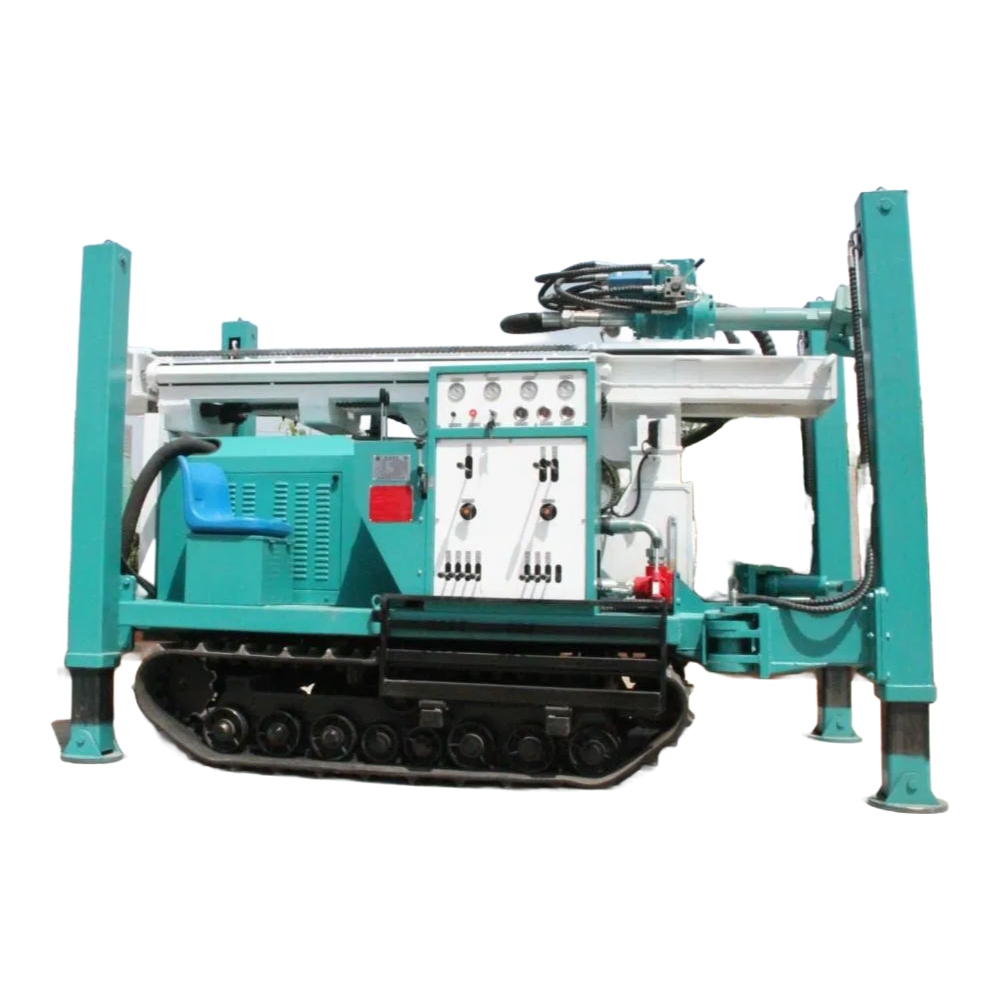

A contractor needs to punch a 300-meter water well through mixed ground, and this rig handles that with a 360-meter depth capasity and a hole diameter range stretching from 105 to 325mm, so it covers both residential wells and larger commerical bores without breaking a sweat.
The 93kw power plant drives a crawler undercarriage that moves at 3.5 km/h and climbs up to 30-degree slopes, which means you can reposition on uneven terrain without needing a separate transport vehicle.
Air consumption runs between 16 and 55 cubic meters per minute at pressures from 1.05 to 3.45 MPa, and the rotation torque sits between 6500 and 8500 Nm at 60 to 100 rpm—personally, I think the torque range is what really sells it for harder rock formations.
Axle pressrue is 4 tons, lifting force hits 20 tons at a speed of 3 meters per minute, and the drill rod lengths come in 3, 4.5, or 6 meters with diameters of 89 or 102mm—you can mix and match rod lengths base on your site conditions.
optional mud pump flows at 20 liters per minute, the hydraulic leg stroke is 1.5 meters, and the whole machine weighs 8.5 tons with dimensoins of 4800 by 2000 by 2450mm, so it fits on a standard flatbed truck for transport.
It carries CE, RoHS, and ISO 9001 certifications, comes with a one-year warranty, and after-sales support includes online assistance plus field maintenance visits—ordering typically requires a deposit and lead time, so check stock availability directly.
We typically require an MOQ of 1 unit for the HFJ360A, but if you're ordering multiple units or need a trial, we can discuss flexibility on a case-by-case basis.
Standard lead time is around 30-45 days, depending on current production load and whether you need optional add-ons like the mud pump.
Yes, we supply all three certifications—CE, RoHS, and ISO 9001—with the HFJ360A. They're included in the shipping package.
You can use 3m, 4.5m, or 6m rods with this rig—it's compatible with all three lengths. Just specify which rod diameter (89mm or 102mm) you need when ordering.
The rig is shipped on a steel pallet or flat rack, wrapped in waterproof film. Store it indoors or under cover, away from extreme moisture, and it's good to go.
