Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification
Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification
Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification
Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification
Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification

Factory Direct Supply HF158Y Open-Air DTH Drill Rig with CE/ISO Certification

US$ 45000.00 ~ 50000.00
Min.Order: 1
Product origin: Zhengzhou, Henan, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 31 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : HF158Y
  • Drilling Method : Down-The-Hole (DTH)
  • Hole Diameter : 80-300mm
  • Maximum Drilling Depth : 100m
  • Rotation Speed : 150 RPM
  • Rotary Torque : 4400 N.m
  • Mast Compensation : 1200mm
  • Propel Speed : 0.6 m/s
  • Maximum Propel Force : 30 kN
  • Maximum Pullback Force : 65 kN
  • Travel Speed : 0-4 km/h
  • Chassis Floating Angle : 12°
  • Ground Clearance : 310mm
  • Gradeability : 35°
  • Power Source : Yuchai Diesel Engine
  • Transport Dimensions : 6450×2280×2650mm
  • Weight (without dust collector) : 7200 kg
  • Certifications : CE, RoHS, ISO 9001
  • Warranty : 1 Year
  • Optional Configurations : Rock drifter or top hammer drilling

The HF158Y high air pressure crawler open-air DTH Drill Rig is engineered for superior performance in demanding drilling applications. This robust machine combines hydraulic efficiency with pneumatic hammer technology to deliver optimal drilling results while minimizing energy consumption.

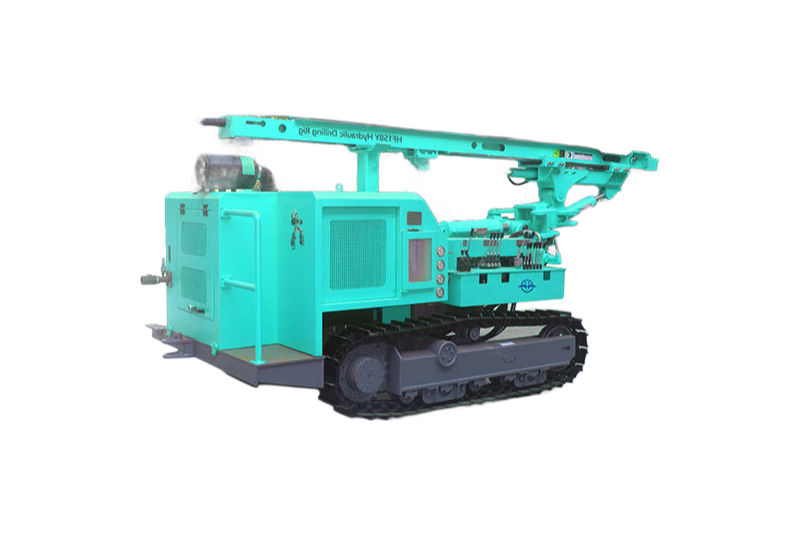

HF158Y DTH Drill Rig Front View

Featuring a powerful rotary power head, the HF158Y maintains consistent torque output during blasting hole drilling operations. The crawler chassis provides exceptional mobility with a 35° climbing ability, making it suitable for rugged terrain operations in mining, anchoring, and construction projects.

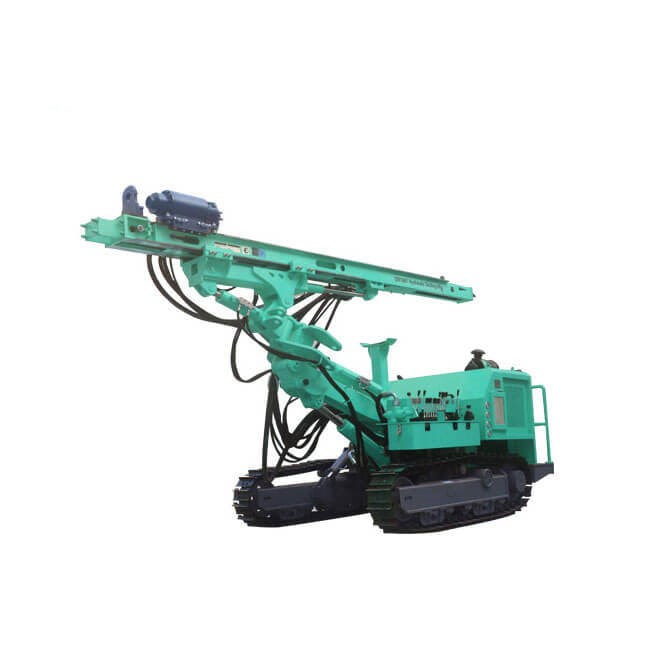

HF158Y DTH Drill Rig Side View

The innovative design separates the hydraulic system from the pneumatic hammer operation, significantly reducing air compressor requirements and operational costs. With mast compensation of 1200mm and once promotion of 3500mm, the rig offers excellent drilling stability and feed capacity.

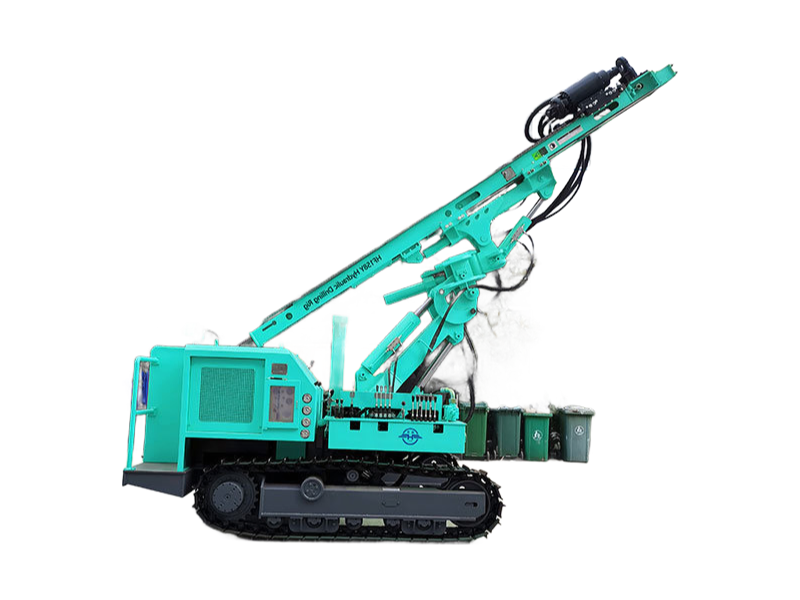

HF158Y DTH Drill Rig Operation View

Key advantages include high drilling efficiency, simplified maintenance procedures, and reliable performance in various geological conditions. The rig is particularly effective for applications in mining exploration, road building, water conservancy projects, and power station construction.

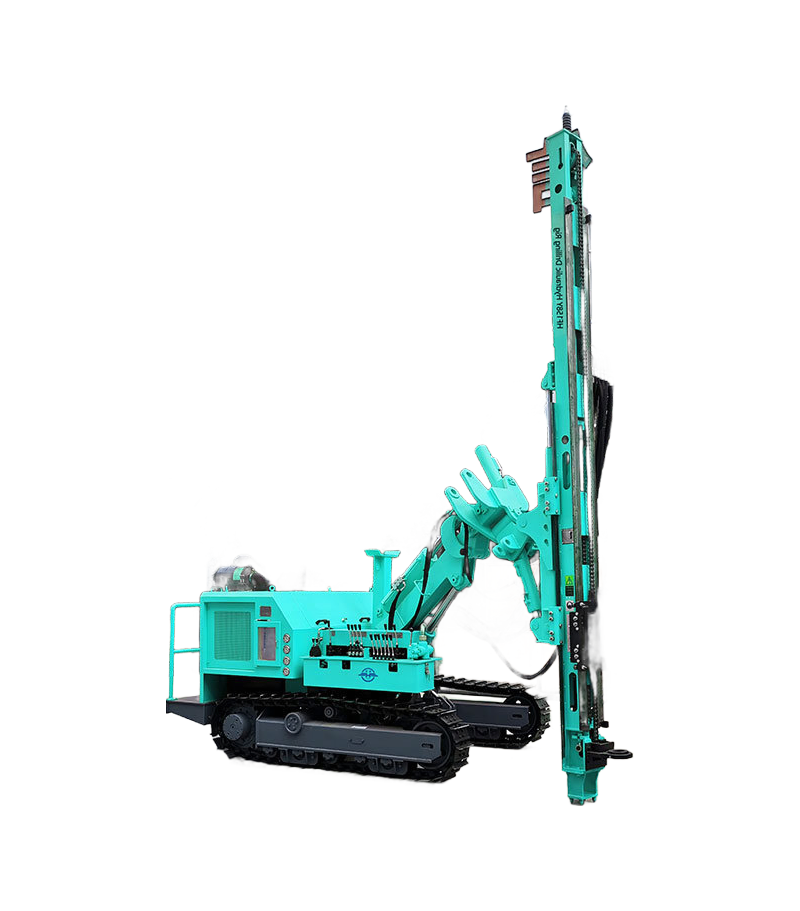

HF158Y DTH Drill Rig Detail View

The HF158Y can be optionally configured for rock drifter or top hammer drilling applications with additional modifications, providing flexibility for specialized drilling requirements.

HF158Y DTH Drill Rig Transport View
