GKL200 Hydraulic Crawler Water Well Drilling Rig for Deep Hole Construction 200m Depth GKL200 Hydraulic Crawler Water Well Drilling Rig for Deep Hole Construction 200m Depth
GKL200 Hydraulic Crawler Water Well Drilling Rig for Deep Hole Construction 200m Depth GKL200 Hydraulic Crawler Water Well Drilling Rig for Deep Hole Construction 200m Depth

GKL200 Hydraulic Crawler Water Well Drilling Rig for Deep Hole Construction 200m Depth

US$ 14000.00 ~ 11600.00
Min.Order: 1
Product origin: Linyi, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 43 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : GKL200
  • Drilling Depth : 200m
  • Hole Diameter Range : 138-219mm
  • Engine Power : 65kw
  • Rotation Torque : 3500-4500Nm
  • Rotation Speed : 35-70 RPM
  • Lifting Capacity : 13 Tons
  • Drill Pipe Diameter : φ76/φ89mm
  • Air Consumption : 18-30 m³/min
  • Working Pressure : 1.8-2.5 MPa
  • Gradeability : 30°
  • Overall Dimensions : 3500×1600×2200mm
  • Weight : 5 Tons
  • Drilling Methods : Rotary, DTH Hammer
  • Certifications : CE, ISO 9001
  • Warranty : 1 Year

The GKL200 crawler water well drilling rig represents cutting-edge engineering in deep hole drilling technology. This fully hydraulic system combines high torque output with exceptional drilling efficiency, making it suitable for diverse geological conditions and multiple applications.

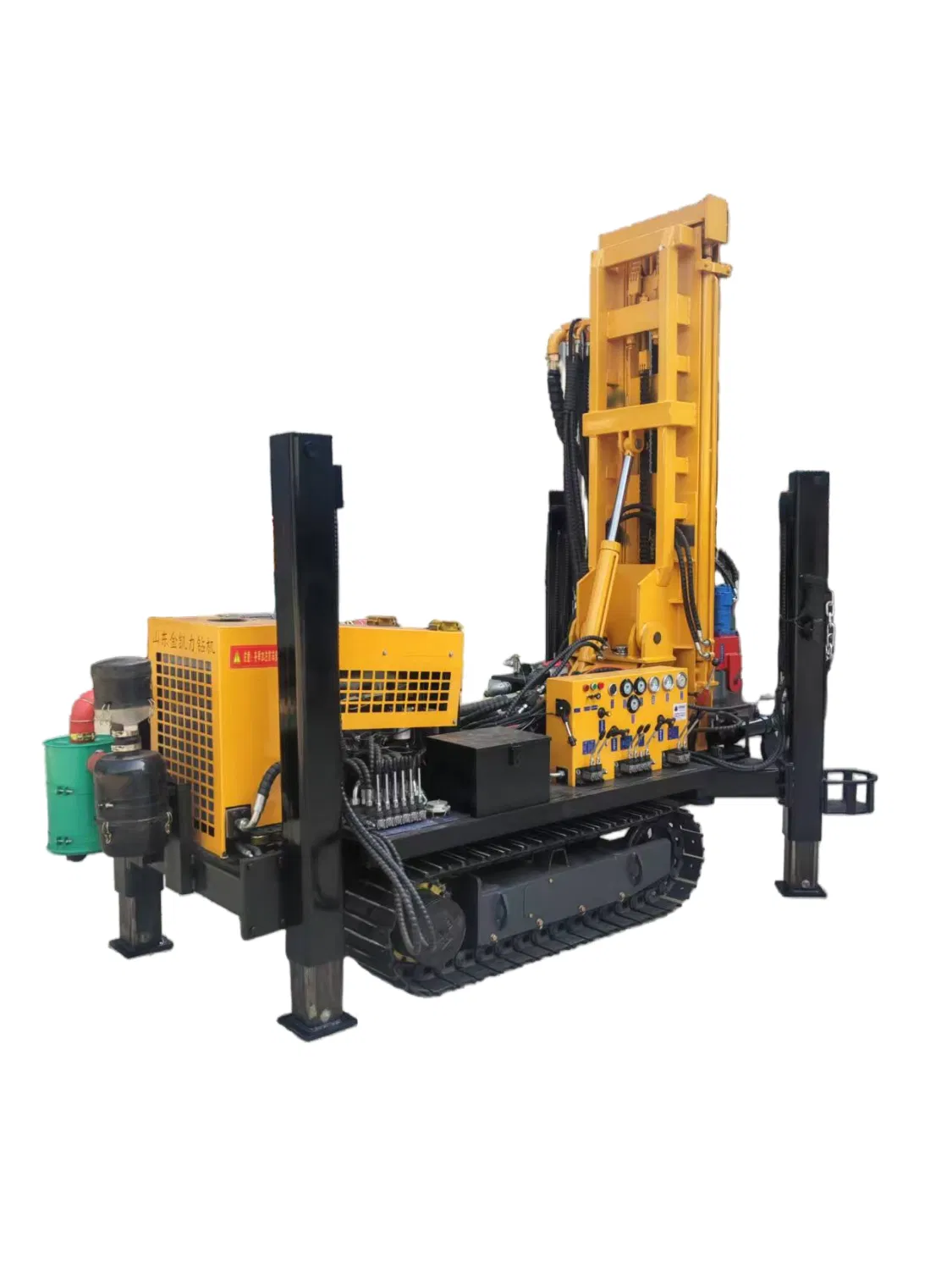

GKL200 Crawler Drilling Rig

Engineered for professional water well construction, the rig features a powerful 65kw diesel engine that drives a high-pressure triple pump system. The rotary head offers two-speed operation (45-140rpm) with stepless adjustment capability, delivering substantial rotation torque of 3500-4500Nm for demanding drilling conditions.

The GKL200 supports multiple drilling methods including rotary drilling with mud circulation and air hammer drilling. When working with tough rock formations, its air hammer system demonstrates remarkable efficiency - up to ten times faster than conventional rotary methods.

GKL200 Drilling Rig Operation

Key features include hydraulic main drive, four adjustable landing legs, and fully hydraulic-controlled mast. The centralized console provides intuitive operation while reducing setup time, and the optional generator support enables continuous nighttime operations.

Designed for both mobility and stability, the crawler-mounted chassis offers 2.5km/h travel speed and 30° gradeability. The rig's compact dimensions (3500×1600×2200mm) and 5-ton weight make it suitable for various job sites while maintaining robust drilling capabilities.
