You load it up with surgical instruments, rubber tubing, or liquid media—close the single door, set the program, and the chamber does the rest with pulse vacuum cycles that pull air out before steam hits the load. It'll autoclave everything from a lab's glassware to sterile wraps for the hospital's supply center, and the touch panel walks you through the cycle without needing a manual open on the bench.
Working pressure sits at 0.23 MPa and you can dial in sterilization temps between 105 and 138°C, which covers most protocols for pharmaceutical lines or biology labs. The design temp goes to 144°C, so it's got some headroom, and the 35L model handles smaller runs while the 100L scales up for busier days—chamber volume options are 35, 50, 80, or 100 liters depending on what you're processing. It's not meant for heavy continuous duty in a production setting, but for batch work it holds up fine because the body is AISI316L or 304 stainless, your choice when ordering.

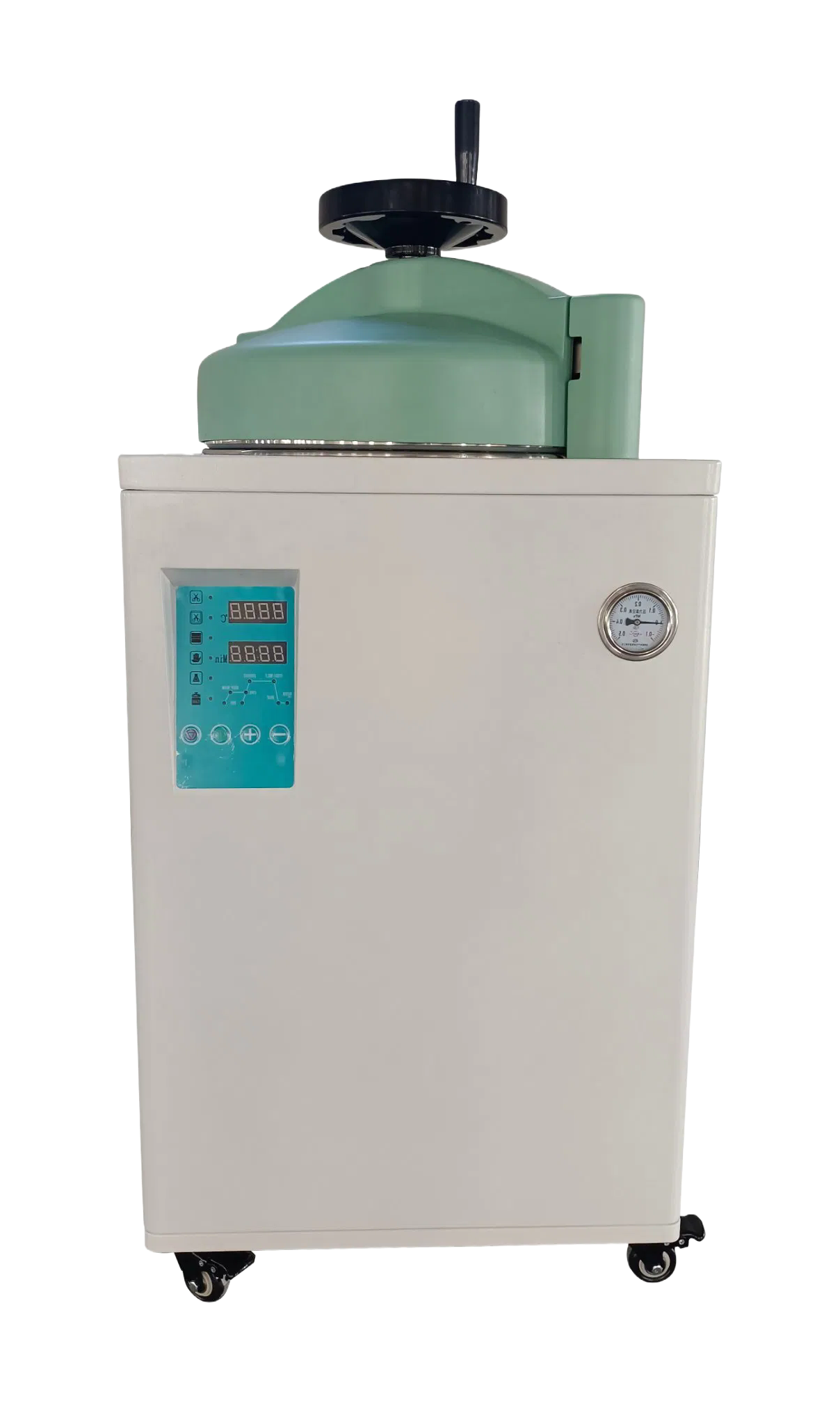

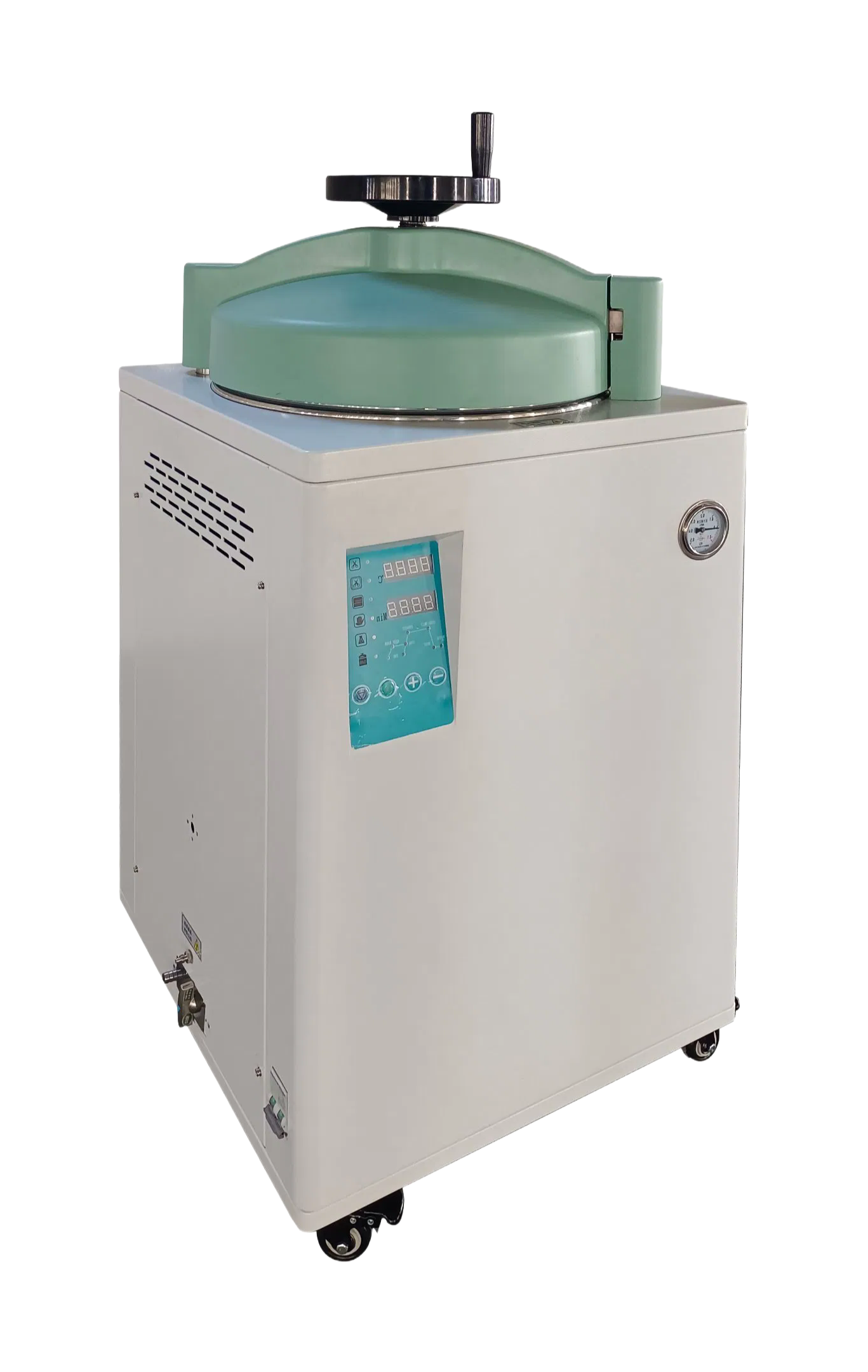

Basically, this is a vertical sterilizer with an LED display and automatic program control, so you set it once and it runs the pulse vacuum, dwell, and exhaust without babysitting. Over-temp protection and anti-dry burning are built in, plus a door interlock that won't let you open it while pressurized—which is good because people forget. The power supply is either 220V or 380V, 50Hz, and you'll need to specify which when ordering.
It ships with a CE and ISO13485 certifcation, and we include a COA with each unit—though lead time can vary, usually 4-6 weeks depending on the chamber size you pick and whether our company have stainlss option in stock. The 35L and 50L models move faster than the 80L or 100L, so if you need one quick, go with the smaller volume.
Also, the retest policy means if something looks off during initial run, we'll take it back and swap it—no hassle on your end. Just keep in mind it's not ideal for high-throughput production lines; that's more for a pass-through double-door unit. This one's a solid workhorse for labs and hospitals where batches are frequent but not nonstop.
Anyway, the MOQ is one unit, and our company can do custom votage if you're outside teh standerd 220 or 380, but that adds a few weeks typically. The 100L is roughly 85 kilos, so plan for a cart or two people to move it into place once it arrives.
The sterilization temperature range is 105-138°C, with a working pressure of 0.23 MPa and a design pressure of -0.1/0.3 MPa. The design temperature maxes out at 144°C, so you've got solid margins for safety.
Yes, both AISI316L and AISI304 are optional materials for the chamber. Just let us know which one you prefer when placing your order.
It's certified with CE, EEC, and ISO13485, so you can count on it meeting medical device quality and safety standards for sterilization.
We usually don't have a strict MOQ, so even a single unit is fine. Lead time is typically 15-30 working days, depending on the volume and customization.
Yes, it comes with a pulse vacuum function that removes air more effectively before sterilization. This gives you better steam penetration and more reliable results, especially for porous loads.
