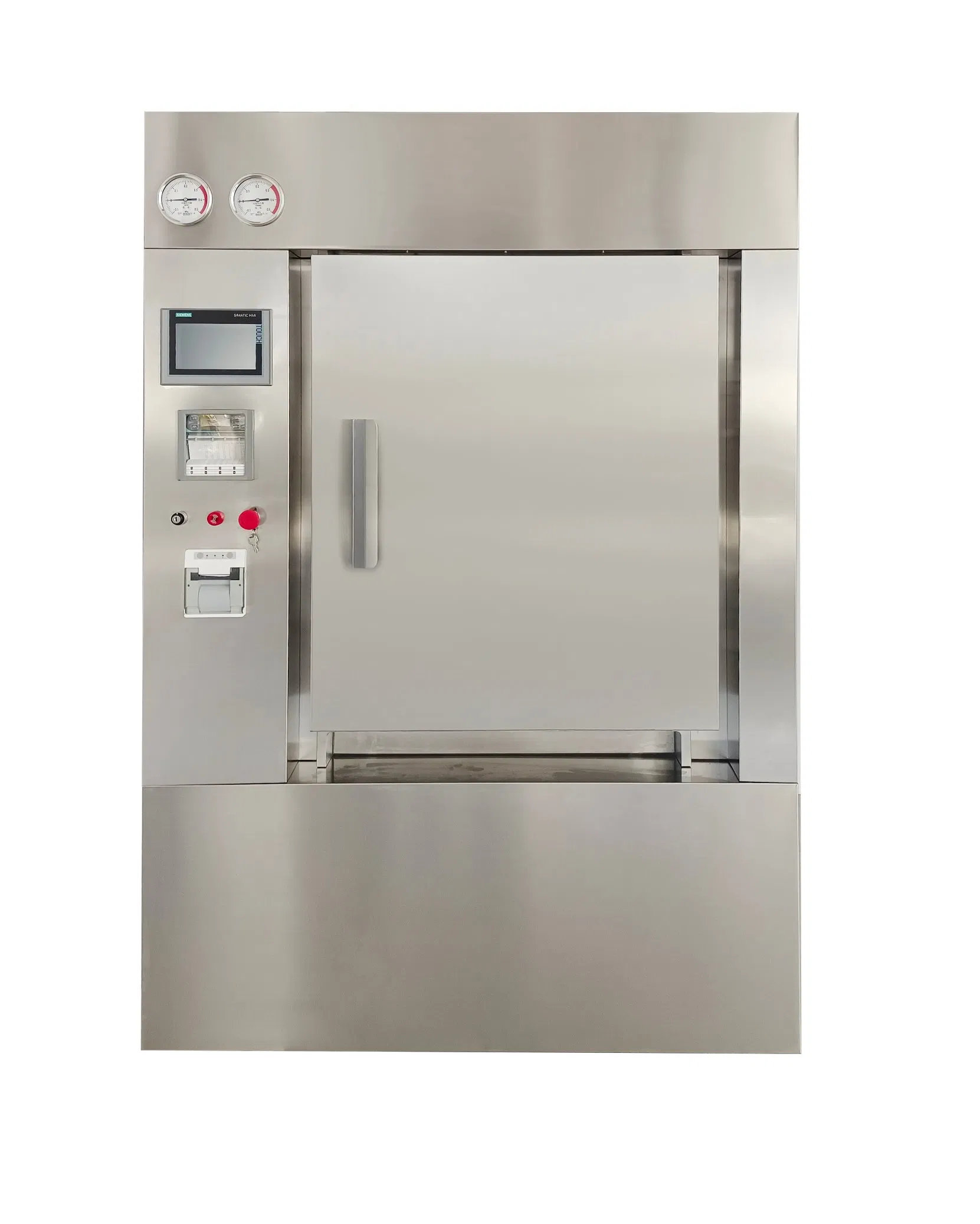

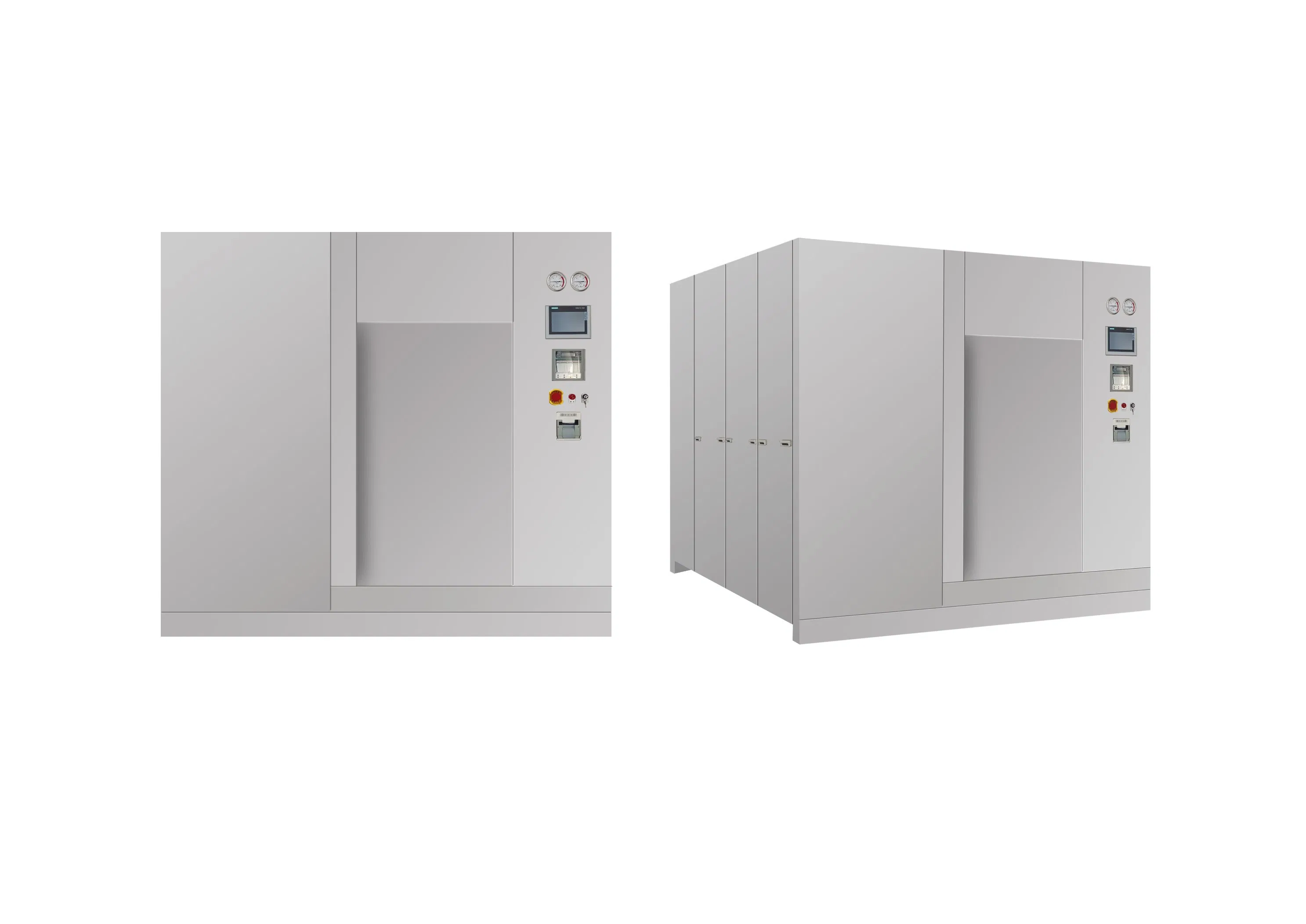

Factory Supply Horizontal Sliding Door Pulse Vacuum Steam Sterilizer MDH Series

Runs a full sterilization cycle using saturated steam under pressure—pulls a vacuum first to purge air pockets, then pulses steam in and out to get into every crevice of a load, which is basically how you kill anything living on surgical instruments or lab glassware without leaving cold spots.

Chamber volume runs from 250 liters up to 4000 liters, so you're looking at anything form a small hospital ward unit to a full production floor setup, and working presure sits at 0.25 MPa with a design range of -0.1 to 0.3 MPa—the sterilization temperature band is 105 to 136°C, which covers most standard cycles.

We ship these with CE, EEC, and ISO13485 certs already in place, so for EU or UK buyers the import paperwork is pretty straightforward—just have your local notified body confirm the techncial file matches your installation, and we'll provide the COA and declaration of conformity with the crate.

It's not really suited for high-throughput continuous processing of liquids in bags, because the pulse-vacuum cycles can cause boil-over if you don't adjust the ramp rates—most buyers go with the hinged door for labs or the horizontal sliding door for cleanroom corridors where floor space is tight.

Lead time is usually 8 to 12 weeks depending on the chamber size and whether you need the built-in steam generator or you're tying into an external source, and the power supply is 380V three-phase—confirm your voltge tolerance before ordering because we've had a few shipments bounce back on that detail.

Also, the LCD touch screen runs a pretty basic menu system, so you don't need a dedicated operator to babysit it—just load, select the cycle (gravity, pre-vacuum, or pulse-vacuum), and let it run.
