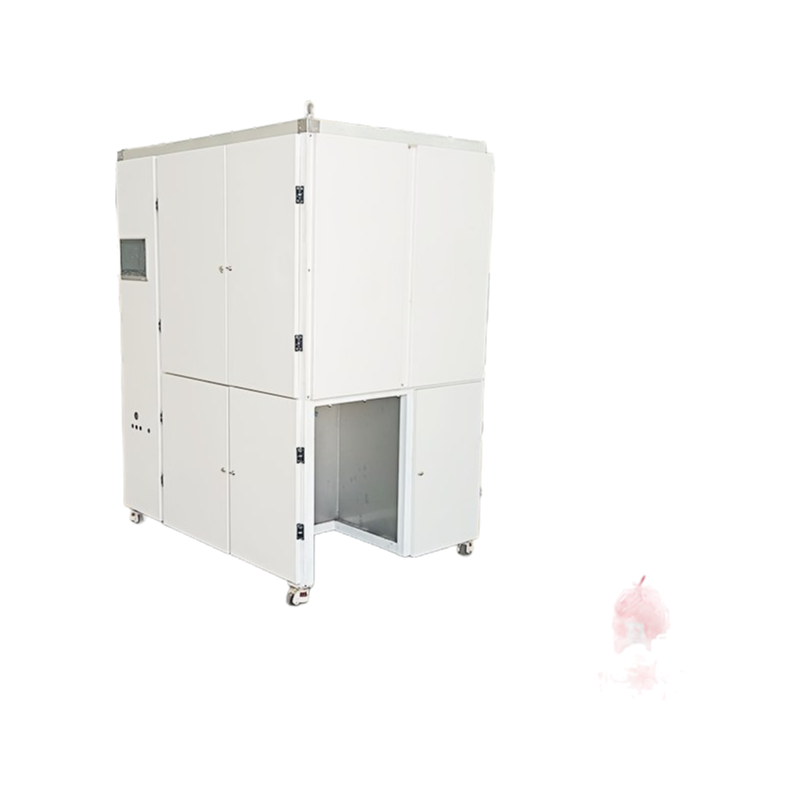

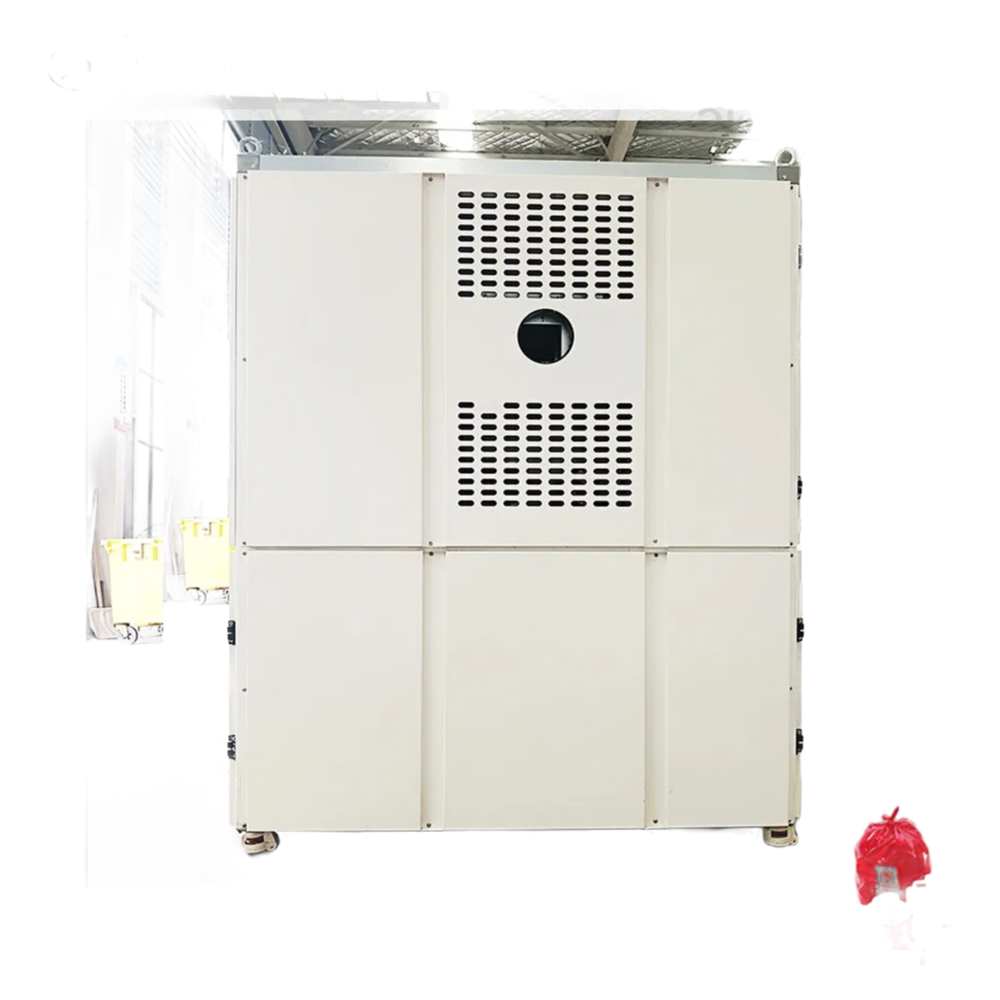

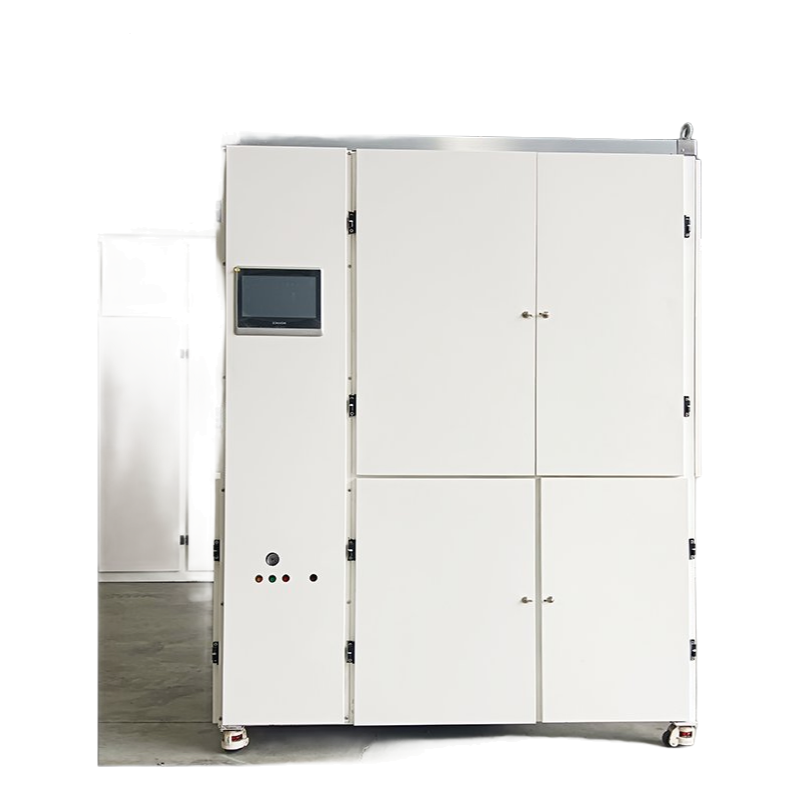

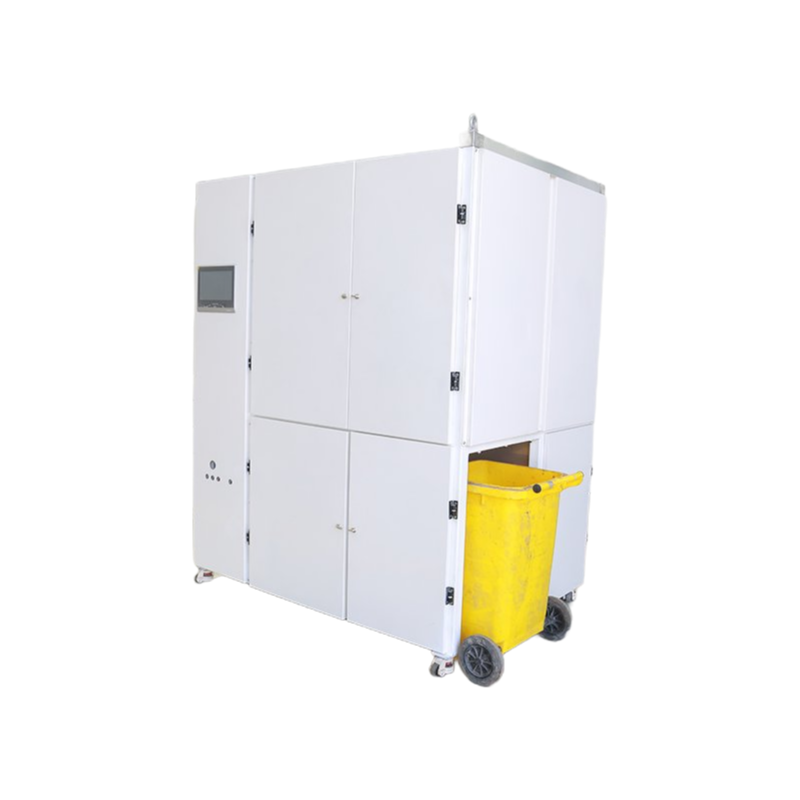

Semi-Automatic Medical Waste Microwave Sterilizer with PLC Control and 6 Log 10 Disinfection Effect

The medical waste microwave disinfection equipment utilizes advanced microwave technology combined with high-pressure steam to effectively sterilize various types of medical refuse. This system ensures complete destruction of pathogens while maintaining environmental safety standards.

Operating on the principle of microwave thermal effects and non-thermal microbial destruction, the equipment achieves thorough sterilization through a carefully controlled process. The disinfection chamber reaches temperatures above 135°C and maintains pressure levels exceeding 0.33MPa, ensuring complete pathogen elimination within a 30-minute cycle.

The treatment process begins with loading medical waste into the material box within the disinfection chamber. Through PLC control panel operation, the system automatically seals and initiates the disinfection cycle. The microwave disinfection phase activates, bringing the chamber to required temperature and pressure conditions. After maintaining these parameters for the specified duration, the system automatically depressurizes and cools down.

Following disinfection, the treated waste undergoes shredding to render it unrecognizable and safe for disposal. The shredded material automatically transfers to clean collection containers, completing the treatment process. The system's design allows for continuous operation, with the disinfection chamber preparing for the next cycle while shredding occurs.

This equipment demonstrates significant advantages in disinfection efficiency, operational safety, and environmental protection. The combination of microwave technology and high-pressure steam ensures reliable sterilization while the exhaust gas treatment system, featuring high-efficiency and activated carbon filters, maintains zero emissions. The 304 stainless steel construction provides durability and corrosion resistance for long-term operation.

The system finds application across various healthcare settings, effectively treating infectious waste, sharps, pathological specimens, and other medical refuse. Its compact design and semi-automatic operation make it suitable for installation in multiple healthcare facilities, providing on-site medical waste treatment solutions.
