We keep these units in stock for quick shiping, usually within a week of your order, and they ship in reinforced crates that protect the stainless steel chamber and touch screen during transit.

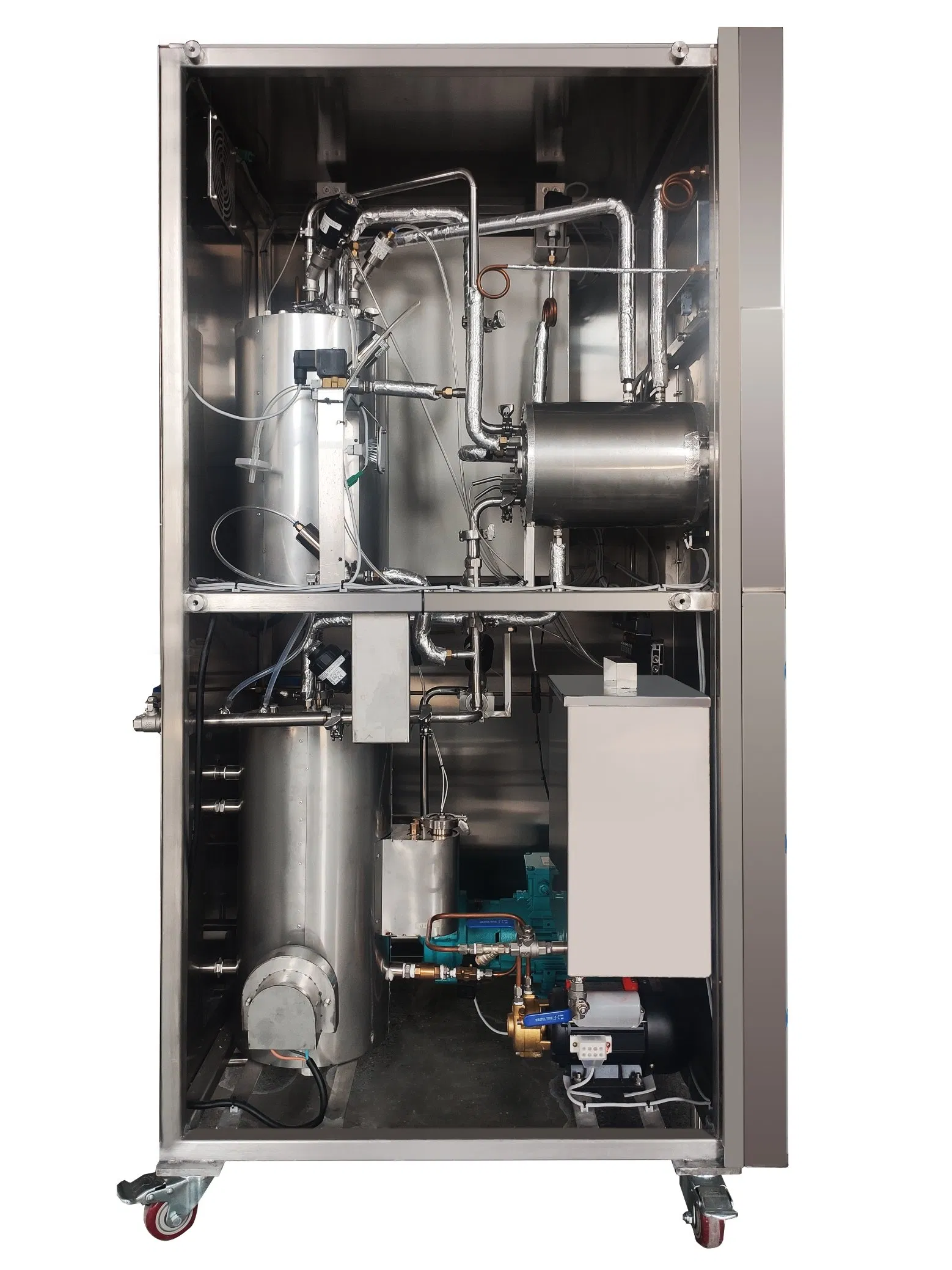

The PLC and 10-inch HMI make setting parameters dead simple, and the built-in steam generator means you don't need to tie into your facility's steam lines, which saves insallation headaches.
Working pressure ranges from -0.1 to 0.35 MPa and temperature from 110 to 145°C, with the 3L model having a chamber that's 125mm in diameter and 250mm deep, while the 5L is 150mm by 250mm.
Safety interlocks on door prevent opening under pressure, and there's over-pressure prevention plus water protection built in, so it's hard to misuse even with less experienced operators.
The 380V power supply is standerd for industrial setups, and the data recording tracks both temperature and time parameters automatically, which is useful for audits.
Customiztion is availble if you need different chamber sizes or control features, and the CE and EEC certifications mean you won't face compliance delays during procurement.
MOQ is typically 1 unit for standard models, but we can discuss bulk pricing if you need more than 10 units at once.
Sure, we can share copies of our CE and EEC certificates with you right after you send a formal inquiry or request.
The pressure interlock prevents the door from being opened while the chamber is still under pressure, which keeps the operator safe from burns or steam bursts.
Yes, the touch screen records both temperature and time parameters during each cycle, and you can export that data for your own documentation.
We can adjust the temperature range during customization, but the standard max is 145°C—just let us know your exact needs and we'll check feasibility.
