Precision TIG Cold Wire Feeding System with Adjustable Parameters for Perfect Welding

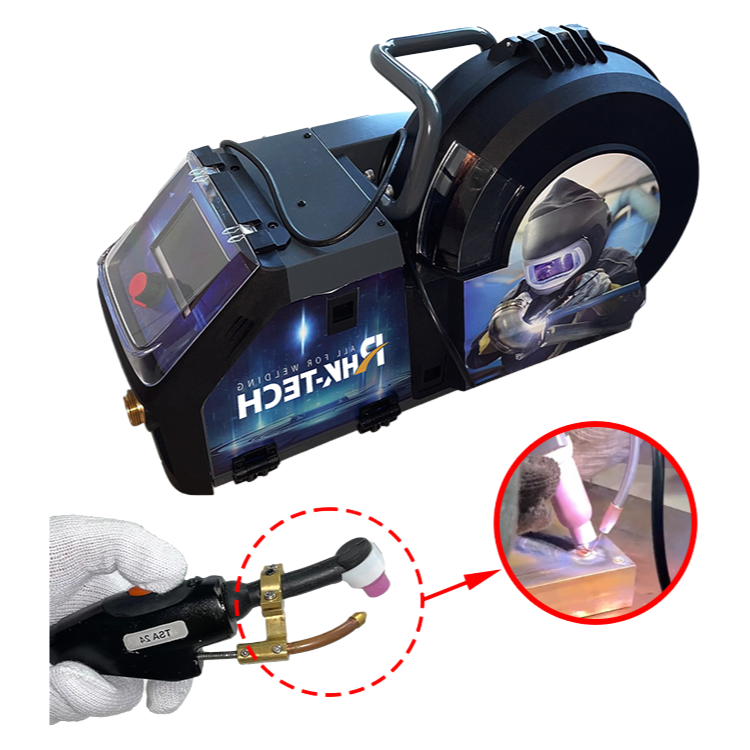

The automatic wire feeding pipe is directly integrated with the welding gun, ensuring smooth operation even in narrow working conditions. This innovative design increases wire feeding efficiency by 40% while allowing for perfect fish scale patterns through adjustable welding parameters.

The TIG cold-wire feeder serves as a crucial component in welding systems, delivering welding wire through the manual welding torch. The four-roll drive mechanism ensures consistent wire feeding to the TIG arc, which is generated by the combination of a manual welding torch and power source.

Operation begins with proper atmospheric charging prevention through potential equalization. The device accommodates standard welding wire spools up to 16kg weight and 300mm diameter. The intuitive control system offers multiple operation modes (2T and 4T) for different welding requirements.

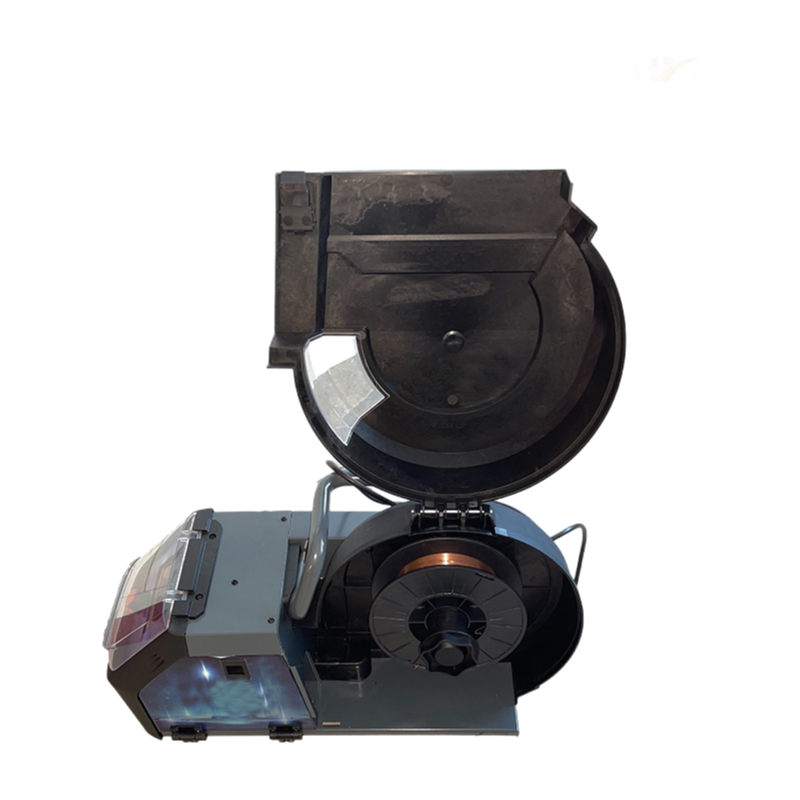

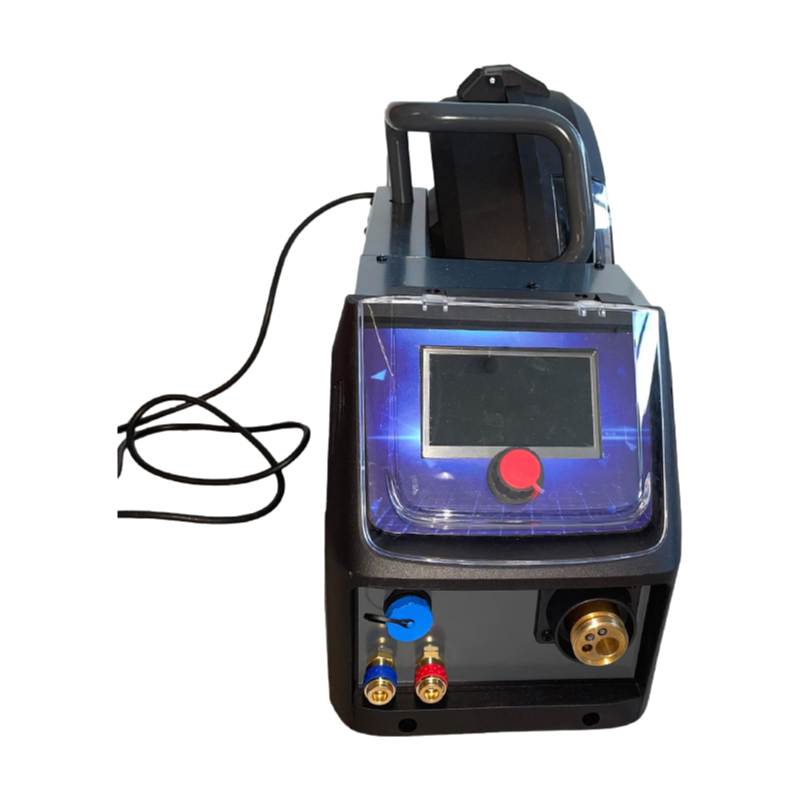

Wire loading is simplified with the pressure lever system: simply open the cover, release pressure levers, thread the wire through the liner and drive rolls, then secure the system. The feeder can be controlled through either the front panel or torch trigger.

The device supports both manual and automated welding processes, with trigger signals managing both arc initiation and wire feeding. This makes it particularly suitable for precision welding applications requiring consistent results.
