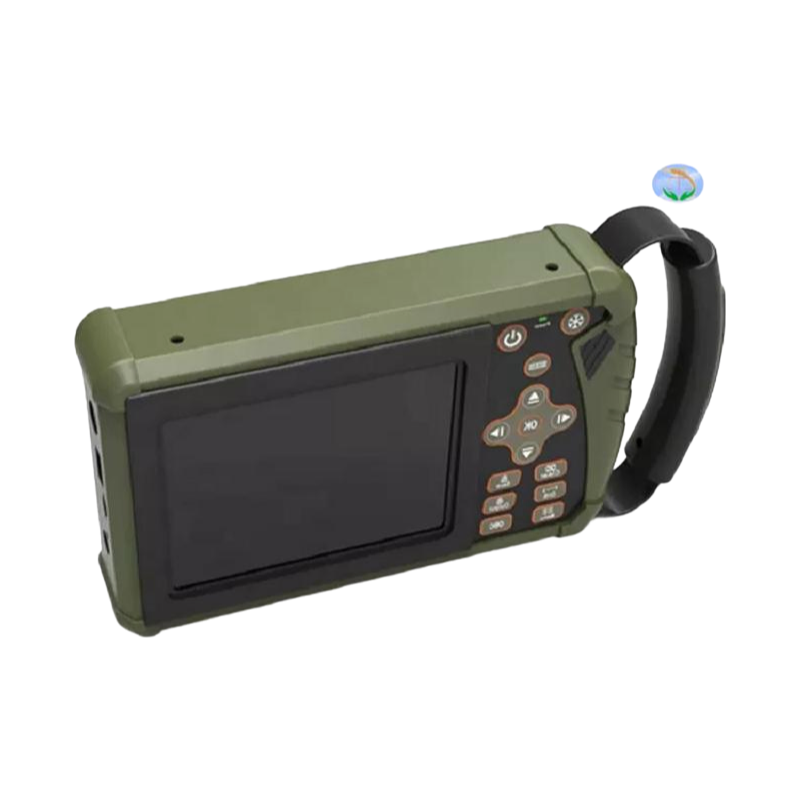

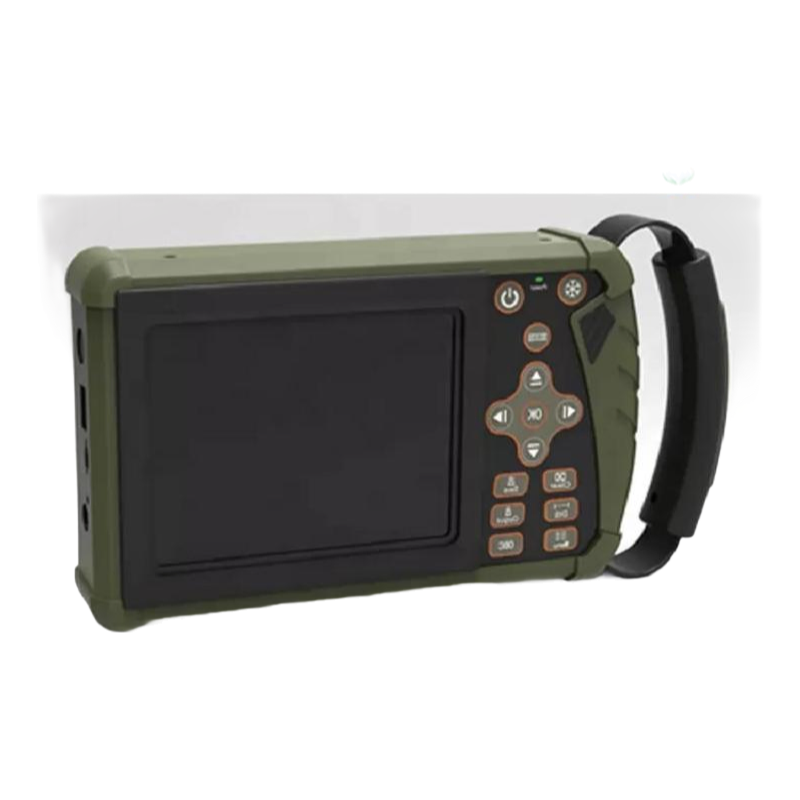

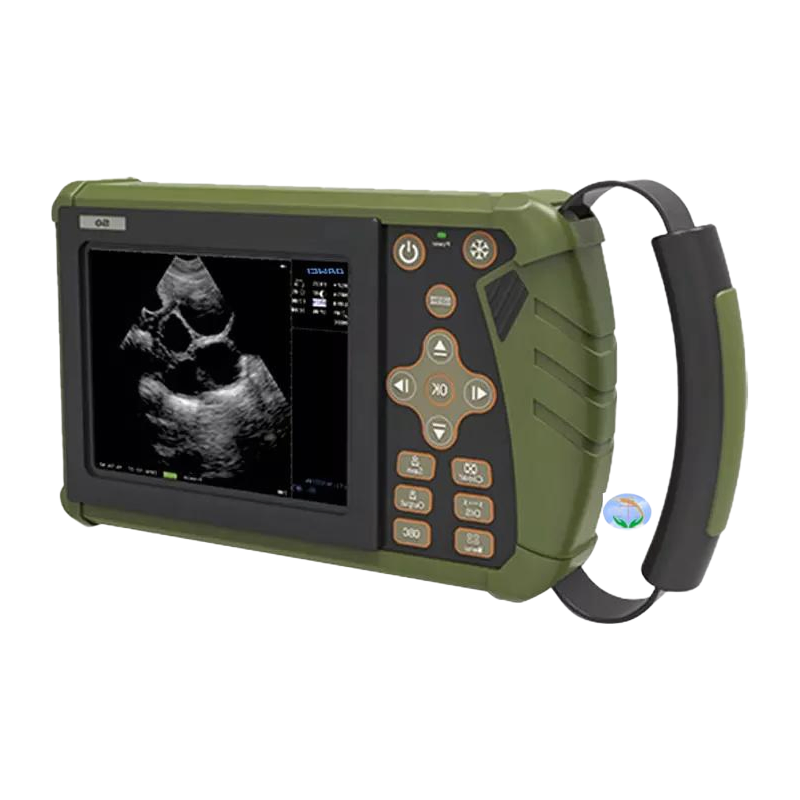

The YJ-S0 portable veterinary ultrasound scanner combines cutting-edge technologies including computer control, digital scanning converter (DSC), broadband low noise voltage amplifier, digital logarithmic compression, digital dynamic filtering, frame correlation processing, and edge enhancement. These features work together to deliver exceptionally clear and high-resolution images, making it an essential tool for accurate veterinary diagnostics.
Designed with portability in mind, the scanner weighs only 800 grams and includes a built-in large capacity lithium battery that provides over 6 hours of continuous operation. The waterproof probe ensures durability and ease of use in various environments, while the 5.6-inch LED HD display offers vibrant and detailed visuals for precise examination.
Key functionalities include multiple pseudo color display options, a winter mode for quick startup in cold conditions, and an 8G TF memory card for storing diagnostic data. The scanner supports frequencies of 2.5MHz, 3.0MHz, 3.5MHz, and 5.0MHz, allowing flexibility in scanning different animal tissues and conditions.
Applications range from detecting pregnancy and estimating fetal quantities to diagnosing diseases and evaluating fetal vitality, including heart rate monitoring. It is particularly useful for sheep, pigs, cats, and dogs, with integrated gestational age measurement data for these common animals.
Additional features include adjustable depth settings from 46mm to 208mm, gain control for far and near fields, a frame frequency of 30 frames per second, and 256 levels of grey mapping. The device also offers 15 types of magnification and various measurement capabilities such as distance, perimeter, area, and gestational age.
Connectivity options include a Mini USB port and TF card slot, enhancing its utility for data transfer and storage. With low power consumption of 13W in non-charging mode and 25W while charging, the YJ-S0 is efficient and reliable for field use.
