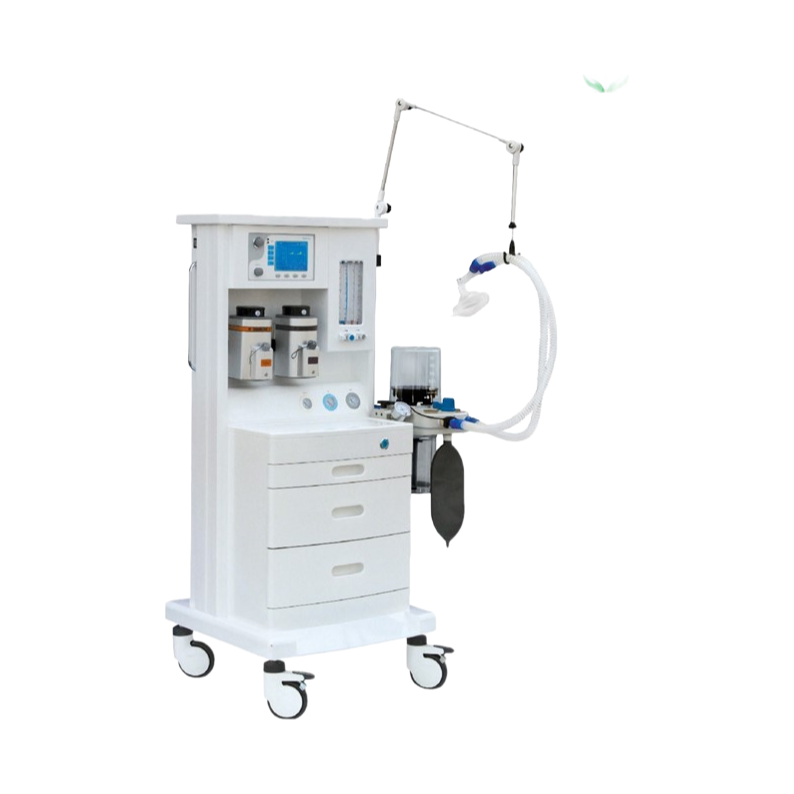

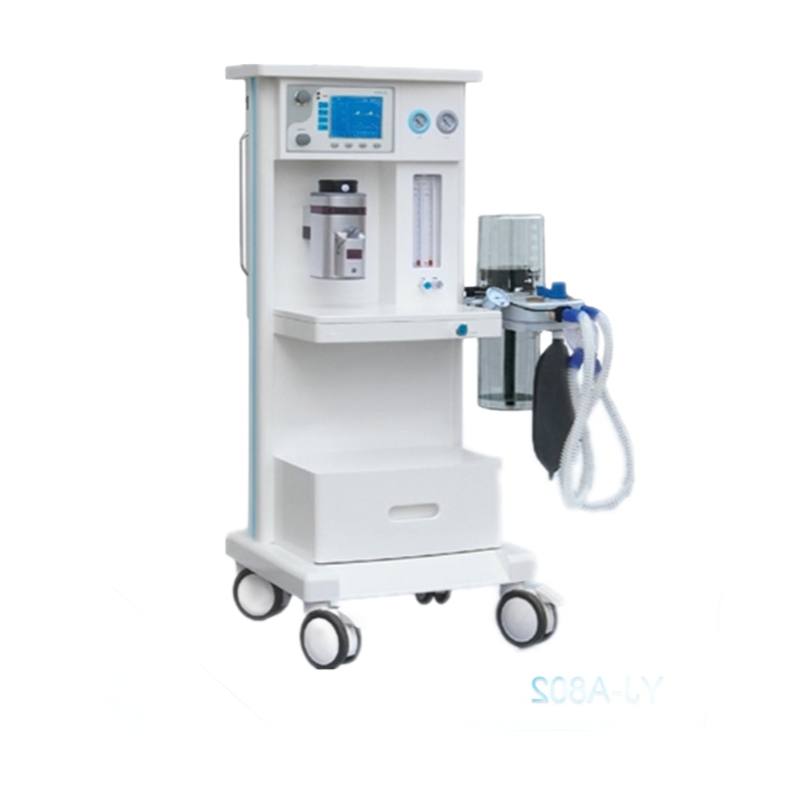

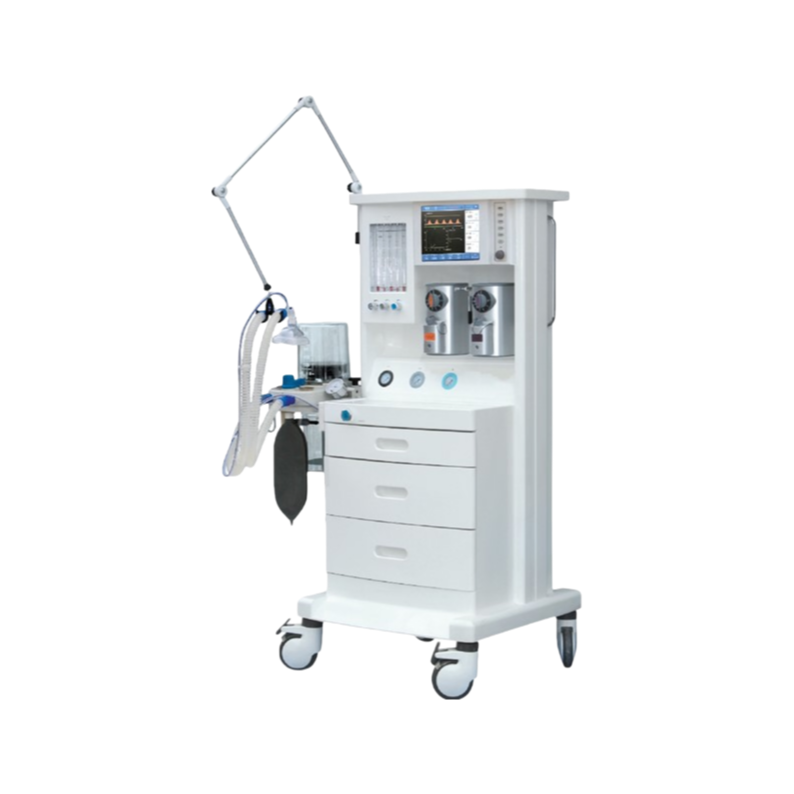

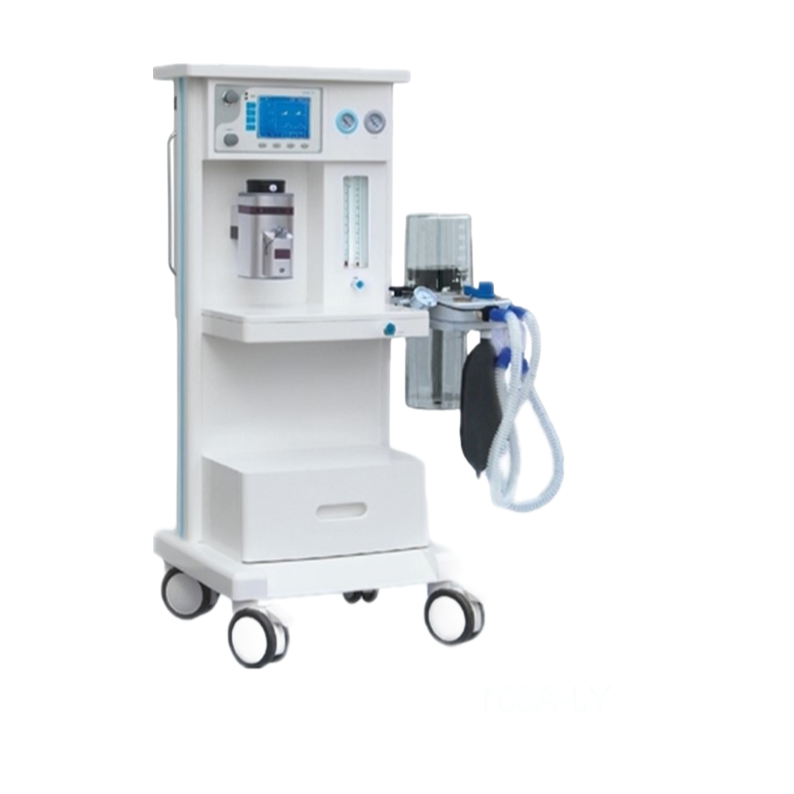

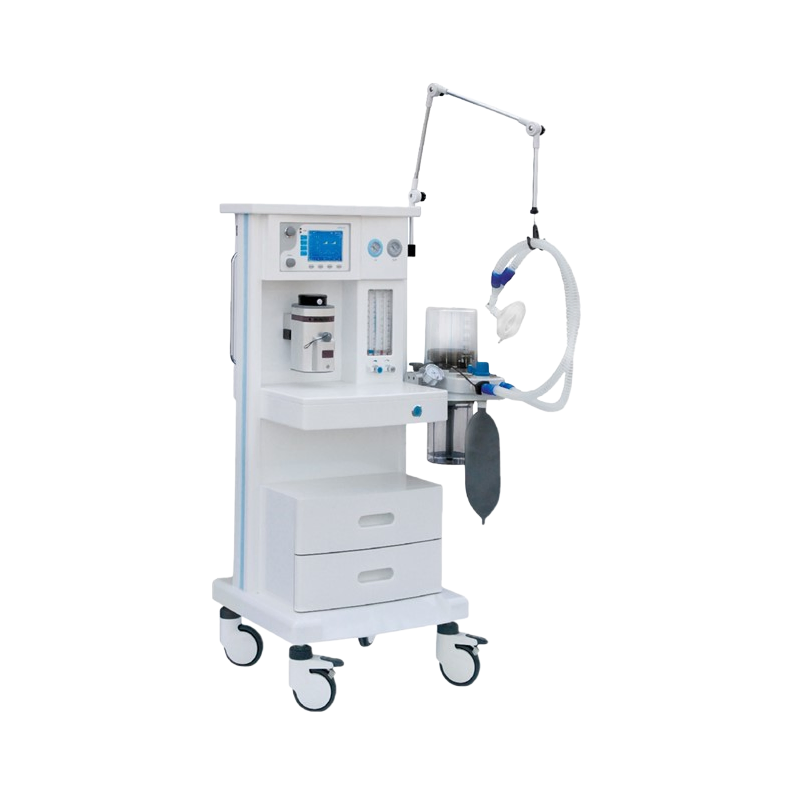

High-Precision Medical Anesthesia Ventilator Machine with Stable Concentration Output for Hospital Use

We keep about 60 units in our bonded warhouse, so stock is usually available for immediate dispatch within 3-5 working days via air freight or sea depending on your forwarder, and for cold chain, you’ll want to ensure the vaporizer is drained before shippng—just a heads-up there. The unit comes in a reinforced plywood crate, roughly 85kg net, and we’ve found that most hospital buyers doing elective surgeries on adult and pediatric patients above 4 years prioritize the stable sevoflurane output, which is what actually sells this model over cheaper alternatives.

Basically, your anesthesiologist will dial in the tidal volume between 50 and 1500 ml, set the I:E ratio anywhere from 2:1 to 1:8, and let the machine auto-compensate for pressure and tempearture drift—something most buyers don’t realize is that the high-precision evaporator holds concentration within ±0.1% vol even at sub-ambient temps. 2 to 99 bpm on respiratory rate covers most standard cases, though we don’t recommend this for neonatal work since the lower end of the range isn’t precise enough below 50 ml tidal volume.

And we’ve shipped these to about 40 countries under CE and FDA, so the ISO13485 cert is solid, but you’ll need to confirm local registration if your target market requires it (usually 2-4 weeks for the documentation). The flow meter tops out at 10 L/min for O2, which is fine for most adult circuits, but if you’re running high-flow on larger patients, you might want to add an external monitor.

it support IPPV, SIPPV, SIMV, and manual modes, plus you get PEEP from 2 to 20 cmH2O which is actually tighter tolerance than many competitors at the low end—important for lung-protective strategies in sick kids. One detail we’ve seen trip up first-time buyers: the power backup is a built-in UPS with a storage battery, but it only handles about 30 minutes of runtime, so don’t rely on it for prolonged transport.

Also, LCD display shows real-time loops for presure and flow, which is pretty handy during weaning, but we usually tell buyers that the touchscreen interface is responsive enough for gloved hands (something you learn after handling the first few units). 50 percent of the orders we process ask for the optional second vaporizer, though the standard single-unit setup is what’s listed—your call on that base on the gas agent mix you need.
