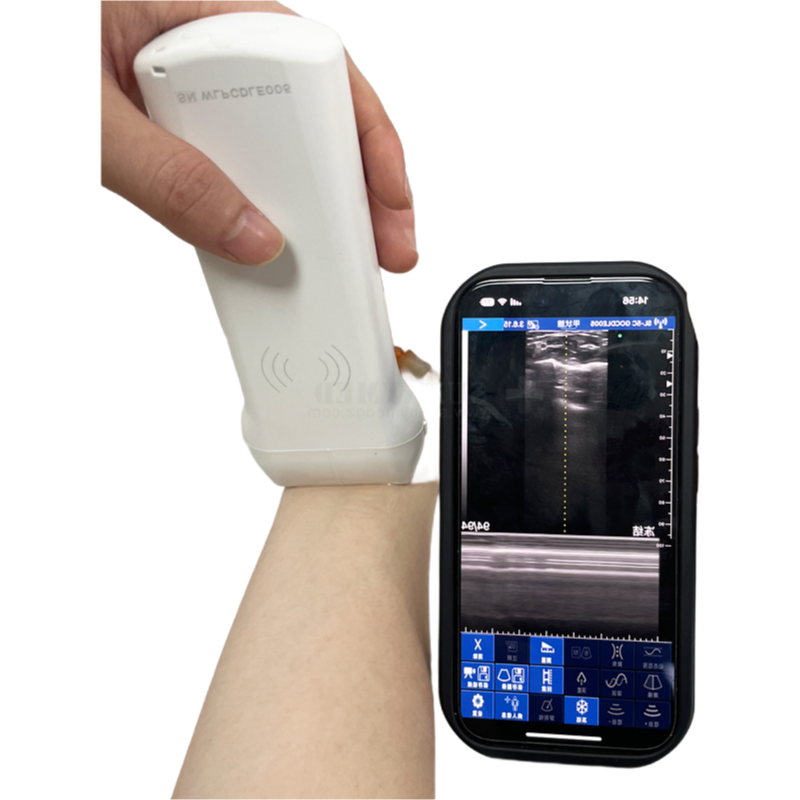

Compact Waterproof Ultrasonic Probe with 3-5 Hours Battery Life for Remote Diagnosis

The SY-AC06_L Portable Bluetooth Connectivity Ultrasonic Color Doppler Linear Probe is engineered for high-performance medical imaging with a focus on convenience and versatility. Its compact and lightweight design, measuring 156×60×20mm and weighing 220g~250g, ensures easy portability and handling in various clinical settings. The probe operates wirelessly, eliminating the need for cumbersome cables and allowing for greater freedom during examinations. With a waterproof build, it facilitates straightforward sterilization processes, maintaining hygiene standards in medical environments.

This probe supports multiple scanning and display modes, including B, B/M, and color Doppler versions such as B+Color, B+PDI, and B+PW. It features a flexible RF circuit board with 16/32/64 channels and offers scanning depths of 20mm, 40mm, 60mm, and 100mm. The device provides a high image frame rate of 18 frames per second, ensuring smooth and real-time visualization. For enhanced diagnostic capabilities, it includes cineplay functions with auto and manual settings, frame options of 100, 200, 500, or 1000, and puncture assist features like in-plane and out-of-plane guide lines, as well as automatic blood vessel measurement tools.

Connectivity is a key strength, with Bluetooth and Wi-Fi support (802.11g/20MHz/5G/450Mbps) enabling seamless image transfer to doctors for remote diagnosis. The probe is compatible with Apple iOS, Android, and Windows operating systems, making it adaptable to a wide range of devices. Images can be saved in JPG, AVI, and DICOM formats, supporting efficient data management and sharing. The built-in battery delivers a working time of 3 to 5 hours, depending on probe usage and scanning continuity, and can be recharged via USB or wireless methods in approximately 2 hours.

Additional measurement functions include length, area, angle, heart rate, and obstetrics calculations, catering to diverse medical needs. The probe is designed for reliability and ease of use, with a small scale and CE certification ensuring compliance with industry standards. Its customizable options allow for tailored solutions in medical imaging applications.
