SUN-806H Portable Handheld Ultrasound Machine - 12.1" LED Display Medical Diagnostic Equipment with 256 Grey Scale

The SUN-806H Portable Handheld Ultrasound Machine is a full digital notebook ultrasound system designed for versatile medical diagnostic applications. This compact yet powerful device combines advanced imaging technology with portability, making it ideal for various clinical settings.

Key Features:

1. 12.1" LED monitor with 256 levels of grey scale for superior image quality

2. Multiple display modes including B, B/B, 4B, B+M and M modes

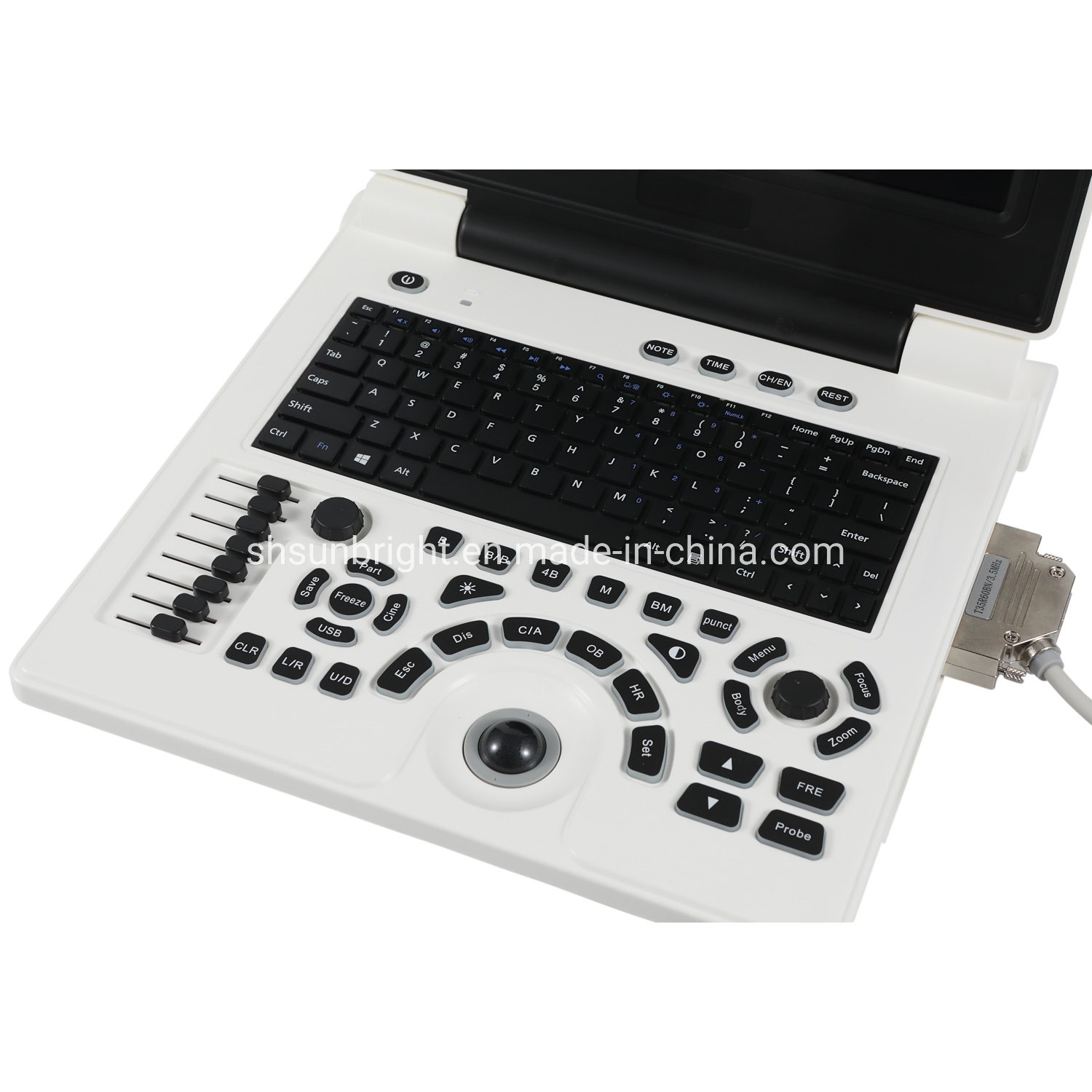

3. 8 segments TGC and overall gain control for optimal image adjustment

4. Large capacity battery providing ≥8 hours of continuous operation

5. Comprehensive measurement functions including distance, area, circumference, heart rate and gestational weeks

6. 16 kinds of pseudo color processing for enhanced image interpretation

Technical Specifications:

The system utilizes advanced digital beam forming technology with real-time dynamic aperture imaging and full digital dynamic receive focusing. It offers frequency conversion capability with multiple frequency options depending on the probe type.

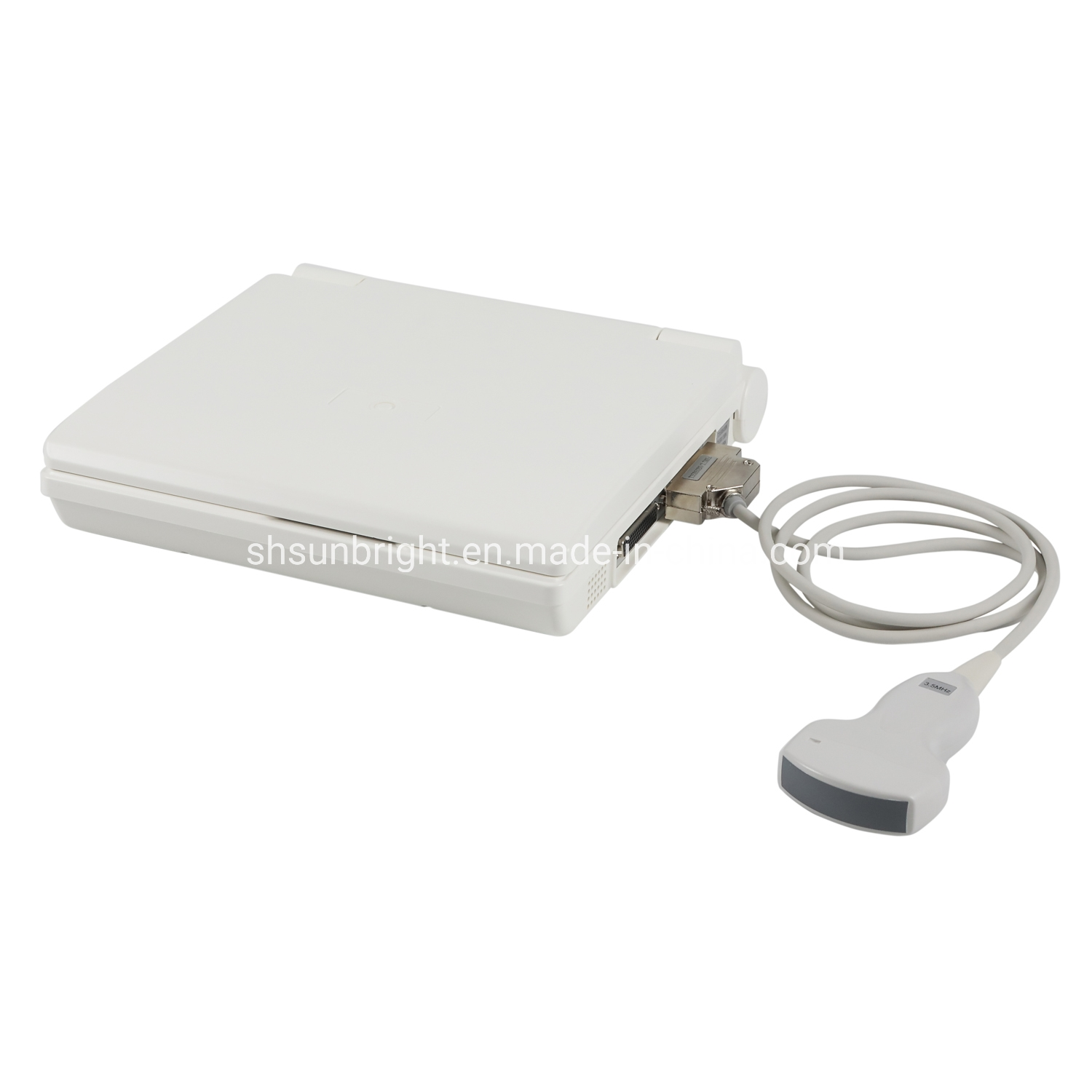

The ultrasound machine supports various probes including the standard T35R60GB convex array probe (3.5MHz), with optional T65R13GB cavity probe and T75L40GB linear array probe available. Each probe offers specific frequency ranges optimized for different examination types.

Measurement Capabilities:

The system provides comprehensive measurement functions including:

- Basic measurements: Distance, circumference, area (ellipse and loci methods), volume

- Obstetric measurements: BPD, GS, CRL, FL, HC, OFD, TTD, AC

- Cardiac measurements: Heart rate, expected date of confinement, fetus weight

Storage and Output:

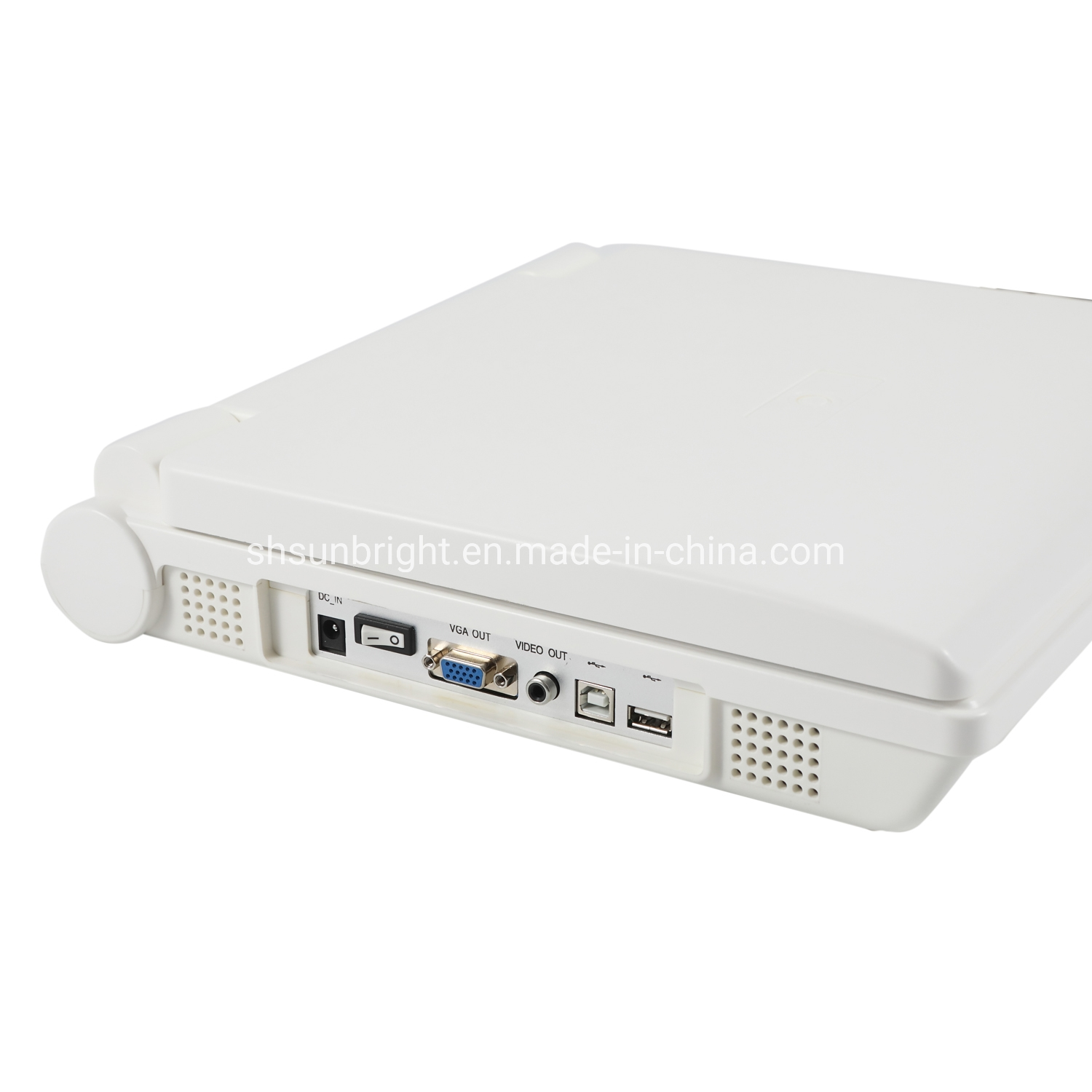

The device features permanent storage for ≥128 images with cine loop real-time playback capability. Output interfaces include:

- SVGA video output for connection to external displays

- PAL video output for recording devices

- USB interface for image transfer (BMP format)

Physical Specifications:

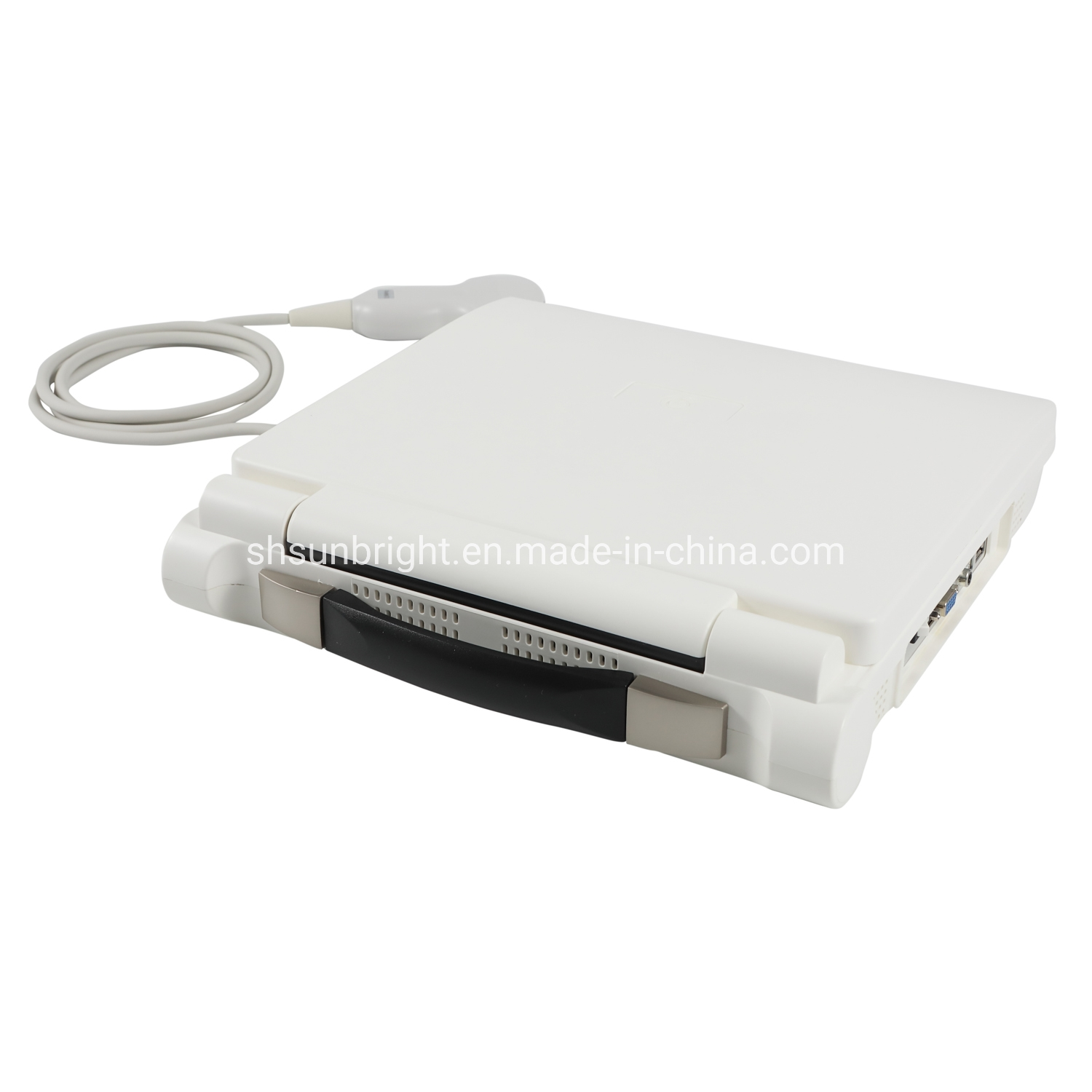

The compact design measures 309×312×68mm (L×W×H) and weighs approximately 2.5kg, making it highly portable for various clinical environments. The system operates on both AC power and rechargeable Li-ion battery.
