Portable Wrist Design Animal Ultrasound Machine KX5200 with Internal Battery and USB Storage

The KX5200 VET is a state-of-the-art full digital B mode ultrasonic diagnostic instrument specifically engineered for veterinary applications. It is widely used for diagnosing pregnancy, fertility, and diseases in a variety of animals such as bovine, equine, ovine, canine, feline, goat, swine, llama, and others. This device combines innovation with practicality, making it an essential tool for animal healthcare professionals.

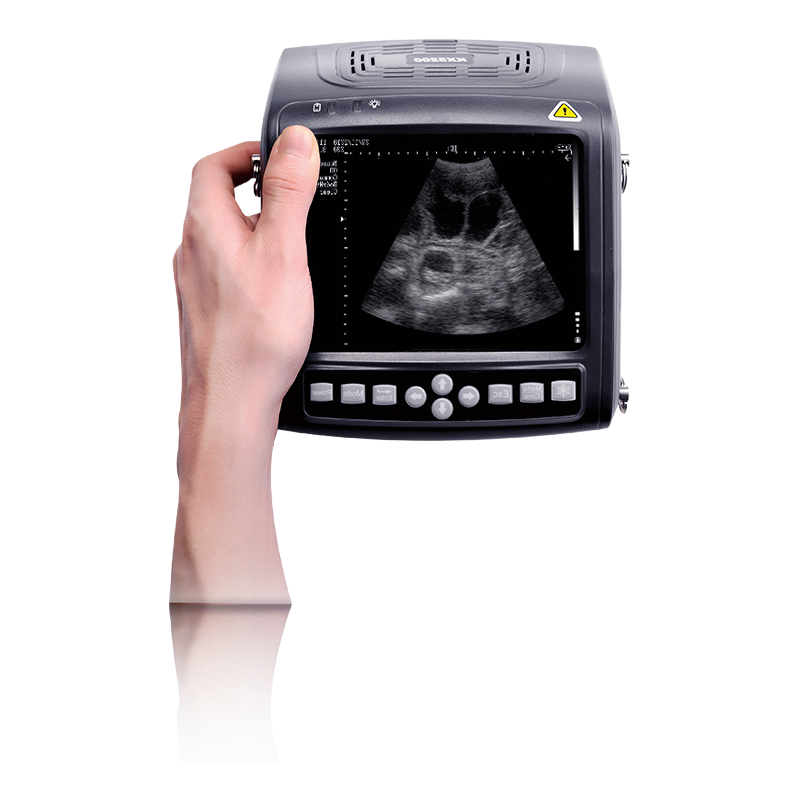

Key features include a unique wrist design that enhances usability during examinations. The instrument is smart and lightweight, weighing only 1.1 kg, and features a 5.7-inch high-resolution color LCD with high brightness and contrast, suitable for outdoor use. To prevent cross-infection, it operates without a fan. It is equipped with two internal lithium batteries that provide up to 5 hours of continuous operation, ensuring reliability in field conditions. The USB port allows for direct image storage to a U disk and supports printing with color laser printers.

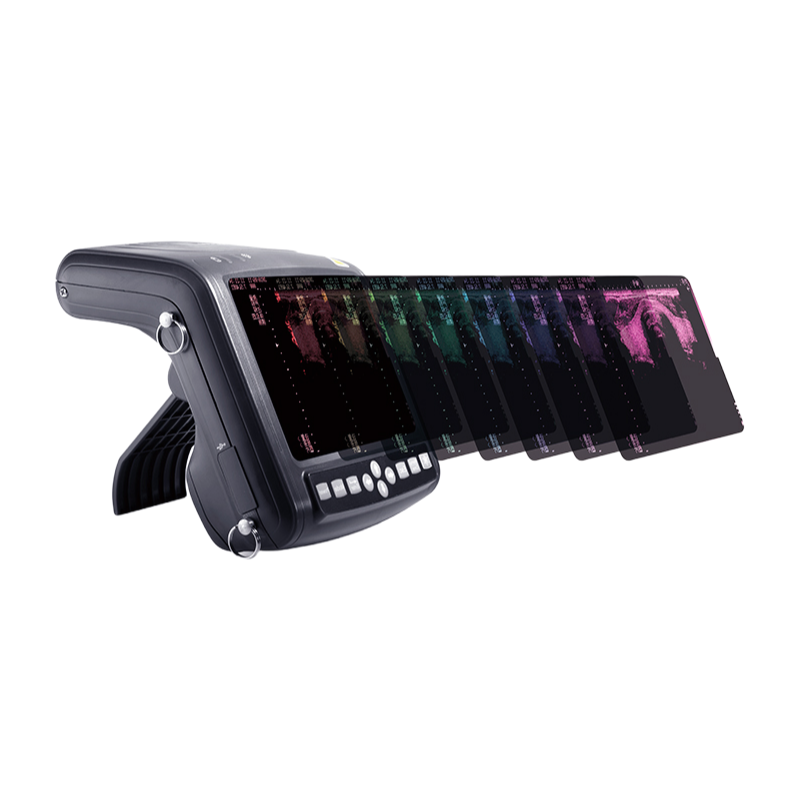

The gridding calculate function enables quick measurements by eye, saving time and increasing efficiency. It supports multiple display modes including B, 2B, 4B, B/M, and M, along with 8 pseudo-color options including black and white. The gain range is 0-127 dB, dynamic range is 27-90 dB, and it offers 256 levels of gray for detailed imaging. Language options include Chinese and English for user convenience.

For measurement and analysis, it provides general functions such as distance, perimeter, area (via trace or ellipse methods), volume, and cardiac measurements including depth, slope, heart rate, and time. OB measurements cover EDD and GA for various animals, and it includes specialized features like automatic calculation of back fat and lean percentage for swine. The OB report function automatically saves the last parameters for quick reuse.

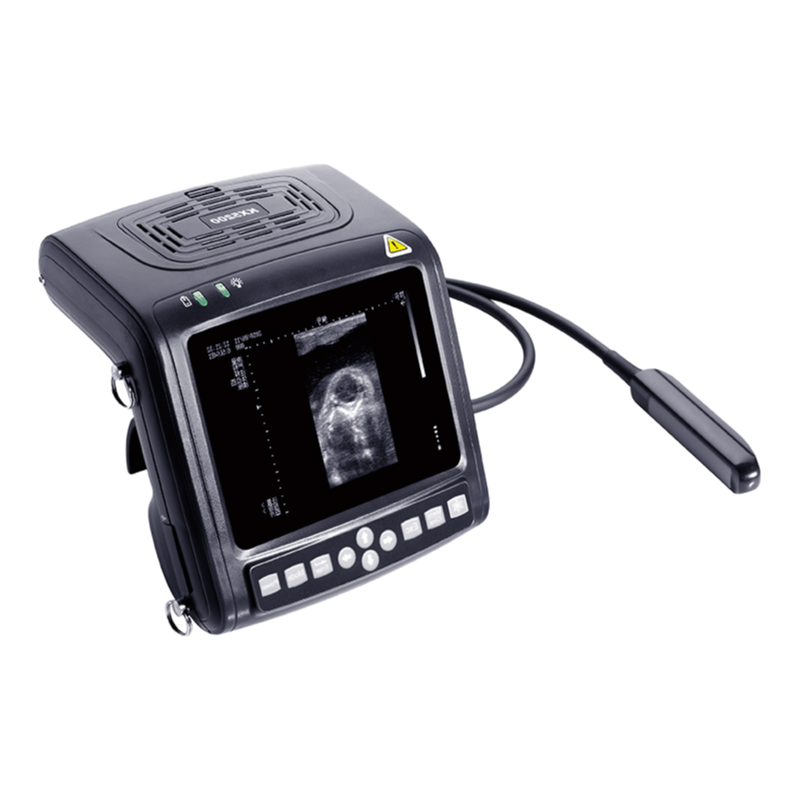

Standard configuration includes the main unit, a 6.5MHz linear rectal probe, power adapter, two internal batteries, a leather case, base charger, belt, bracket, and shutter release. Optional configurations allow for customization with probes like 4.0MHz multi-frequency convex rectal, 6.5MHz multi-frequency micro-convex, 3.5MHz multi-frequency convex, 7.5MHz multi-frequency linear, as well as accessories such as a thermal printer, additional battery, and black suitcase.

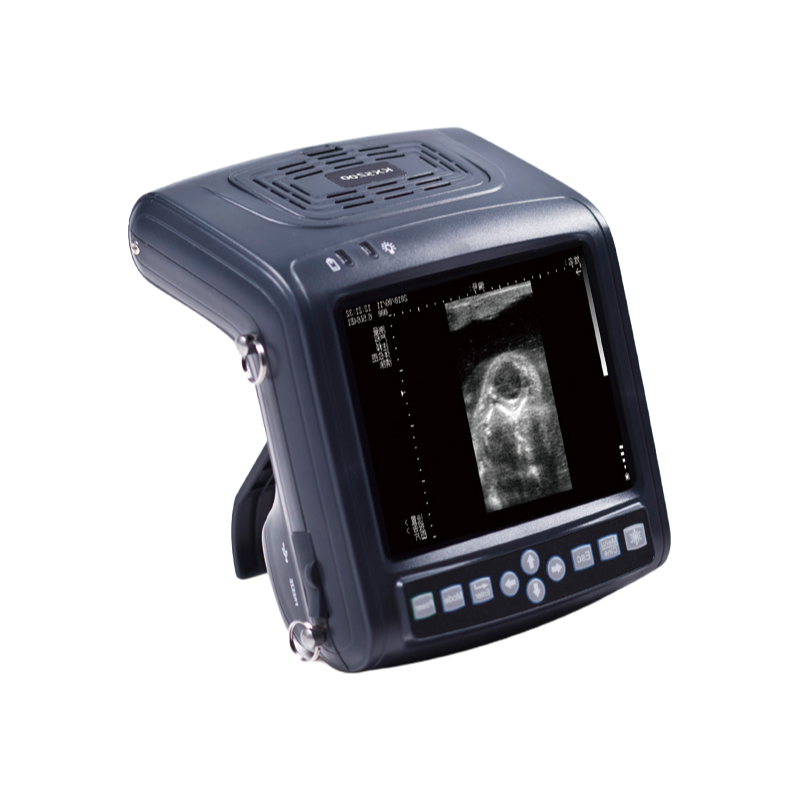

Images of the product:
