Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing
Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing
Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing
Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing

Heavy Duty 12-Ton Baling Press with Conveyor System for Continuous Waste Processing

US$ 1 ~ 4900
Min.Order: 1
Product origin: Jining, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 40 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : MW-HB2000
  • Type : Horizontal Hydraulic Baler
  • Pressure Capacity : 150 tons
  • Main Motor Power : 37kw
  • Cooling System : Air/Water Cooler
  • Cycle Time (Unload) : 36 seconds
  • Oil Reservoir Capacity : 1460L
  • Number of Belting Lines : 4-5 lines
  • Wire Size : Ø3.0-3.2mm
  • Feed Opening Size : 1600×1100mm
  • Bale Size : 1500×800×1100mm
  • Bale Density (OCC) : 600-900kgs/m³
  • Throughput Capacity : 1.5-3 tons/hour
  • Machine Weight : 12 tons
  • Overall Dimensions : 7500×1750×2200mm
  • Conveyor Power : 7.5kw
  • Control System : PLC Program Control
  • Operation Mode : Automatic/Semi-automatic
  • Material : Stainless Steel Construction
  • Power Supply : 380V/440V
  • Warranty : 12 Months

We push every unit through a full 72-hour test cycle under load, not just a quick dry run, before it gets teh okay—so you're seeing real-world performnce data, not theoretical numbers.

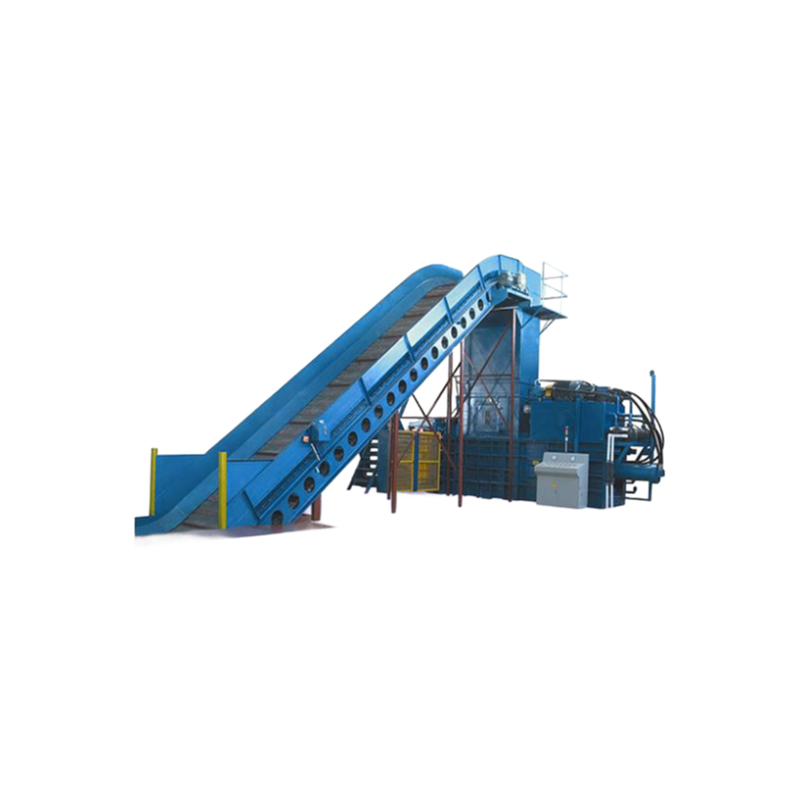

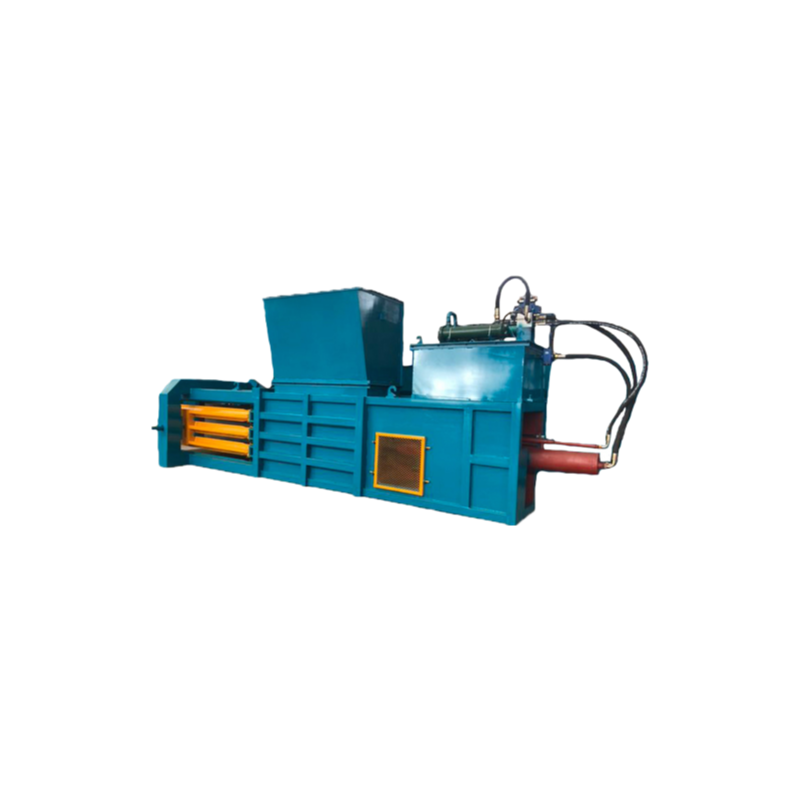

Horizontal Hydraulic Baler Front View

PLC logs all 36-second cycle times and pressure consistency across the chamber, and we store those files per serial number; it's basically how we back up our 600-900kgs/m³ bale density claim.

Horizontal Baler Control Panel

Every machine ships with a sealed COA form our in-house lab, and if you want independent HPLC verification on the hydraulic oil or wear surfaces, our company can arrange that—usually takes an extra 10 days or so.

But here's what we don't say in the brochure: the air/water cooler keeps temps below 55°C even in summer, which most operators won't think about until they're running 3 tons an hour for a full shift.

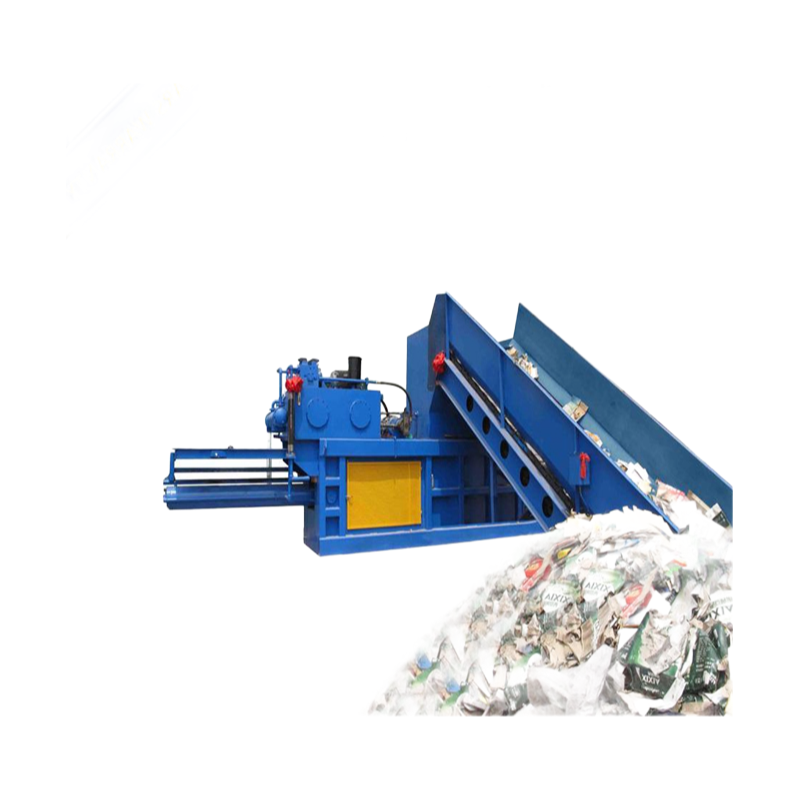

Horizontal Baler Working Process

We typically honor a retest policy within 30 days of dilevery—you can pull sample welds or open the PLC for a load routine check, and if it doesn't hit the 150-ton rating, we replace components on our dime.

Horizontal Baler Bale Output

Also, the stainles steel construction isn't over the main frame, just the feed opening and baling chamber floor; that's where the real abrasion hits, and our 12-ton dead weight is what actually holds alignment.

Frequently Asked Questions

What is the minimum order quantity for the MW-HB2000 baling press?

We typically require a minimum order of 1 unit for this model, but we can discuss bulk orders if you need multiple machines.

What certifications or quality documents do you provide with this baler?

We supply CE certification and a full set of quality inspection reports, including material certificates for the stainless steel construction.

Can the bale size be adjusted from the standard 1500×800×1100mm?

The bale size is fixed based on the chamber dimensions, but we can customize the chamber for different bale sizes if you let us know your requirements.

Is the conveyor system included in the machine weight and dimensions?

Yes, the 7500×1750×2200mm overall dimensions and 12-ton machine weight include the conveyor system with its 7.5kw motor.

How does the air/water cooler affect performance in continuous operation?

The air/water cooler keeps the hydraulic oil temperature stable during long runs, preventing overheating and maintaining consistent cycle times even at full throughput.
