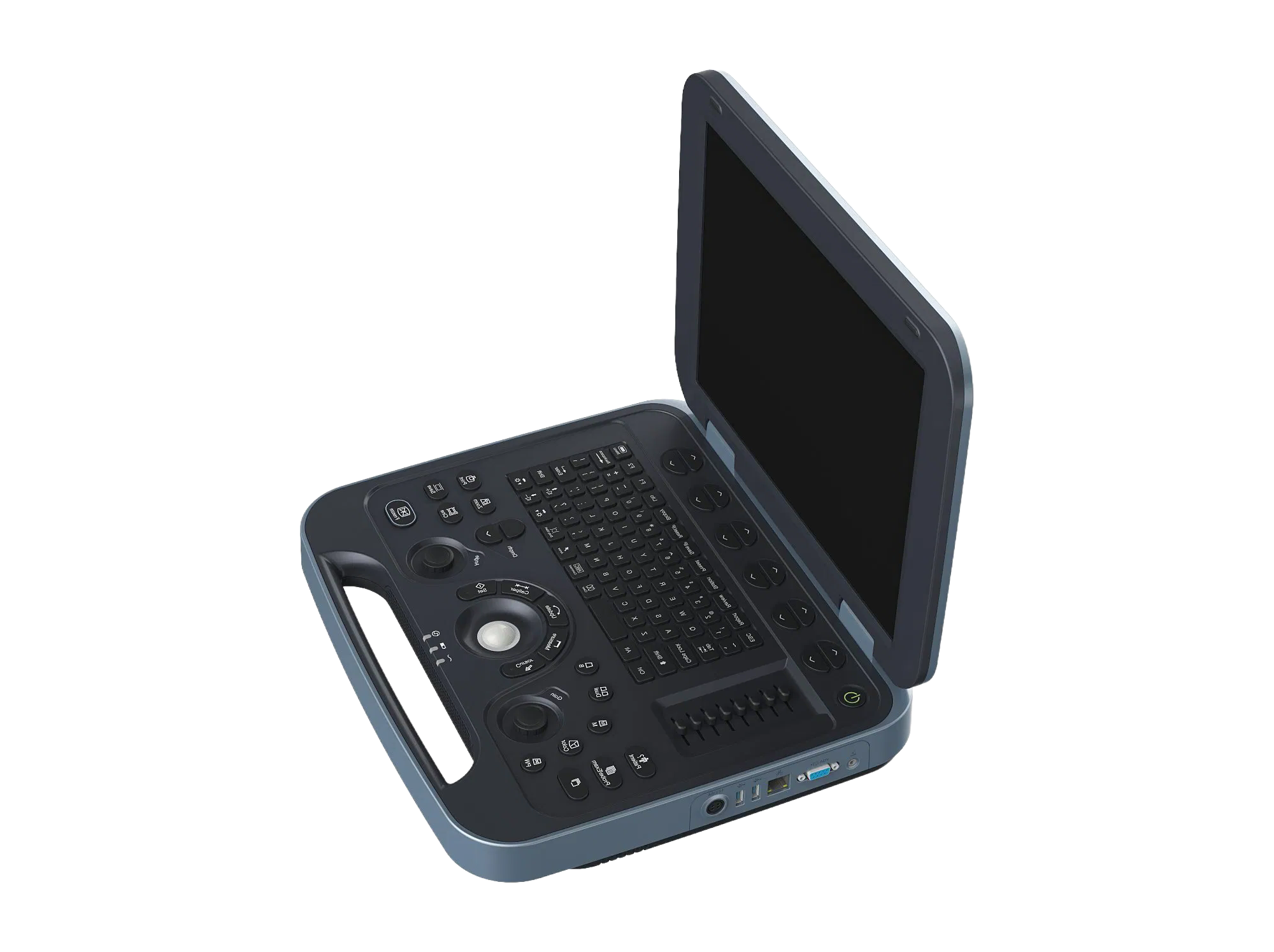

The AU-Y15 portable B/W ultrasound scanner is a versatile diagnostic system designed for medical professionals. This compact device features a 15-inch high-definition LED display with 1024×768 resolution, providing clear imaging for accurate diagnosis.
Equipped with an advanced ARM chip architecture, the system offers stable performance and simple operation. It supports multiple imaging modes including B, B+B, B+M, M, and 4B, with 256 levels of gray scale for detailed tissue visualization.
The standard configuration includes a 3.5MHz convex array probe, with optional 7.5MHz high-frequency line array probe, 6.5MHz intracavitary probe, and 6.5MHz micro-convex probe available. The system automatically recognizes various array element probes (80, 96, or 128 elements).
Clinical features include extensive image presets for different examination areas, movie playback (≥256 frames), and image storage (≥360 images). The system provides adjustable scanning angles, depth adjustment (≥20 levels), and puncture guidance with adjustable angle and position.
Additional features include focus position adjustment (5-speed), comprehensive image adjustment options, and advanced image processing capabilities such as smoothing/sharpening, tissue harmonics, and gamma correction. The system supports multiple language settings including Chinese, English, French, and Spanish.
Performance indicators demonstrate excellent resolution capabilities across different probe types and frequencies. The system maintains high accuracy in geometric positioning and measurement calculations, with minimal display errors in M-mode.
This ultrasound scanner is ideal for examinations in cardiology, abdominal, urology, obstetrics/gynecology, pediatrics, and musculoskeletal applications. Its portable design and long battery life (≥8 hours continuous use) make it suitable for various clinical environments.
