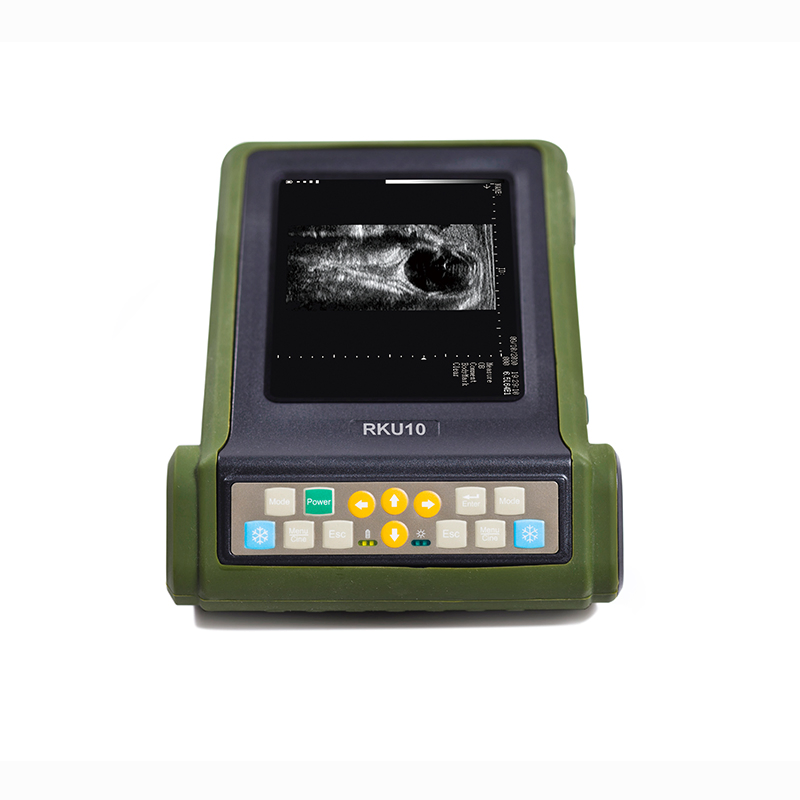

The RKU10 Veterinary Ultrasound Scanner is a professional diagnostic tool designed specifically for large animal reproductive health monitoring. This portable ultrasound machine features advanced imaging capabilities and specialized functions for veterinary applications.

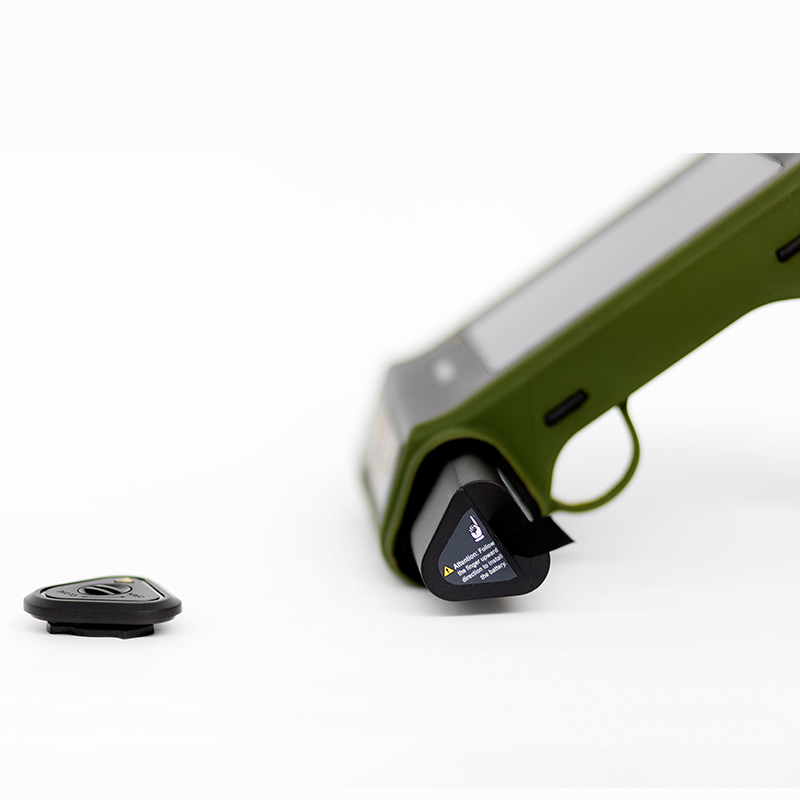

With its lightweight design weighing only 1.1kg, the RKU10 offers exceptional portability for field use. The high-capacity lithium battery provides over 6 hours of continuous operation, making it ideal for mobile veterinary services and farm visits.
The scanner features a 5.7" high-resolution LED display with excellent brightness and contrast, ensuring clear visibility even in outdoor sunlight conditions. The display offers multiple viewing modes including B, 2B, 4B, B/M, and M for comprehensive diagnostic capabilities.
Specialized functions include automatic backfat and lean percentage calculation for swine, making this ultrasound particularly valuable for pork production operations. The system also features comprehensive measurement tools for distance, circumference, area, volume, and cardiac parameters.
For reproductive applications, the RKU10 provides precise pregnancy diagnosis and gestational age estimation for cattle, horses, sheep, goats, pigs, dogs, and cats. The system stores up to 100 permanent images and features a 256-frame cine loop for detailed examination.

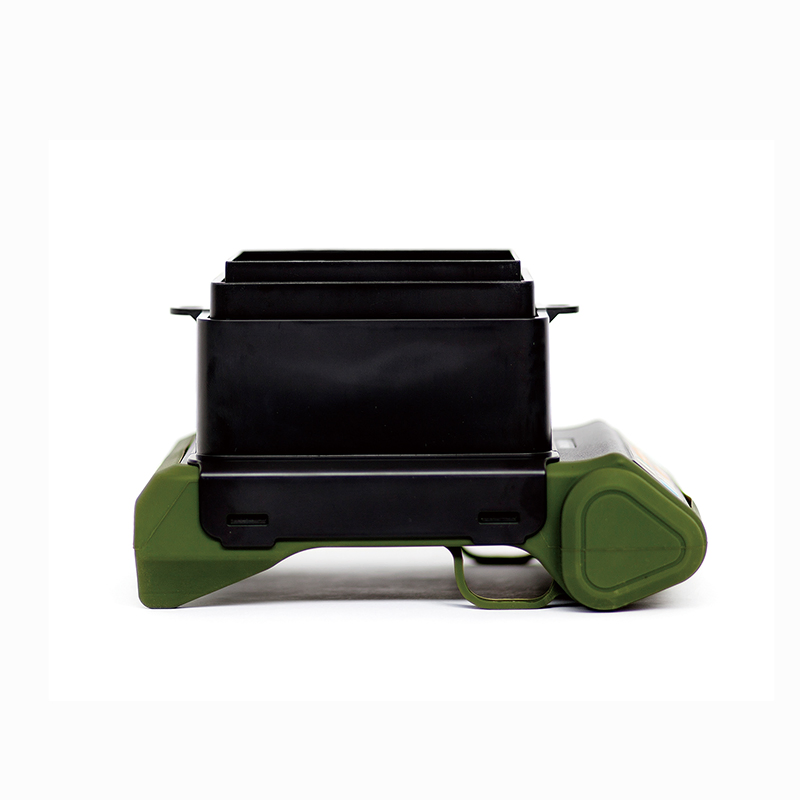

The standard configuration includes a 6.5MHz linear rectal probe, power adapter, internal battery, protective rubber coating, and sunlight cover. Optional probes ranging from 3.5MHz to 7.5MHz are available for different diagnostic requirements.

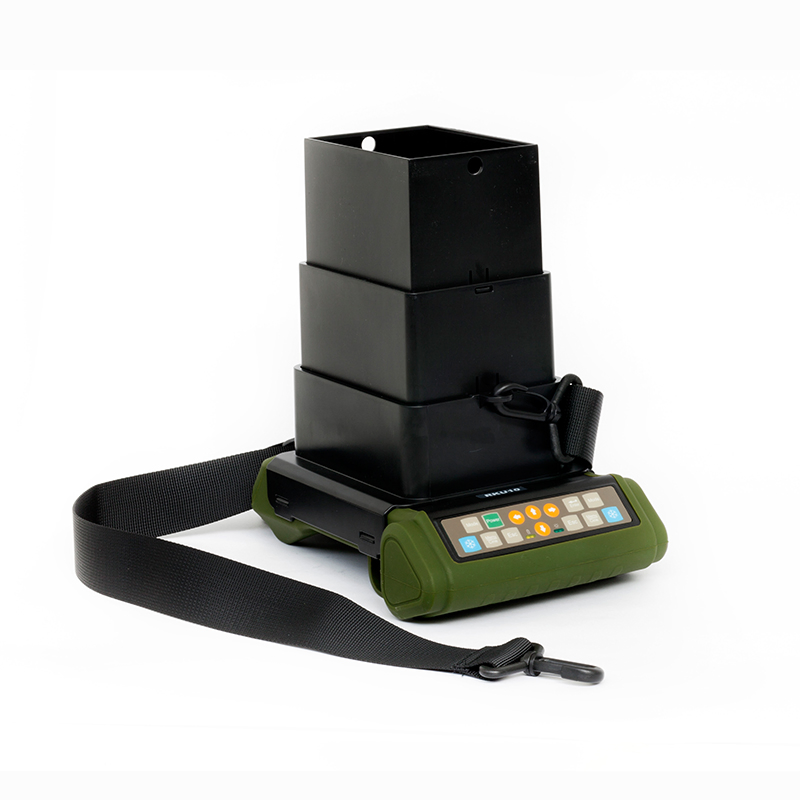

Designed for ergonomic use, the RKU10 can be operated in multiple positions including hand-held, chest-hanging, or waist-hanging configurations. The optional ultrasound goggle enhances visibility in bright outdoor conditions.
