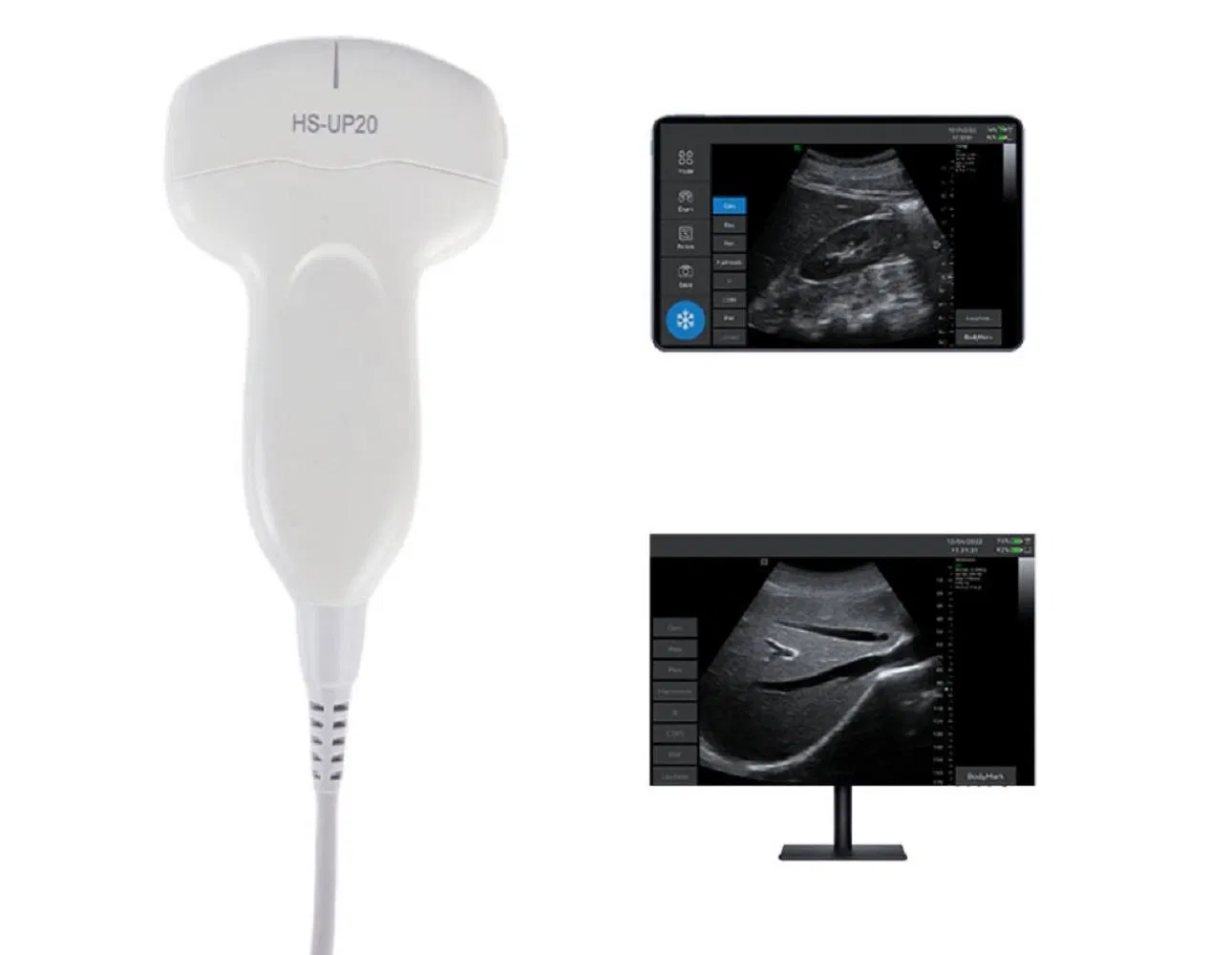

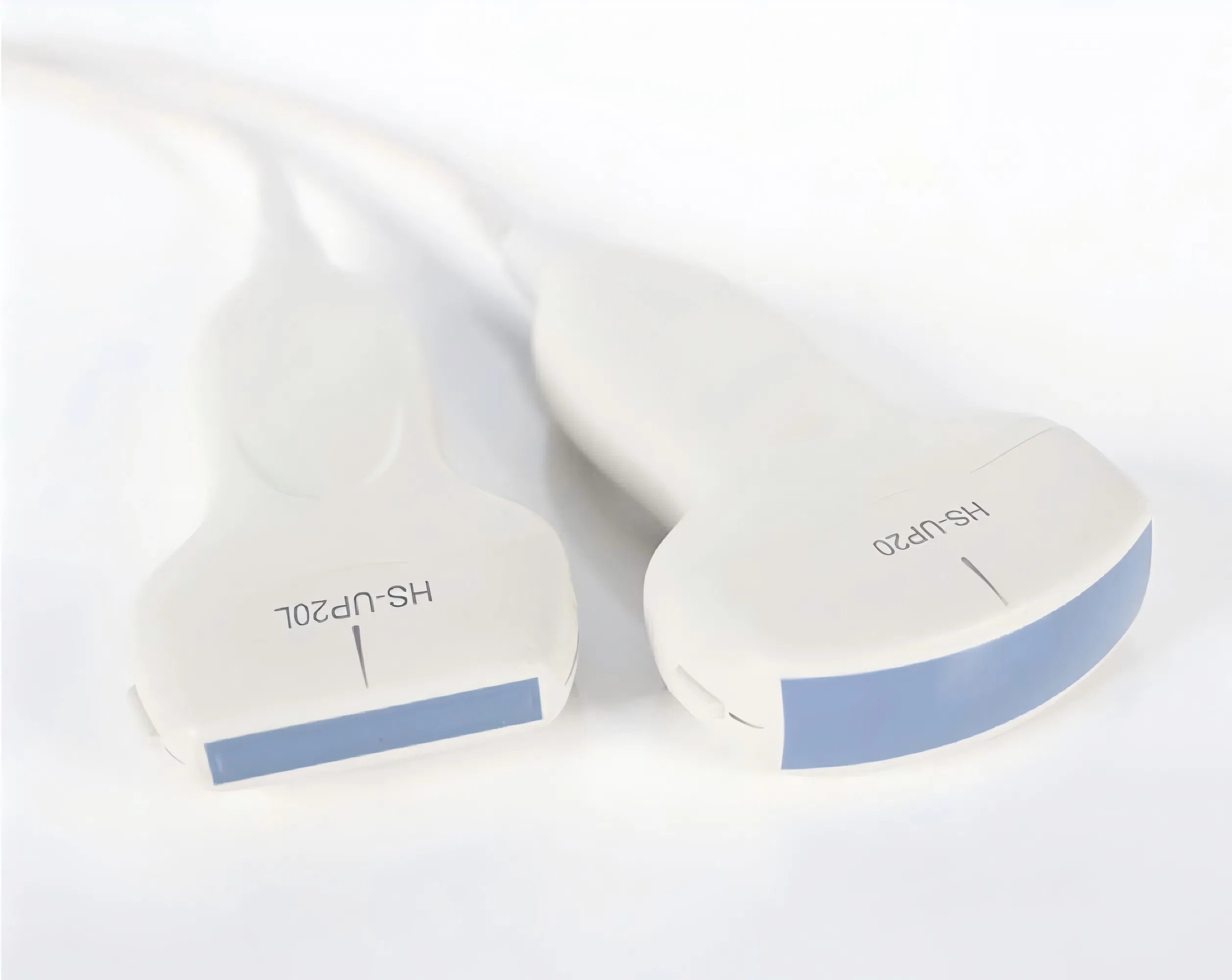

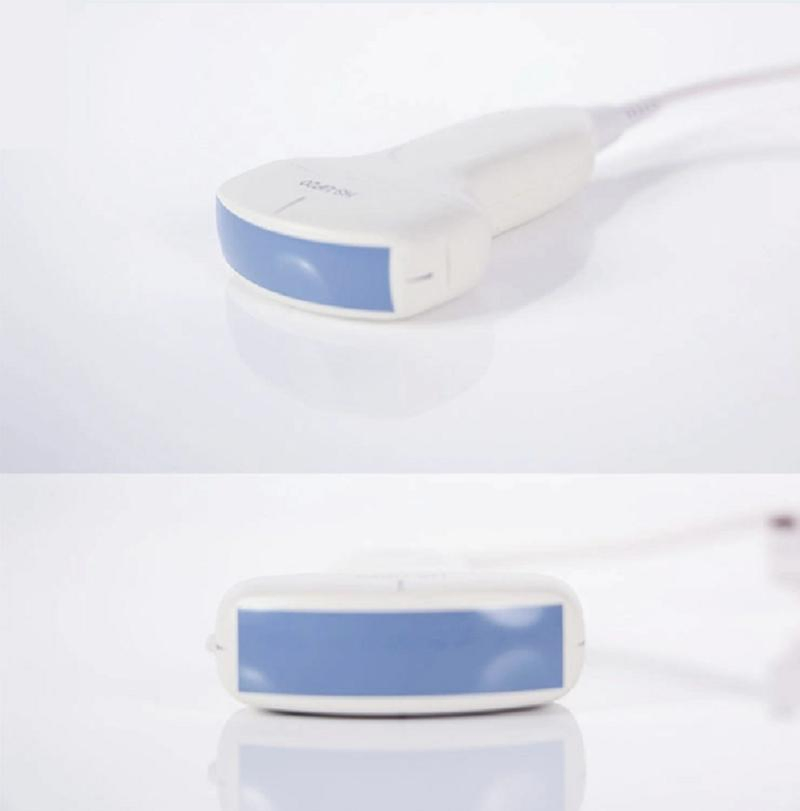

The UP20L handheld ultrasound machine is a compact and portable diagnostic imaging device designed for medical professionals. This advanced ultrasound scanner features a high-resolution 7.5MHz central frequency probe (adjustable from 5.0MHz to 100MHz) that delivers clear imaging for various diagnostic applications.
With its lightweight design (only 160g) and compact dimensions (118×65×26mm), this ultrasound device offers exceptional portability without compromising on performance. The system supports multiple display modes including B, B/B, B/M, and 4B modes, providing versatile imaging options for different diagnostic needs.
The UP20L features advanced imaging capabilities with ≥256 grayscale resolution and adjustable TGC (8 levels), ensuring high-quality image clarity. The device offers comprehensive measurement functions including distance, area, angle, depth, volume, and ratio calculations, making it suitable for various diagnostic applications.

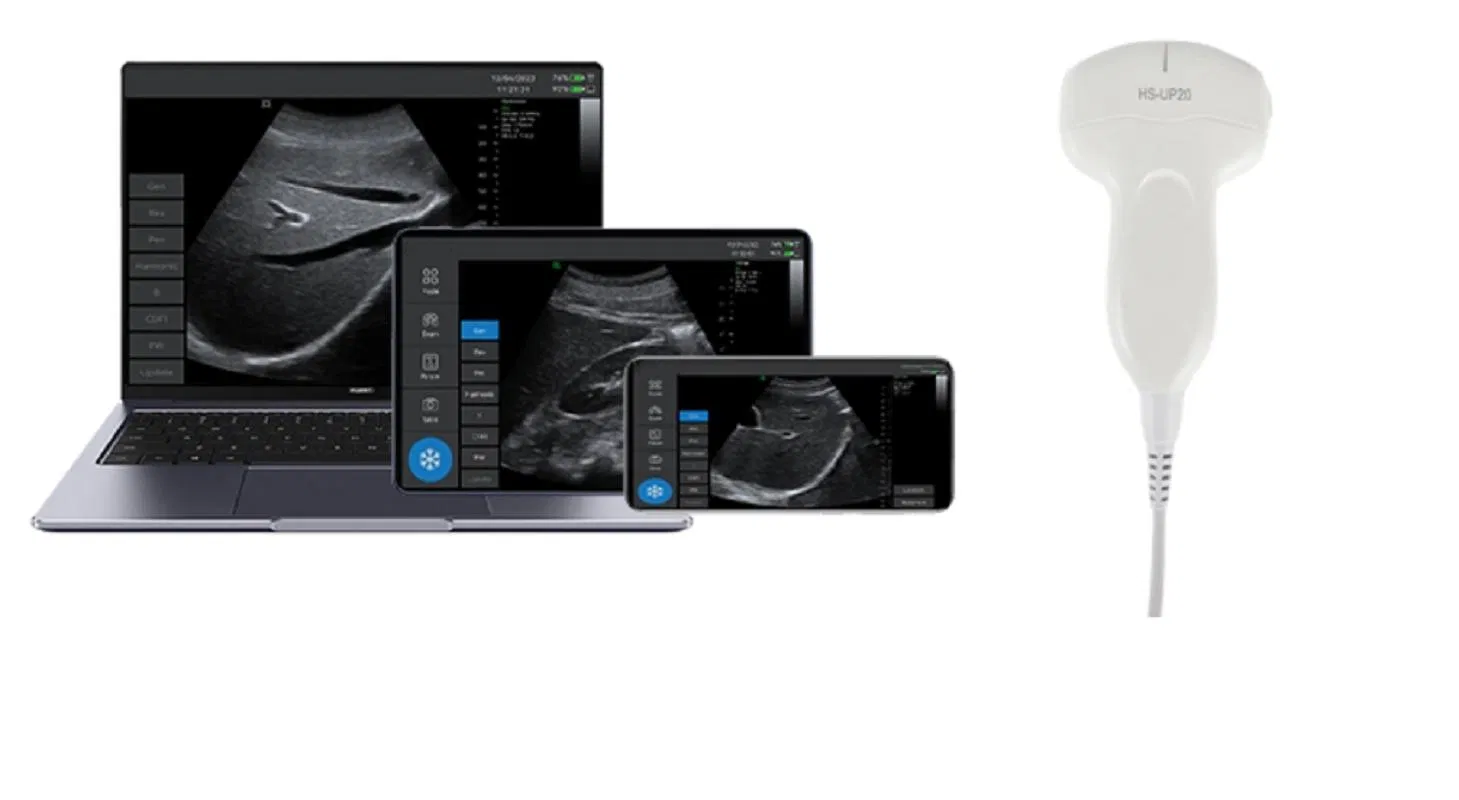

This ultrasound scanner supports both Windows and Android operating systems, with multilingual interface options including Chinese, English, Arabic, French, and Spanish. The device comes with 140 body marks and 8 false color options for enhanced diagnostic capabilities.
With a scanning depth of ≥120mm (visually adjustable) and cine loop functionality (64/128/512/1024 frames), the UP20L provides reliable real-time imaging. The device supports multiple image saving formats including BMP, JPG, PNG, TIF, and DCM, along with real-time movie storage capability.
The ultrasound machine features a USB probe port and offers extended working time of more than 4 hours on a single charge. Optional remote consultation module upgrade is available for telemedicine applications.
Certified with CE and ISO13485 standards, this medical-grade ultrasound equipment is designed for professional diagnostic use. The compact size and wireless operation make it ideal for point-of-care diagnostics, emergency medicine, and mobile medical services.
