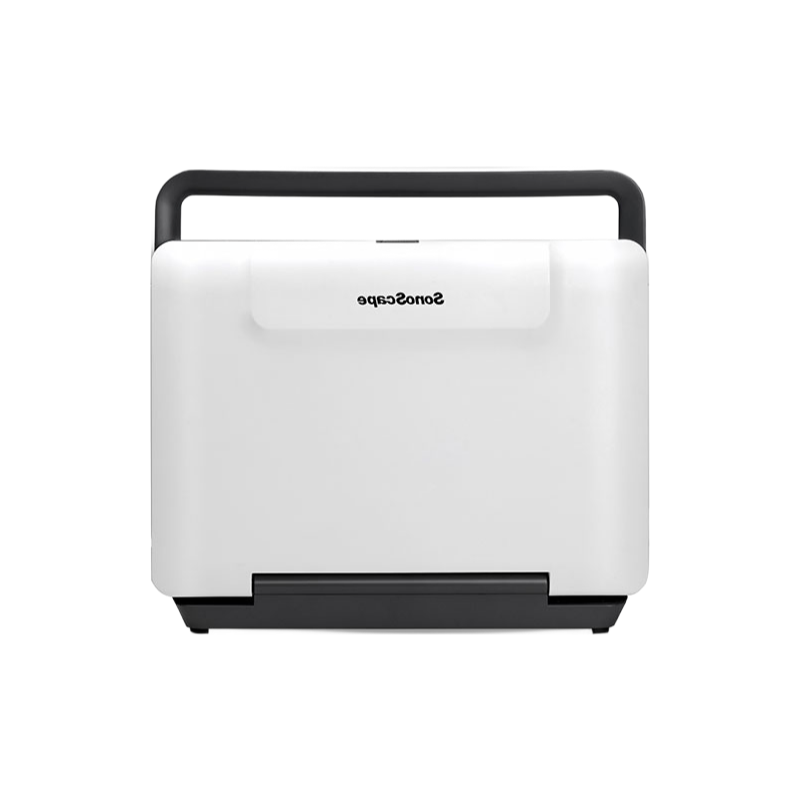

The Sonoscape E1 represents the first model in the E-series family of portable ultrasound systems. Designed as a compact, hand-carried B/W ultrasound unit, it delivers exceptional imaging performance while maintaining user-friendly operation for various diagnostic applications.
This advanced diagnostic equipment comes standard with a 15.6" high-resolution LCD color monitor featuring auto-adaptive LED backlight technology. The system includes comprehensive imaging capabilities with multiple modes: B-mode, 2B, 4B, and M-mode, along with advanced technologies like Dynamic Multi-beam and Tissue Harmonic Imaging.

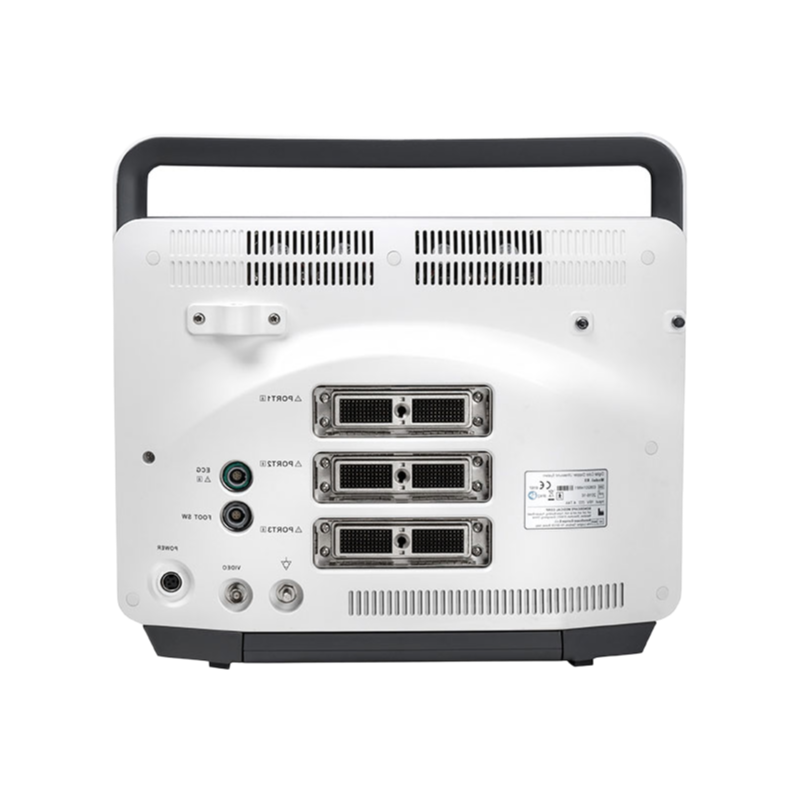

The E1 ultrasound scanner features an ergonomic design with up to three transducer ports, a tilting monitor with angle adjustment, and backlit keyboard for optimal usability in various clinical environments. Its compact dimensions (378×339×56.5mm) and lightweight construction make it ideal for mobile diagnostic applications.
Key diagnostic features include μ-Scan technology for speckle reduction and edge enhancement, spatial compound imaging, pure inversion harmonic imaging, and wide scan capabilities for expanded imaging areas. The system also includes PW Doppler functionality and specialized modes for vascular, abdominal, obstetrics, and gynecological examinations.
The package includes standard configured transducers: Linear L746 (4.0-12.0MHz) for vascular and small parts imaging, and Convex C361 (2.0-6.0MHz) for abdominal and OB/GYN applications. Additional features include DICOM 3.0 compatibility, 500GB hard disk storage, and optional Wi-Fi/Bluetooth connectivity.
