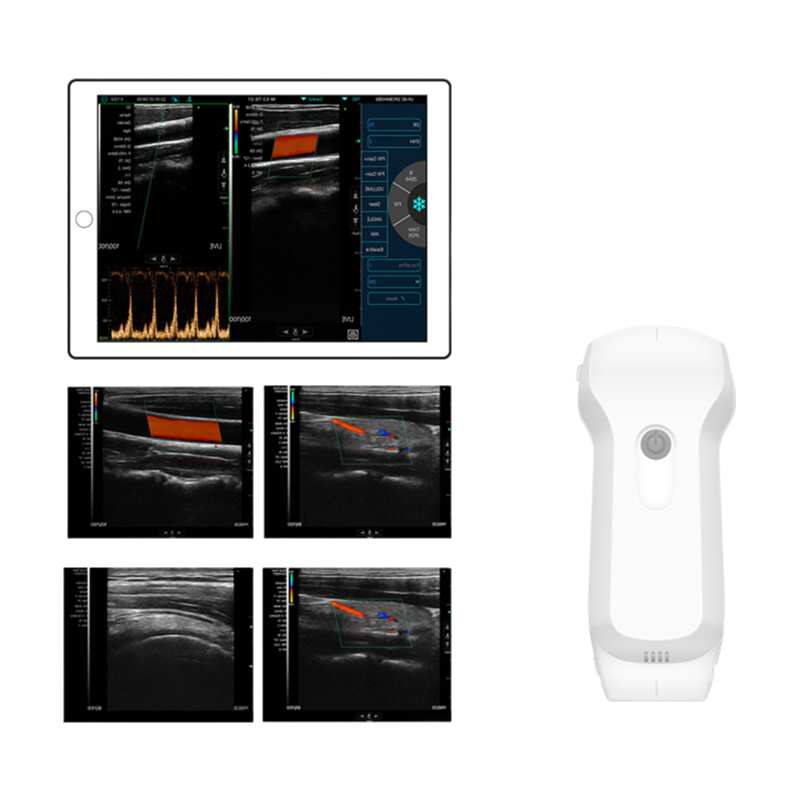

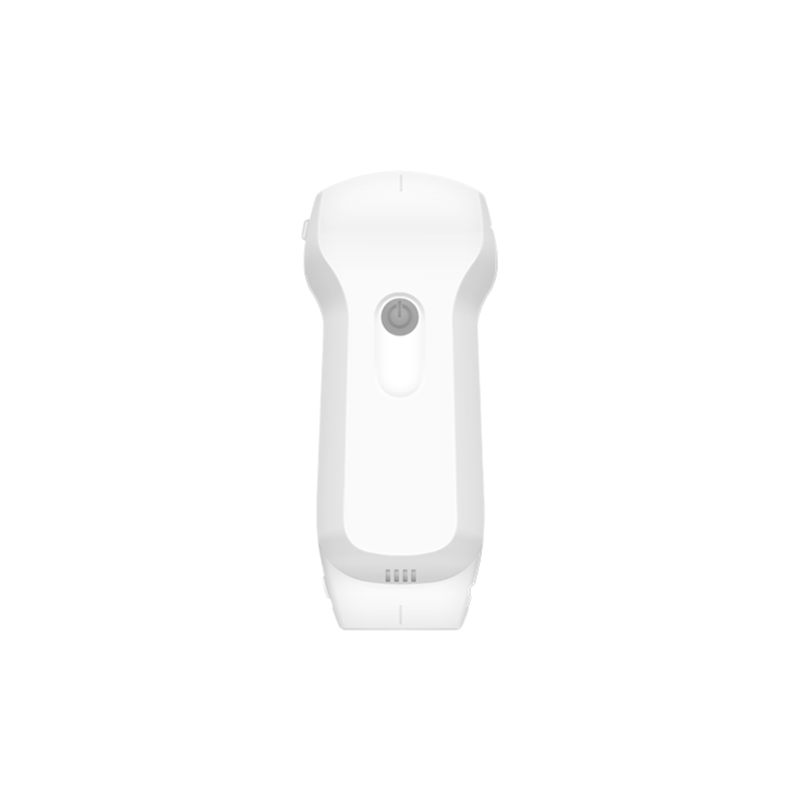

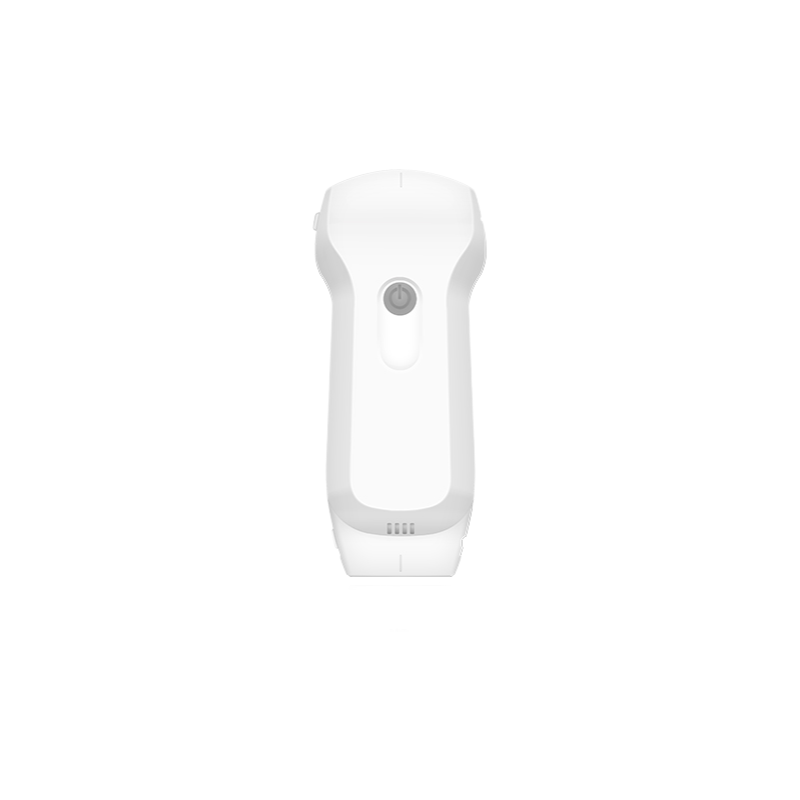

Konted C10RL Dual-Probe Wireless Ultrasound Scanner with Convex Linear Cardiac Probes for Medical Imaging

The Konted C10RL is a versatile wireless ultrasound scanner designed for comprehensive medical imaging applications. It integrates a dual-probe system, combining convex and linear array probes, with the convex probe featuring cardiac preset functionality. This 3-in-1 design enables whole-body scanning, including abdominal, cardiac, vascular, and other specialized examinations.

Equipped with 128 elements, the device operates at multiple frequency ranges: 3.5/5.0 MHz, 7.5/10 MHz, and 2.5/5.0 MHz, providing depth capabilities from 20 mm to 305 mm depending on the probe and application. The scanner includes numerous presets for areas such as abdomen, gynecology, obstetrics, cardiac, urology, kidney, lung, thyroid, small parts, pediatrics, vascular, carotid, breast, musculoskeletal, and nerve imaging.

Measurement functionalities are extensive, covering B-mode length, area, circumference, angle, trace, distance, and gestational age calculations (e.g., CRL, BPD, GS, FL, HC, AC). It also supports M-mode for heart rate, time, distance, and left ventricular internal dimensions (LVIDd, LVIDs, EF, SV), as well as PW-mode for velocity, heart rate, S/D ratio, and depth. Automatic vessel flow measurements include parameters like PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, and FL.

The device is compatible with multiple platforms, including iOS, Android, Windows, tablets, smartphones, and PCs, and supports image storage in JPEG, MP4, and DICOM formats. It is classified as a Class II medical instrument and comes with a two-year warranty, emphasizing reliability and performance.

For research and professional use only, not intended for personal applications. The product supports customization options such as OEM services for logos and packaging, ensuring flexibility for various medical and institutional needs.
