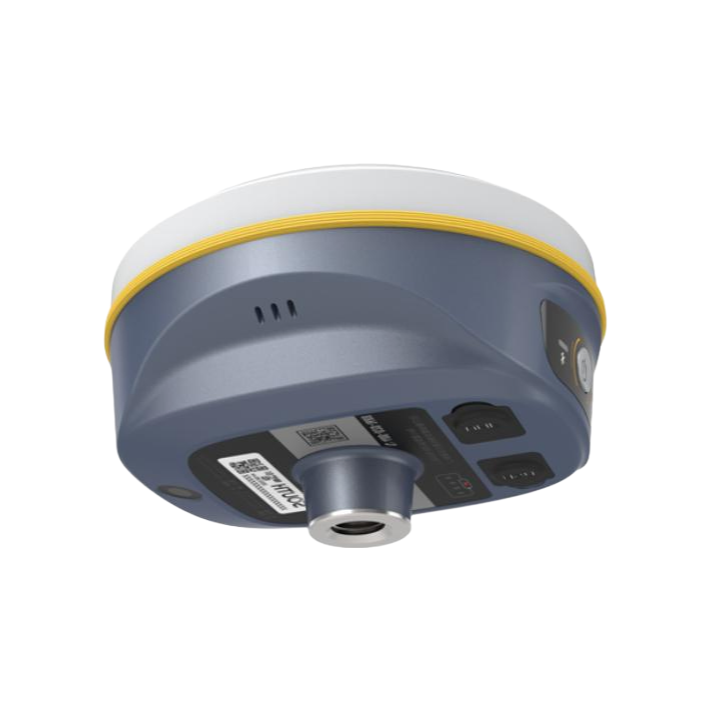

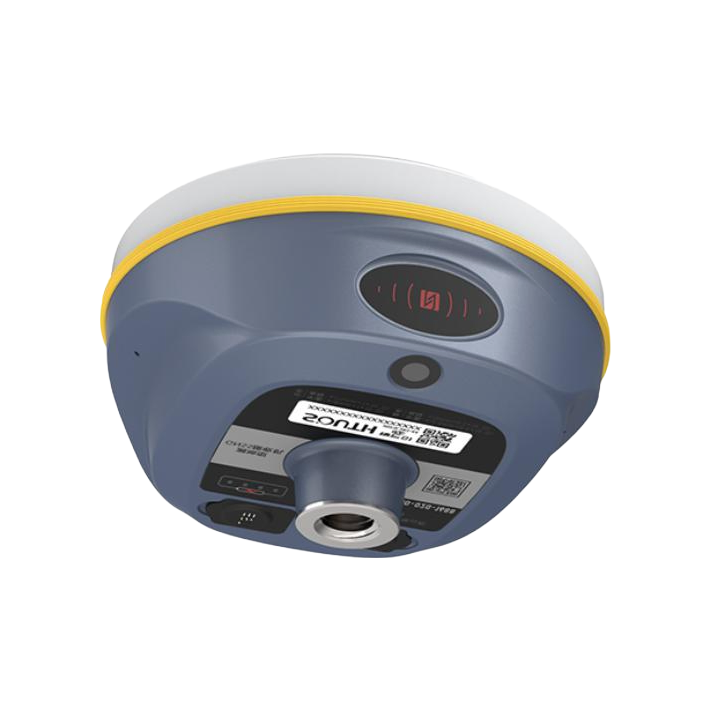

SOUTH Insight V2 RTK Receiver with GNSS IMU Camera for High Precision Surveying and Stakeout

The SOUTH Insight V2 RTK Receiver represents a significant advancement in surveying technology, combining GNSS positioning, IMU compensation, and visual navigation in a compact, palm-sized device. This professional-grade equipment delivers real-time, high-precision stakeout capabilities with visual target display for enhanced workflow efficiency.

Featuring an impressive 1598 channels, the Insight V2 supports multiple satellite systems including GPS, GLONASS, BDS, GALILEO, and more. The integrated IMU module provides tilt compensation down to 30° with minimal pole tip uncertainty, while the 2MP camera offers 75° field of view for visual navigation assistance.

The magnesium aluminum alloy construction ensures durability with IP68 waterproof and dustproof rating, capable of withstanding immersion to 2m depth. The device operates in extreme temperatures from -45°C to +75°C, making it suitable for challenging field conditions.

With multiple positioning modes including RTK, PPK, and SBAS, the Insight V2 delivers centimeter-level accuracy. The built-in 6800mAh lithium-ion battery provides up to 16 hours of operation in static mode, while the 4GB internal storage (expandable to 32GB) ensures ample data recording capacity.

The device supports various communication options including WiFi hotspot, Bluetooth 4.2, NFC, and UHF radio with up to 8km range. The Linux-based system offers web interface management and supports multiple data formats including RINEX and RTCM standards.
