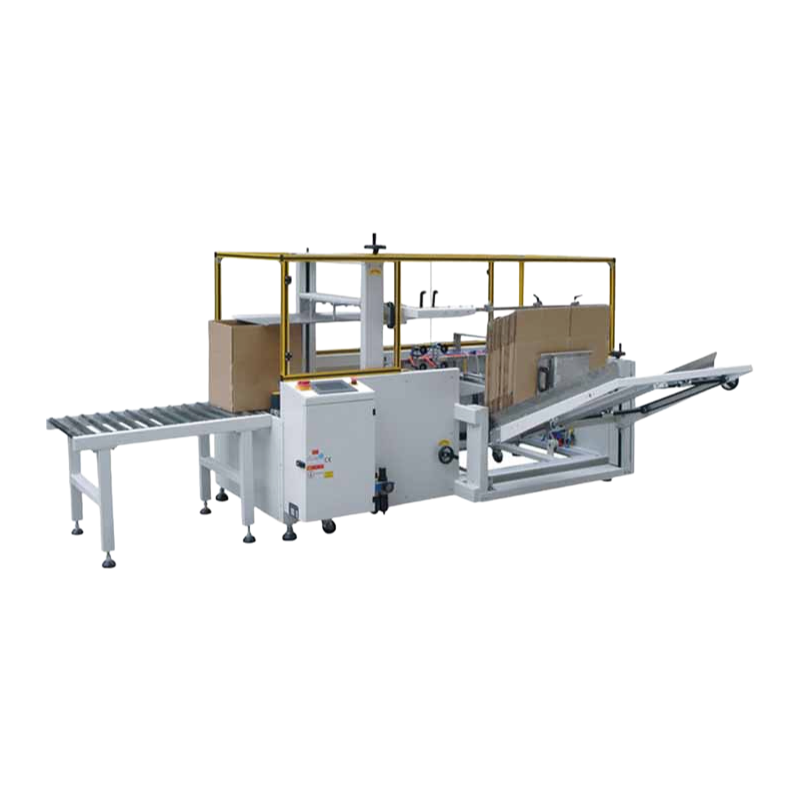

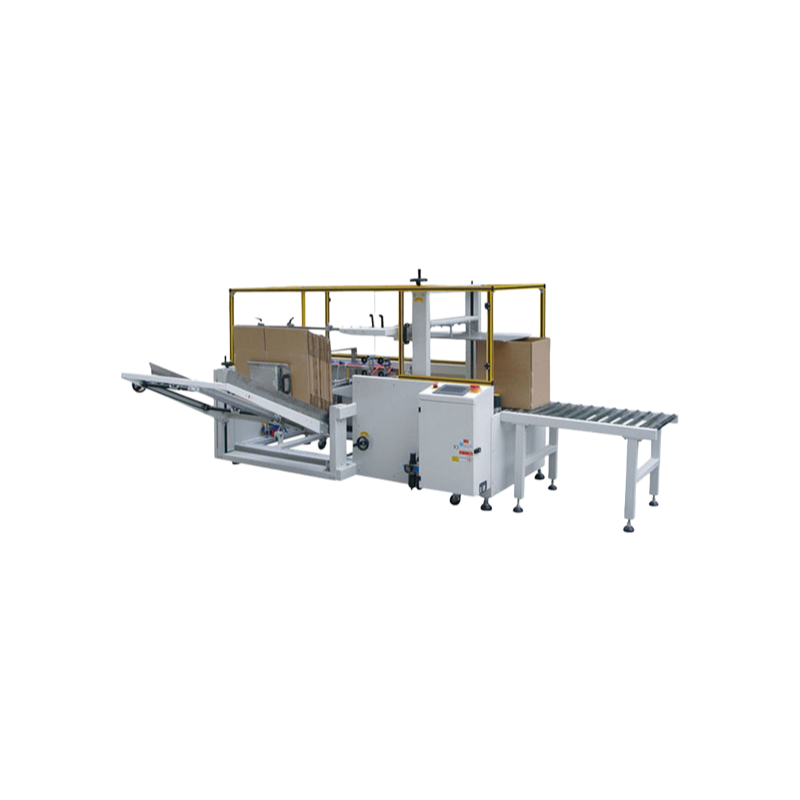

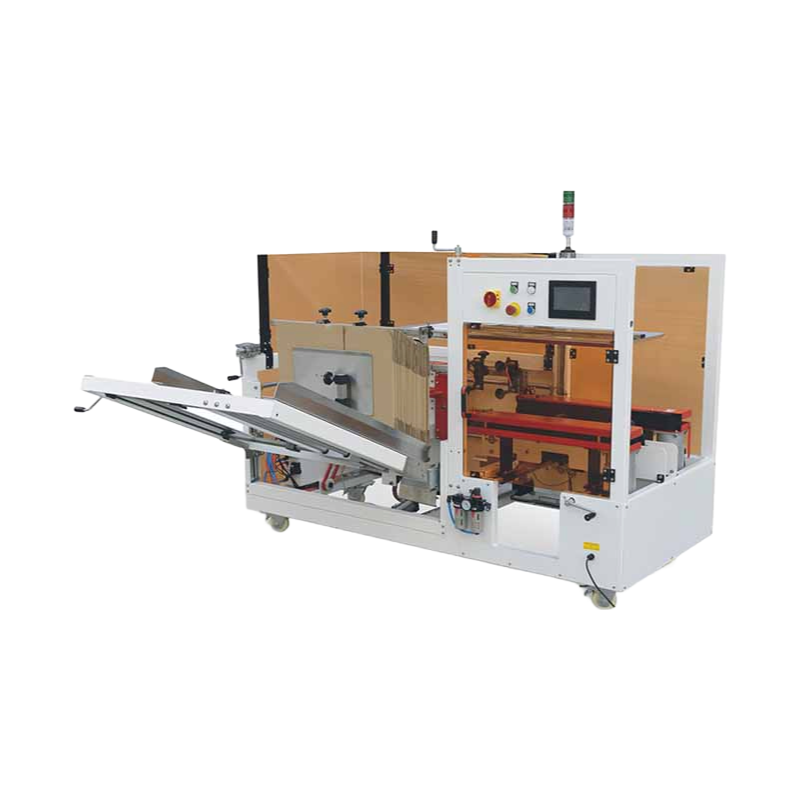

High-Speed Carton Forming Machine 15 Times/Min with BOPP Tape Sealing

Starting with KX4540, sample pricing is around $8,500 for a single unit, mid-volume orders of 5-10 machines drop to about $7,700 each, and bulk buys of 20+ can get down to $7,200 per unit — we've seen most buyers go with the mid-tier for cost-effectiveness. It runs 15 cycles a minute with BOPP tape sealing, and the power draw is just 0.3kW, so it's pretty efficient on electricity consumption. For your RFQ, we typically stock the standard stainless steel model, and CE certification is included — we can provide the COA and SGS paperwork with shipping. Usually within 20 days or so from order confirmation, give or take a couple days depending on customs clearance. Honestly, for the price point, you're getting a machine that handles carton sizes from 250-450mm length, 150-400mm width and height, which is better than many competitors that lock you into a narrower range. The 500kg weight means it's solid but not impossible to move around the shop floor. Also, the BOPP tape width options (48mm, 60mm, 75mm) give you flexibility — most clients use 60mm as default but switch base on carton weight. One thing: it's really not suited for extremely heavy-duty industrial cartons over 20kg per box, as the tape seal might not hold under high stress situations. Actually, teh machine dimensions (2000x1900x1450mm) mean you'll need about 2.5 meters clearance on all sides for operator access and maintenance, which is something buyers sometimes forget. Anyway, we've had a few clients in food and beverage industries who loved it for medium-volume lines, but for pharma with strict sterile requrement, you'd want to add a conveyor sterilization step before the erector — just a heads-up from experience.

Lead time is roughly 25 days for a first order, but since we're a factory with regular, we usually have the KX4540 in stock for mid-volume requests — just confirm before placing to avoid. The one year parts and labor (excluding tape and wear parts like blade sets), and we've included remote troubleshooting as standard. For payment, 50% with PO, 50% before shipment via wire — T/T bank transfer is our usual approach.

What it does is combine carton erecting, bottom folding, and tape sealing in one continuous loop — basically eliminates that manual case forming step that slows down lines. Power supply is 220V or 380V/50Hz (240W motor), and the control panel uses a simple PLC interface with English menus. No complex programming needed — operators pick it up in a day or so.

That 15 cycles per minute is the sweet spot for most packging lines — too fast and you'd need longer conveyors, too slow and it bottlenecks. The tape sealing mechanism works with BOPP only, so if you're using hot-melt or water-activated tape, this isn't the right fit. For carton length, anything under 250mm won't run smoothly because the forming plates need that minimum to fold correctly.

For order details I'd need your shipping address (DDP or FOB), preferred payment terms, and whether you want the 48mm or 60mm tape adapter installed by default. our company can include spare blades and a tape tension tool at no extra cost — just a little thing we throw in with bulk orders.
