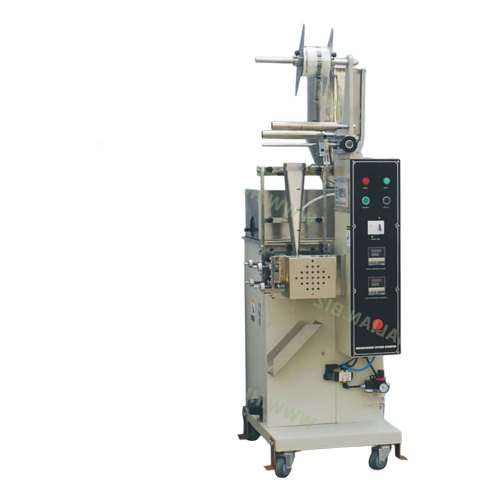

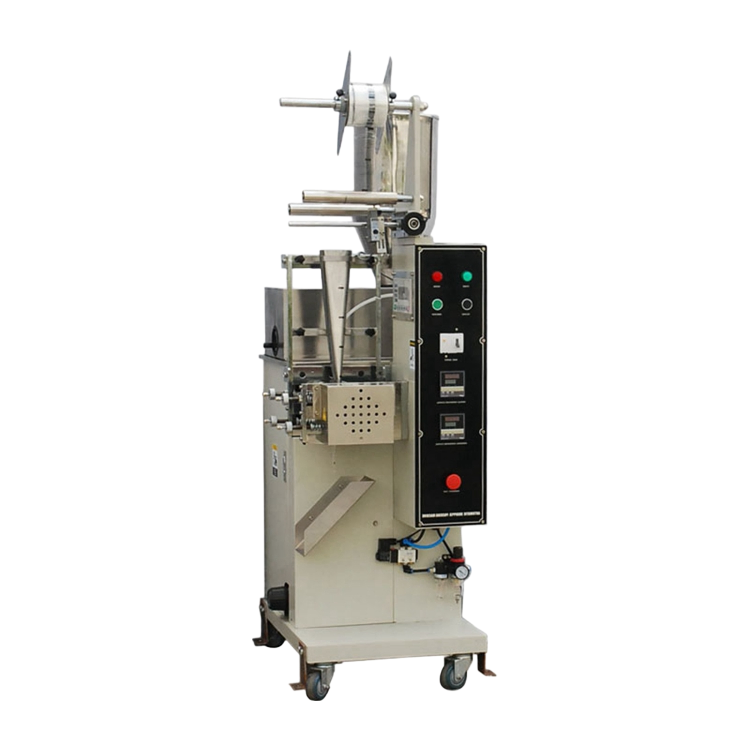

Running seasoning, chemical, or pharma powders through a form-fill-seal line at 50-80 bags per minute means you’re looking at a machine that handles 5-20ml volumes with heat seal on composites like Paper/PE or Aluminum foil/PE—basically, if your product is granular or fine and fits that bag size range (50-110mm length, 30-80mm width), it’s a solid match, but don’t push it beyond 20ml or the seal integrity drops off.
The PLC control keeps bag length adjustable on the fly, which is handy when you’re switching between runs, and the 1700W draw on 220V/50Hz or 110V/60Hz means you’ll need a dedicated circuit—most US labs have 110V, but we usually stock a transformer option if you’re running 220V, though confirm lead time (usually 2-4 weeks for teh transformer).
CE and ISO9001 certifications are on file, and our company provide a COA with each unit—import docs for the US or EU are straightforward since we’ve shipped roughly 40 units to US buyers in the past year, and customs clearance hasn’t flagged any issues with the 350kg net weight or the 790×600×1780mm crate dimnesions.
One thing we’ve noticed is that the 5-20ml volume range means it’s not suited for large sachets or liquid fills—stick to dry powders or pastes with a viscosity under 10,000 cP, or you’ll get inconsistent seals, and that’s just the physics of heat seal mechanism.
Also, the MOQ is 1 unit, but we usually have 3-5 in stock, so turnaround is about 10 days or so after payment clears—just check the SDS for your matrial if it’s flammable, because the heat seal element runs at 150-200°C and you don’t want a fire hazard.
We typically start at 1 unit for this model, but if you need a better per-unit price, orders of 5 or more machines can qualify for a volume discount.
Standard lead time is around 15-20 working days from order confirmation, depending on current production load. We can rush it in 10 days if needed, but that may add a small fee.
Yes, each DXDG-20II ships with both CE and ISO9001 certificates included. We can also provide a third-party inspection report upon request.
Absolutely. It's designed to work with aluminum foil/PE, Nylon/PE, paper/PE, cellophane/PE, and BOPP/PE. Just make sure your roll width fits within the bag dimensions of 30-80mm.
The DXDG-20II supports both 220V/50Hz and 110V/60Hz power supplies, so it'll work fine in most regions. Just specify your voltage when ordering so we can configure it correctly.
