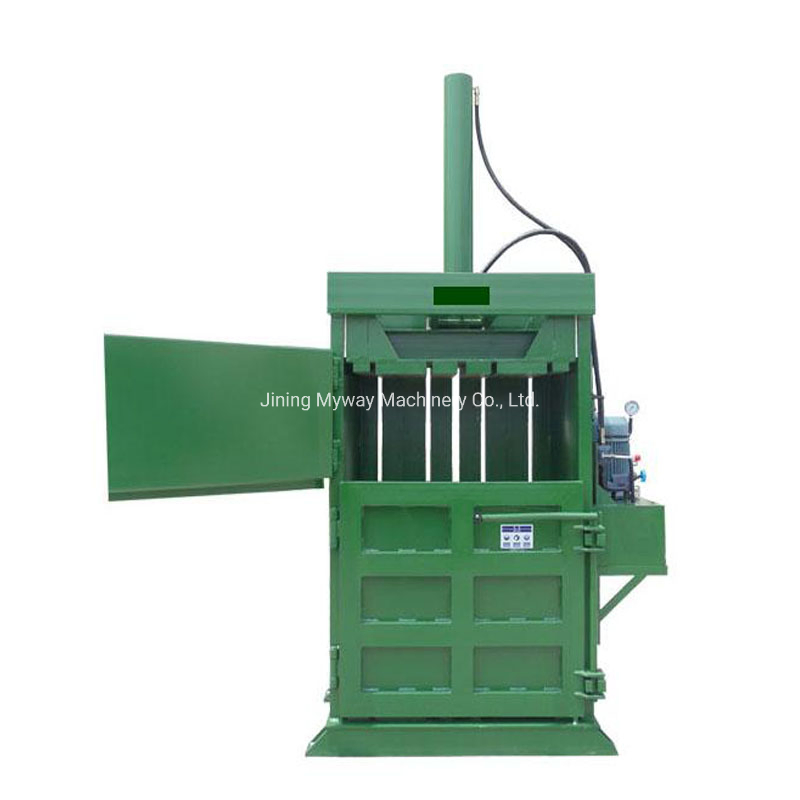

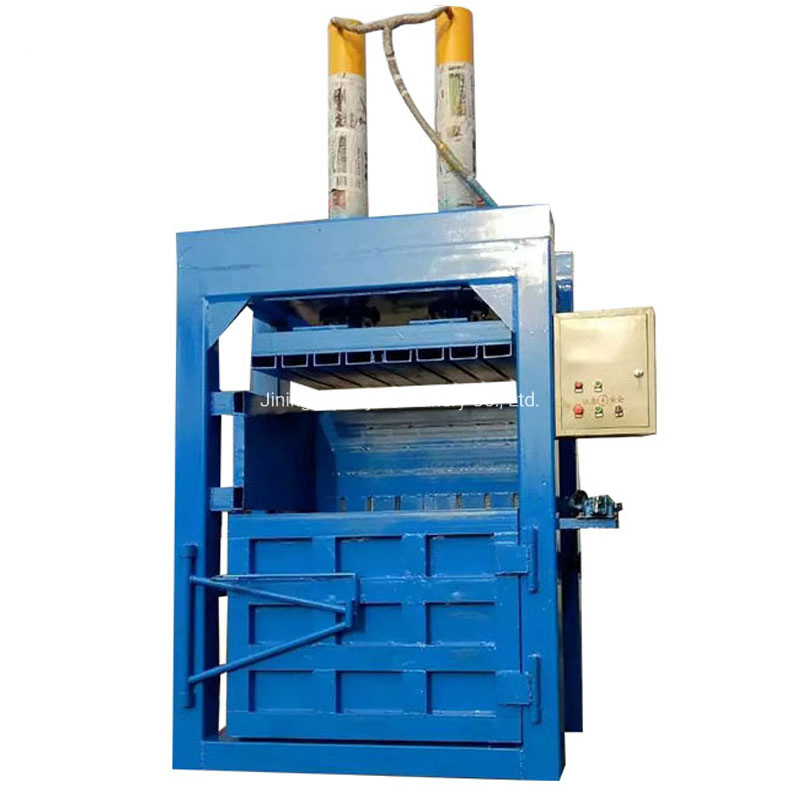

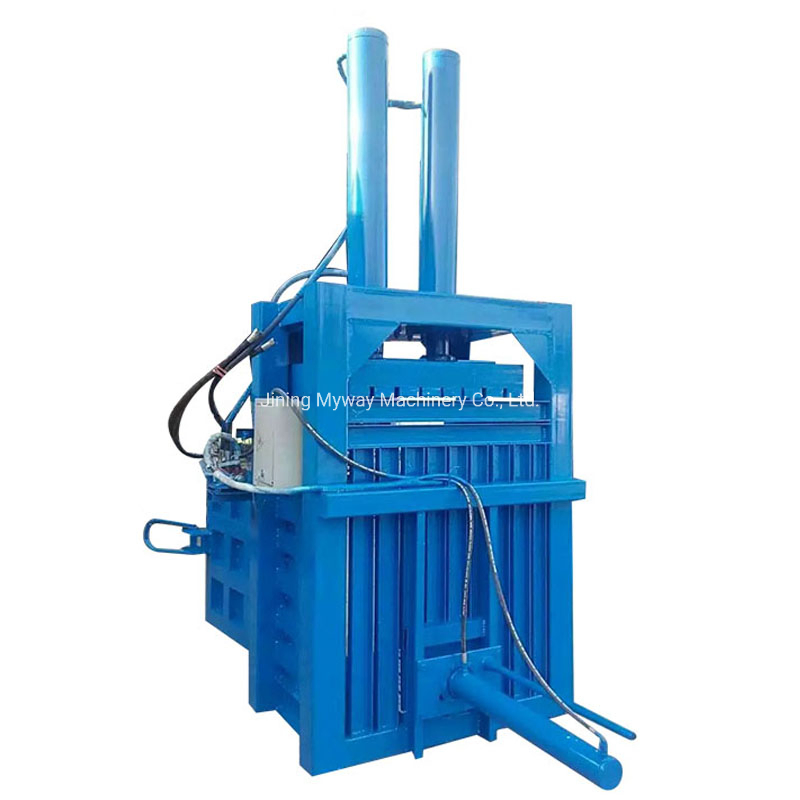

We've been shipping these vertical balers for years now, and what it does in practice is take loose scrap like cardboard, plastic film, or textile clippings and squeeze them down into dense, stackable bales—the PLC control handles the cycle timing so operators just load and press, and the 5-point locking system kicks in automatically before the ram moves, which is something buyers appreciate when running high volumes.
The compression force ranges from 10 tons up to 150 tons depending on the model you pick, and that translates to bale weights of about 30kg on the small end all the way to 900kg per bale for MW-150T, which is roughly 4 to 6 bales an hour depending on material density and operator speed—the standdard bale sizes start at 600×400mm and go up to 1500×1000mm, so you'll want to match that to your downstream handling equipement.
It's not really built for heavy metal scrap or mixed construction debris, but for paper, plastics like HDPE and PET, textiles, cotton, and even straw it handles consistently—most buyers go with the 220V or 380V option depending on their facility, and the power draw is 2.2KW up to 18.5KW, which is pretty much what you'd expect for a machine that weighs between 1000kg and 5100kg give or take a few hundred kilos.
The hydraulic components use imported pumps and valves, and the frame is high-strength steel plate with gas-shielded welding, so you're not dealing with weld cracking under load—we usually have stock on the MW-10T through MW-60T models, but the larger ones may require 20 days or so for fabrication, and the mechancial components for one year.
Anyway, for ordering we'll need your target material type and approximate monthly volume to recommend the right compression force and bale size—a COA and SDS are available on request for the hydraulic fluid we recommend, and our company can also provide test footage of the machine running your specific scrap if you send us a sample (usually 50 kg or so).
The main difference is the compression force and bale size. The MW-10T handles up to 30kg bales with a 600×400mm size, while the MW-150T compresses up to 900kg bales up to 1500×1000mm. Power and machine weight also scale up—from 2.2KW and 1000kg for the 10T model to 18.5KW and 5100kg for the 150T.
We accept orders starting from a single unit. For bulk purchases, we can offer discounts—just let us know your quantity.
Yes, we can supply a certificate of conformity for the machine, and the imported pumps and valves come with their own manufacturer documentation. Let us know what specific certifications you need.
It uses five separate locks that engage automatically during the compression cycle, so the door won't open until the pressure is fully released. This prevents accidents if the operator tries to open it mid-cycle.
Yes, we can adjust the bale chamber dimensions to fit your specific needs, as long as it stays within the machine's structural limits. Just give us your desired size and we'll quote you.
