Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates
Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates
Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates
Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates

Professional THR-T600F Patient Monitor with 7-inch TFT LCD Display for Adult Pediatrics Neonates

US$ 320.00 ~ 360.00
Min.Order: 1
Product origin: Suzhou, Jiangsu, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 6 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : THR-T600F
  • Product Classification : Imaging Diagnostic Equipment
  • Device Type : Patient Monitor
  • Certifications : CE, ISO13485
  • Patient Group : Adult, Pediatrics and Neonates
  • Display Type : 7-inch Color TFT LCD
  • Battery System : Built-in Storage Battery and Recorder
  • ECG Lead Configuration : Standard 3 leads (RA, LA, LL) and 5 leads cable (RA, LA, LL, RL, V)
  • ECG Lead Modes : I, II, III, aVR, aVL, aVF, V
  • ECG Gain Settings : 0.25, 0.5, 1, 2
  • Heart Rate Accuracy : ±1% or ±1 bpm
  • NIBP Resolution : 1 bpm
  • Input Impedance : >5 MΩ
  • Continuous Measurement Time : 5 minutes
  • Pulse Rate Range : 40-240 bpm
  • Adult Systolic Pressure Range : 50-240 mmHg
  • Adult Diastolic Pressure Range : 30-200 mmHg
  • Mean Pressure Range : 22-180 mmHg
  • Static Pressure Range : 0-300 mmHg
  • Static Pressure Accuracy : ±3 mmHg
  • Blood Pressure Accuracy : Maximum average error ±5 mmHg
  • SPO2 Measurement Range : 40%-100%
  • SPO2 Resolution : 1%
  • SPO2 Accuracy 90-99% : ≤±2%
  • SPO2 Accuracy 70-89% : ≤±4%
  • SPO2 Accuracy 50-69% : ≤±6%
  • Over-pressure Protection Adult : 300 mmHg
  • Over-pressure Protection Pediatrics : 240 mmHg
  • Over-pressure Protection Neonate : 150 mmHg
  • Data Storage Capacity : 1000 NIBP measurements
  • Trend Chart Duration : 72 hours
  • Waveform Recall : 100 VPC waveform recall
  • Alarm Playback Options : 4 seconds, 8 seconds, 16 seconds

The THR-T600F patient monitor represents advanced medical monitoring technology designed for comprehensive patient care across all age groups. This sophisticated monitoring system combines high-resolution display technology with precise measurement capabilities to deliver reliable vital signs monitoring in clinical settings.

Featuring a vibrant 7-inch color TFT LCD display, the monitor provides clear visualization of patient data with exceptional clarity. The device supports monitoring for adult, pediatric, and neonatal patients, making it versatile for various healthcare environments. The comprehensive ECG functionality includes storage of all lead ECG data and 100 VPC waveform recall capability, ensuring thorough cardiac monitoring and analysis.

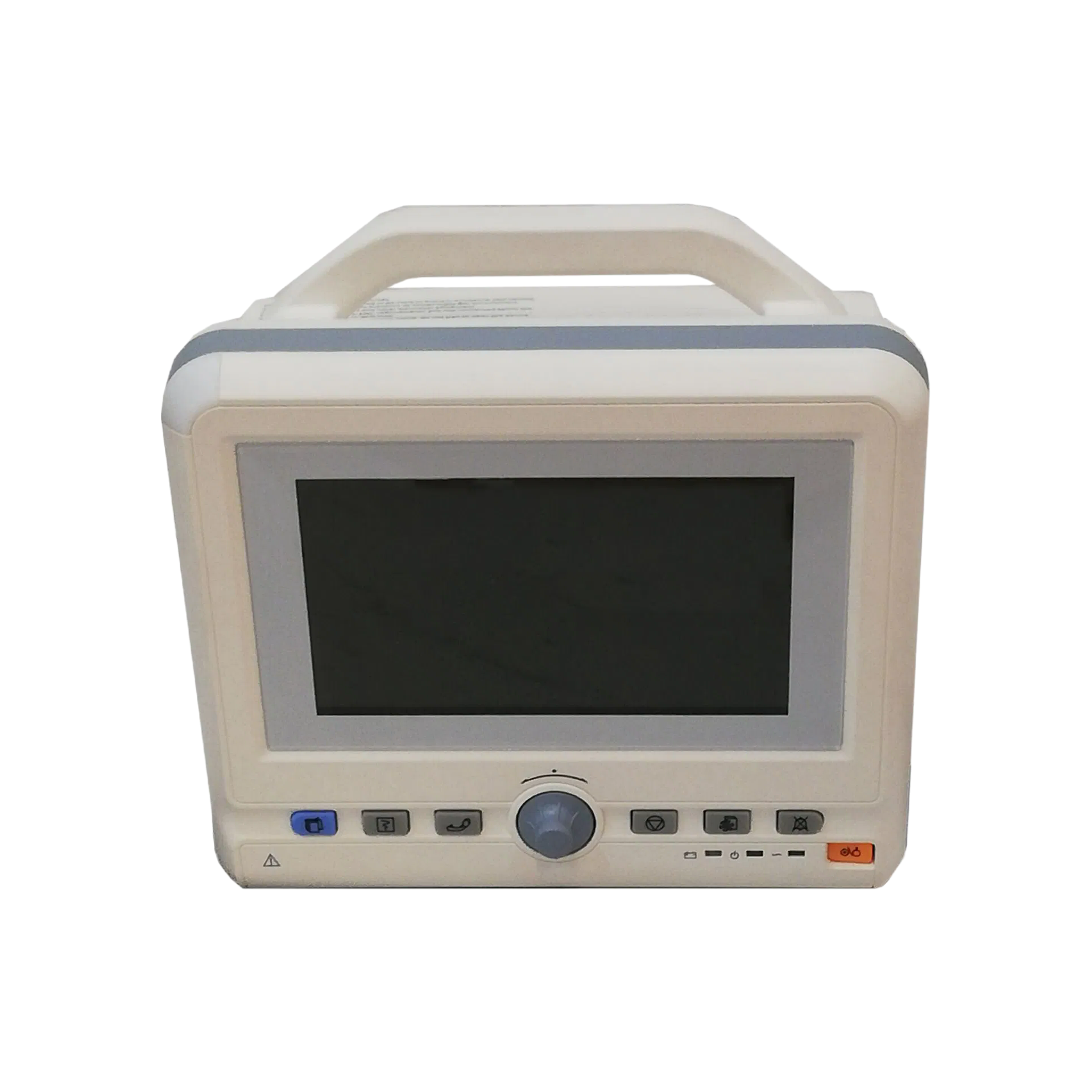

THR-T600F Patient Monitor Front View

The NIBP monitoring system employs intelligent pressure oscillation technology with imported components for high-precision measurements. The system incorporates safety features including over-voltage protection and supports continuous measurement modes. With the ability to store up to 1000 NIBP measurement data points, healthcare professionals can access comprehensive historical data for patient assessment.

Advanced alarm functionality includes 72-hour trend chart display and alarm playback features. The system can playback waveforms from four seconds, eight seconds, or sixteen seconds before and after alarm events, providing crucial context for clinical decision-making. The monitor displays recent waveform data from the past hour and supports comprehensive data storage capabilities.

Patient Monitor Display Interface

Six customizable interface options enhance user experience and workflow efficiency. These include large font interface for easy reading, standard interface for routine monitoring, all lead ECG interface for comprehensive cardiac assessment, respiratory oxygenation interface, trend chart interface, and blood pressure trend interface. The alarm classification function ensures appropriate prioritization of patient alerts.

The universal platform design facilitates easy software upgrades and compatibility with information workstations. The device can connect with central information workstations, enabling integrated healthcare system connectivity. Built-in storage battery and recorder ensure continuous operation and data preservation during power transitions or mobility requirements.

Patient Monitor Side View

Manufactured under strict quality standards, the device holds ISO 9001:2000 and ISO 13485:2003 certifications, ensuring reliability and performance consistency. The monitor's robust construction and advanced features make it suitable for various clinical applications where accurate patient monitoring is essential.

The comprehensive monitoring capabilities extend to SPO2 measurement with wide range detection and multiple accuracy levels depending on oxygen saturation levels. The device maintains high measurement precision across all parameters, providing healthcare professionals with reliable data for patient assessment and treatment decisions.

Patient Monitor Technical Specifications
