Handheld Industrial Video Endoscope with 4mm Dual Lens and 1M Cable for NDT Inspection

US$ 100.00 ~ 3000.00
Min.Order: 1
Product origin: Zhengzhou, Henan, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 41 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : SZW401JS
  • Monitor Size : 5.0 inches
  • Sensor Type : 1/18 inch CCD/CMOS
  • Resolution : 1080 x 960 pixels
  • Lens Diameter : 3.9mm dual lens camera
  • Probe Length : 16mm
  • Depth of Field : 8mm - 200mm
  • Working Cable Length : 1.0M standard (1.5M/2M/3M optional)
  • Tip Articulation : 360 degree rotation
  • Camera Lens Type : 90 degree side lens and front lens
  • Bending Angle : More than 120 degrees
  • SD Card Capacity : 32GB standard (64GB maximum)
  • Warranty Period : 12 months
  • Waterproof Standard : IP67
  • Operating Temperature : -10°C to 50°C (Body), -20°C to 70°C (Probe)
  • Storage Temperature : -20°C to 60°C
  • Relative Humidity : Maximum 90%
  • Battery Life : ≥ 4 hours continuous operation
  • Display Type : 5.0 inches IPS LCD
  • Video Output : HDMI Forward
  • Camera Lens Diameter : 4mm dual lens camera
  • Field of View : 90, 120 degrees optional
  • Forward Illumination : ≤50000 lux
  • Direction Control : 360 degrees rotation
  • Zoom Function : 4 Times
  • After-sales Service : 12 Months

Industrial video endoscopes represent a specialized branch of non-destructive testing technology designed for inspection and observation in challenging environments. These advanced devices are particularly suitable for examining high-temperature areas, toxic environments, nuclear radiation zones, and locations inaccessible to human vision. The handheld inspection video endoscope delivers exceptional performance across multiple industrial applications including automotive assembly, casting inspection, engine diagnostics, pipe systems, mechanical components, pressure vessels, power systems, wind power installations, chemical equipment, and railway locomotives.

The primary advantage of this industrial endoscope lies in its ability to perform thorough inspections without requiring disassembly or destruction of assemblies and equipment. This non-invasive approach significantly enhances detection efficiency while maintaining equipment safety performance. The device enables maintenance professionals and inspectors to identify potential issues before they escalate into major problems, thereby reducing downtime and maintenance costs.

This portable endoscope features a compact 5.0-inch display with 1 million pixel resolution, while the entire unit weighs less than 500 grams for easy handling during extended inspection sessions. The high-brightness rear LED illumination system adapts to various detection needs, providing optimal visibility in different lighting conditions. With a substantial depth of field ranging from 5-120mm, the endoscope captures clear images across varying distances from the inspection target.

The mechanical guidance system ensures precise control with 360-degree arbitrary rotation capability and zero delay response. The super wear-resistant four-layer tungsten braided tube construction provides exceptional durability, waterproof performance, wear resistance, and corrosion protection. The replaceable battery system supports continuous operation for up to 4 hours, making it suitable for extended inspection tasks without interruption.

The wide-angle high-brightness LCD display ensures clear visibility even in bright environments, while the flexible steering mechanism maintains 120-degree rotation capability even after two full turns. This combination of features makes the endoscope an indispensable tool for industrial maintenance professionals seeking reliable inspection solutions.

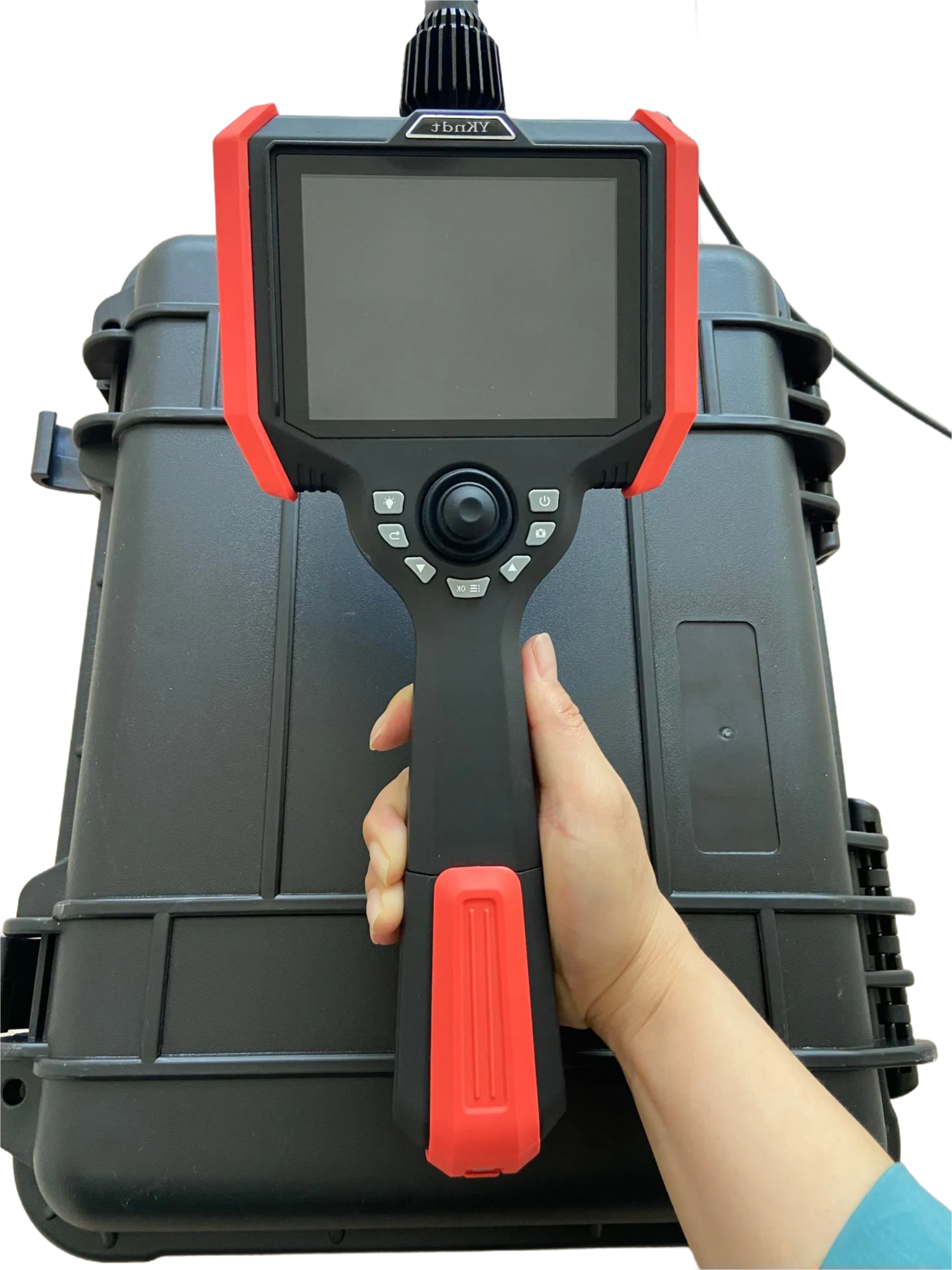

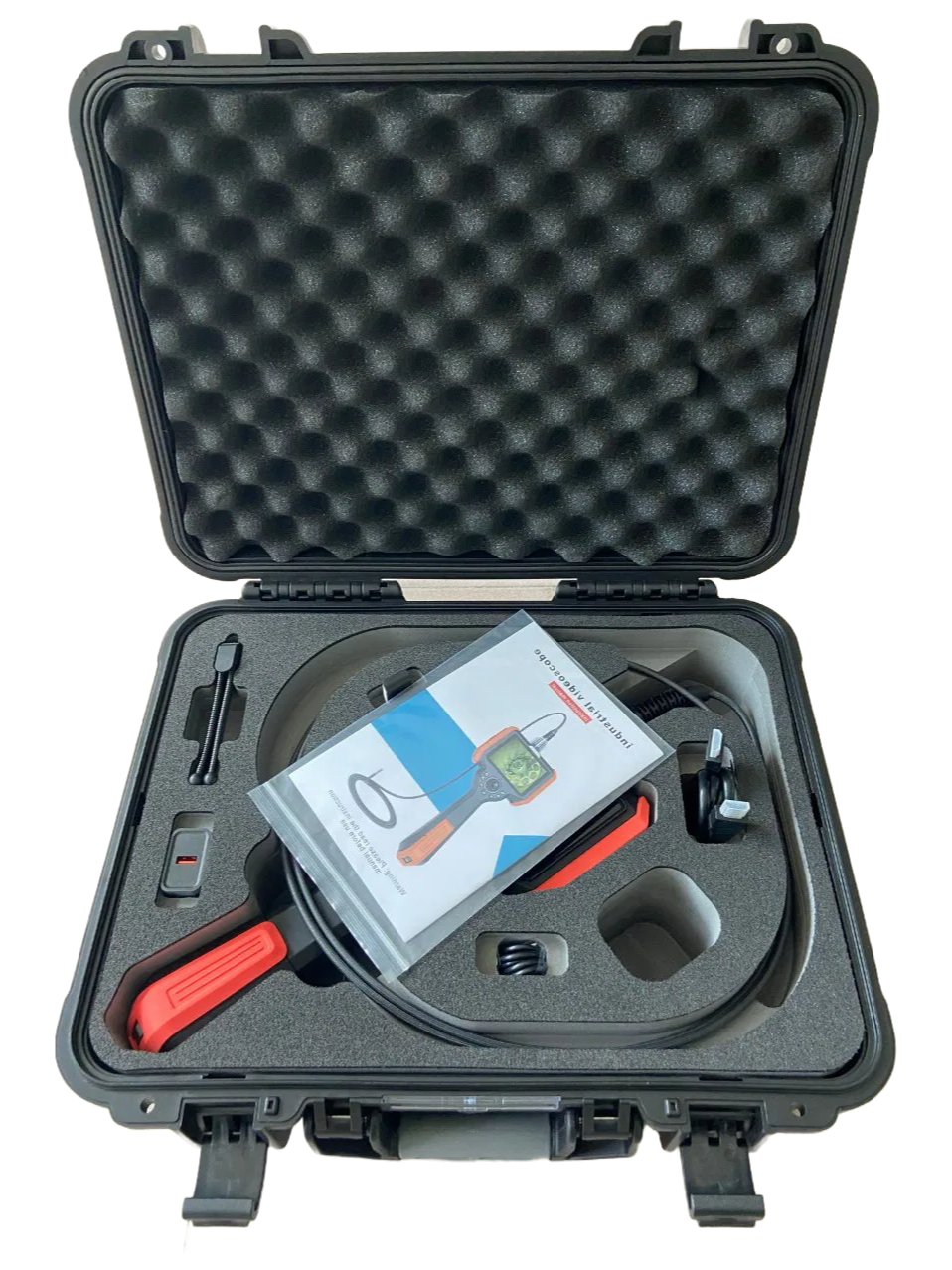

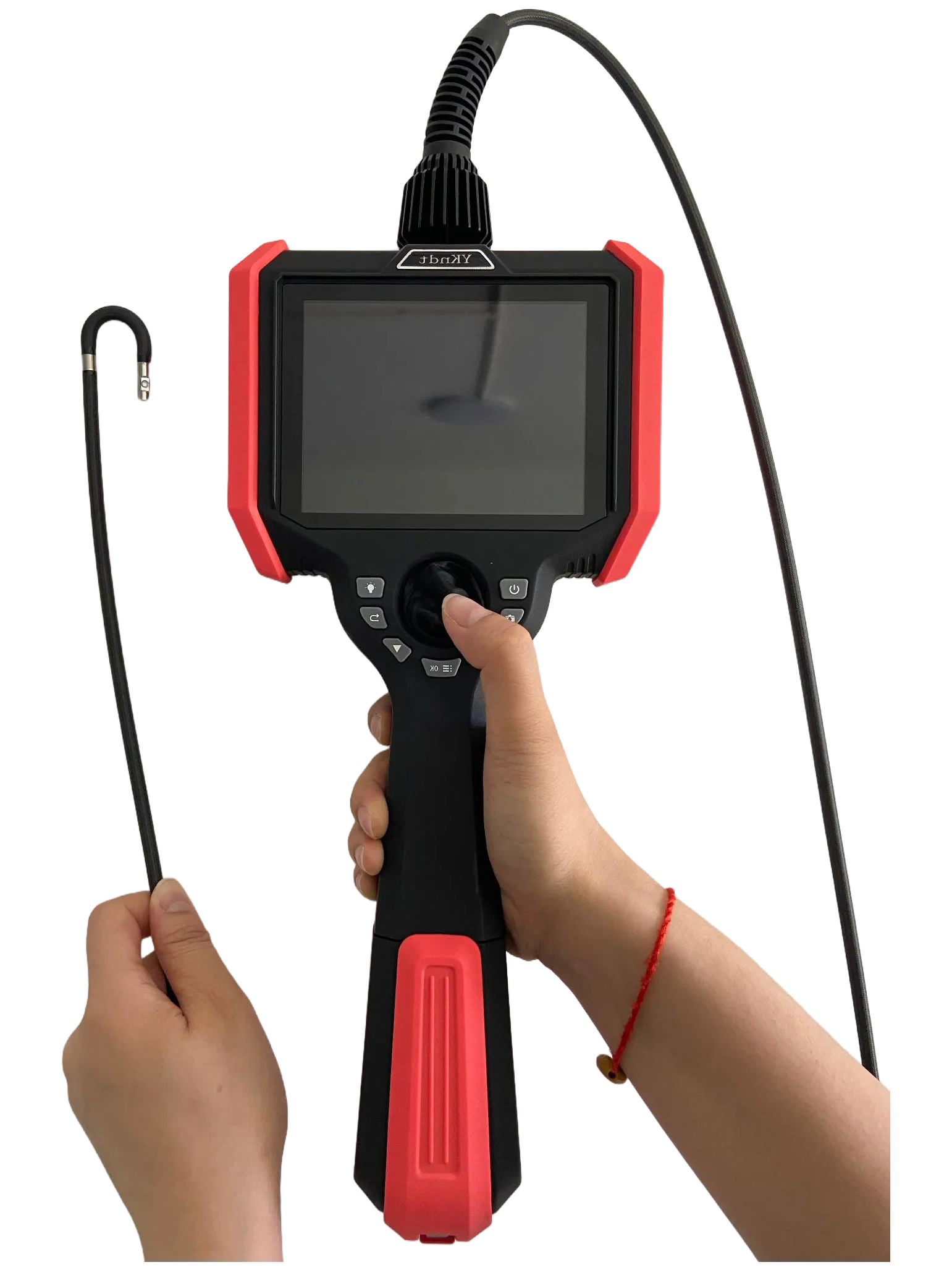

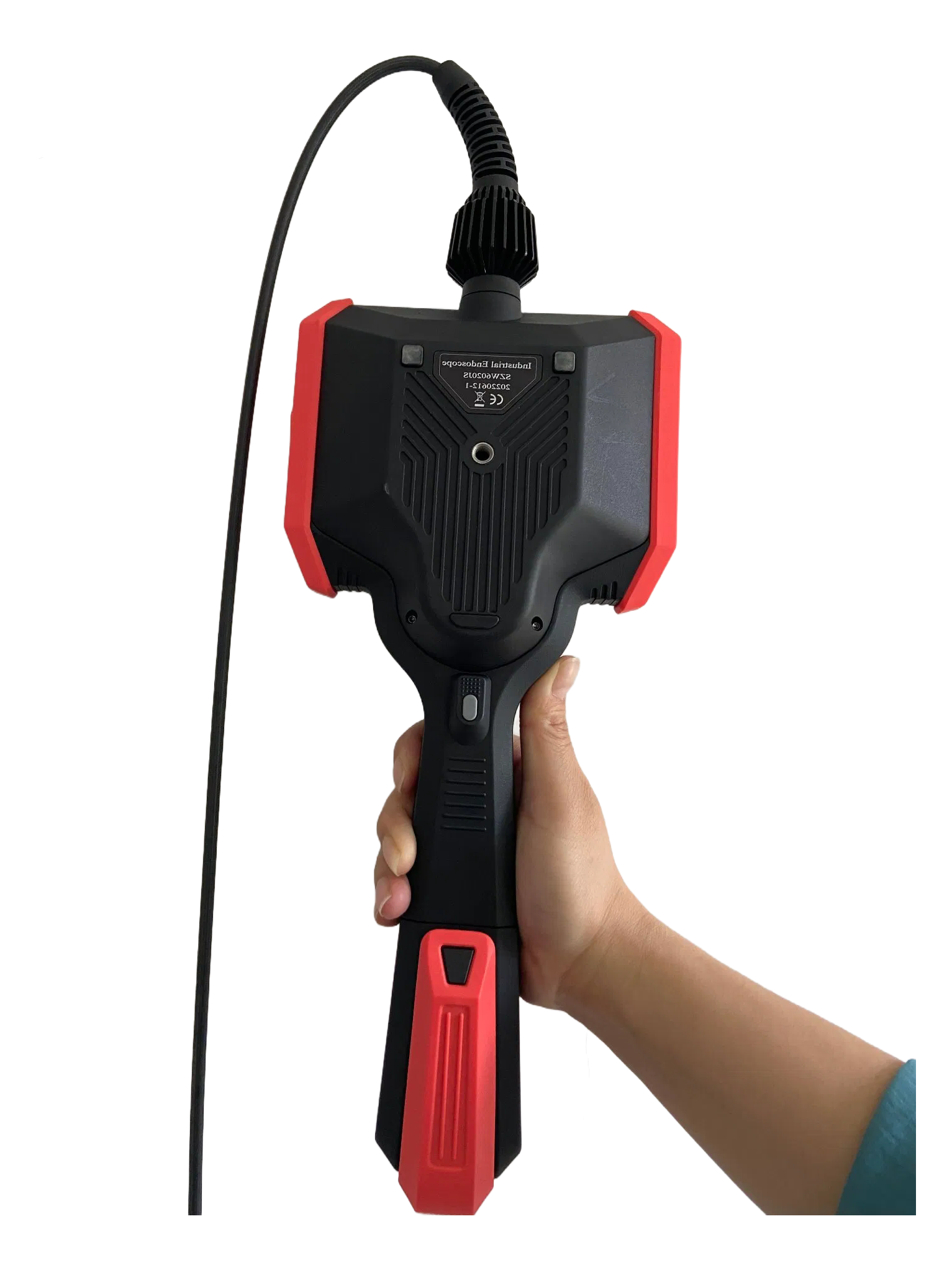

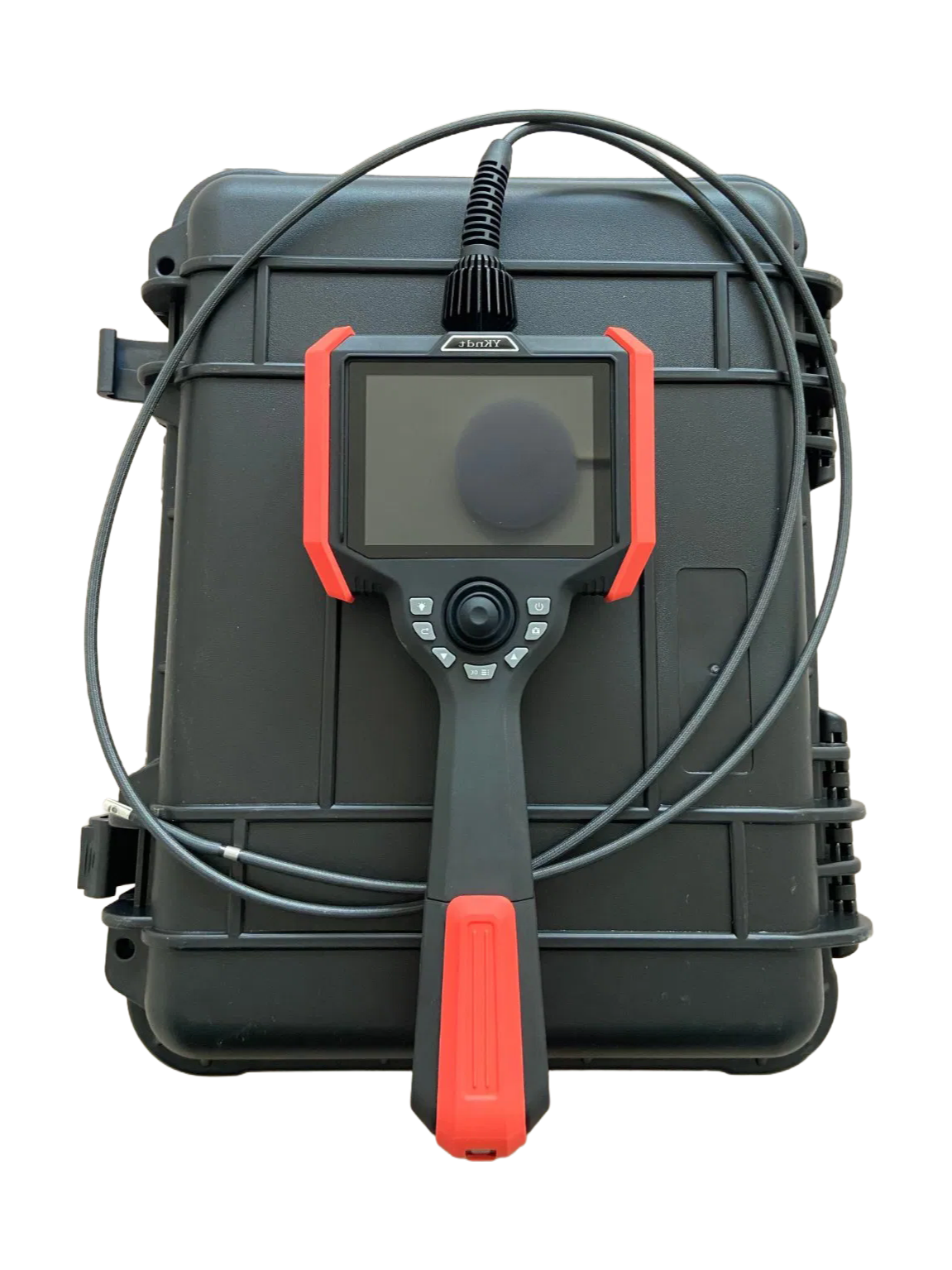

Handheld Industrial Video EndoscopeEndoscope Display and ControlsEndoscope Probe DetailEndoscope in UseEndoscope AccessoriesEndoscope Packaging
