Usually stock about 5,000 units on a 30-day rolling basis, and lead time runs roughly 2-3 weeks for larger MOQs—just confirm before you order, as we sometimes shift production to other connectors. It's packed in trays, 50 pieces per tray, and we double-box to prevent pin damage during shipping; cold chain isn't needed unless you're doing some extreme environmental testing below -40°C.
Gold plating options from 1u" to 15u" on the brass contacts—most industrial buyers go with the 6u" for the balance of cost and cycle life, but the heavier plating helps if you're exposing it to humidity or constant reconnections. The steel housing is enough, but what it does is protect against EMI fairly well in factory floor setups.
Dielectric withstanding voltge hits 1000V AC for 1 minute, which is pretty much overkill for standard network gear, but if you're running it in motor control cabinets or near high-voltage bus bars, that spec matters. Insulation resistance is 5000 megohm minimum, and contact resistnce stays at 2.7 milliohm max—important for any 10AMP to 40AMP current range where voltage drop across the jack can cause heat buildup (especially above 20 amps or so).

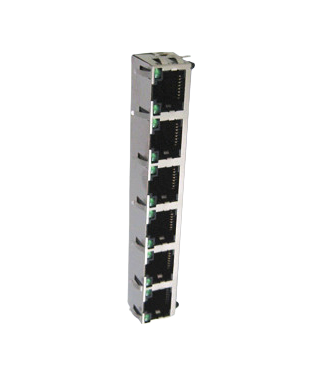

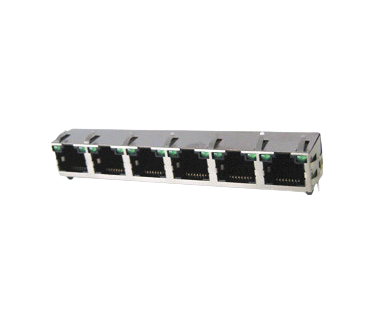

You wouldn't want to use this in pure data-only applications where you're terminating Cat6a and pushing 10Gbase-T over 100 meters—the LED indicator adds bulk that can make crimping awkward, and the 1X6 configuration with 8 to 16 poles is better suited for industrial Ethernet or power-over-line combos anyway. Operating temperture spans -55°C to +125°C, so it's fine for outdoor enclosures near solar inverters or inside heated manufacturing cells.
CE and UL certifications are on file, and we provide a COA form SGS third-party testing on every production lot (usually takes 3-5 days after shipment). The insulator material is PBT+30%GF rated UL94V-0—it doesn't offgas much at high temps, and actually, the flame retardancy exceeds typical office-grade jacks by a wide margin.
6, our company offer OEM services, so if you need custom pin arrangement or different LED colors, that's an option—minimum order for custom work is typically 5,000 units, but we can run a small pilot batch of about 500 or so to validate tooling.
We offer gold plating from 1u" up to 15u" on the brass contacts. For industrial applications where corrosion resistance is critical, we usually recommend at least 6u" or higher.
Our standard MOQ is 1000 pieces for this model, but we can negotiate lower quantities for first-time orders or sample requests. Just let us know what you need.
Yes, this jack is certified under CE, SGS, and UL standards. We can provide copies of the certification documents upon request.
For custom orders, typical lead time is 15-20 working days after sample approval. We'll confirm the exact timeline once we finalize your specs.
Absolutely, it's rated for -55°C to +125°C, so it will perform reliably even in high-heat industrial settings. The PBT+30%GF insulator material holds up well under those conditions.
