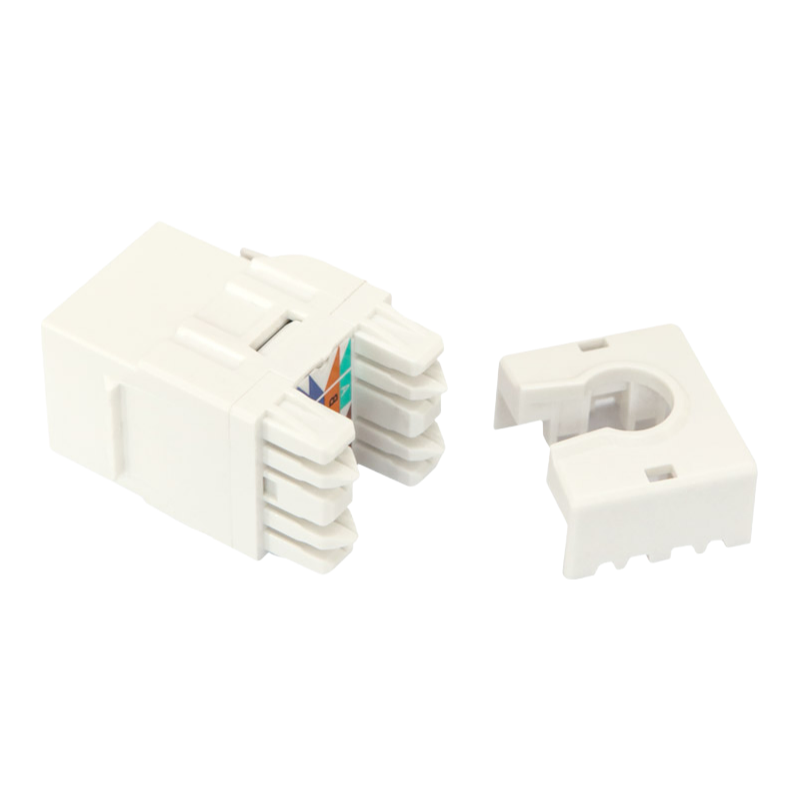

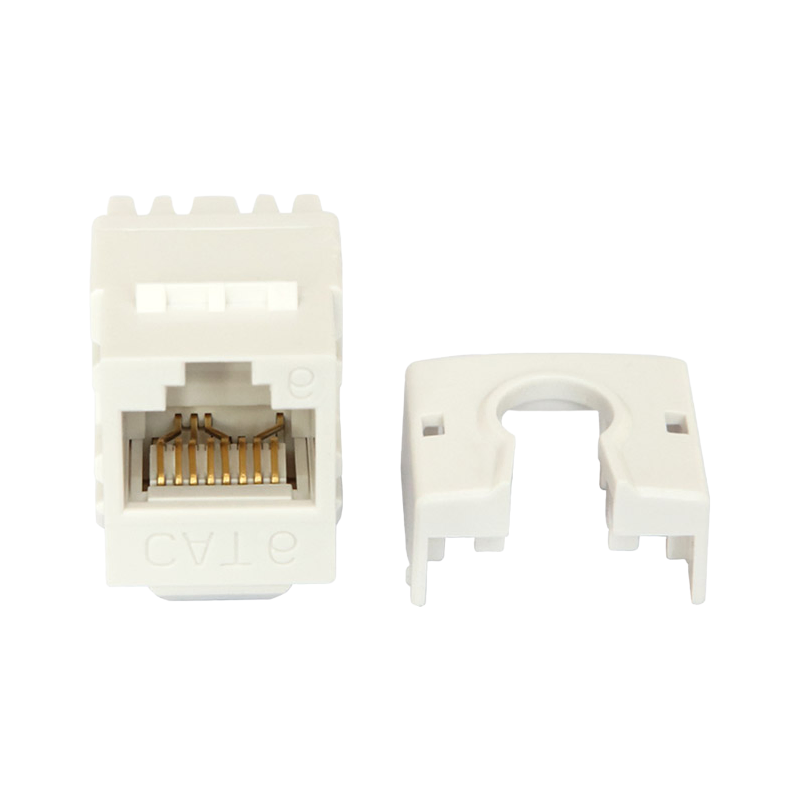

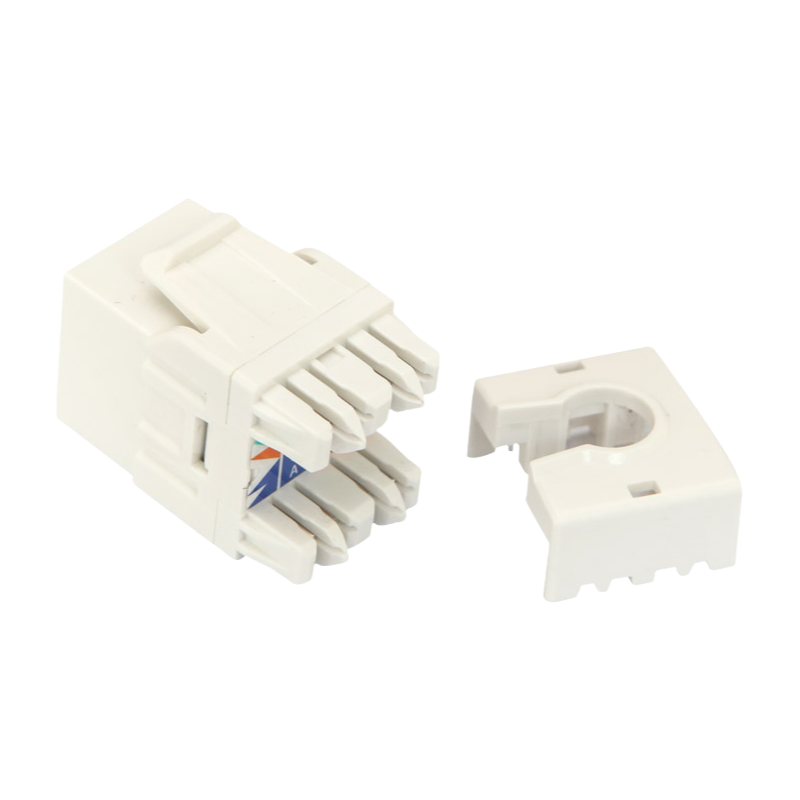

High-Performance Press-Fit UTP Keystone Jacks for Reliable Network Communication Systems

We've run these through full TIA-568.2-D channel and permanent link testing with an Agilent N2X — every batch gets a random sample pulled and validated against the spec sheet, not just a single COA form injection run.

The 180-degree form factor (straight through, no offset) mates cleanly with standard patch panels, and the injection mold holds a consistent ±0.02mm on the contact interface, so you don't get intermittent opens after 50 insertions, which is pretty much what you'd see with cheaper stamped designs.

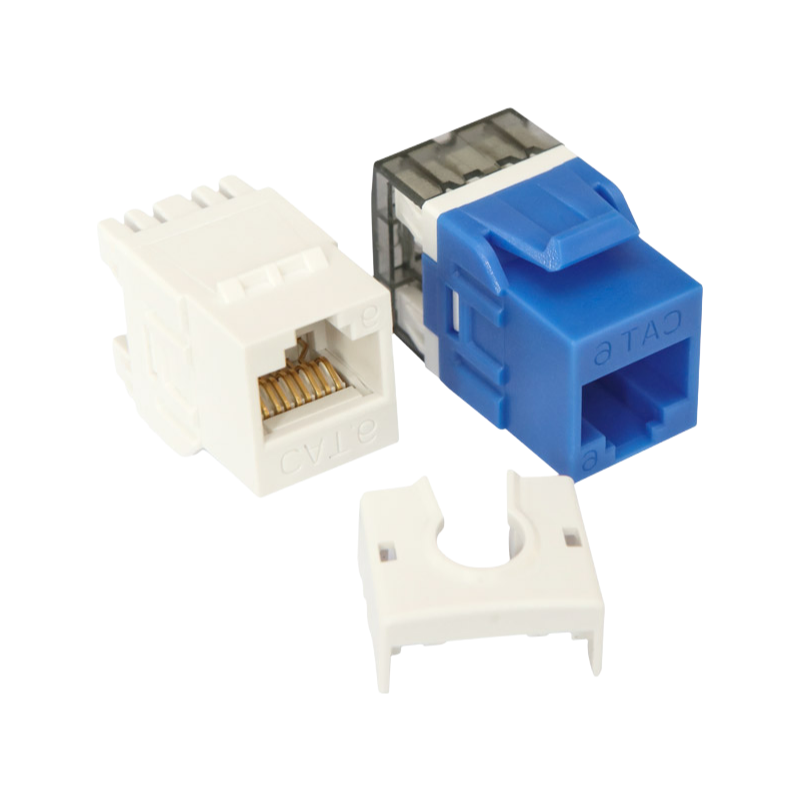

Actually, one thing that catches buyers off guard: the housing is rated UL 94 V-0 for flammability, but the plastic compound we use doesn't have a separate UV stabilizer — it's fine for indoor structured cabling, but if you're planning outdoor or plenum-rated runs, you'll want our shielded variant with FR4 inserts instead.

3mm clearance on the back side is all you need for the tool-less termination, and we include a dust cap on every single unit (pink or blue, depending on the lot), so you don't have to order those seprately — we usually have about 500 units on hand for quick ship, but confirm lead time if you need more than that.

The single-card support (one position for a label or wire manager) is molded into the top, so it's not a separate clip that breaks off after you snap it in, and we'll retest any batch where more than 1% show a dB loss above 0.5 at 100 MHz — that's not a standerd spec, it's our internal policy.

We'll box them in 50-packs with individual bags, COA included for the lot, and we'll hold teh order for 10 days after your RFQ acceptance while you run your own qualification tests — if they fail, just send the unopened cartons back at our cost.
