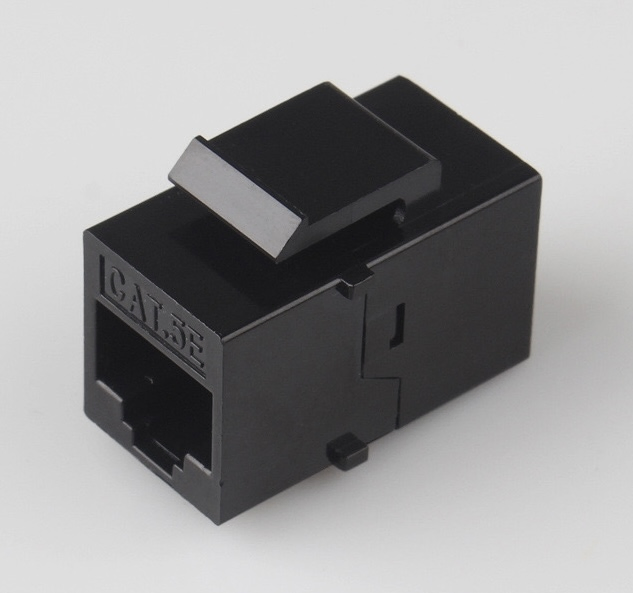

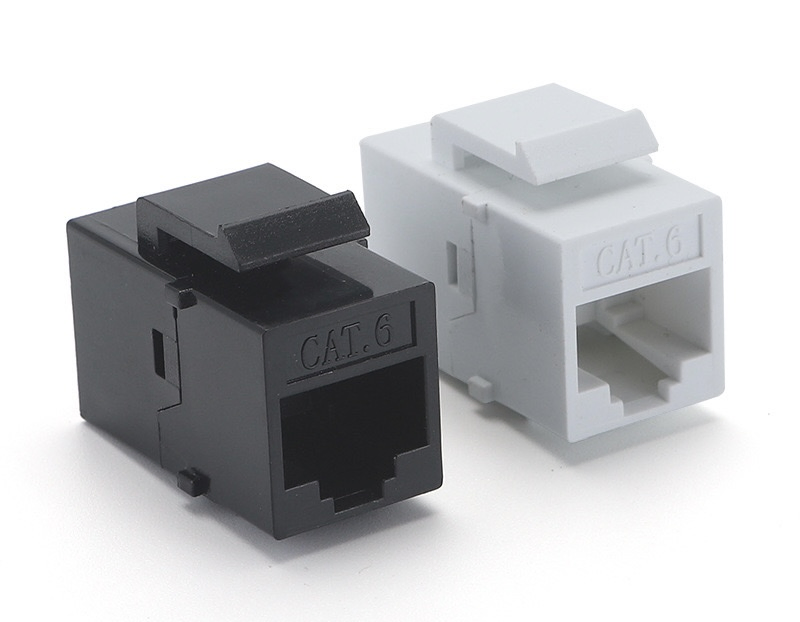

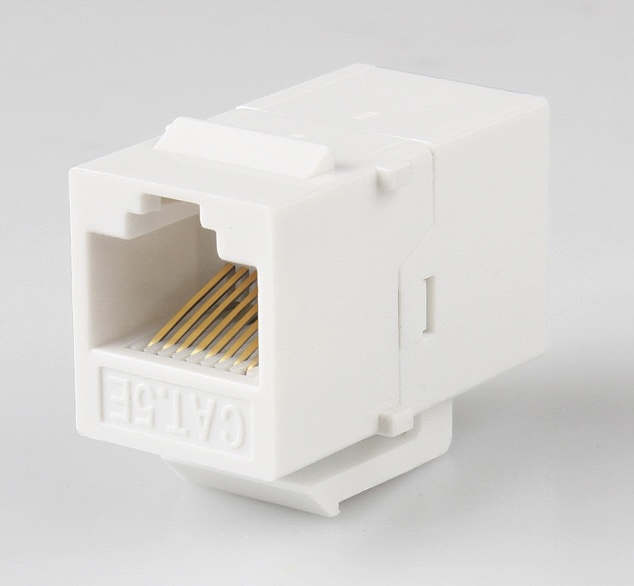

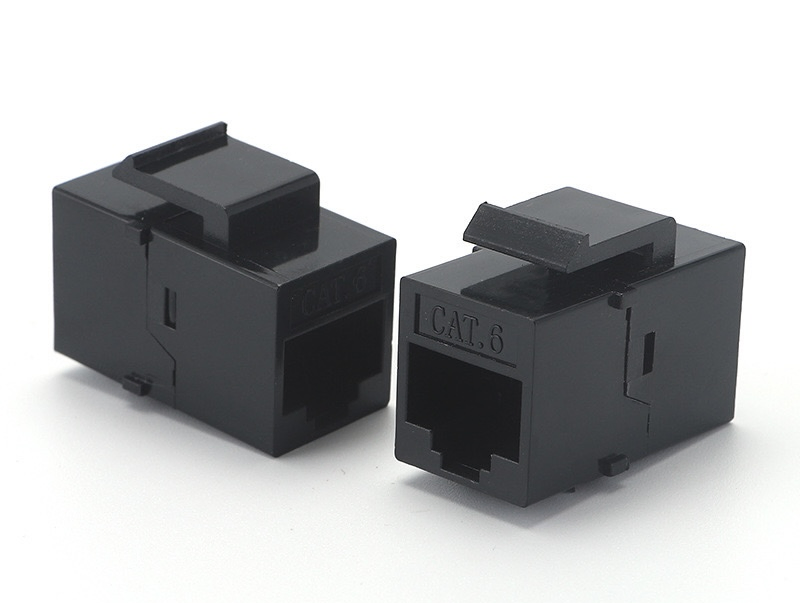

You basically plug this into your patch panel for a clean pass-through connection between cables, handles both T568A and B so no compatiblity headaches with existing setups.
Teh contacts use phosphor bronze with 6μ gold plating and 100μ nickel on the IDC side — 750 mating cycles rated, retention force is 89N, so it holds tight even with frequent plugging and unplugging.
For US or EU installations running Cat5e or Cat6 UTP, this works well with 24-26 AWG solid wire, but it's not meant for shielded cable or outdoor runs since housing is flame retardant polycarbonate, not weatherproof.
We typically ship with CE, RoHS, and REACH docs included for customs clearance — give or take 20 days lead time for orders of 500 units or so, depending on stock.
Temperture range is -40°C to 68°C, which covers most server room conditions but check if you're in a consistently hot enviornment above that threshold.
We typically start at 100 pieces per order, but we can be flexible for smaller trial orders if you're just starting out. Just reach out to our sales team.
Yes, it's CE, RoHS, and REACH compliant, so it meets European safety and environmental standards. We back it with a standard 1-year warranty against manufacturing defects.
It's designed for 24-26 AWG solid wire only, not stranded. For stranded cables, you'd need a different keystone jack model.
For 500 pieces, we usually ship within 7-10 business days after order confirmation. If you need it faster, let us know and we can check our stock.
Absolutely, 6μ gold plating is standard for Cat6 applications and ensures reliable conductivity for 10/100/1000Base-T networks. It also resists corrosion well in typical indoor environments.
Wanted to share my thoughts on this recent purchase. The shipping was remarkably fast, arriving well ahead of the estimated delivery window, which was a very pleasant surprise. Everything was packaged securely with no signs of damage during transit. As for the product itself, the build quality feels solid and durable. The connectors fit perfectly and the materials seem robust, exactly what you would expect for a reliable network connection. The service aspect was also commendable; the ordering process was straightforward and any pre-sale queries I had were answered promptly and professionally. Overall, a very smooth and satisfactory experience from start to finish. I would not hesitate to order again for future networking needs.
