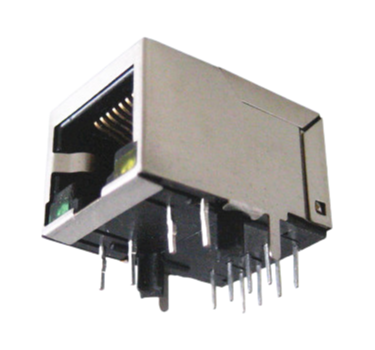

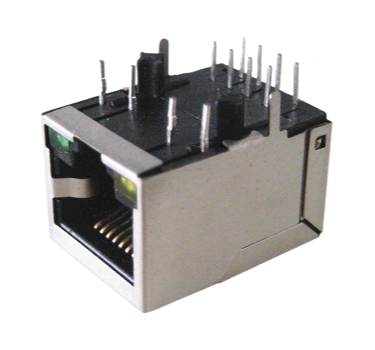

Customizable 8-16 Pole RJ45 Connector with Gold Plated Contacts and LED Light

Our RJ45 Jack 1X1 LED with Transformer is designed for high-performance networking applications. The connector features high power brass contacts with various gold plating thickness options (1u", 2u", 3u", 5u", 10u", 15u") available to suit different application requirements.

The durable construction uses PBT+30%GF UL94V-0 insulator material and steel shell for maximum protection and longevity. The LED indicator provides clear visual status indication for network connectivity.

This RJ45 connector meets rigorous electrical specifications including a contact current rating of 10AMP~40 AMP, dielectric withstanding voltage of 1000V AC for 1 minute, and insulation resistance of 5000 Megohm minimum. The contact resistance is maintained at 2.7 milliohm maximum for efficient signal transmission.

Operating temperature range from -55°C to +125°C makes this connector suitable for various environmental conditions. The product is available with multiple certification options including CE, SGS and UL standards.

We offer flexible customization options for OEM/ODM requirements, including different LED colors, special plating requirements, and custom packaging solutions. Small quantity orders are available for testing and evaluation purposes.
