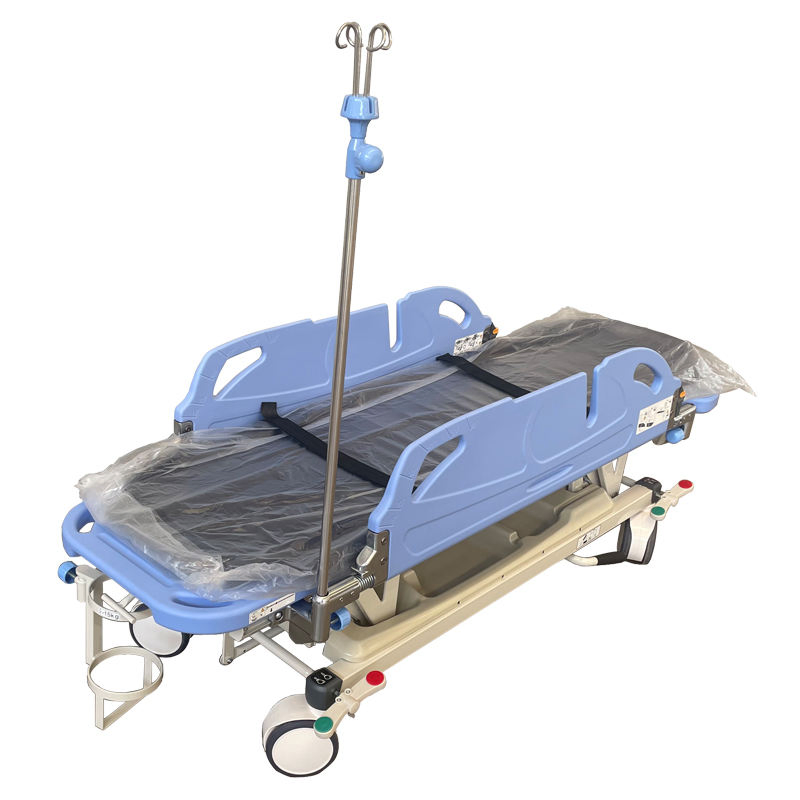

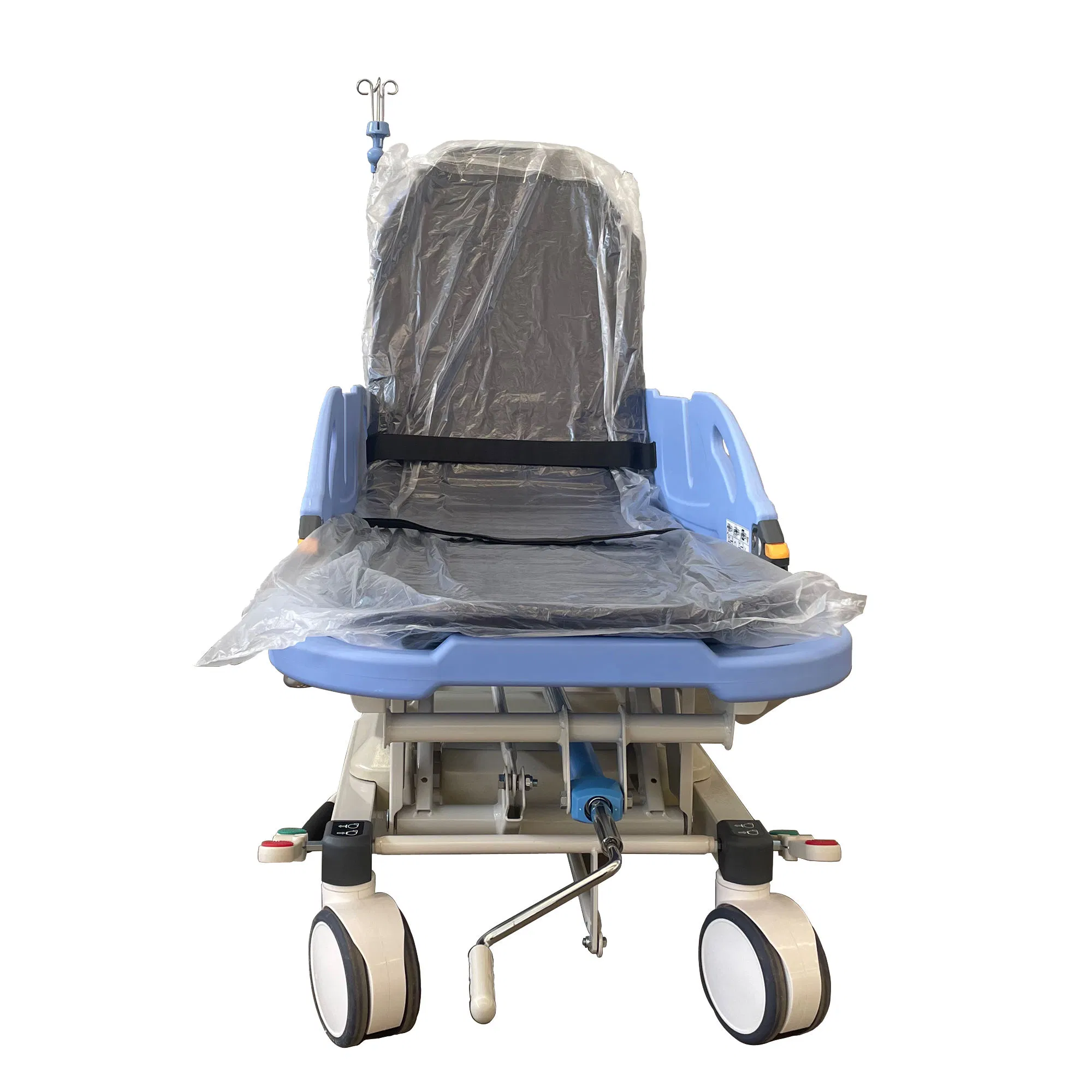

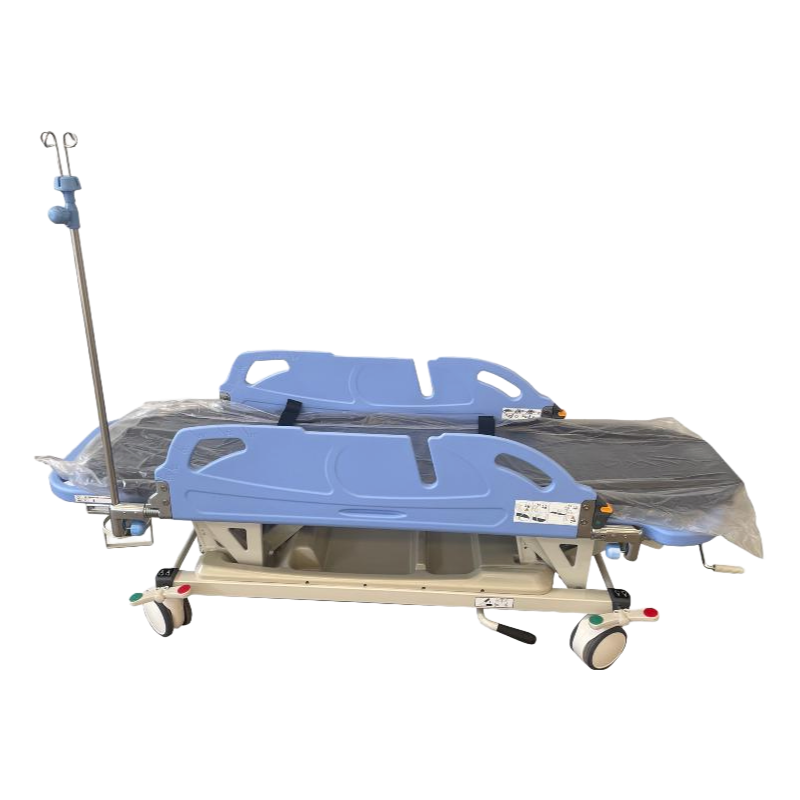

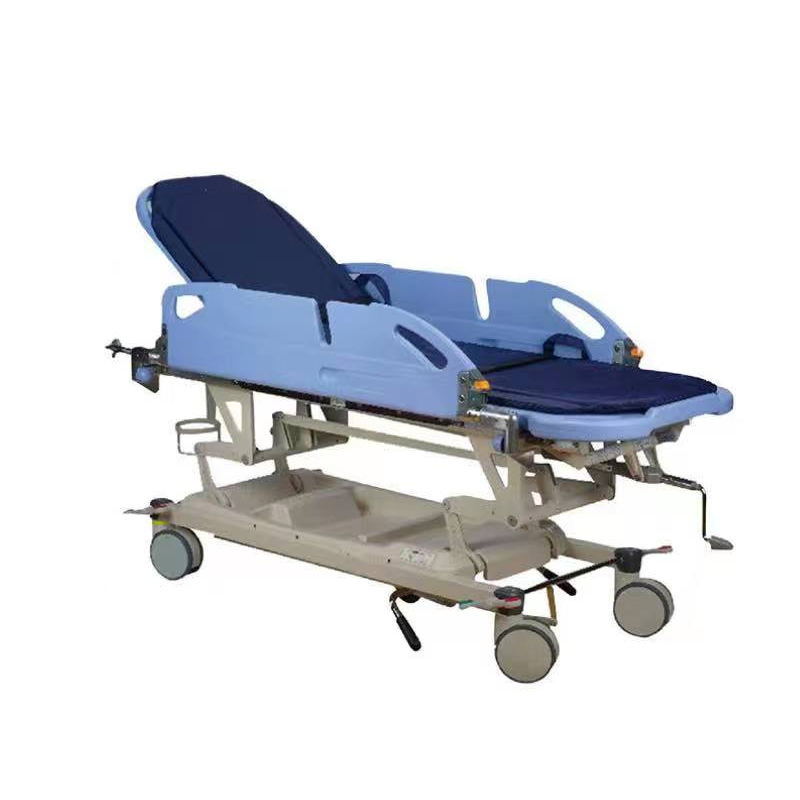

Introducing the Medical Stretcher Patient Transfer Trolley (Model: JDC - ZY115), a premium solution for hospital, clinic, and ambulance patient transfer needs. Manufactured with precision, this trolley combines robust construction, ergonomic design, and multi - functional features to ensure safe, efficient, and comfortable patient handling. Below, we detail its key attributes, specifications, and advantages, making it an ideal choice for healthcare facilities seeking reliable patient transfer equipment.
Key Specifications & Features:
Dimensions & Structure: The trolley measures L1930*W663*H510 - 850mm, with a frame constructed from cold - rolled steel and aluminum alloy, finished with powder coating for durability and corrosion resistance. The height adjustment (510 - 850mm) is manually operated via a crank, equipped with an overload protection function to ensure safety during use.
Backrest & Side Rails: The backrest adjusts from 0° to 70° using a gas spring, allowing easy positioning for patient comfort. PP hydraulic spring side rails enable single - hand operation, with a height of 300mm for enhanced patient safety. These side rails can be fixed horizontally to increase the bed’s width, providing a comfortable resting place for infusion patients’ arms, and feature double safety locks to prevent misuse.
Angle Display & Catheter Management: An angle display on the side rails clearly shows the backrest’s angle, aiding precise positioning. Grooves in the middle of both side rails prevent catheters from slipping, facilitating infusion drainage and improving workflow efficiency.
Casters & Mobility: Four 150mm diameter anti - winding central brake casters (with internal steel brackets and double - bearing cylindrical structures) ensure smooth, stable movement and high load capacity. The independent center fifth wheel system, with control pedals on both sides, allows the fifth wheel to move freely when retracted. A spring and shock - absorbing mechanism in the fifth wheel enhances performance on bumpy roads, ensuring patient comfort during transit.
Storage & Accessories: A two - stage tray under the bed body (divided into two parts with different sizes/depths, featuring 6 leaking holes) supports up to 10Kg, ideal for storing medical supplies. An infusion stand storage rack securely holds infusion stands, while a rotatable oxygen cylinder shelf (accommodating up to 7 - liter cylinders) stores under the bed when not in use and rotates out for easy access.
Mattress & Patient Safety: The 25mm - thick mattress features a waterproof, easy - to - clean fabric surface and an anti - static three - stage structure. It enables single - person parallel docking and patient transfer, streamlining operations. Two drainage hooks on the bed’s side (with 6 U - shaped holes) further support medical procedures.
Load Capacity & Durability: With a maximum load capacity of 170KG, the trolley is built to handle diverse patient needs. Its robust construction and high - quality materials ensure long - term reliability in busy healthcare environments.
Customization & Compliance: Available in customized colors, the trolley meets CE and ISO standards, guaranteeing quality and safety. A 12 - month warranty (with online technical support) and a minimum order quantity (MOQ) of 1PCS make it accessible for small and large healthcare facilities alike.
This Medical Stretcher Patient Transfer Trolley (JDC - ZY115) is designed for use in reception halls, operating rooms, and other hospital/clinic areas, offering multi - functional capabilities to support efficient patient care. Whether you require wholesale quantities, custom configurations, or factory - direct supply, this trolley delivers performance, safety, and convenience.
