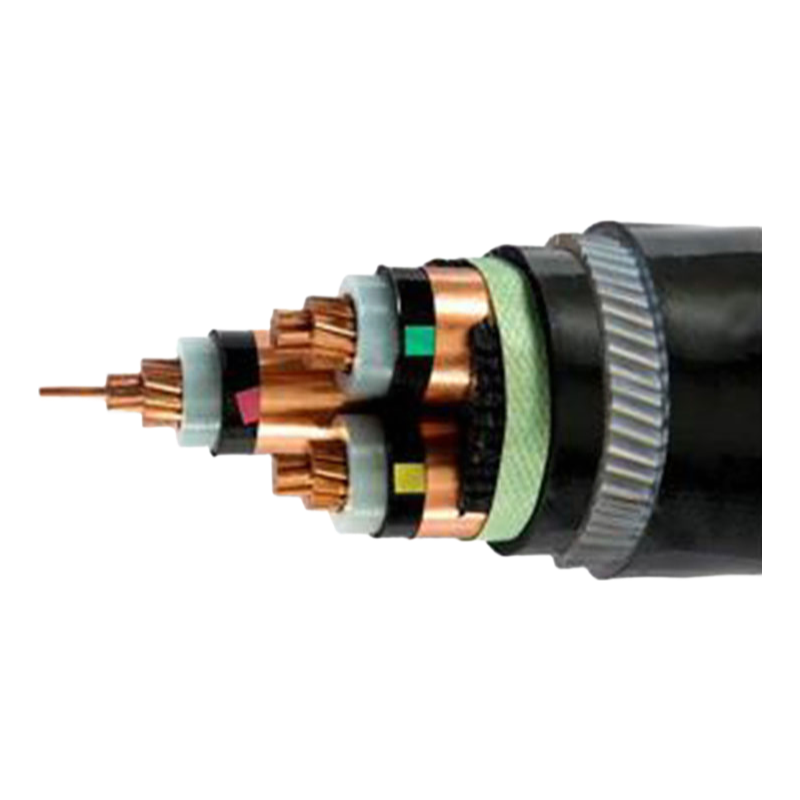

Basically, you run this through the ground or along a wall, and it keeps the power flowing without shorting out — even when something heavy rolls over it.

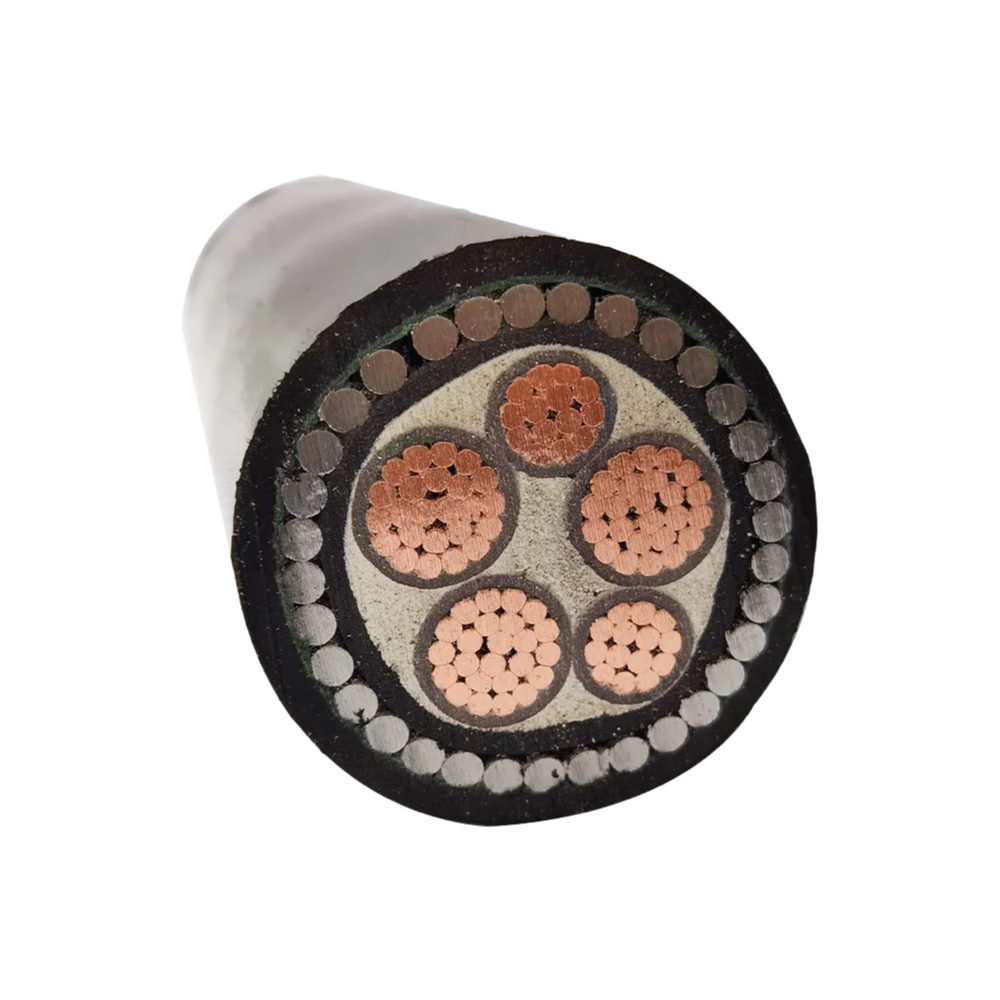

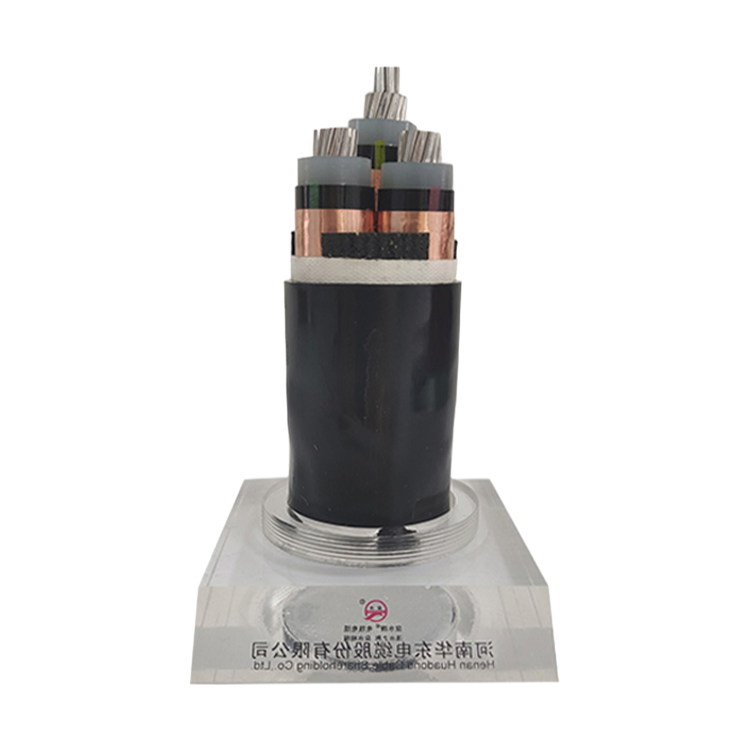

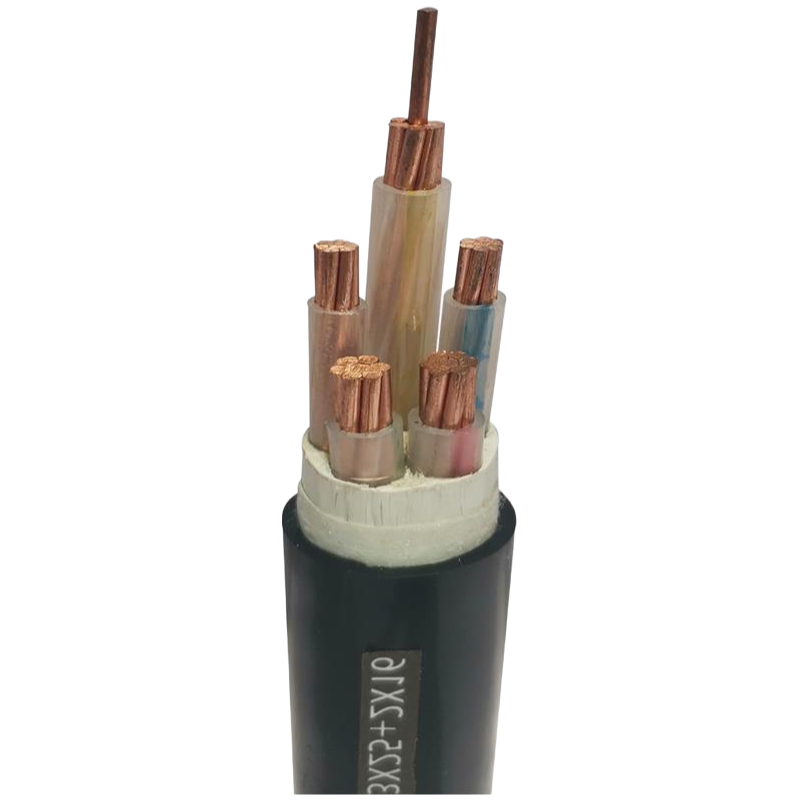

Copper or aluminium conductor sizes jump from 1.5mm² all the way up to 1000mm², and teh voltge rating can sit at 0.6/1kV or push to 26/35kV depending on what you need. 5 cores is common for a 3-phase plus neutral and earth setup. We usually have 100 meters as MOQ, but confirm lead time (typically 2-4 weeks for bigger runs).
It's fine for AC and DC, and you'll see it in industrial plants, substations, or underground ducts — not great for tight indoor bends unless you spec a non-armoured variant. The steel wire armour (SWA) gives it better crush resisance than most standdard cables.
Yeah, so one thing: around 50 meters or so the weight gets noticeable, especially with the larger copper sizes — don't underestimate handling logistics on the 400mm² or above. We only ship round wire form.
Yes, we can combine copper and aluminum conductor cables in the same order to hit the 100-meter MOQ, as long as the specs are compatible. Just let us know the breakdown when you place the order.
For standard sizes up to 240mm², lead time is usually 10-15 working days. Larger sizes like 400mm² or above might take 20-25 days, depending on stock levels.
Absolutely, we include a mill test certificate and a declaration of compliance with IEC 60502, BS 7870, or GB/T12706 per your request. Third-party inspection reports are available at an extra cost.
YJV32 uses steel wire armour (SWA), while YJV22 uses steel tape armour (STA). Yes, the 1.5mm² size is available with SWA armour, but keep in mind it's a small conductor, so the cable will be relatively light.
Store the drum in a dry, covered area off the ground, ideally between -5°C and 50°C. Keep it away from direct sunlight and chemicals, and seal the ends to prevent moisture ingress.
