Customized XLPE/PVC Power Cable with Copper/Aluminum Core for Power Transmission Systems

You're dealing with a consistent headache when it comes to power transmission at medium voltage—voltage drop over distance, insulation breakdown under load stress, or just the sheer cost of replacing a cable that couldn't handle the thermal cycling. Basically, the core problem is matching conductor material and insulation to your specific route conditions, whether it's underground, in a duct bank, or overhead on a tray, and that's where having a flexible spec from the start pays off.

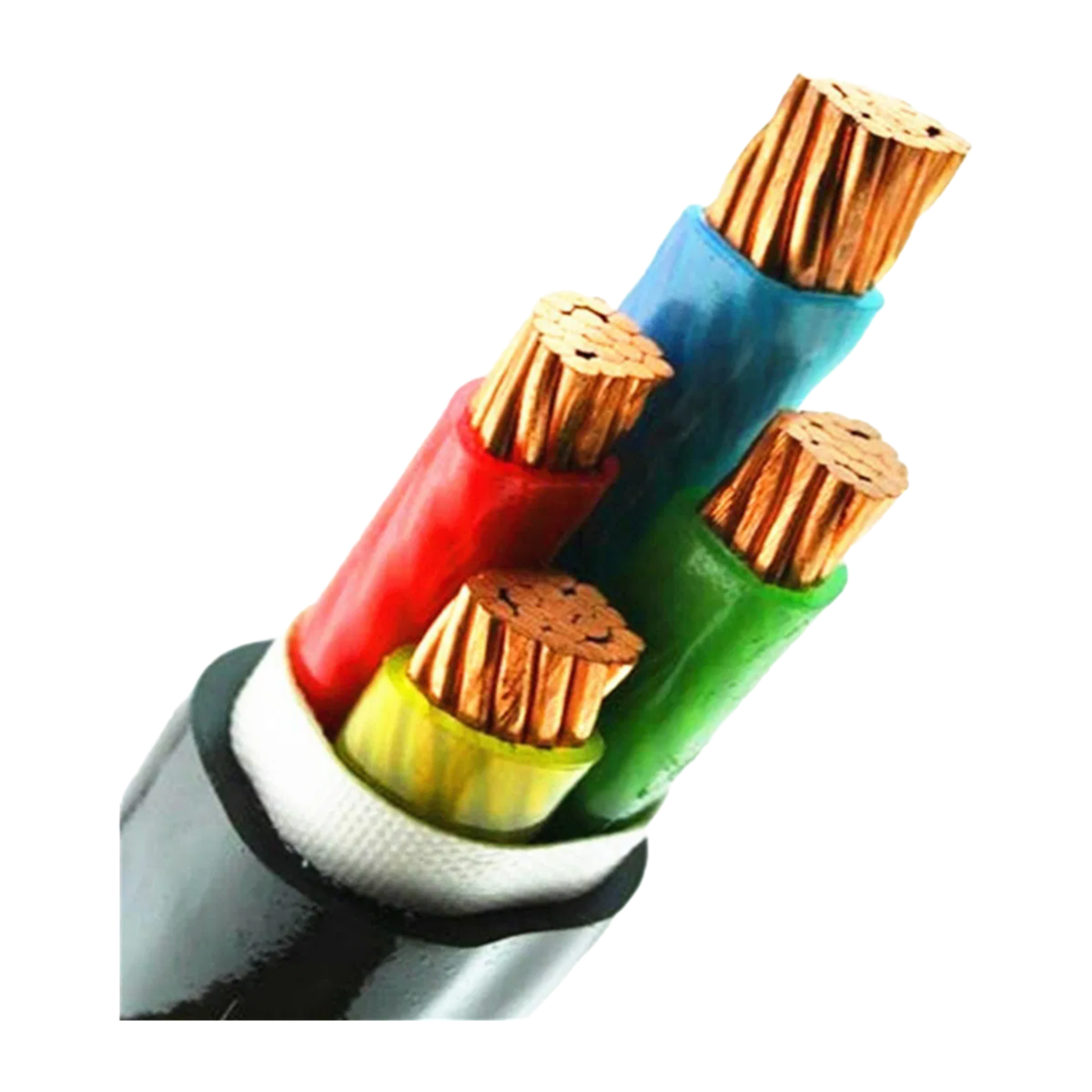

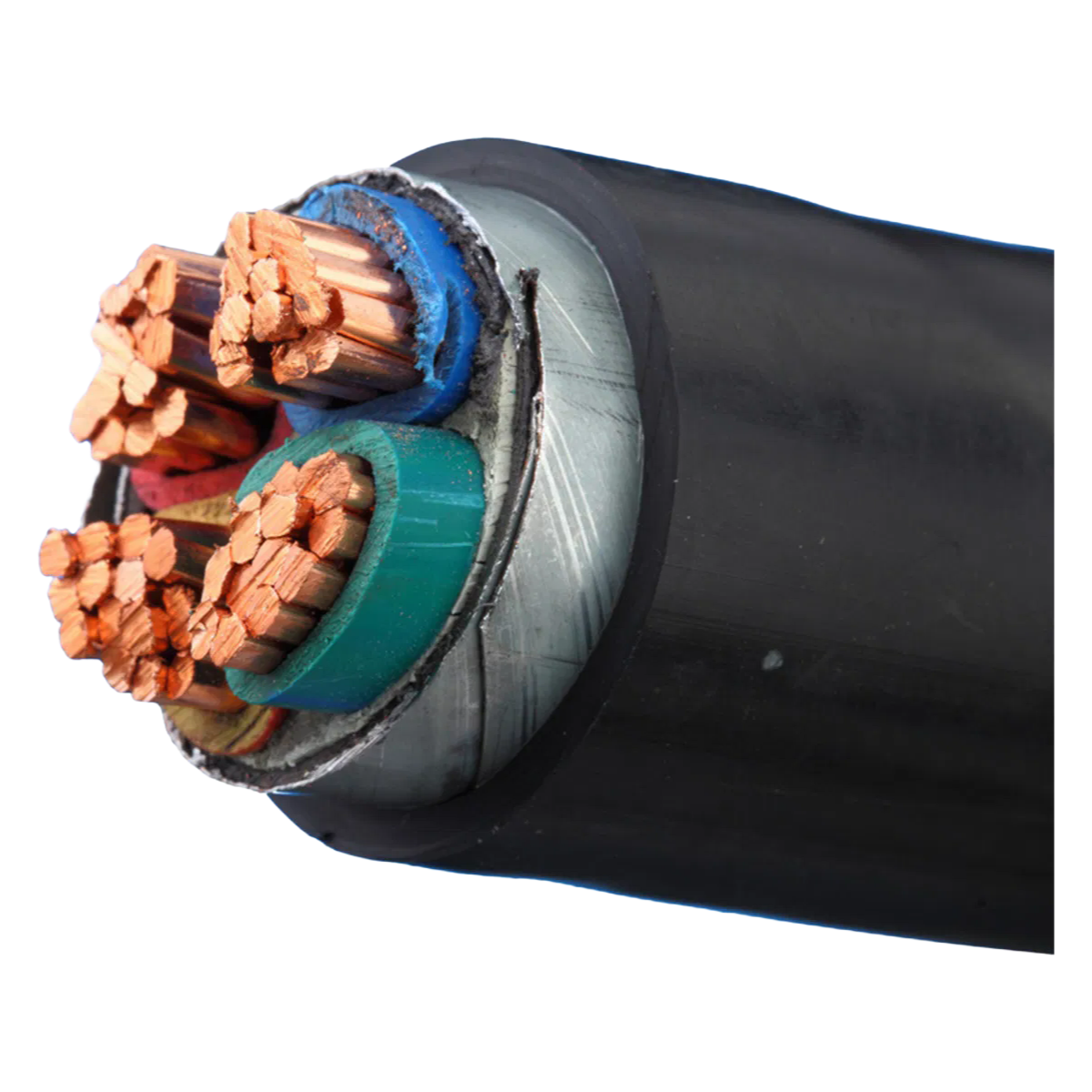

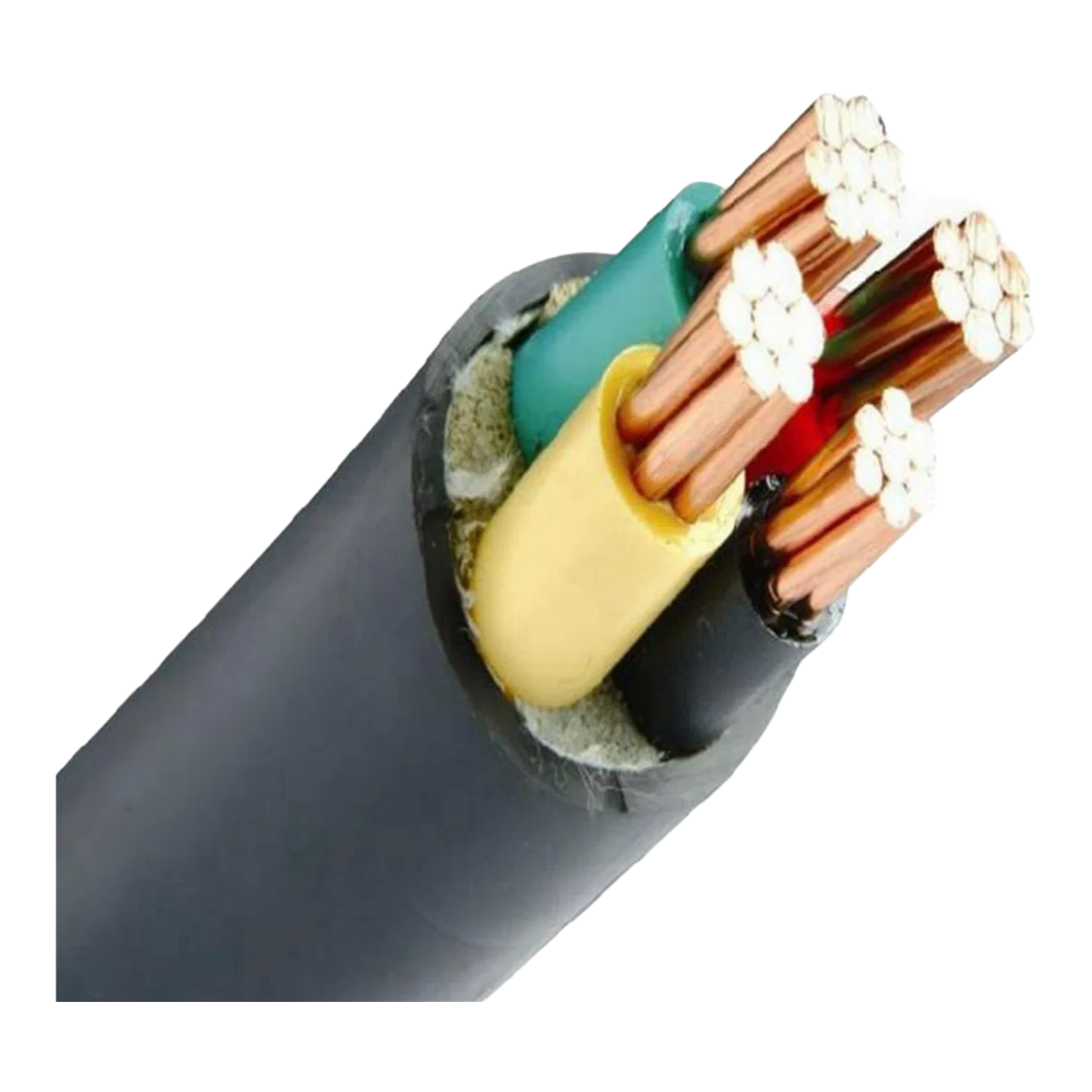

What these cable series do is give you a few interchangeable levers to pull—you can spec copper or aluminum based on your ampacity needs versus budget, XLPE or PVC insulation depending on whether you need that higher continuous operating tempearture of 90°C or just standard protection, and then armor options like steel tape or wire for mechanicla crush resistance if you're burying it direct. We've found XLPE really shines here because it's cross-linked polyethylene, so it handles moisture and partial discharge better than PVC at those higher voltages, especially above 6kV, where tracking can become an issue.

The specs come in a pretty broad range—voltage ratings from 0.6/1kV up to 26/35kV, with conductor sizes from 1.5mm² all the way to 800mm², so you can match it to a 150hp pump or a main feeder, and the DC resistance follows IEC 60228 so you're not guessing on losses. Partial discharge is held to 10pC or less for medium and high voltage, which is tighter than some field-tested cables I've seen, and it matters because of that it indicates void-free insulation that won't fail early under stress.

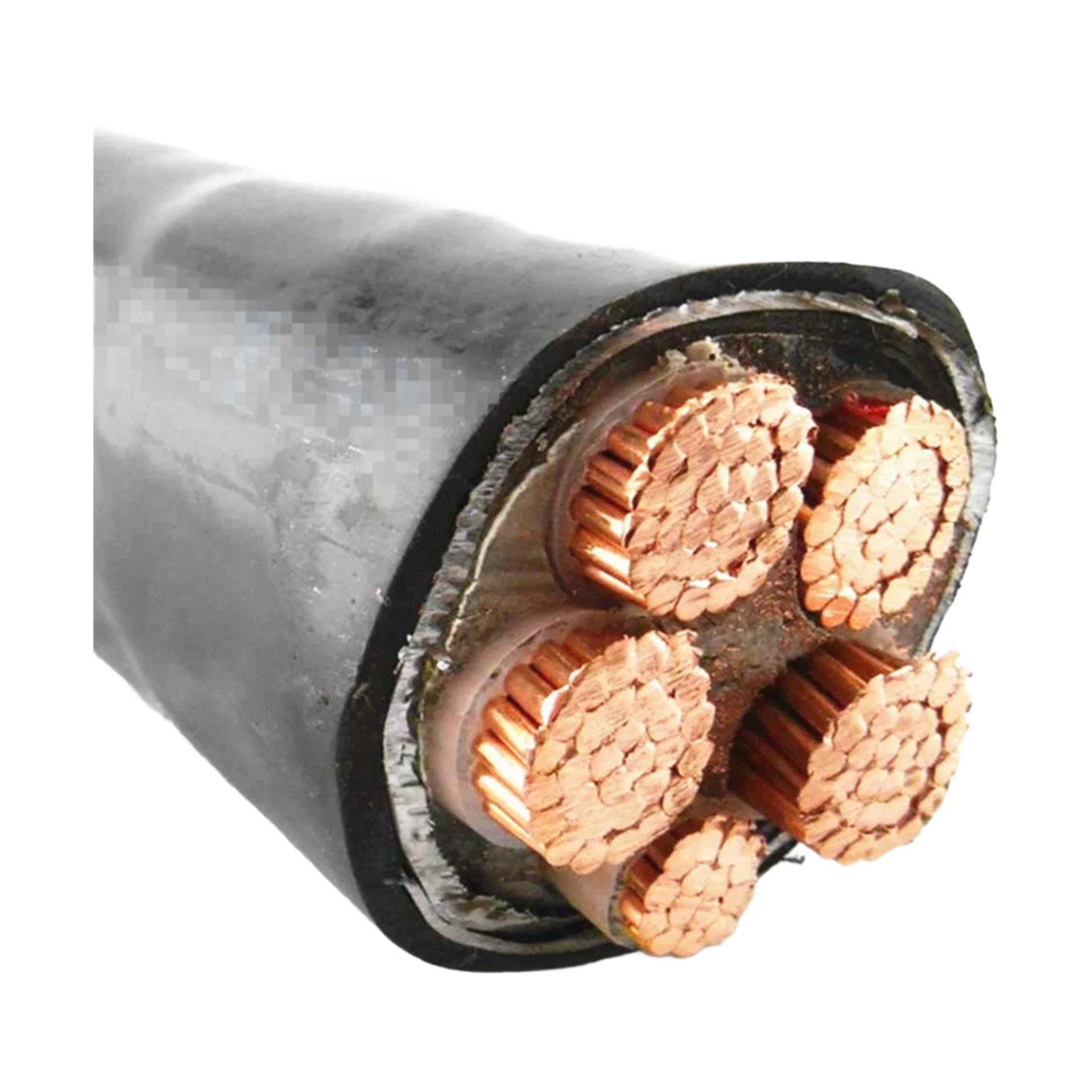

We usually hold stock on common sizes like 240mm² or 400mm² in copper with XLPE insulation—those move fast for industiral projects—but for aluminum or odd core counts like 4+1 or 3+1, you're looking at a lead time of 20 working days or so, depending on the drum size. The wooden or steel drums are standard, but if you need a specific cable length or drum weight for shiping containers, just flag it; we've customized those before without much fuss. Certification-wise, it come with ISO, CCC for China markets, and SGS third-party testing if your buyer requires it, though for EU projects we usually point to IEC60502 compliance.

One thing that catches people off guard is the bending radius—15 times the cable diameter for single-core, 12 times for multi-core—so if you're routing it around tight corners in a manhole, multi-core saves you some space but limits flexibility on the bend. Also, the short-circuit rating is 250°C for XLPE, which is pretty generous, but you still need to verify that your protection devices clear faults fast enough; otherwise, the conductor can weld the insulation together even at that temp.
