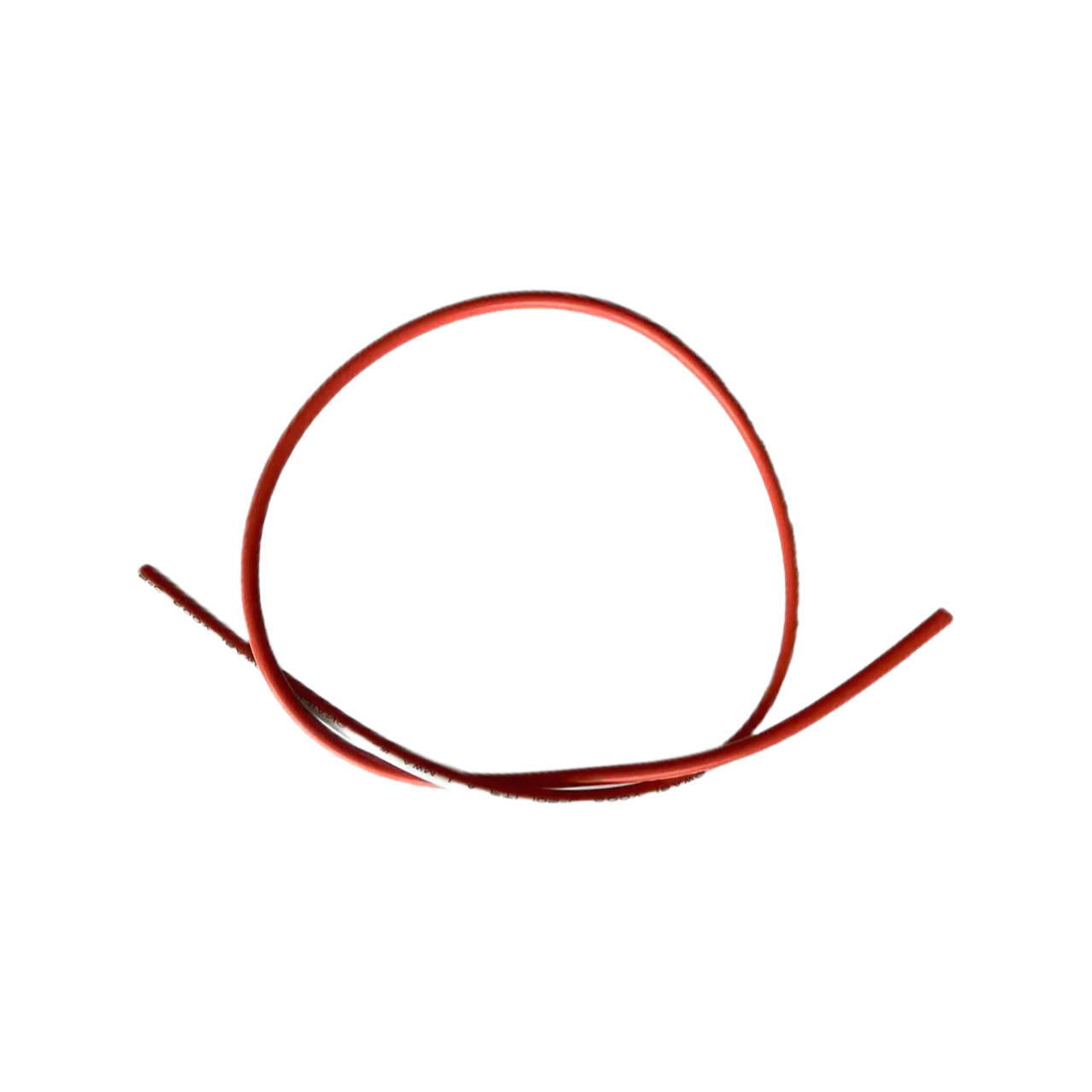

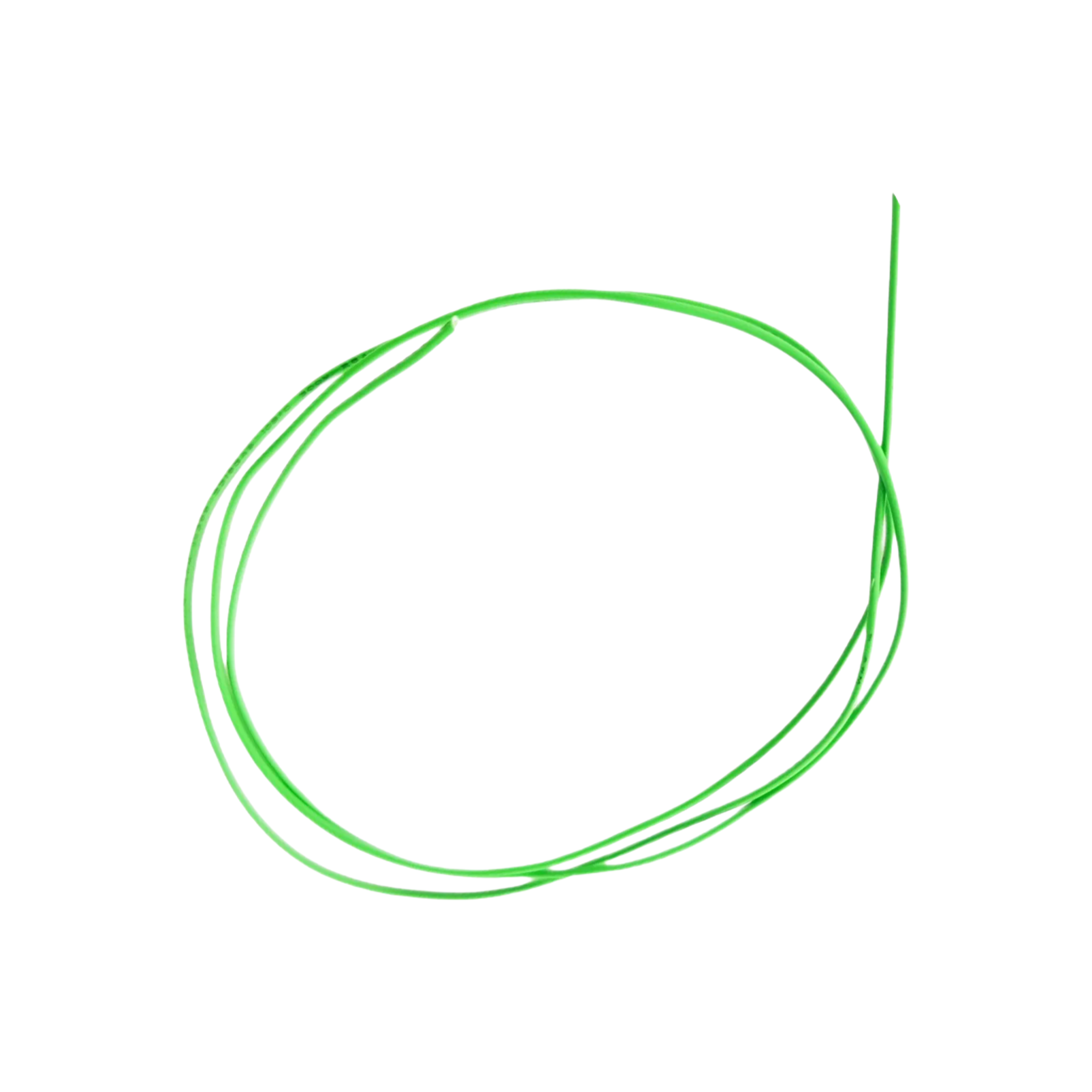

Flry-B automotive wires represent a comprehensive solution for vehicle internal wiring applications, engineered to meet the rigorous demands of modern automotive electrical systems. These insulated cables feature stranded copper conductors with optional tinning, ensuring reliable performance and durability in various automotive environments.
The product range covers cross-sectional areas from 0.35mm² to 6.0mm², providing flexibility for different current-carrying requirements. Each cable construction maintains uniform insulation thickness, facilitating easy stripping and cutting during installation processes. The PVC insulation material not only provides excellent electrical properties but also complies with RoHS environmental standards, making these wires suitable for eco-conscious applications.
These automotive wires have been rigorously tested and certified to meet DIN72251 and ISO6722 standards, including flame resistance requirements. The 80°C rated temperature ensures stable performance under typical automotive operating conditions. The stranded conductor design enhances flexibility and resistance to vibration, crucial factors in vehicle applications where mechanical stress is common.
Manufacturing processes emphasize quality control and consistency, resulting in wires that deliver reliable electrical performance across the entire product range. The construction details vary according to cross-sectional area, with conductor configurations ranging from 12/0.20 for 0.35mm² cables to 84/0.30 for 6.0mm² cables, ensuring optimal current distribution and mechanical strength.
Electrical characteristics include maximum conductor resistance values that decrease with increasing cross-sectional area, from 54.5Ω/km for 0.35mm² to 3.2Ω/km for 6.0mm² cables. All variants maintain a consistent dielectric strength of 1000V AC for 1 minute, ensuring reliable insulation performance under voltage stress conditions.
The physical dimensions are carefully engineered, with outer diameters ranging from 1.30mm for the smallest cross-section to 4.20mm for the largest. Insulation thickness varies appropriately with cable size, from 0.25mm to 0.52mm, providing adequate protection while maintaining space efficiency in wiring harness applications.
These automotive wires are particularly suitable for internal vehicle wiring of appliances and equipment, where reliability and safety are paramount. The product's design considerations include resistance to automotive fluids, temperature variations, and mechanical stress commonly encountered in vehicle environments.
Customization options are available to meet specific application requirements, including different packaging quantities and color variations. The manufacturing approach ensures consistent quality across production batches, supported by comprehensive quality management systems and industry certifications.
Technical support and engineering consultation are available to help customers select the appropriate wire specifications for their specific automotive applications. The product's compatibility with standard automotive wiring practices and connector systems makes integration straightforward and reliable.
