So you've got a project where the cable needs to handle everything form indutrial plant noise to direct burial in rocky ground, and teh last thing you want is a failure halfway through a 5-year installation cycle—what it does is give you a single cable that shrugs off mechanicla stress and high voltage without breaking a sweat.
We've been running these for years, and the XLPE insulation is basically the star here, handling temps from -15°C up to +90°C pretty comfortably, plus it's flame retardant and UV resistant, so outdoor runs are no issue even in direct sun.

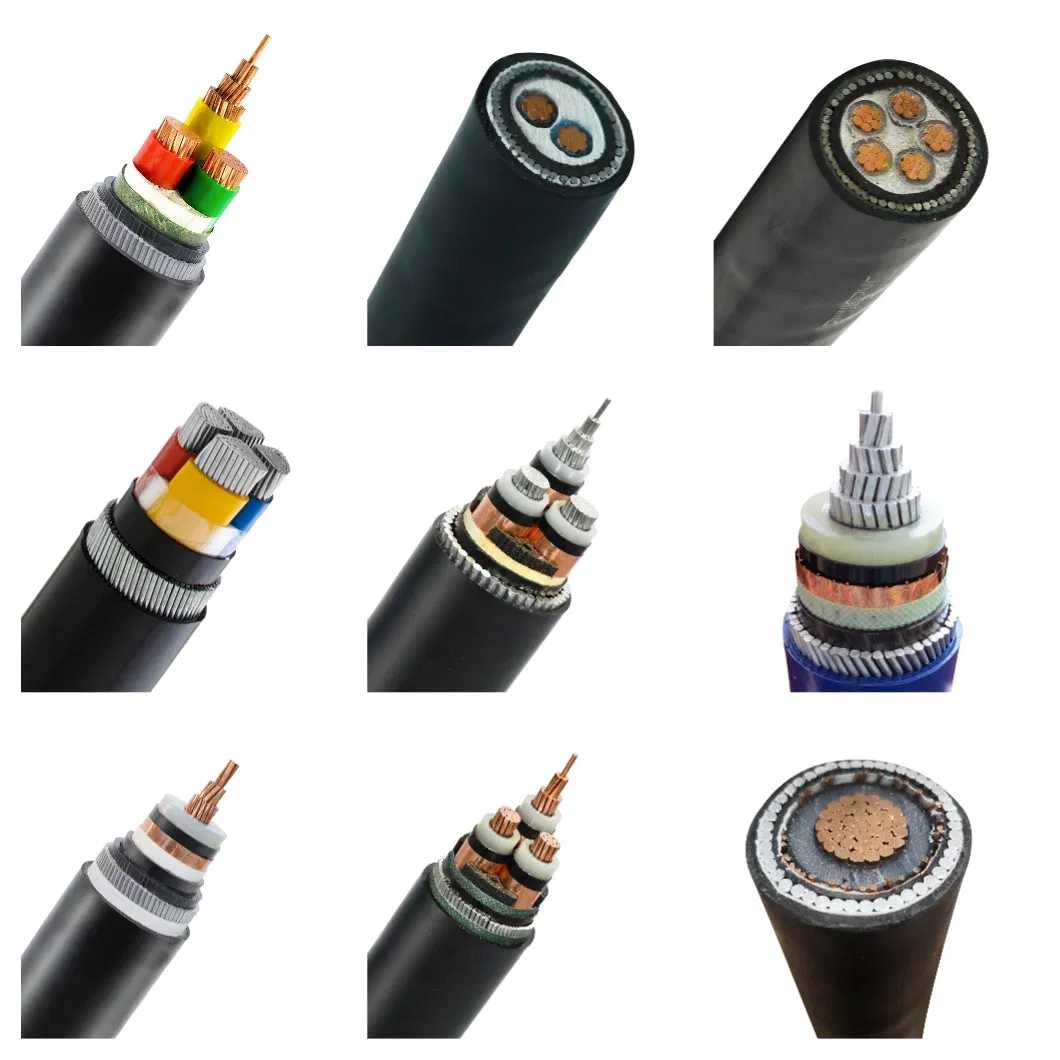

0.6/1kV to 66kV is the range, and most buyers go with copper conductor for the lower voltage stuff, but aluminum is fine for longer runs where weight and cost matter—cross-sections from 1.5mm² up to 1000mm², depending on your load, and cores can be 1, 2, 3, 4, 5, or combos like 3+1 or 4+1 if you need separate control lines.
Also, we can custom-label the drums or cut to exact lengths (usually 500m or 1000m reels), but it's better to confirm lead time on non-standard sections above 630mm² since those are typically special order (maybe 4-6 weeks).

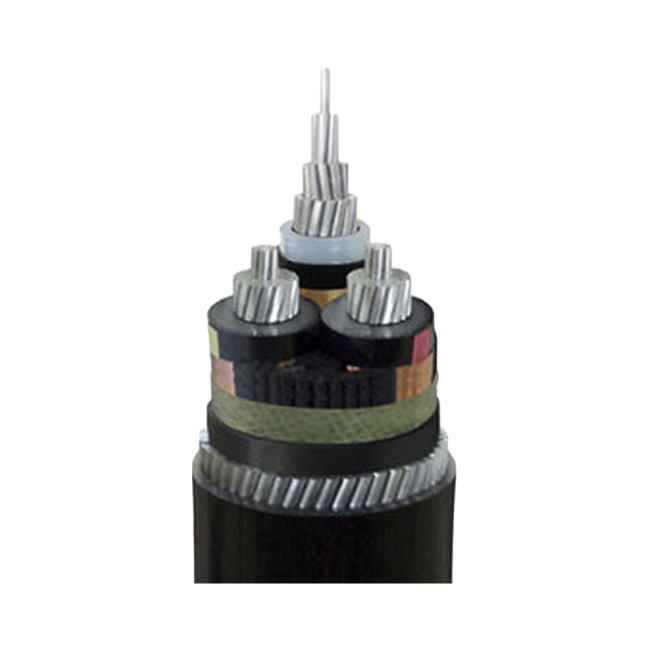

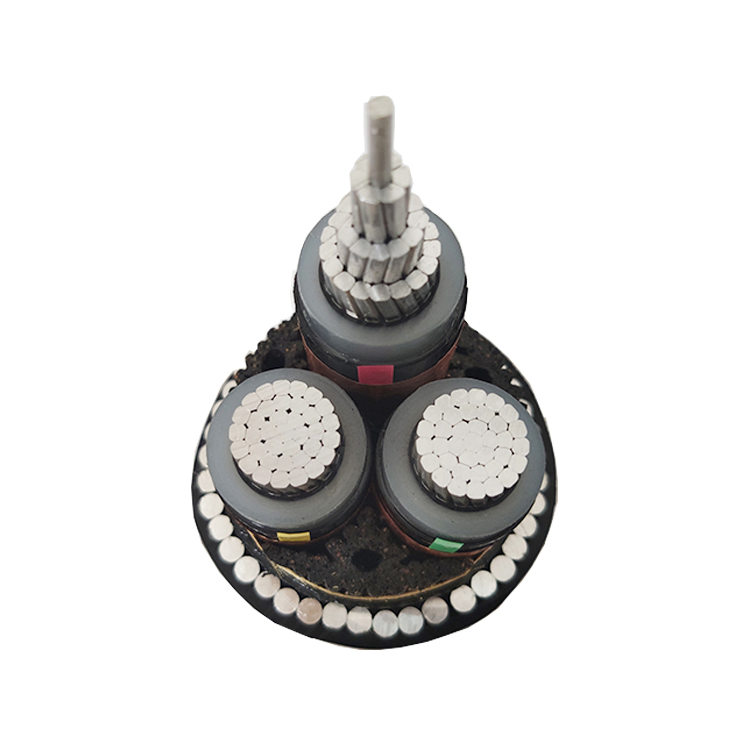

steel wire armouring is actually the part that saves you on installation—it means you can direct-bury this without extra conduits in most soils, but it's heavier than non-armoured, so plan your pulling gear accordingly.
IEC 60502 and BS 7870 certified, so it'll pass most inspections without hassle, and we've got COA with every batch—roughly 20 days or so for standard sizes, but check if you need VDE or CCC specific paperwork.
For high-voltage cables like 66kV, our MOQ is typically 500 meters per size. For lower voltage ranges, we can be more flexible — just let us know your project needs.
Yes, we include test reports and copies of ISO, CCC, CE, and VDE certifications with each shipment. Just request them when you place your order.
Absolutely. We offer 3+2 core configurations up to 66kV, as long as the cross-section stays within 1.5mm² to 1000mm². Send us your specs and we'll confirm pricing.
We ship on wooden drums wrapped in waterproof material. Stored in a dry, shaded area between -15°C and +90°C, the cable lasts over 10 years without degradation.
Yes, the steel wire armour protects against mechanical damage during direct burial, even in rocky ground. The PVC sheath is UV-resistant, so above-ground runs are fine too — just avoid prolonged sun exposure on the armour itself.
