H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems
H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems
H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems
H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems
H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems

H1Z2Z2-K DC PV Solar Cable DIN EN 50618 Compliant Photovoltaic Wire for Solar Power Systems

US$ 2.00 ~ 0.80
Min.Order: 1,000
Product origin: Jiaozuo, Henan, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 1 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : H1Z2Z2-K
  • Application : Photovoltaic Power Systems
  • Conductor Material : Tinned Copper (Stranded)
  • Insulation Material : TPE/EPR Rubber
  • Sheath Material : TPE/Polyurethane (PUR)
  • Rated Voltage : DC 1000V/1500V
  • Temperature Range : -40°C to +125°C
  • Standards : DIN EN 50618, EN 60228 Class 5
  • Available Colors : Black, Red, Blue
  • Conductor Class : Class 5 (Fine Stranded)
  • Flame Retardant : Yes
  • UV Resistance : Excellent
  • Available Sizes : 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm²
  • Sample Availability : Available

The H1Z2Z2-K DC PV solar cable is specifically designed for photovoltaic power generation systems, meeting the stringent requirements of DIN EN 50618 standards. This high-performance cable features fine-stranded tinned copper conductors for excellent conductivity and corrosion resistance.

Solar Cable Cross Section

The cable construction includes premium TPE or EPR rubber insulation combined with an outer sheath made of TPE or polyurethane (PUR), available in standard black, red or blue colors. The halogen-free materials ensure safety and environmental compliance for both indoor and outdoor photovoltaic installations.

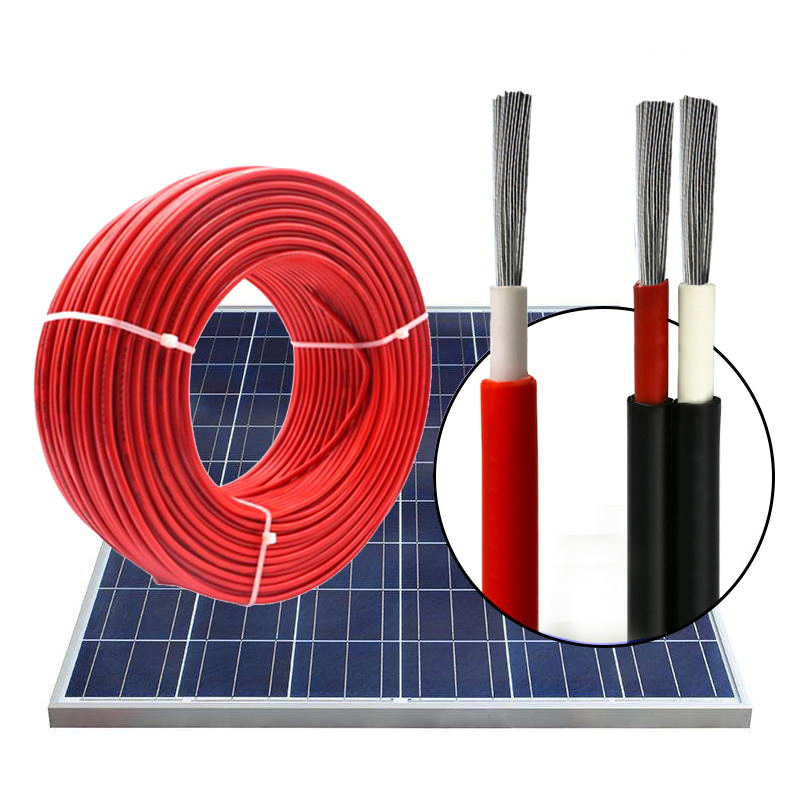

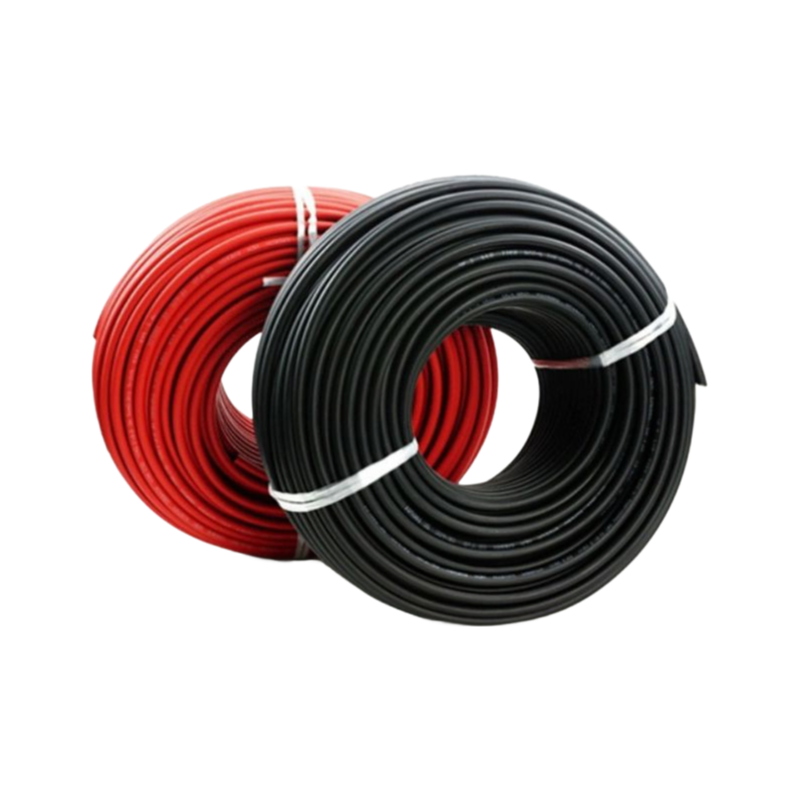

Solar Cable Drum

With an operating temperature range from -40°C to +125°C, these solar cables maintain excellent flexibility and electrical properties in extreme weather conditions. The rated voltage of DC 1000V/1500V makes them suitable for various photovoltaic system configurations.

Key advantages include:
- Excellent UV resistance
- Outstanding weather resistance
- Good mechanical strength
- Flame retardant properties
- Long service life

Solar Cable Specifications

The cables comply with multiple international standards including EN 50618:2014, DIN EN 60228 Class 5, and EN 60811, ensuring reliable performance in photovoltaic applications. The fine-stranded conductor structure provides optimal flexibility for easy installation in solar panel arrays.

U***Q 2025-09-09

My experience with this solar cable was quite positive, particularly in terms of logistics and service. The delivery was remarkably fast, arriving ahead of schedule, which was a pleasant surprise. Packaging was secure, ensuring the product reached me in perfect condition without any damage. More importantly, the customer service team was highly responsive and helpful when I had a query about the order. They provided clear and timely updates, making the entire process smooth and stress-free. Moving on to quality, the cable appears well-constructed with durable materials that seem suited for outdoor use, though I haven't installed it yet. Overall, a reliable purchase with excellent support.
