XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords
XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords
XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords
XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords

XLPE Jacket Tinned Copper PV Cable 1x4.0mm² Solar Panel Extension Power Connection Cords

US$ 0.529 ~ 0.406
Min.Order: 100
Product origin: Shijiazhuang, Hebei, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 40 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : H1Z2Z2-K
  • Application : Photovoltaic Systems
  • Conductor Material : Tinned Copper
  • Insulation Material : XLPE (Cross-linked Polyethylene)
  • Jacket Material : XLPO (Cross-linked Polyolefin)
  • Temperature Range : -40°C to +90°C
  • Rated Voltage : 600/1000V AC, 1000/1500V DC
  • Conductor Type : Stranded
  • Core Configuration : Single Core/Twin Core
  • Available Colors : Red, Black (Customizable)
  • UV Resistance : Excellent
  • Flame Retardant : Yes
  • Halogen Free : Yes
  • Standard Lengths : 100m, 200m, 500m, 1000m per roll
  • Cross Section Range : 1.5mm² to 35mm²
  • DC Resistance at 20°C : ≤5.09Ω/km (for 4mm²)
  • Insulation Resistance : ≥10¹⁴Ω·cm at 20°C
  • Service Life : >25 years at 90°C

Our premium solar PV cables are designed for reliable power transmission in photovoltaic systems. Featuring tinned copper conductors and XLPE insulation, these cables provide excellent electrical performance and durability in various environmental conditions.

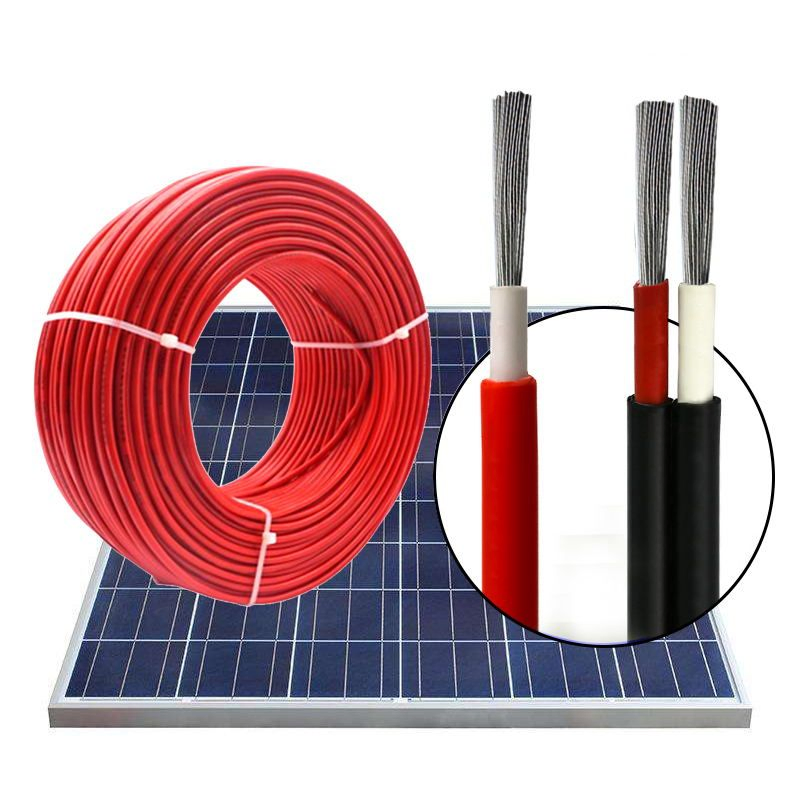

Solar PV Cable

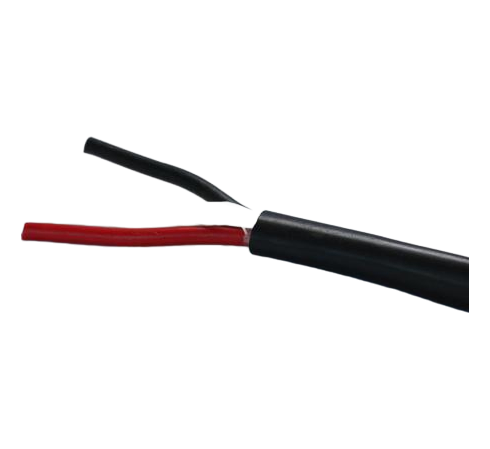

The cables are available in both single core and twin core configurations, with round or flat designs to suit different installation requirements. The tinned copper conductor ensures superior conductivity and corrosion resistance, while the XLPE insulation provides excellent thermal stability and electrical insulation properties.

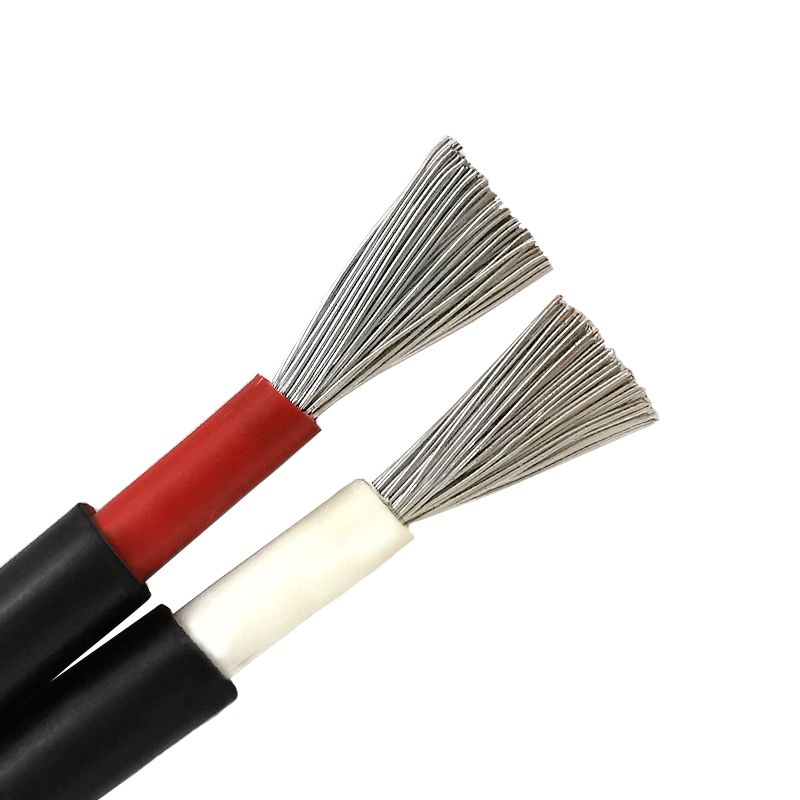

Solar Cable Cross Section

Key features include UV resistance, halogen-free composition, flame retardancy, and excellent flexibility. These cables are rated for continuous operation at 90°C and can withstand temperatures from -40°C to 90°C, making them suitable for outdoor photovoltaic applications.

The product meets international standards including TUV and CE certifications, ensuring reliable performance in solar power generation systems. Available in standard colors of red and black, with customization options available for specific project requirements.

Solar Cable Installation

With a service life exceeding 25 years at 90°C, our solar cables offer long-term reliability for photovoltaic installations. The product range includes various cross-sections from 1.5mm² to 35mm² to accommodate different current carrying requirements in solar power systems.
