The K10 Veterinary Ultrasound Scanner represents a significant advancement in animal diagnostic technology. This compact, palm-sized device combines precision engineering with user-friendly features to deliver exceptional imaging performance for veterinary professionals.
Designed for comprehensive animal examinations, the K10 scanner supports multiple applications including pregnancy diagnosis, fertility assessment, and disease detection in various animals such as bovine, equine, ovine, canine, feline, goat, swine, and llama.

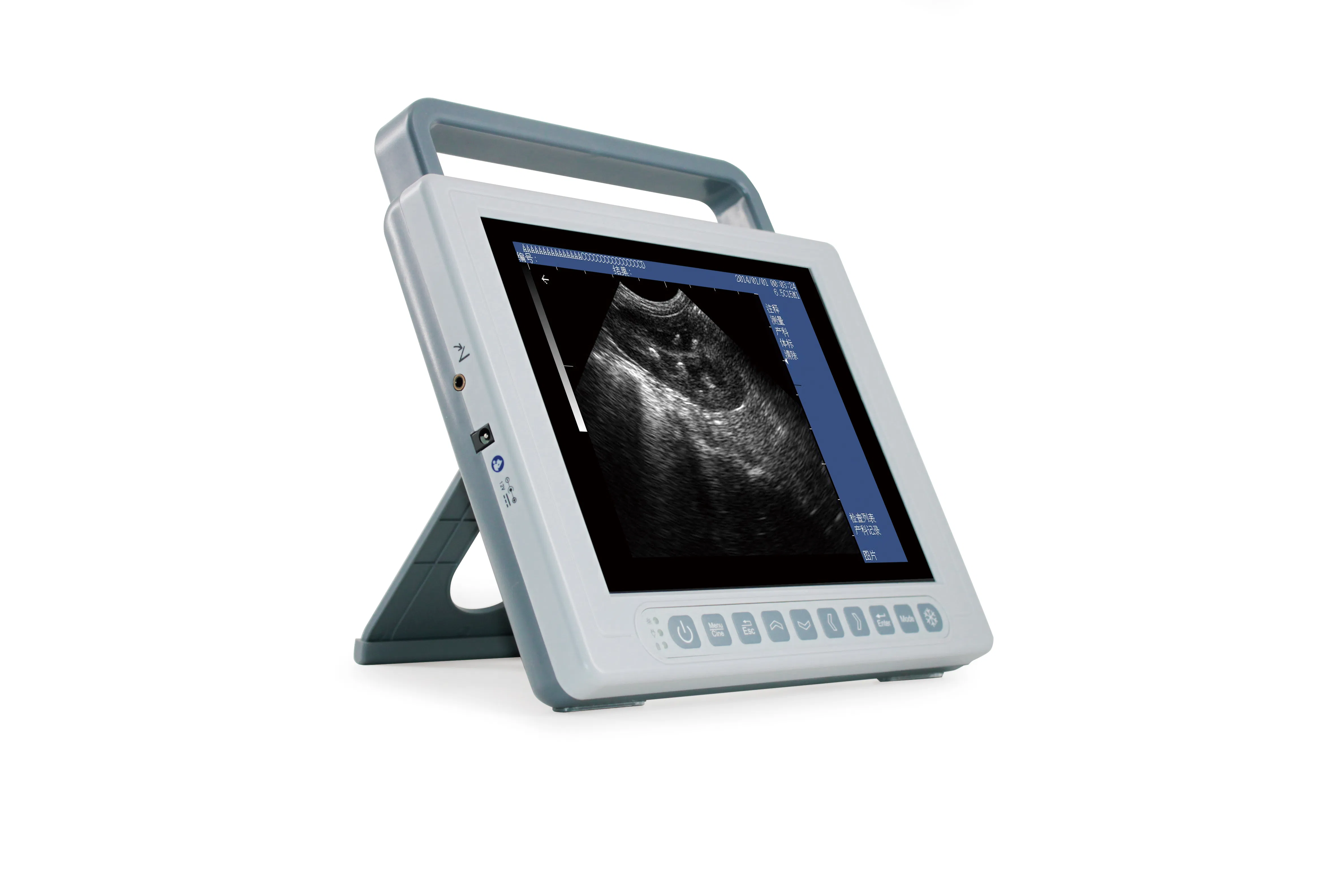

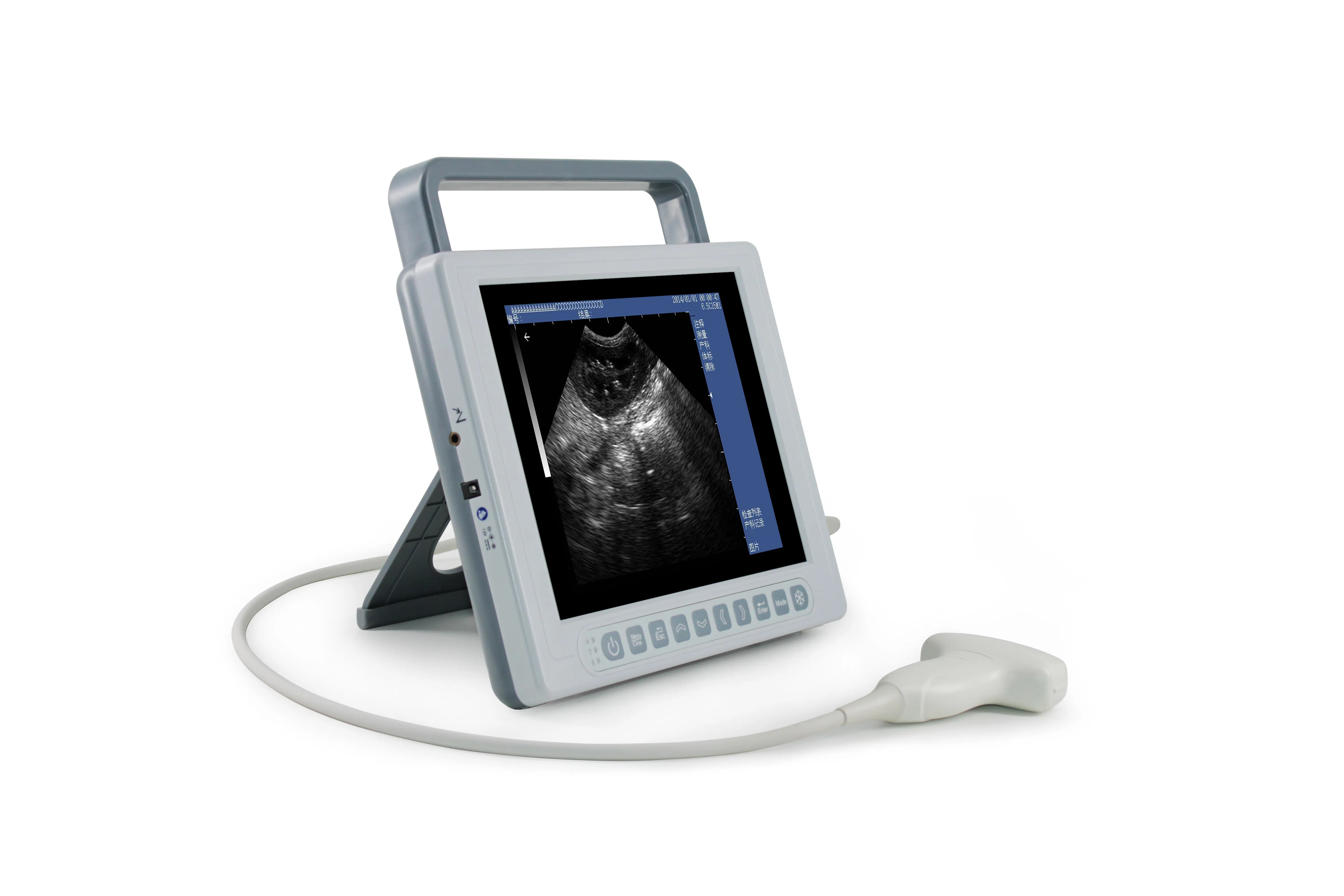

The system features advanced ARM7 Embedded Control Systems and proprietary miniaturization technology, delivering high-quality ultrasound imaging in a portable package. The 10.4" high-resolution color LCD offers excellent brightness, contrast, and wide viewing angles for optimal diagnostic clarity.
Key features include automatic probe identification, multiple body marks for different animal types, and five display modes (B, 2B, B/M, M, A). The unique B mode ultrasound and back-fat measuring function combination makes this device particularly valuable for veterinary applications.
With 8 levels of magnification and a maximum display depth of 240mm, the K10 provides detailed imaging capabilities. The system offers adjustable gain (0-127dB), dynamic range (27-90dB), and intelligent TGC control for optimal image quality across different tissue depths.
Technical specifications include a frame frequency of 30 frames/second, multiple measurement functions (distance, area, OB, backfat, lean rate), and approximately 5 hours of battery operation. The compact dimensions (158×158×65mm) and lightweight design (1.1kg) make it ideal for mobile veterinary practice.
The K10 supports multiple languages including Chinese, English, French, Russian, Spanish, Portuguese, German, Ukrainian, Polish, Turkish, and Norwegian, making it suitable for international veterinary markets.
