Basically it works by sending a 0.5MHz broadband signal—give or take 10%—through the calcaneus, and what it does is measure BUA, SOS, and OI to give you a composite bone index. We typically pair it with Windows XP through 10, so it's pretty much plug-and-play for most labs that haven't upgraded their OS yet.
You're looking at about 25 seconds per scan, which is faster than a lot of the DEXA units we've handled, and it's a full-dry method with that oil capsule probe that does automatic signal search. One thing buyers don't always think about is the humidity range—30 to 70% relative, so if your storage is too damp you'll need a dehumidifier.
The probe itself uses special ultrasonic oil as a conductor, and here's the detail from handling these: it doesn't need replacement, which saves a headache on reordering consumables mid-study. But it's not suited for axial skeleton measurements—this is strictly for peripheral assessment at the heel, so don't try to use it for hip or spine work.
For ordering, the MOQ is usually 1 unit, but we hold about 50 units or so in stock typically, so lead time is 20 days or so form payment. You'll get the software ownership certifcate and a COA with each unit—check that the COA includes the confirmed probe frequency and teh broadband at >60% at 4 to 6dB, because that's where the signal clarity lives.
We've seen hospitals use this for pediatric screening from age 0 up to geriatric populations at 100 years, though the real sweet spot is the 5 to 80 range where the normative data is strongest. The interface switches between Chinese and English, and we've found that most researchers prefer the English layout for data export.

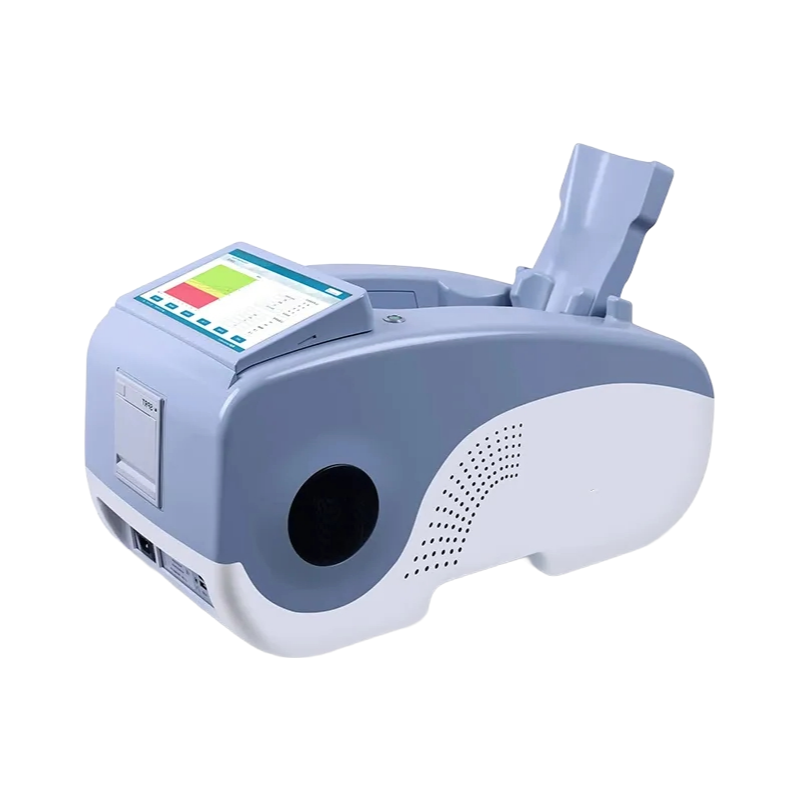

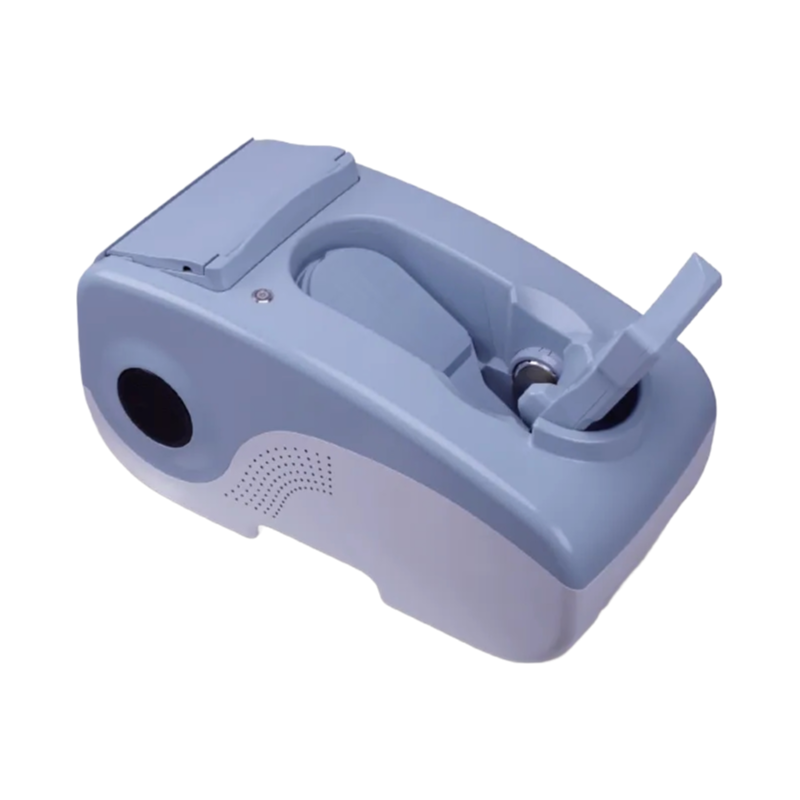

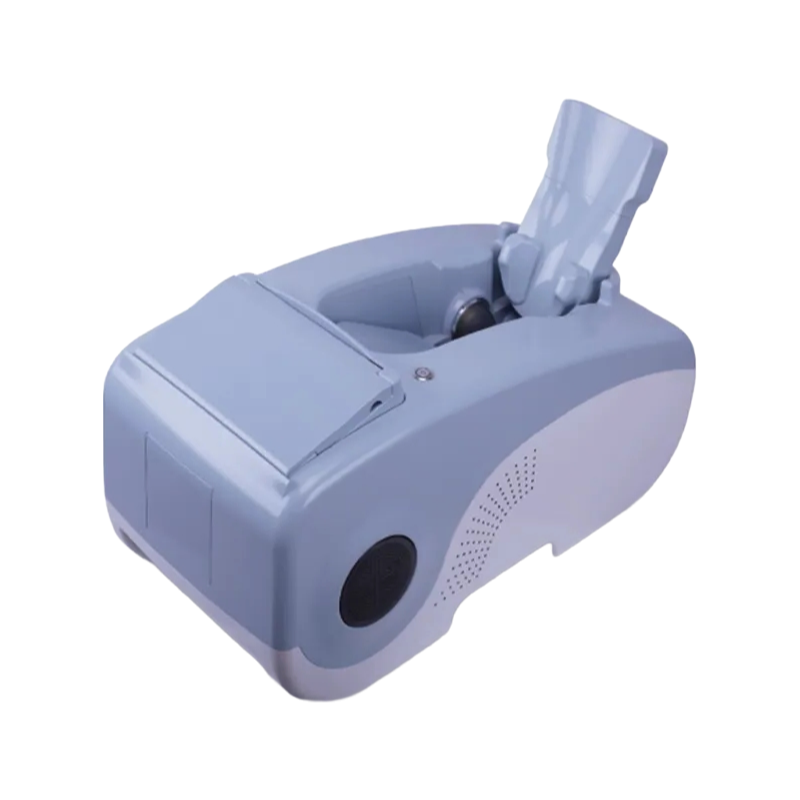

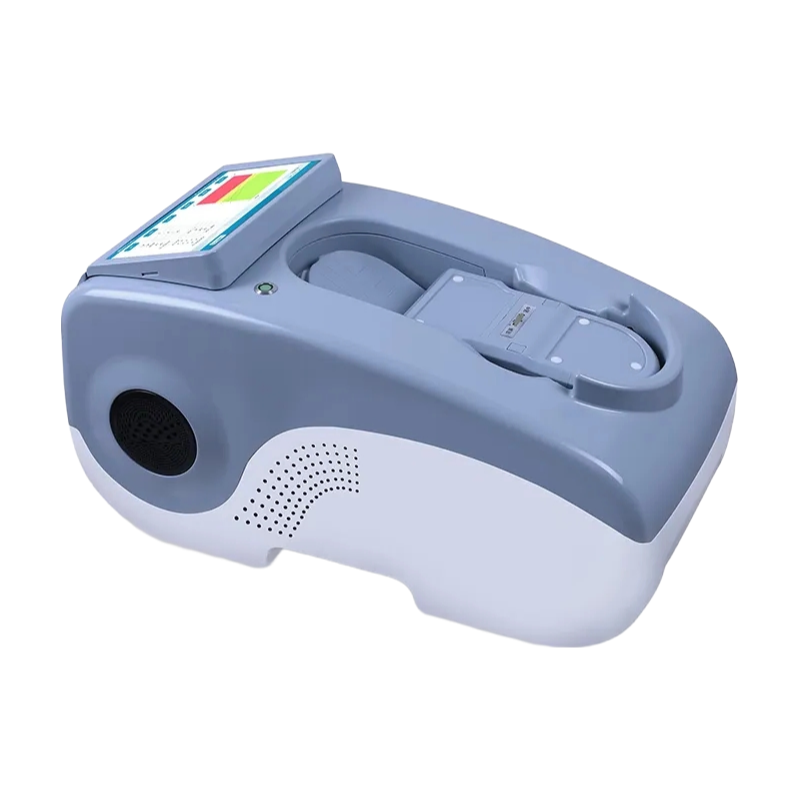

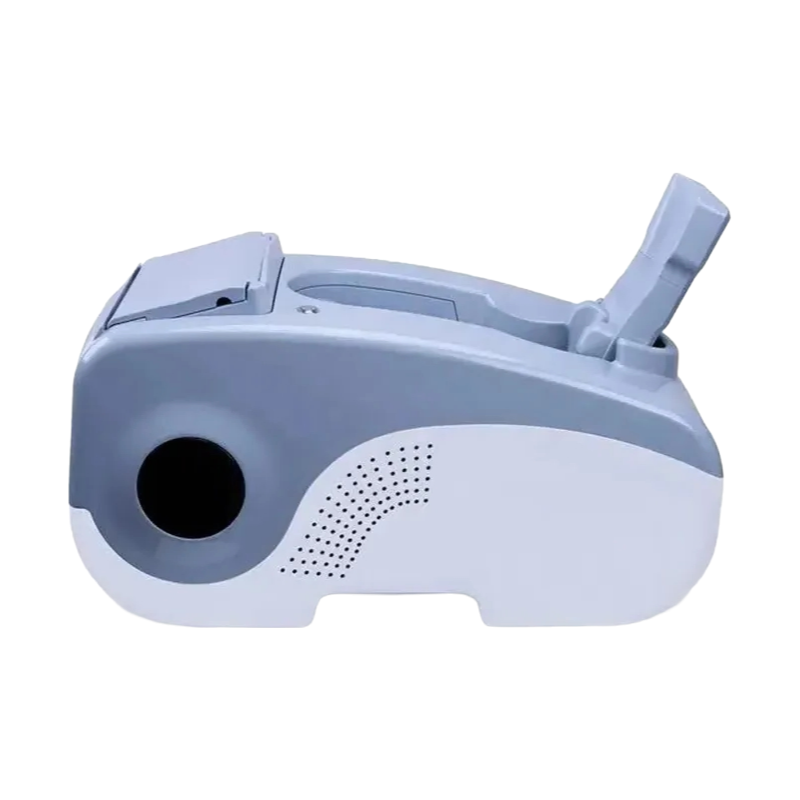

And host is 13kg at 645 by 330 by 360mm, so it's actually easier to move around than you'd expect from something with that kind of signal processing onboard. Keep it away from direct AC drafts though—the 220V ± 10% at 50Hz can be touchy if your line votage fluctuates hard during peak hours.
We typically start at 1 unit for sample orders, but for wholesale pricing we usually ask for a minimum of 5 units per order. If you need a different MOQ, just let us know and we can discuss.
For stock units, lead time is around 7-15 working days after payment. Larger wholesale orders may take 20-30 days depending on quantity and customization.
Yes, we provide CE, FDA, EEC, MSDS, and ISO13485 certificates with every shipment. We also include the software ownership certificate as listed.
No, the oil capsule probe is designed for long-term use and doesn't need replacement. The automatic signal search feature adjusts the signal on its own, so you don't have to fiddle with settings.
Store it in a clean, dry place with 30-70% relative humidity. The unit comes in a sturdy carton with foam padding to protect the 13kg host and probe during shipping.
