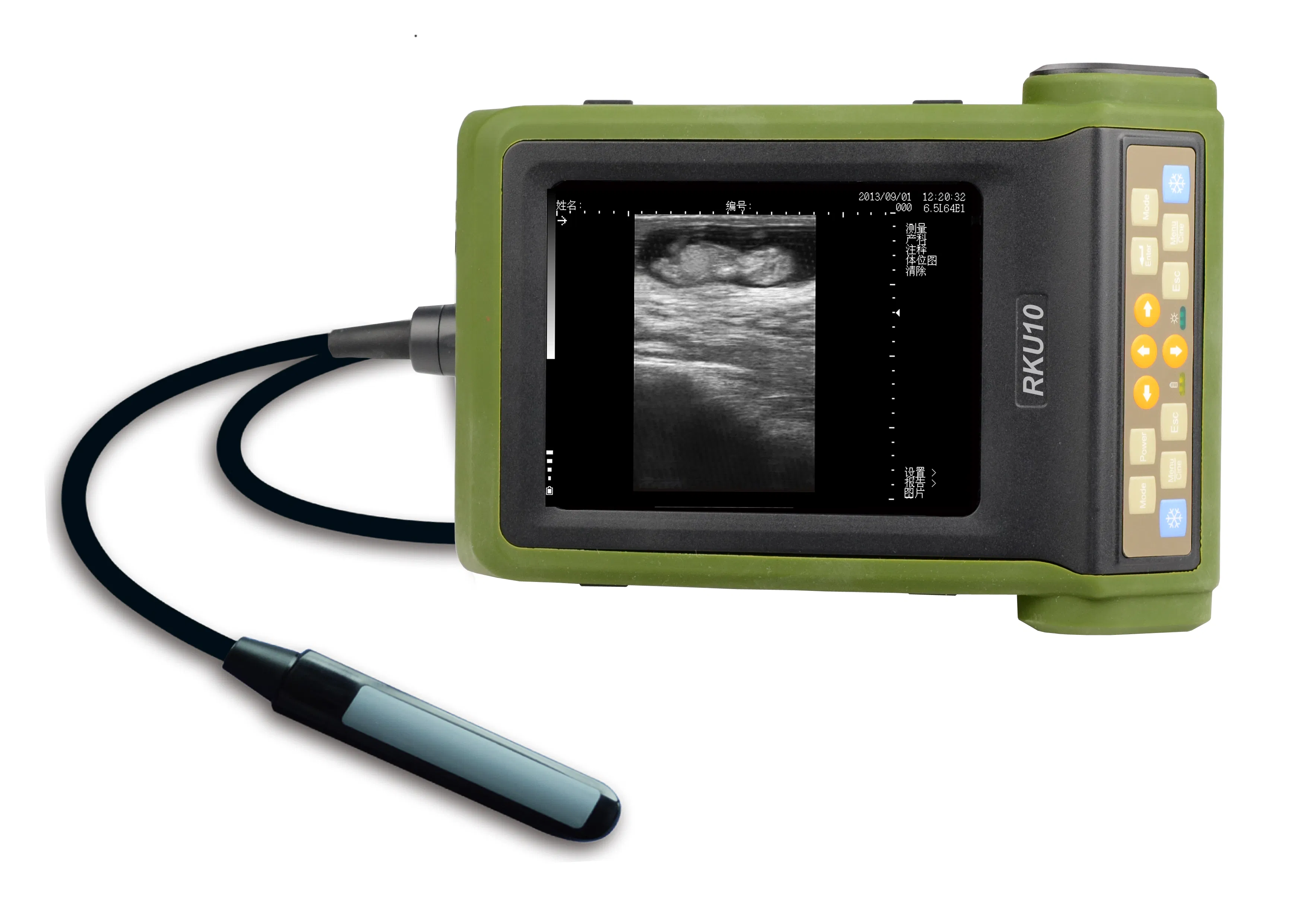

The RKU 10 Veterinary Ultrasound Scanner is a professional-grade diagnostic tool specifically designed for veterinary applications. This portable ultrasound machine provides accurate pregnancy detection and abdominal examinations for various livestock including cattle, horses, goats, sheep, pigs, dogs and cats.
With its compact 1.1kg design and ergonomic ring-shaped housing, the RKU 10 offers exceptional portability and ease of use in field conditions. The device features a high-brightness 5.7" LED display with adjustable contrast (27-90dB) and gain control (0-127dB), ensuring clear imaging even in bright outdoor environments.
The scanner comes equipped with multiple display modes including B, 2B, 4B, B/M and M modes, along with measurement capabilities for distance, circumference, area and volume calculations. Specialized functions include automatic back-fat and lean percentage calculations for swine, plus cardiac measurements for depth, slope, heart rate and cycle analysis.

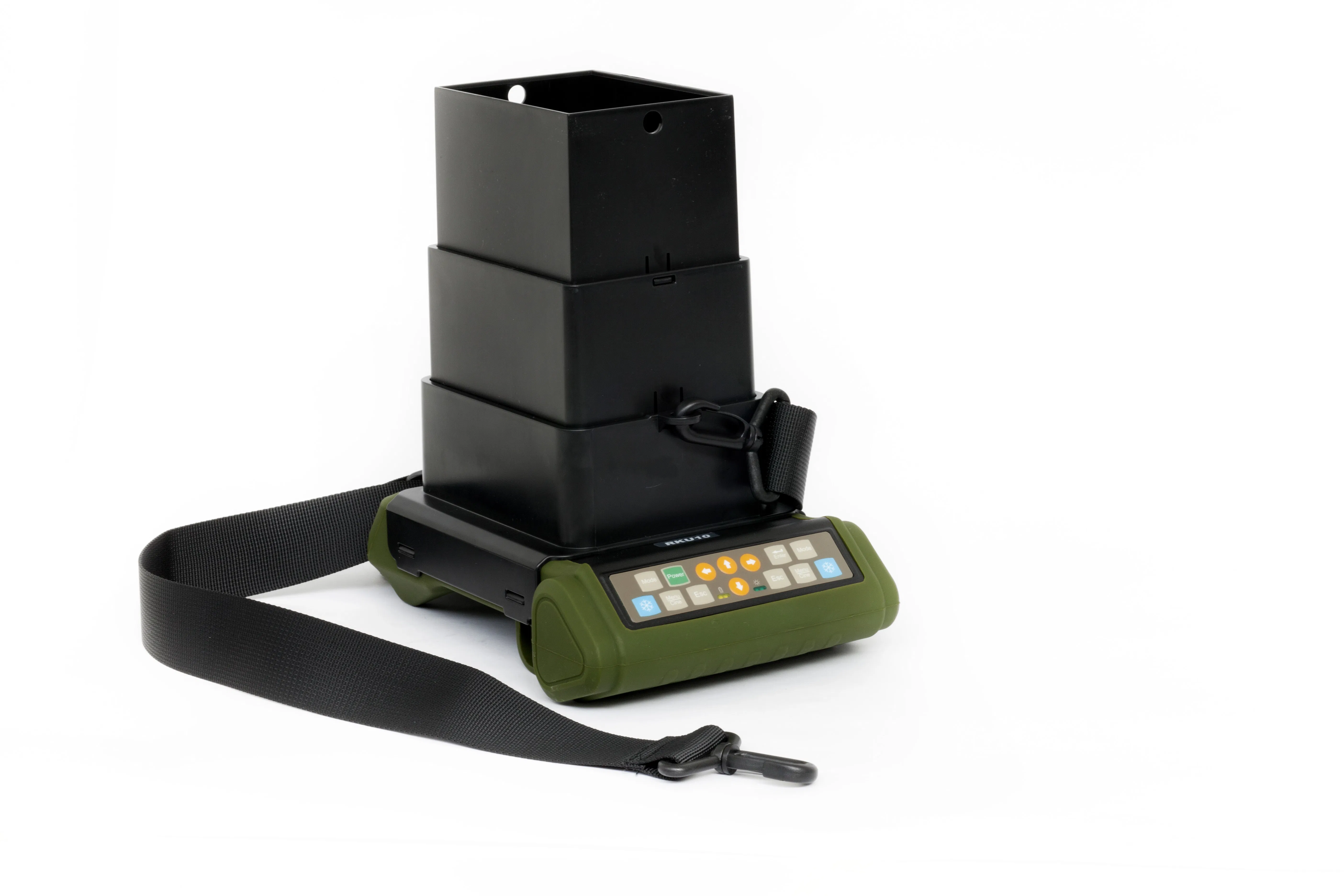

Key features include a built-in high-capacity lithium battery providing over 6 hours of continuous operation, splash-proof rubber coating, and an adjustable sunshine cover for outdoor use. The system includes permanent storage for 100 image frames and a 256-frame cine loop function.

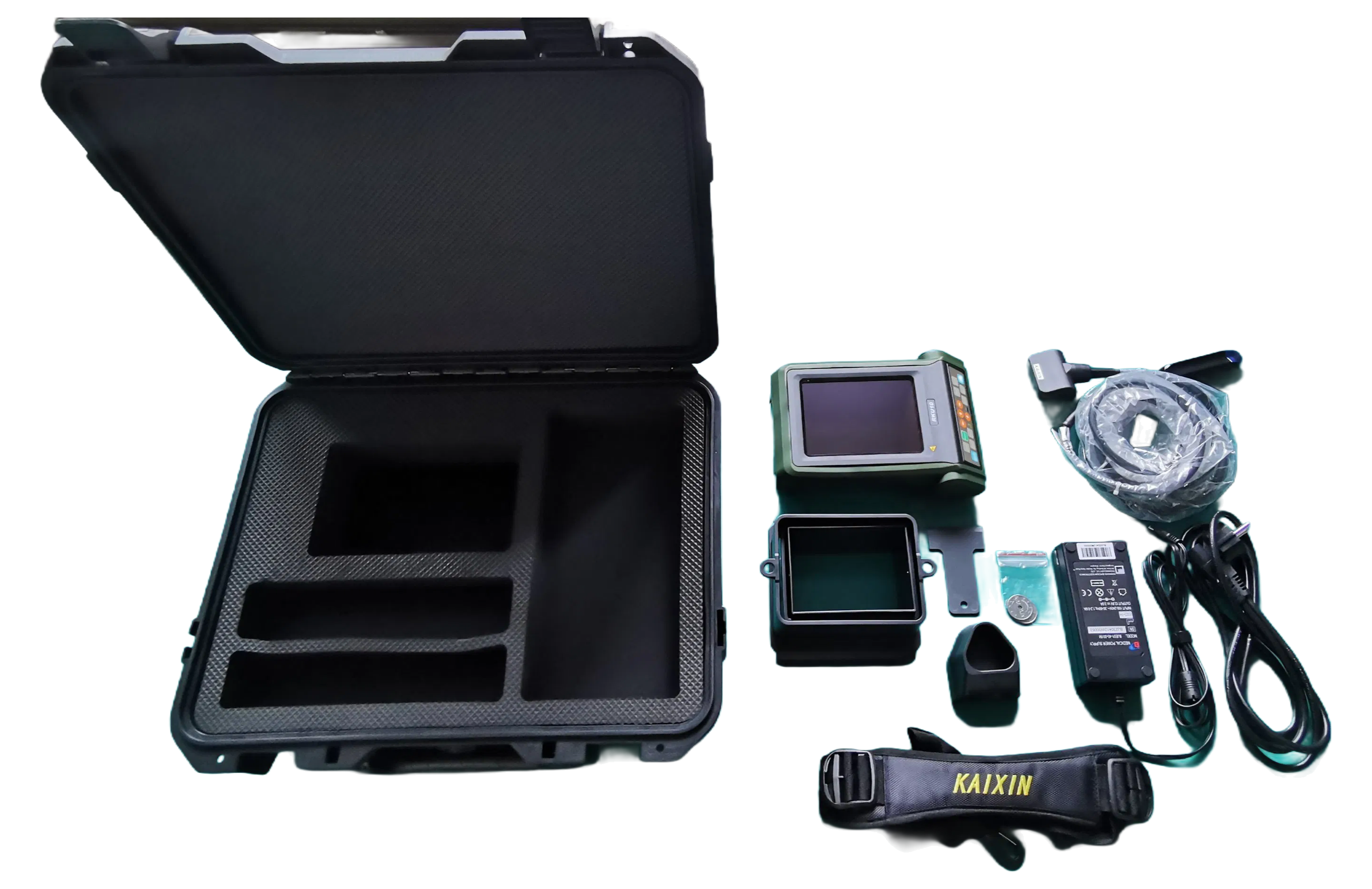

The standard configuration includes a 6.5MHz linear rectal probe, power adapter, protective case and all necessary accessories. Optional probes ranging from 3.5MHz to 7.5MHz are available for different diagnostic applications.
