We’ve got these in stock right now, roughly 6 units ready to ship from our warehouse in Qingdao. Lead time is usually 10-14 days for a full order if we need to pull from production, but confirm that before you commit to a timeline.

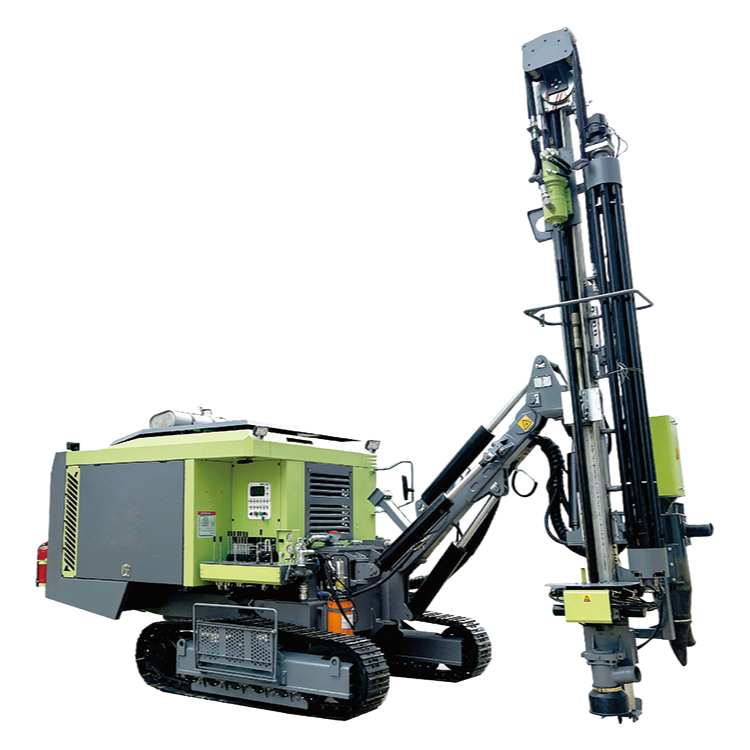

Shiping on a crawler-mounted rig this size—3800×1550×2350mm—means you’re looking at a 40-foot flat rack or open-top container, and we’ll handle the lashing plan. You’ll need to arrange your own customs broker at the port of entry; we provide the COA and CE documentation with the shipment. The 42kw Yunnei engine is reliable workhorse for this class, and the 4000-5000 Nm torque range covers most rotary drilling in medium-to-hard formations. That single-pass drilling length of 3000mm means fewer rod changes, which actually matters more than most buyers realize when you’re pushing 4200 meters depth.
2.5 km/h travel speed is slow—it’s a crawler, not a truck—but the 25-degree gradeability lets it climb out of most pits without a tow. Air consumption sits at 15-27 m³/min at 1.45-2.5 MPa operating pressure, so make sure your compressor can feed it continuously. We usually pair it with a 20-bar screw compressor, but that’s separate from the rig package.
Warranty is 12 months from invoice date, but what it covers is basically drivetrain and hydraulics—wear items like diamond bits and seals are on you. The rotary speed range of 38-80 rpm is better than most comparable rigs for hard rock, and the bit type is diamond, so you’ll get decent core recovery in quartzite or granite. It’s not suited for soft alluvial deposits; you’d want a DTH hammer setup for that, which this chassis can’t easily adapt to.
Anyway, packging is steel-framed crate with plastic sheeting and desiccant packs—standerd for ocean freight, no cold chain needed. Most buyers go with standard crate, but we can add a waterproof liner for an extra $150 or so if your route goes through monsoon season.
Our MOQ is typically 1 unit, but we can discuss bulk orders if you need multiple rigs. Lead time for a single unit is around 30–45 days depending on stock.
Standard lead time is 30–45 days from order confirmation. We can speed it up a bit if we have stock on hand, but custom builds take the full window.
Yes, the YG-1500 is CE, RoHS, and ISO 9001:2008 certified. We’ll include the documentation with the shipment or send it digitally before dispatch.
The YG-1500 can drill up to 4200 meters under ideal conditions with diamond bits. In harder rock formations, you might see slightly less depth, but it handles most mineral exploration jobs well.
We package it in a sturdy wooden crate with waterproofing to protect the crawler chassis and rotary head. Store it indoors or under a cover if you can; it’s built tough but keeping it dry helps the electronics.
