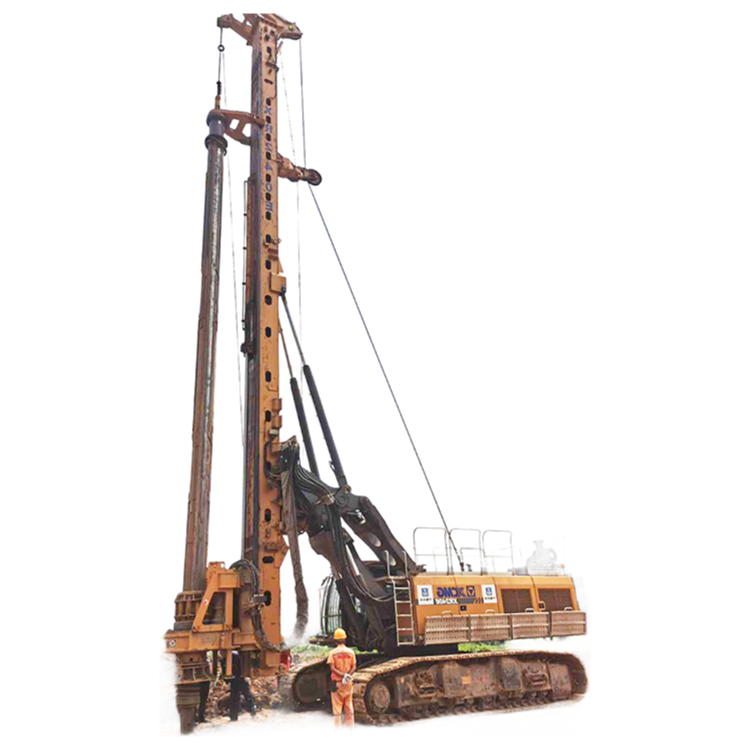

XR240E Hydraulic Rotary Pile Drilling Rig for Construction and Mining Projects

Usually 2.2m is teh practical max on diameter and you can push to 80m depth with it, though that’s in ideal conditions and I’d budget for 60-65m in mixed ground if you’re being realistic about production rates.

The 270kW engine and 240kN.m torque handle most medium-to-deep foundation work, we’ve got one going into a bridge pier job next month and it’ll run 8-hour shifts without heat issues—most buyers go with the standard track shoes but the 800mm width helps on softer sites.

We ordered it for the rotary drive improvement basically, the 20% gain over older models means you’re not cycling winch as often on deep bores, and the single-row rope on both winches (240kN main, 80kN auxiliary) lasts about 2-4 times longer than multi-layer setups we’ve used before.

Transport dimnesions are 17530x3250x3692mm so it fits on standard low-loaders without a special permit in most states, the working height of 22.8m is something to check against site overhead cables though.

Not ideal for tight urban basements where you’re swinging between walls—the 84-ton weight and 8.87m length limit maneuverability, but for open-cut mining or highway bridge jobs it’s better than the XR200 for torque and depth margin.

CE and ISO are current on the batch we’re getting, the EPA and GOST certs were a surprise but they help if anything goes into export later, anyway we usually have stock but confirm lead time for the 35% grade ability setup since some come with the standerd undercarriage.
