High Efficiency WH260 Crawler Mounted Water Well Drilling Machine with 3.3m Advance Length

US$ 14000.00 ~ 18000.00
Min.Order: 1
Product origin: Linyi, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 18 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : WH260
  • Drilling Depth : 260m
  • Hole Diameter : 140-305mm
  • Drill Pipe Diameter : Φ76/Φ89mm
  • Drill Pipe Length : 1.5m/2.0m/3.0m
  • Rig Weight : 5.5T
  • Lifting Force : 15T
  • Advance Length : 3.3m
  • Rise Speed : 24m/min
  • Walking Speed : 2.5km/h
  • Climbing Angle : 30° (Max)
  • Power : 77.3kW
  • Winch Capacity : 2T
  • Air Pressure : 1.7-3.0MPa
  • Swing Torque : 4000-5300N.m
  • Air Consumption : 17-31m³/min
  • Dimensions : 4800×2000×2600mm
  • Swing Speed : 45-70rpm
  • Hammer Type : Medium/High Wind Pressure
  • Penetration Rate : 10-35m/h
  • Engine Brand : Yuchai
  • Certifications : CE, RoHS, ISO 9001
  • Warranty : 3 Months

The WH260 series water well drilling rig comes in three configurations: standard version, upgraded version with advanced opening/closing drill bit, and wheeled self-propelled version. All variants can be equipped with mud pumps for dual water and gas operations.

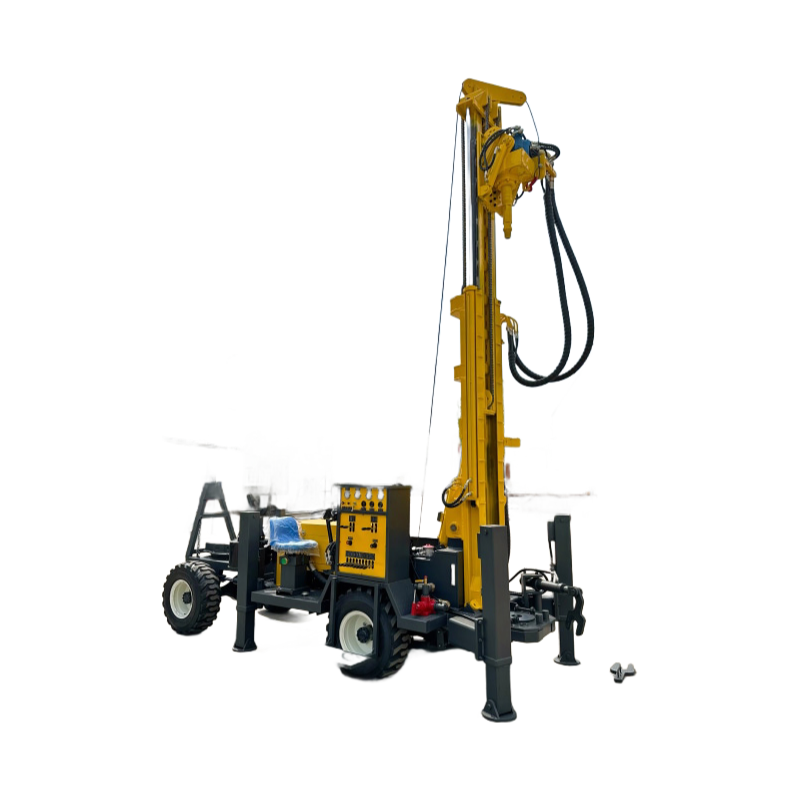

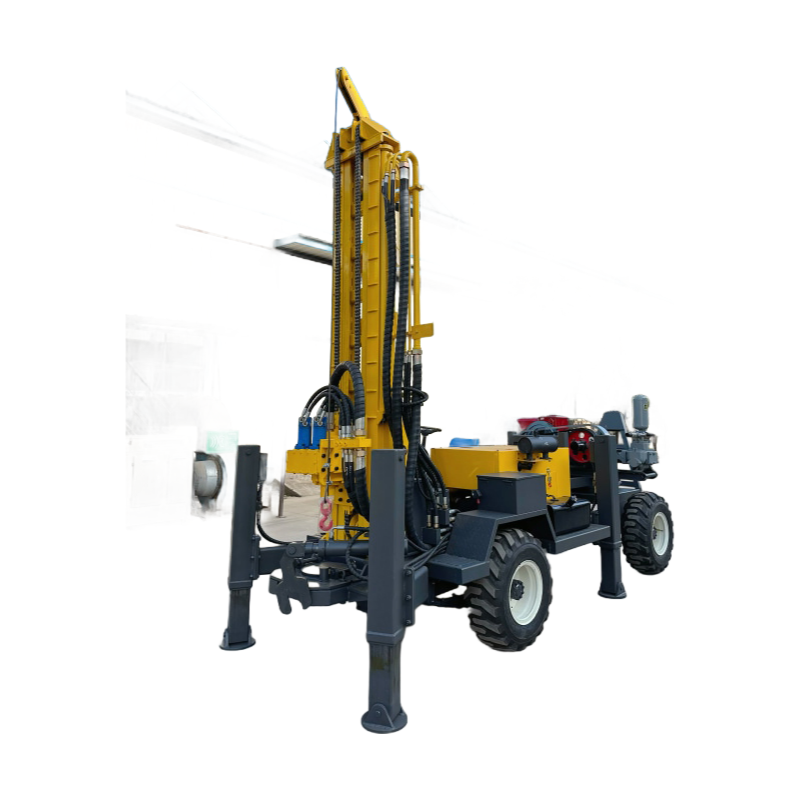

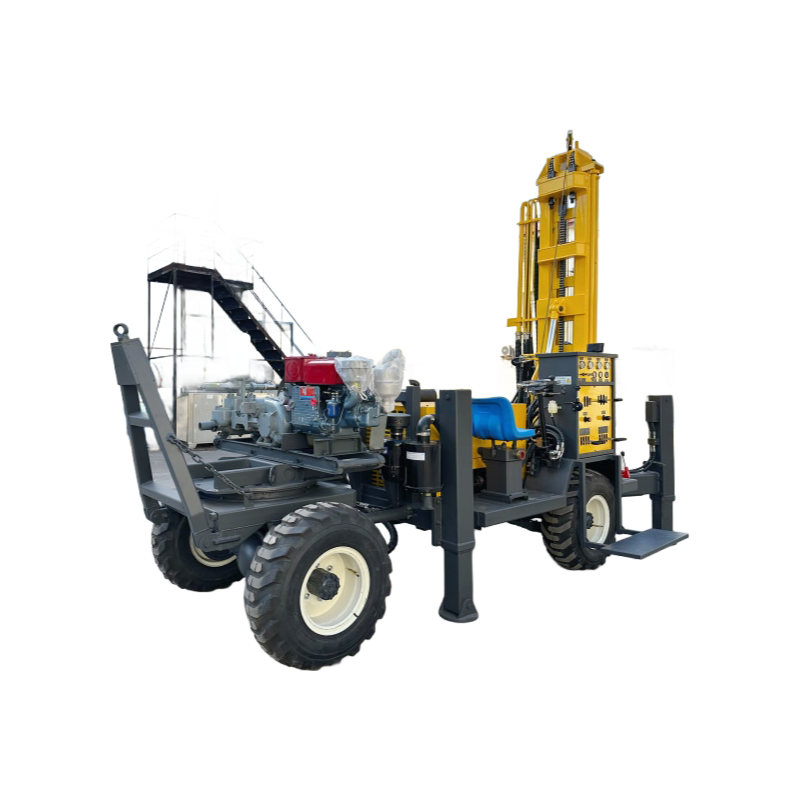

WH260 Water Well Drilling Rig

This rotary full hydraulic control drilling rig series offers exceptional versatility, compatible with both air compressors and mud pumps. It can also operate using dry hydraulic drilling method when required.

Our portable drilling rigs are engineered for multiple applications beyond water wells, adaptable to various geological conditions based on specific hole-forming requirements.

WH260 Drilling Rig in Operation

Key Features:

1. Hydraulic transmission power head enables stepless speed regulation to meet diverse drilling process requirements

2. Eliminates need for square drill rod, significantly reducing auxiliary time during tool lifting

3. Hydraulic control system allows precise pressure feeding and pressure-reducing drilling operations

4. Capability to rotate while lifting/lowering tools simplifies hole collapse management

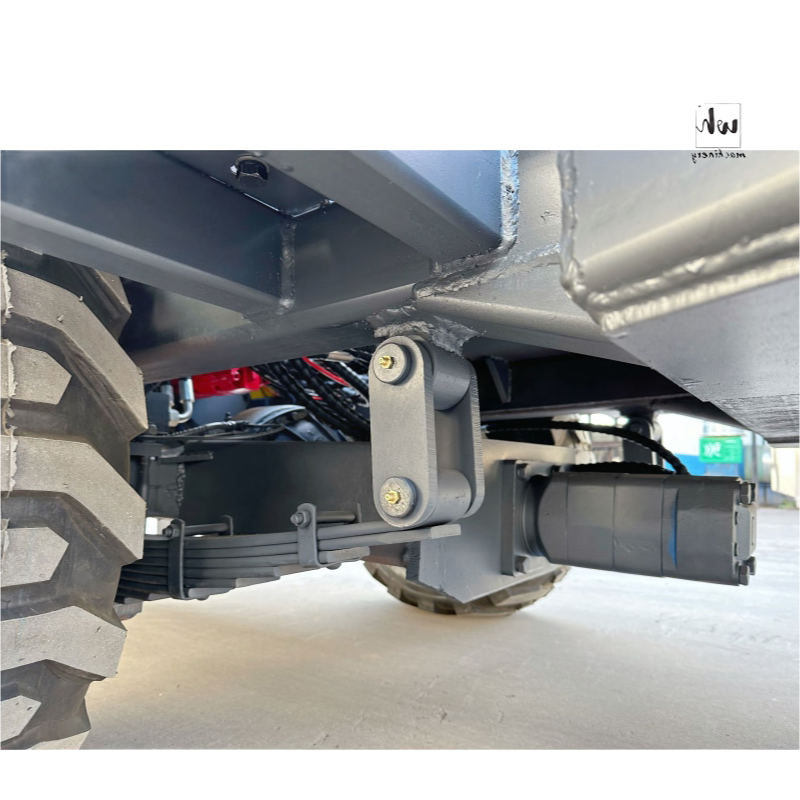

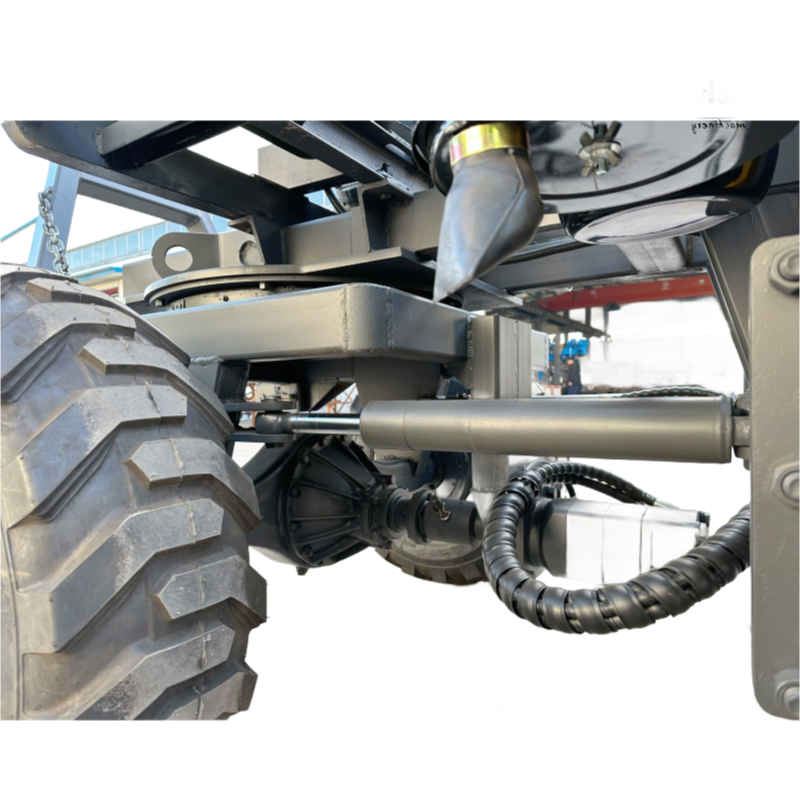

WH260 Rig Components

Applications:

- Industrial and agricultural water conservancy projects

- Test wells and exploration drilling

- Geothermal heating projects

- Engineering foundation reinforcement

- Loose gravel drilling and rock formation connections

WH260 Rig Specifications
