High Capacity 5T Electric Pallet Jack with 8H Battery Life - Warehouse Loading Equipment

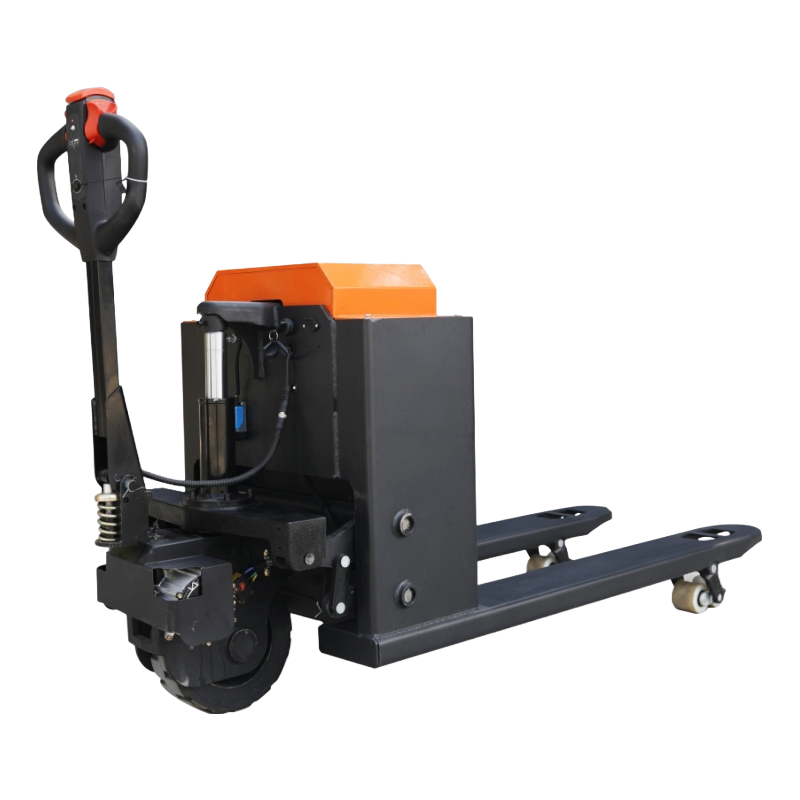

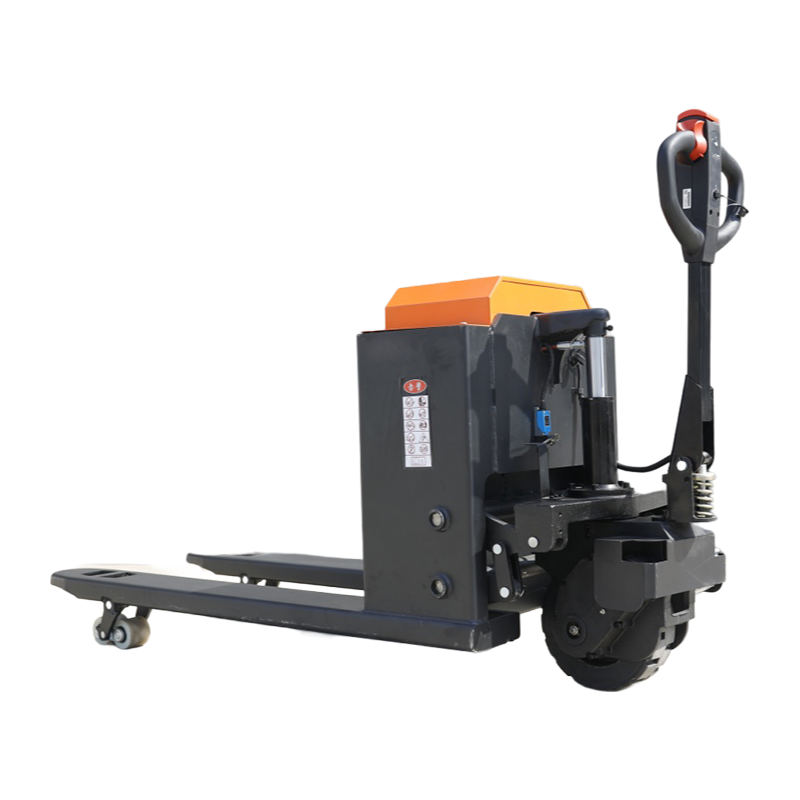

You're looking at a 5-ton walk-behind electric pallet jack—the CTXY50Q—and we run these daily in high-throughput distribution centers where things get rough, so the 3000W hydraulic pump paired with a 1500W DC drive motor handles full loads on ramps and uneven floors without bogging down.

The 48V 20AH battery gives about 8 hours of continuous operation, but you'll get less if you're doing constant lifts at max height—lead-acid is fine for steady shifts, lithium cuts weight by 30% or so (check lead time, as lithium often takes 20 days longer).

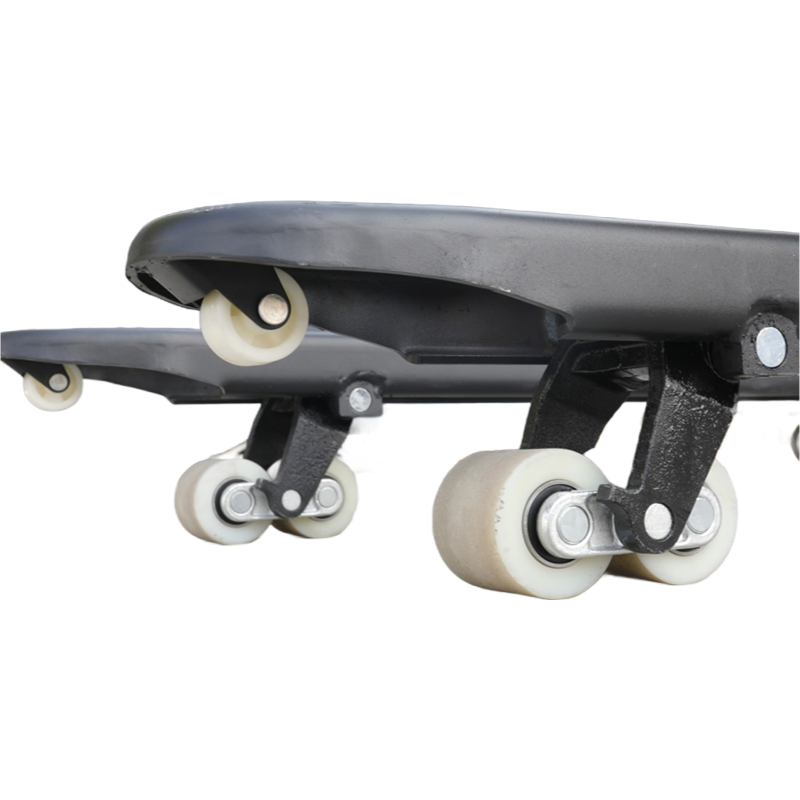

Fork matrial is 6mm manganese steel, which actually holds up better than standdard steel when you're dropping pallets onto dock plates every 30 seconds, though ground clearance is only 90mm resting—so don't expect it to clear debris common in older warehouses.

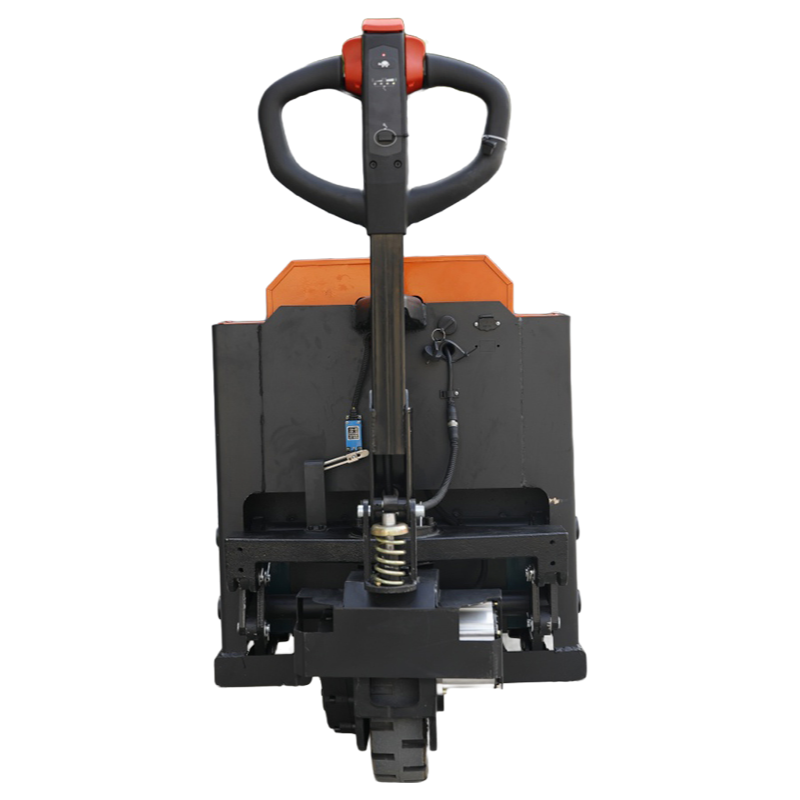

Most buyers go with teh 685mm wide fork option for Euro pallets, and the emergency stop button is placed right by thumb controls, so you'll hit it instinctively if someone steps out—not suited for narrow aisles under 2 meters since the turning radius is pretty tight.

Anyway, we usually have stock on the standard 550mm fork version, but confirm lead time on 685mm—warranty is one year on the whole unit, and we'll include a COA for the pump and motor specs if your compliance team asks.
