Customizable 3T-5T Electric Pallet Truck with Lithium Battery Option for Warehouse Use

US$ 920.00 ~ 830.00
Min.Order: 1
Product origin: Baoding, Hebei, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TYA30 (Lead Acid/Lithium)
  • Power Type : Electric
  • Operation Mode : Pedestrian Control
  • Load Capacity : 3000-5000kg
  • Load Center Distance : 600mm
  • Wheelbase : 1320/1250mm
  • Self Weight with Battery : 200-225kg
  • Wheel Type : Front rubber, rear PU/nylon
  • Driving Wheel Size : φ350×100mm
  • Load-bearing Wheel Size : φ80×70/60mm
  • Maximum Fork Height : 200mm
  • Lifting Stroke : 115mm
  • Minimum Fork Height : 85mm
  • Fork Outer Distance : 570/685mm
  • Fork Inner Distance : 250/385mm
  • Fork Length : 1150/1220mm
  • Fork Width : 150/160mm
  • Fork Thickness : 60mm
  • Overall Width : 570/685mm
  • Overall Length : 1830mm
  • Turning Radius : 1550mm
  • Travel Speed : 4/4.5 km/h
  • Lifting Speed : 15/19 mm/s
  • Maximum Gradeability : 8/16%
  • Brake Type : Electronic/Electromagnetic
  • Drive Motor Power : 1.0kW
  • Lifting Motor Power : 0.8kW
  • Battery Specification : 48V/32Ah
  • Battery Weight : 36kg
  • Certification : CE, ISO9001

Our off-road electric pallet truck is engineered to handle any terrain with exceptional performance. Designed specifically for challenging work environments, this robust equipment excels in construction sites, industrial facilities, cold storage units, and various outdoor applications.

The truck features a waterproof control system and wide, durable wheels that ensure smooth operation across uneven surfaces. Its fully sealed gearbox provides enhanced durability and stability during heavy-duty use. The innovative design includes four heavy-duty load-bearing bearings, maintaining functionality even if one bearing becomes compromised.

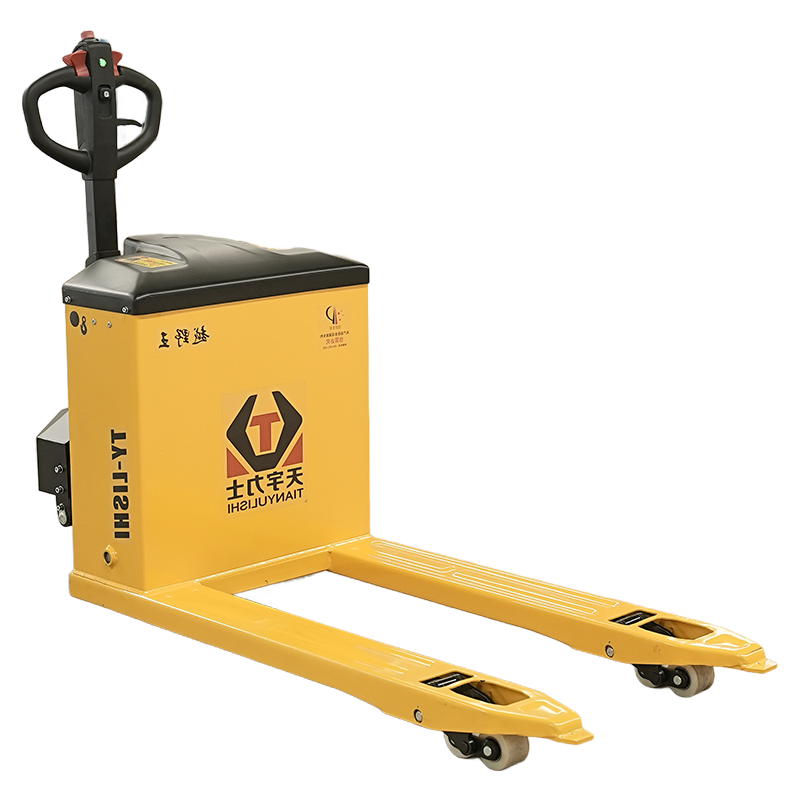

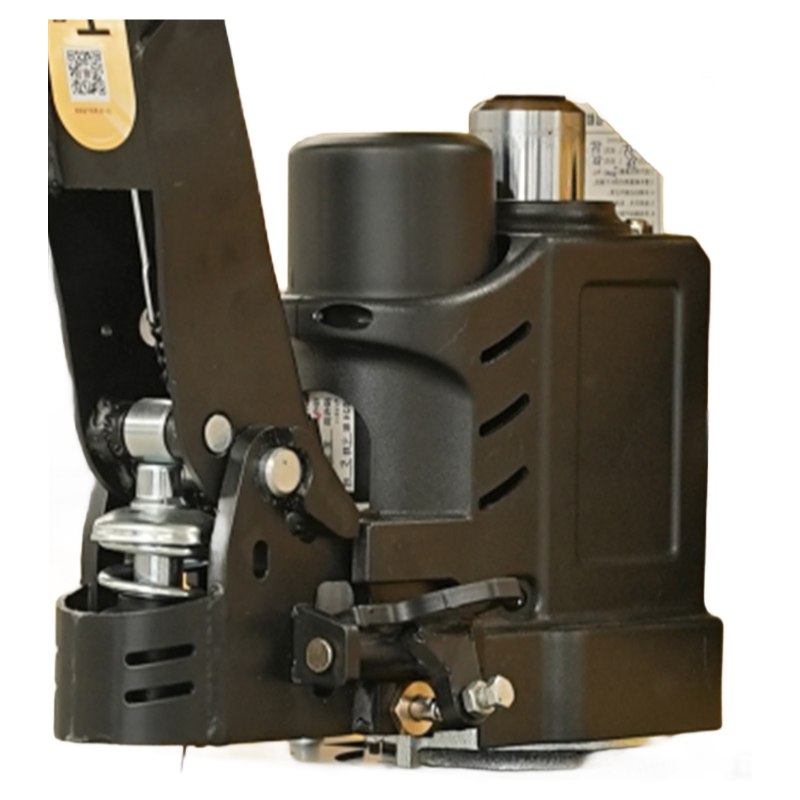

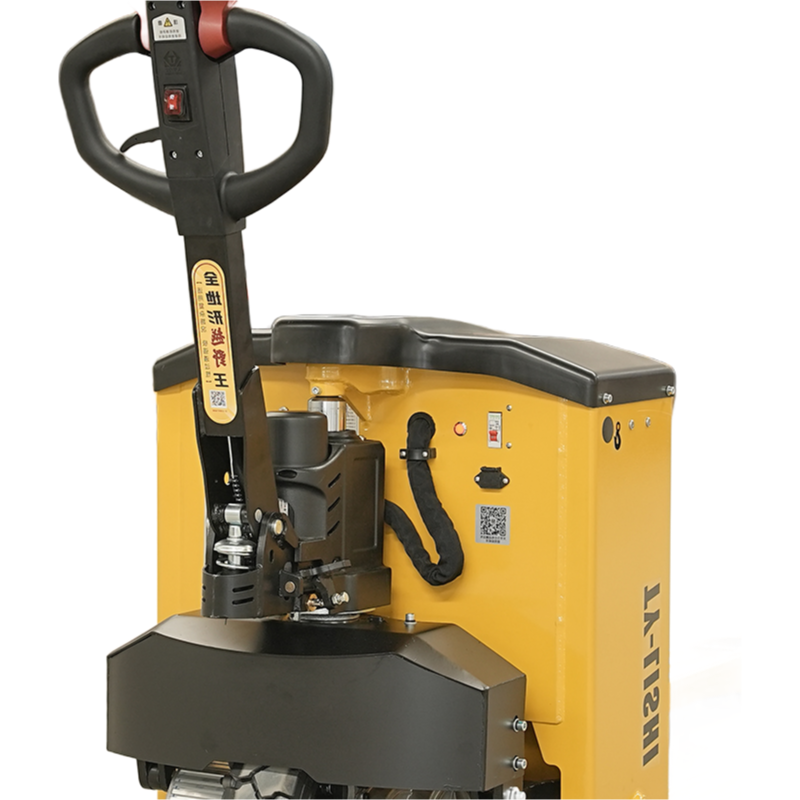

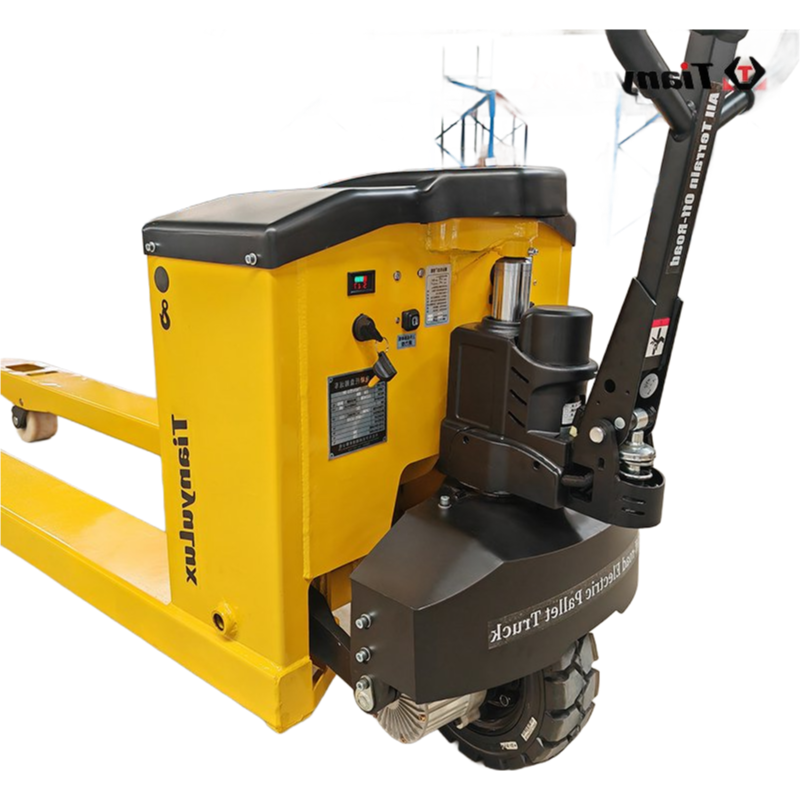

Electric pallet truck front viewElectric pallet truck side viewElectric pallet truck wheel detailElectric pallet truck battery compartmentElectric pallet truck motor detailElectric pallet truck operation view

Key features include a 6mm thickened integrated stamped fork for superior strength and wear resistance, along with a 48V permanent magnet brushless motor that requires minimal maintenance. The truck offers flexible battery options with both lithium and lead-acid battery configurations available.

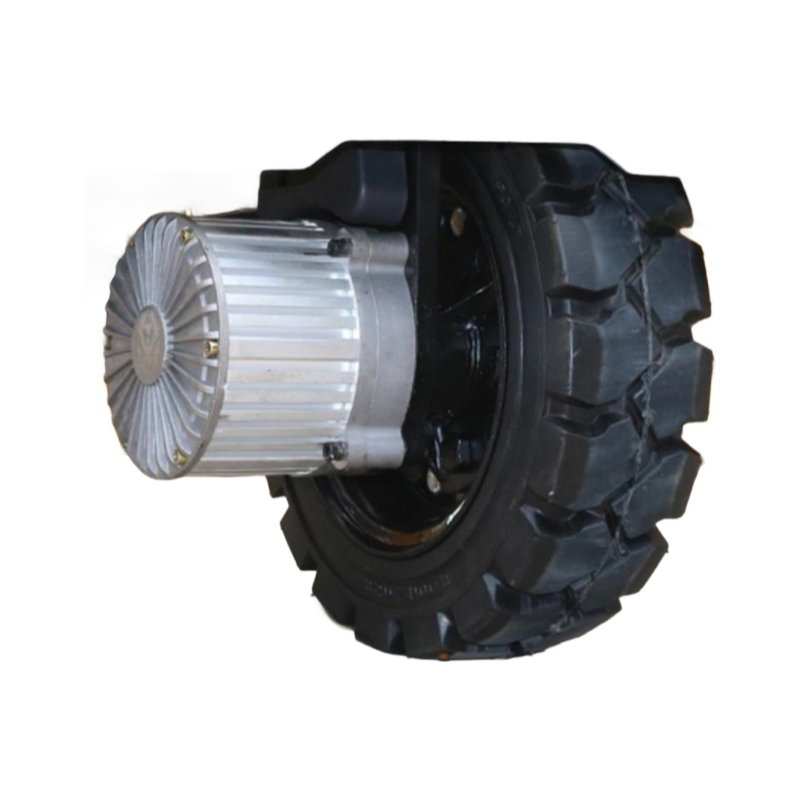

The drive assembly incorporates high-quality solid rubber wheels (350×100mm) and a fully sealed gearbox for maximum durability. The enlarged battery compartment features a sealed, waterproof cover with enhanced protection against dust, collisions, and impacts.
