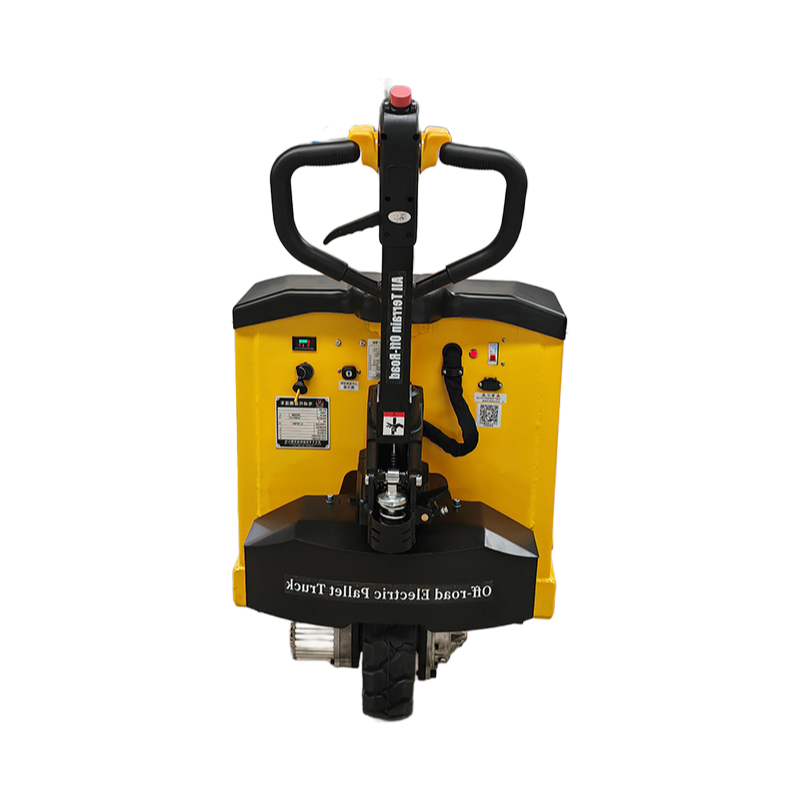

We've seen too many operations where the pallet jack just can't keep up with the shift, and that's exactly what this model solves—it gives you a real choice between lead acid and lithium so you're not stuck with a battery that doesn't match your workflow.
What it does is handle the heavy lifting without drama, with a 3000kg capacity that covers most warehose loads, and the fork length options form 1600mm to 2000mm mean you can actually fit it to your pallet sizes rather than forcing a one-size-fits-all approach.
Travel speed sits at 4km/h loaded and 4.5km/h unloaded, which isn't blistering but honestly, you don't want faster in tight aisles, and the turning radius of 2000-2400mm (depending on your fork choice) makes it pretty maneuverable for most layouts.
The drive motor is 1.0kw and the lifting motor is 0.8kw, giving you 85-200mm lift height, and we usually have the lead acid 48V/32Ah in stock but lithium 48V/30Ah option typically adds about 20 days or so to lead time.

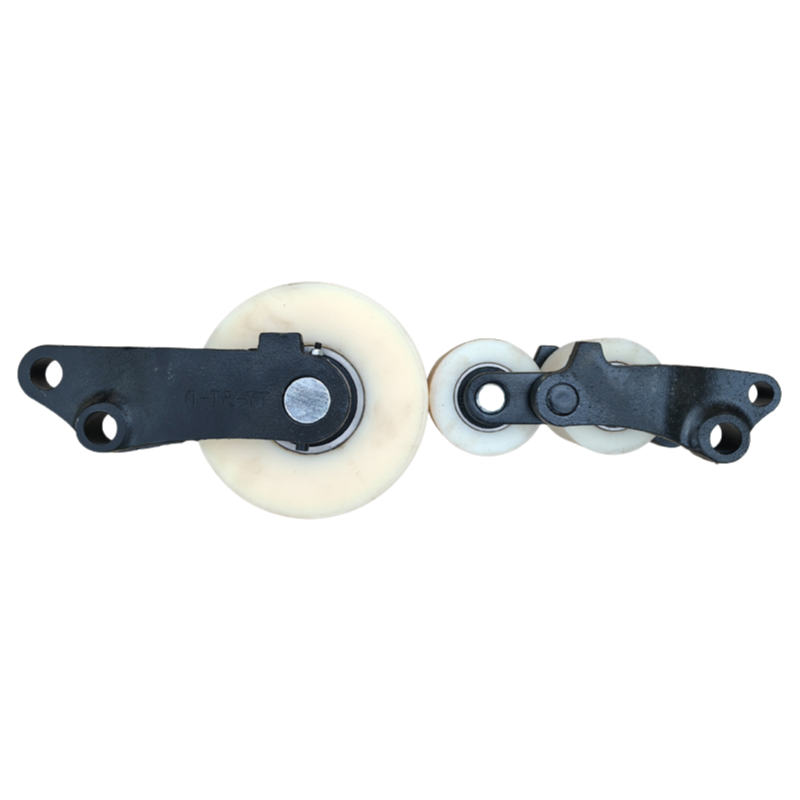

It's not suited for outdoor use over rough ground—the front rubber wheels (350x100mm) and rear PU/nylon (80x70mm) work fine on smooth floors but you'll feel every crack on concrete, so basically keep it indoors.
Both CE and ISO9001 certs come standerd, warranty is one year excluding wear parts, and we've had a few buyers ask about the motor controller—it's sealed fairly well against dust, which is something you don't always get at this price point.
Our MOQ for the TYA30 is 1 unit, so you can order just one for testing or a small fleet.
Lead acid models ship in 15-20 working days, while lithium versions take 20-25 working days due to battery sourcing.
Yes, both CE and ISO9001 certifications are included with every TYA30 unit.
Absolutely, you can choose any fork length—1600mm, 1800mm, or 2000mm—with either battery option.
With 1800mm forks, the turning radius is about 2200mm, but it ranges from 2000mm to 2400mm depending on the fork length you pick.
