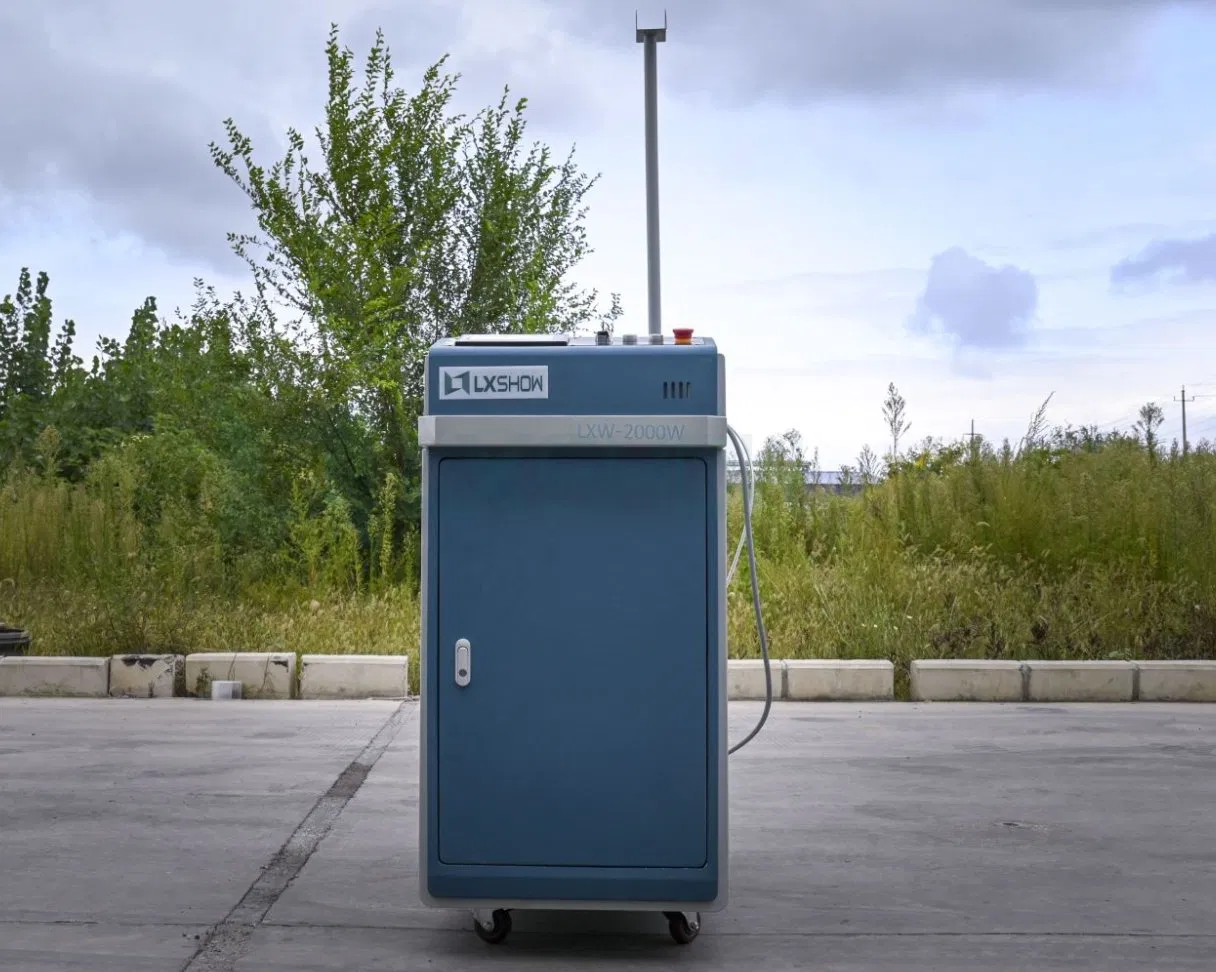

Getting consistent welds on thin-gauge metals without warping whole thing—that's usually the headache, and this LXW series basically handles it by keeping the heat input really tight with that high energy density.
Spot diameter runs from 0.2 to 3.0mm, and the power stability is under 2%, so you're not chasing drift mid-run, plus the pulse width goes from 0.1 to 50ms (which matters for aluminun alloys more than most people think).
Beam quailty sits at 1.1, it operates form 50Hz up to 5kHz, and the power adjustment covers 5-95%, so you can dial in pretty much any joint geometry without swapping heads—fiber length is either 5, 10, or 15m depending on your setup.
We do customize the power from 500W all the way to 2000W, and the power consumption is 2000 or 4000W depending on that choice, though the cooling water needs to stay between 20-25°C or you'll trip the water chiller.
Lead time is usually 20 days or so for standard builds, but confirm stock first—we ship with CE and ISO9001 certs, and teh warranty runs three years, which is better than most at this price point.
Not the best choice for welding thicker plates over 5mm in a single pass, but for precision work on gold, titanium, or battery tabs, it's actually the go-to around here.
That's the max power draw of the machine—2000W for the 500W laser model and 4000W for the 2000W version. So if you're running the 2000W laser, expect it to pull about 4kW from the wall.
Yes, the laser power is customizable within that 500-2000W range. Just let us know your target wattage when ordering, and we'll adjust it accordingly.
Each unit ships with CE and ISO9001 certification. We also include a full test report and a 3-year warranty—so you're covered on both compliance and reliability.
Standard fiber lengths (5m or 10m) usually ship in 15-20 working days. The 15m option adds about a week to production, so expect 20-25 working days total.
We pack it in a reinforced wooden crate with foam padding to protect the optics and water chiller. Store it in a dry, temperature-controlled area (10-35°C, 20-80% humidity) to avoid condensation damage.
