Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control
Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control
Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control
Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control

Waterproof IP68 EC Axial Fan 92mm - 24W 115V/220V DC Ventilation Fan with PWM Speed Control

US$ 6.02 ~ 4.98
Min.Order: 100
Product origin: Shenzhen, Guangdong, China
Category: Toys
Product Name: Toys
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : MX9238ABU11(EC)
  • Product Name : EC Axial Flow Fan
  • Dimensions : 92x92x38mm
  • Operating Voltage : 115V
  • Rated Current : 2.0A
  • Input Power : 24W
  • Speed : 7000RPM
  • Air Flow : 153.52CFM
  • Frame Material : Plastic (PBT, 94V-0)
  • Bearing Type : Ball Bearing/Sleeve Bearing
  • Operating Temperature : -30°C to +80°C
  • Lifespan : 50,000 hours (ball bearing)
  • Certifications : CE, RoHS, UL, TUV
  • Applications : Cooling systems, medical equipment, industrial ventilation

The 92x92x38mm EC axial flow fan is a high-performance ventilation solution designed for industrial and commercial applications. This energy-efficient fan features an electronically commutated (EC) motor that combines the benefits of AC and DC technologies, delivering superior airflow with reduced power consumption.

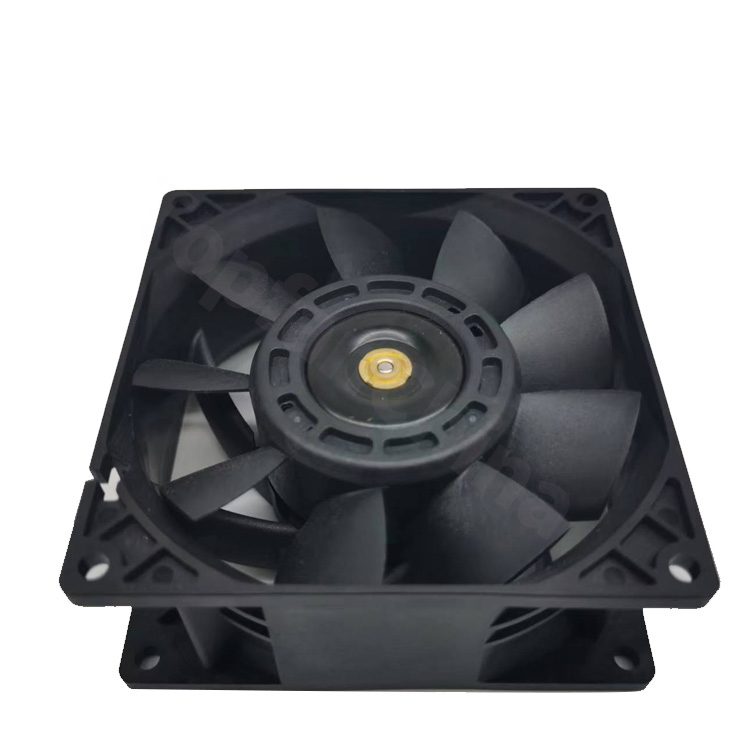

92mm EC axial flow fan

With a powerful 153.52CFM airflow capacity and operating speed of 7000RPM, this fan provides excellent cooling performance for demanding environments. The durable plastic frame and impeller (PBT material with 94V-0 rating) ensure long-term reliability in various operating conditions.

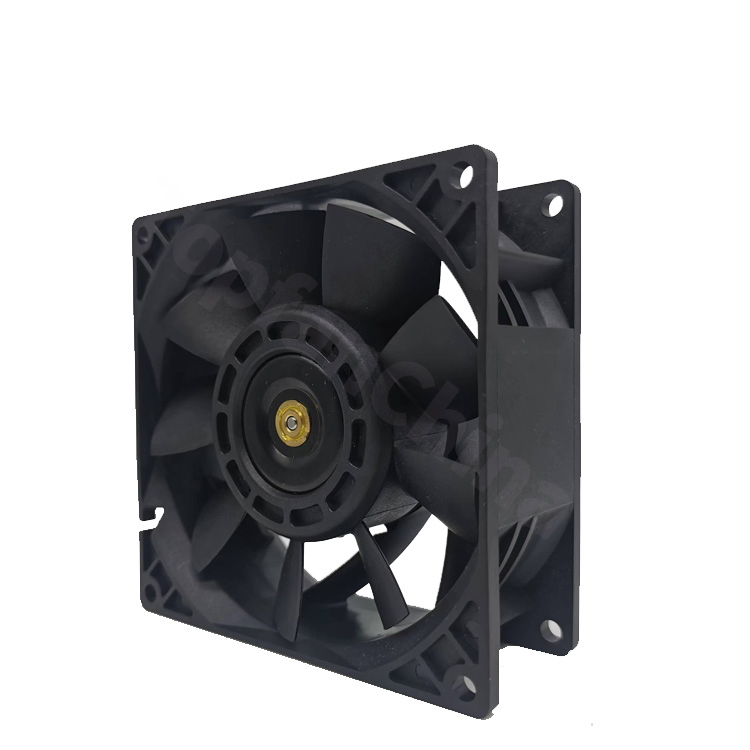

EC fan side view

The fan offers multiple protection functions including automatic restart, over current protection, motor lock current protection, and reverse connection protection. These features enhance operational safety and extend the product lifespan up to 50,000 hours at 40°C (ball bearing version).

Advanced control options include PWM speed regulation, allowing precise airflow adjustment to match system requirements. The FG (speed output signal) and RD (stall alarm) functions provide real-time monitoring capabilities for system integration.

EC fan wiring diagram

Available in IP55 and IP68 waterproof versions, this fan can be customized with either glue filling or vacuum coating processes to meet specific environmental requirements. The operating temperature range of -30°C to +80°C makes it suitable for diverse climatic conditions.

This EC axial flow fan finds applications across multiple industries including medical equipment, welding machines, network cabinets, LED displays, automation systems, and more. Its compact 92x92x38mm size makes it ideal for space-constrained installations while delivering industrial-grade performance.

EC fan installation
