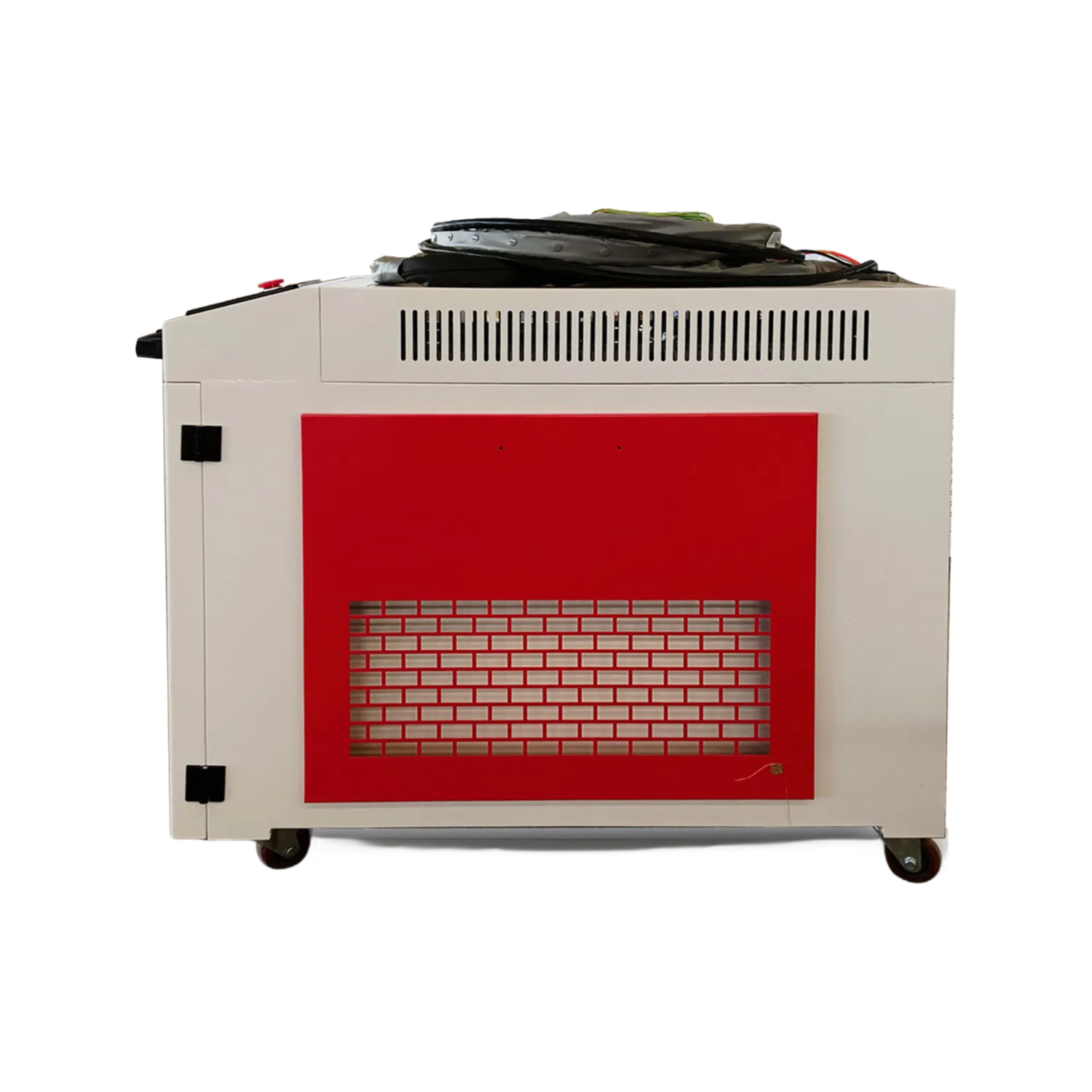

The Wayne fiber laser welding machine represents cutting-edge technology in metal joining applications. This industrial-grade equipment combines precision engineering with user-friendly operation to deliver consistent, high-quality welds across various materials.
Featuring an imported IPG continuous fiber laser source with 1070nm±5nm wavelength, this system provides exceptional beam quality and stability. The multimode laser operates in continuous wave mode, offering adjustable power output from 5-95% with ≤2% power instability for reliable performance.

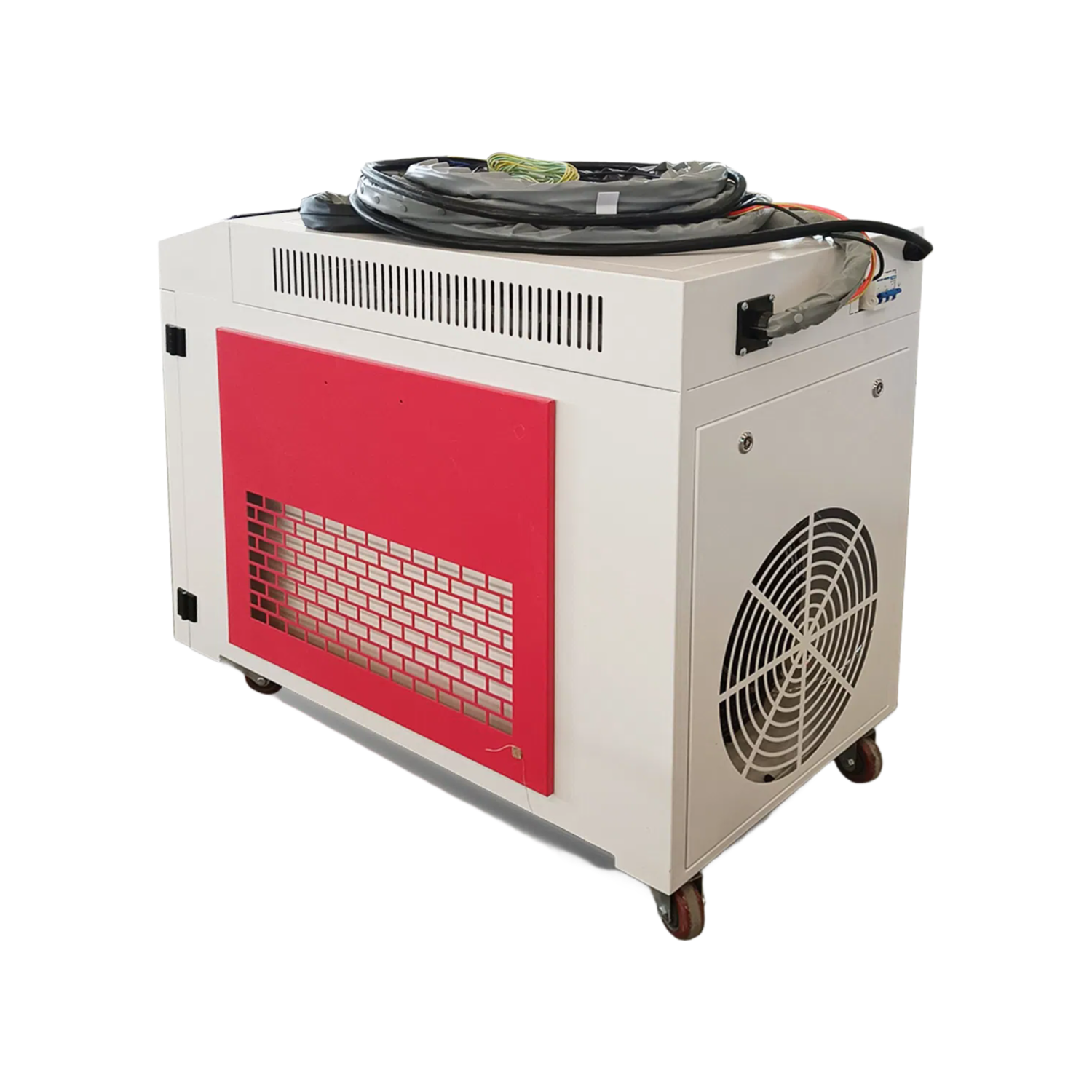

The compact design incorporates a water cooling system maintaining optimal temperatures between 20-25°C. With transmission fiber core diameter of 50μm and minimum light spot of 0.2mm, the machine achieves precise weld control. Optional fiber lengths of 5m, 10m, or 15m provide flexibility for different workspace configurations.
Key advantages include the 7-inch large screen interface for easy operation, infrared sensor for enhanced safety, and adaptive fan speed regulation for energy efficiency. The magnesium aluminum alloy shell combines durability with modern aesthetics while keeping total weight under 45kg for improved portability.
This welding solution supports multiple materials including carbon steel, stainless steel, aluminum alloys, brass, copper, and various specialty metals. The system includes eight versatile welding nozzles and offers optional wire feeder capability for expanded functionality.
